KA2WA645B1Wireless LAN Card

 Quick Installation Guide DWA-645 DWA-645 RANGEBOOSTER N TM 650 Notebook Adapter CD-ROM (Installation CD, Manual and Warranty) If any of the items are missing, please contact your reseller. 1 Remove the D-Link CD-ROM. 2 B. Click “ Install Driver” ( Follow the instruction on the screen and for more information please click “ View Manual”) Quick Installation Package Contents RANGEBOOSTER N TM 650 NOTEBOOK ADAPTER Warning: Do NOT install the Adapter into your computer before installing the driver software from the D-Link CD. A. Insert D-Link CD-ROM into your computer. (OS requirement: WINDOWS 2000/ XP) Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers within Australia: D-Link Technical Support over the Telephone: 1300-766-868 Monday to Friday 8:00am to 8:00pm EST Saturday 9:00am to 1:00pm EST D-Link Technical Support over the Internet: http://www.dlink.com.au email:[email protected] Tech Support for customers within New Zealand: D-Link Technical Support over the Telephone: 0800-900-900 Monday to Friday 8:30am to 8:30pm Saturday 9:00am to 5:00pm D-Link Technical Support over the Internet: http://www.dlink.co.nz email:[email protected] Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers within South Eastern Asia and Korea: D-Link South Eastern Asia and Korea Technical Support over the Telephone: +65-6895-5355 Monday to Friday 9:00am to 12:30pm, 2:00pm-6:00pm Singapore Time D-Link Technical Support over the Internet: email:[email protected] Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers within India D-Link Technical Support over the Telephone: +91-22-26526741 +91-22-26526696 –ext 161 to 167 Monday to Friday 9:30am to 7:00pm D-Link Technical Support over the Internet: http://ww.dlink.co.in http://www.dlink.co.in/dlink/drivers/support.asp ftp://support.dlink.co.in email: [email protected] Technical Support You can find software updates and user documentation on the D-Link website. D-Link provides free technical support for customers for the duration of the warranty period on this product. Customers can contact D-Link technical support through our web site or by phone. Tech Support for customers within the Russia D-Link Technical Support over the Telephone: (495) 744-00-99 Monday to Friday 10:00am to 6:30pm D-Link Technical Support over the Internet: http://www.dlink.ru email: [email protected] Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers within the U.A.E & North Africa: D-Link Technical Support over the Telephone: (971) 4-391-6480 (U.A.E) Sunday to Wednesday 9:00am to 6:00pm GMT+4 Thursday 9:00am to 1:00pm GMT+4 D-Link Middle East & North Africa D-Link Technical Support over the Internet: http://support.dlink-me.com email:[email protected] Tech Support for customers within Israel: D-Link Technical Support over the Telephone: (972) 9-9715701 Sunday to Thursday 9:00am to 5:00pm D-Link Technical Support over the Internet: http://www.dlink.co.il/support/ e-mail: [email protected] Tech Support for customers within Turkey: D-Link Technical Support over the Telephone: 0090 312 473 40 55 Monday to Friday 9:00am to 6:00pm D-Link Technical Support over the Internet: http://www.dlink.com.tr e-mail: [email protected] Tech Support for customers within Egypt: D-Link Technical Support over the Telephone: +202-2919035, +202-2919047 Sunday to Thursday 9:00am to 5:00pm D-Link Technical Support over the Internet: http://support.dlink-me.com e-mail: [email protected] Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers within South Africa and Sub Sahara Region: D-Link South Africa and Sub Sahara Technical Support over the Telephone: +27-12-665-2165 08600 DLINK ( For South Africa only ) Monday to Friday 8:30am to 9:00pm South Africa Time D-Link Technical Support over the Internet: http://www.d-link.co.za email:[email protected]  Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for Latin America customers: D-Link Technical Support over the followings Telephones: Argentina: 0-800 122 35 465 Monday to Friday 09:00am to 22:00pm Chile: 800-835465 Monday to Friday 08:00am to 21:00pm Colombia: 01-800 952 54 65 Monday to Friday 07:00am to 20:00pm Ecuador: 1800-035465 Monday to Friday 07:00am to 20:00pm El Salvador: 800-6137 Monday to Friday 06:00am to 19:00pm Guatemala:1800-300 0017 Monday to Friday 06:00am to 19:00pm Panama: 00-800 052 54 65 Monday to Friday 07:00am to 20:00pm Peru: 0800-00 968 Monday to Friday 07:00am to 20:00pm Venezuela: 0-800-100 5767 Monday to Friday 08:00am to 21:00pm D-Link Technical Support over the Internet: www.dlinkla.com www.dlinklatinamerica.com email:[email protected] Tech Support for customers within Brazil: D-Link Technical Support over the Telephone: 0800-7014104 Monday to Friday 8:30am to 18:30pm D-Link Technical Support over the Internet: www.dlinkbrasil.com.br email:[email protected]  Руководство по быстрой установке DWA-645 Беспроводной адаптер для ноутбука Если что-либо из перечисленного отсутствует, обратитесь к поставщику. Комплект поставки DWA-645 Беспроводной адаптер для ноутбука Компакт-диск (содержит ПО, Руководство пользователя и гарантию) 1 Вытащите компакт-диск D-Link. 2 B. Нажмите "Install Driver". (Следуйте инструкциям на экране и для дополнительной информации, пожалуйста, нажмите “ View Manual”) Предупреждение: НЕ устанавливайте адаптер в компьютер до тех пор, пока не установите драйверы с диска D-Link! Быстрая установка A. Поместите компакт-диск D-Link в компьютер (Требуемая ОС: WINDOWS 2000/XP )  Техническая поддержка Обновления программного обеспечения и документация доступны на Интернет-сайте D-Link. D-Link предоставляет…

Text truncated - open the document above for the full version.

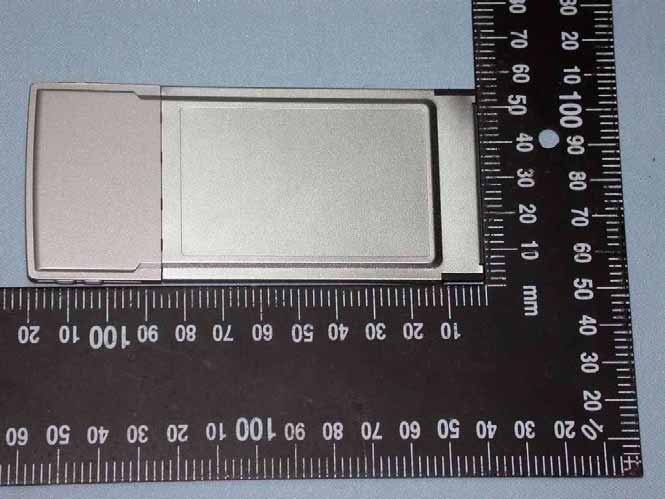

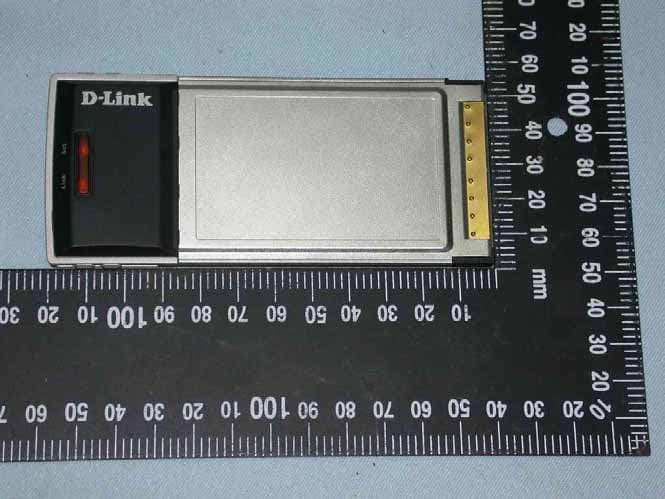

Compliance Certification Services Inc. Report No.70226006 Page 1 of 8 External Photo

Compliance Certification Services Inc. Report No.70226006 Page 2 of 8 Internal Photo Compliance Certification Services Inc. Report No.70226006 Page 3 of 8 Compliance Certification Services Inc. Report No.70226006 Page 4 of 8 Compliance Certification Services Inc. Report No.70226006 Page 5 of 8 Compliance Certification Services Inc. Report No.70226006 Page 6 of 8 Compliance Certification Services Inc. Report No.70226006 Page 7 of 8 Compliance Certification Services Inc. Report No.70226006 Page 8 of 8

CAM350 PRO V 7.0 : Thu Mar 29 11:45:03 2007 - (Untitled) : art0 01.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:05 2007 - (Untitled) : art0 02.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:06 2007 - (Untitled) : art0 03.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:08 2007 - (Untitled) : art0 04.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:08 2007 - (Untitled) : dd00 1.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:09 2007 - (Untitled) : sm00 1.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:09 2007 - (Untitled) : sm00 4.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:09 2007 - (Untitled) : smd0 01.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:10 2007 - (Untitled) : smd0 04.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:10 2007 - (Untitled) : ssb0 04.pho CAM350 PRO V 7.0 : Thu Mar 29 11:45:10 2007 - (Untitled) : sst0 01.pho

Compliance Certification Services Inc. Report No.: 70226006-SF FCC ID: KA2WA645B1 Date of Issue: March 24, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 29 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Wireless LAN Card Trade Name: D-Link Model: DWA-645 Issued to D-Link Corporation No.289, Shinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70226006-SF Date of Issue: March 24, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES ...............................................................................................9 5. MEASUREMENT UNCERTAINTY ......................................................................................13 6. EXPOSURE LIMIT ..................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .15 8. MEASUREMENT RESULTS..................................................................................................16 8.1 SYSTEM PERFORMANCE CHECK..............................................................................16 8.2 TEST LIQUID CONFIRMATION...................................................................................17 8.3 EUT TUNE-UP PROCEDURES AND TEST MODE.....................................................18 8.4 SAR MEASUREMENTS RESULTS...............................................................................20 9. EUT PHOTOS ...........................................................................................................................26 10. EQUIPMENT LIST & CALIBRATION STATUS................................................................27 11. FACILITIES..............................................................................................................................28 12. REFERENCES ..........................................................................................................................28 13. ATTACHMENTS......................................................................................................................29 Compliance Certification Services Inc. Report No.: 70226006-SF Date of Issue: March 24, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless LAN Card Trade Name D-Link Model Number DWA-645 Model Discrepancy N/A Frequency Range 802.11b: 2400 ~ 2483.5 MHz 802.11g: 2400 ~ 2483.5 MHz 802.11n: 2400 ~ 2483.5 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 23.51 dBm 802.11g: 21.09 dBm 802.11n: 22.96 dBm(HT20) 802.11n: 19.86 dBm(HT40) Sony host: 802.11b: 0.282 W/kg 802.11g: 0.452 W/kg 802.11n: 0.446 W/kg(HT20) 802.11n: 0.215 W/kg(HT40) Acer host: 802.11b: 0.681 W/kg 802.11g: 0.932 W/kg 802.11n: 1.010 W/kg(HT20) 802.11n: 0.969 W/kg(HT40) Max. SAR (1g): Dell host: 802.11b: 0.478 W/kg 802.11g: 0.597 W/kg 802.11n: 1.320 W/kg(HT20) 802.11n: 0.681 W/kg(HT40) Modulation Technique 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) 802.11n: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: Printed antenna Host 1 Sony, Model: VGN-S44TP, SN: 28198080 8100339 Host 2 Acer, Model: TravelMate 8000, SN: 04070038 Host 3 Dell, Model: D600, SN: CN-0T9369-48643-4CB-0392 Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No.: 70226006-SF Date of Issue: March 24, 2007 Page 5 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 4. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± …

Text truncated - open the document above for the full version.

Date/Time: 3/23/2007 12:03:29 PM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; ı = 1.91 mho/m; İ r = 51.7; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.92 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.8 V/m; Power Drift = -0.087 dB Peak SAR (extrapolated) = 32.6 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.0 mW/g Maximum value of SAR (measured) = 15.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.7 mW/g Page1 Page2 Date/Time: 3/23/2007 1:12:42 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Bottom Flat Touch mode sony DUT: DWA-645; Type: Wireless LAN Card; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.88 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=1M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.323 mW/g Middle CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.07 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 0.594 W/kg SAR(1 g) = 0.282 mW/g; SAR(10 g) = 0.140 mW/g Maximum value of SAR (measured) = 0.390 mW/g Page1 Page2 Date/Time: 3/23/2007 1:37:00 PM Test Laboratory: Compliance Certification Services Inc. 802.11g Bottom Flat Touch mode sony DUT: DWA-645; Type: Wireless USB Adapter; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.88 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=6M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.472 mW/g Middle CH, Rate=6M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.452 mW/g; SAR(10 g) = 0.199 mW/g Maximum value of SAR (measured) = 0.498 mW/g Page1 Page2 Date/Time: 3/23/2007 2:08:15 PM Test Laboratory: Compliance Certification Services Inc. 802.11n Bottom Flat Touch mode HT20 sony DUT: DWA-645; Type: Wireless USB Adapter; Serial: N/A Communication System: IEEE 802.11n WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.88 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=6.5M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.574 mW/g Middle CH, Rate=6.5M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 0.899 W/kg SAR(1 g) = 0.446 mW/g; SAR(10 g) = 0.239 mW/g Maximum value of SAR (measured) = 0.600 mW/g Page1 Page2 Date/Time: 3/23/2007 2:33:40 PM Test Laboratory: Compliance Certification Services Inc. 802.11n Bottom Flat Touch mode HT40 sony DUT: DWA-645; Type: Wireless LAN Card; Serial: N/A Communication System: IEEE 802.11n WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; ı = 1.88 mho/m; İ r = 51.8; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.8 deg C;Liquid Temperature:23.8 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(7.88, 7.88, 7.88); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Middle CH, Rate=13M/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15m…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 1 of 141 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For Wireless LAN Card Model : DWA-645 Trade Name : D-Link Issued for D-Link Corporation No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 2 of 141 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER ..................................................................................................4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................6 5. FACILITIES AND ACCREDITATIONS .................................................................................. 6 5.1 FACILITIES ........................................................................................................................................6 5.2 EQUIPMENT ......................................................................................................................................6 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................................6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..............................................................................7 6. CALIBRATION AND UNCERTAINTY .................................................................................... 8 6.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................8 6.2 MEASUREMENT UNCERTAINTY .....................................................................................................8 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 9-10 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 11 8.1 6dB BANDWIDTH ..............................................................................................................................11-24 8.2 99% BANDWIDTH .............................................................................................................................25-38 8.3 MAXIMUM PEAK OUTPUT POWER................................................................................................39-53 8.4 MAXIMUM PERMISSIBLE EXPOSURE ...........................................................................................54-55 8.5 AVERAGE POWER.............................................................................................................................56-58 8.6 POWER SPECTRAL DENSITY...........................................................................................................59-78 8.7 CONDUCTED SPURIOUS EMISSION..............................................................................................79-95 8.8 RADIATED EMISSIONS.....................................................................................................................96 8.8.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................. 96-99 8.8.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................ 100 8.8.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................... 101-112 8.8.4 RESTRICTED BAND EDGES..................................................................................... 113-128 8.9 POWERLINE CONDUCTED EMISSIONS ........................................................................................129-132 9. ANTENNA REQUIREMENT .................................................................................................... 133 9.1 STANDARD APPLICABLE.................................................................................................................133 9.2 ANTENNA CONNECTED CONSTRUCTION ....................................................................................133 APPENDIX SETUP PHOTOS....................................................................................................... 134-141 Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 3 of 141 1. TEST REPORT CERTIFICATION Applicant D-Link Corporation Address No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Equipment Under Test Wireless LAN Card Model DWA-645 Trade Name D-Link Tested Date January 27 ~ March 15, 2007 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2004 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 4 of 141 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Wireless LAN Card Mod…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 134 of 141 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 135 of 141 Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 136 of 141 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 137 of 141 Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 138 of 141 RF PORT COUNTED MEASURE SETUP Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 139 of 141 Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 140 of 141 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID KA2WA645B1 Report No.70226006-RP1 Page 141 of 141
