KA2WL3230APA1Wireless Lan Access Point

DWL-3260AP Install Guide Installing the Hardware System Requirements: Minimum System Requirements: • CD-ROM Drive • Computers with Windows, Macintosh, or Linux-based operating systems • Installed Ether net Adapter Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above Package Contents D-Link Systems, Inc. DWL-3260AP Install Guide Installing the Hardware Connect one end of an Ethernet cable (included with your package) to the LAN port on the DWL-3260AP and the other end of the Ethernet cable to the port labeled P+DATA OUT on the PoE base unit. Connect another Ethernet cable from the DATA IN port on the PoE base unit to your router/switch or to a PC. D-Link Systems, Inc. DWL-3260AP Install Guide Installing the Hardware D-Link Systems, Inc. DWL-3260AP Install Guide Installing the Hardware Step 1 - Setup your new password. You have the option to establish a password. By default the DWL-3260AP is set to with a setting of For networks please continue as follows: – The DWL-3260AP is capable Of three levels of wireless encryption: 64-,128-,152-bit,using either Hexadecimal or ASCII key type By default encryption is disabled. You can change the encryption settings for more secure wireless communication. D-Link Systems, Inc. DWL-3260AP Install Guide Installing the Hardware Your Setup is Complete! When you have completed the steps in this Quick Installation Guide, your connected network should look similar to this: DWL-3260AP DWL-3260AP D-Link Systems, Inc. DWL-3260AP Install Guide Installing the Hardware D-Link Systems, Inc. DWL-3260AP Install Guide Installing the Hardware This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor environment only. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. User’s manual for Canada with warning as following: "Operation is subject to the following two conditions: (1) this device may not cause D-Link Systems, Inc. DWL-3260AP Install Guide Installing the Hardware interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." "The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb" "To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication" "This device has been designed to operate with an antenna having a maximum gain of 2.0 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms." “To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.” D-Link Systems, Inc. DWL-3260AP Install Guide Installing the Hardware D-Link Systems, Inc.

Confidential Letter Date: 2006/12/20 Federal Communications Commission Authorization and Evaluation Division FCC IDKA2WL3230APA1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : D-Link Corporation. Applicant’s company address : No.289, Shinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Signature : _________________________________ Name and Job Title : Akira Huang / Director

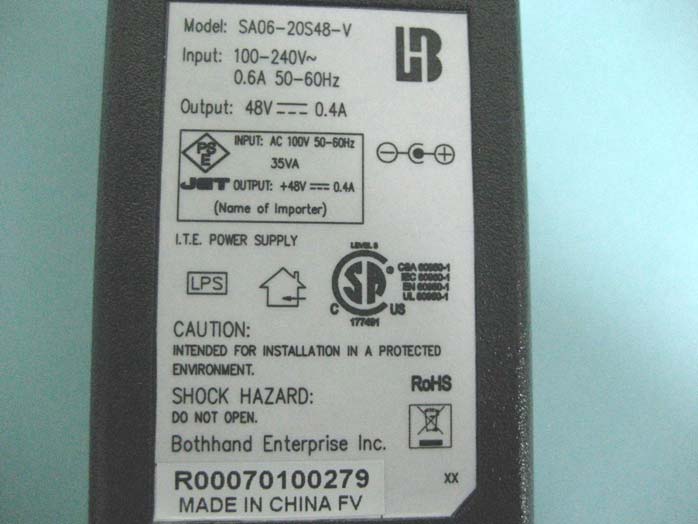

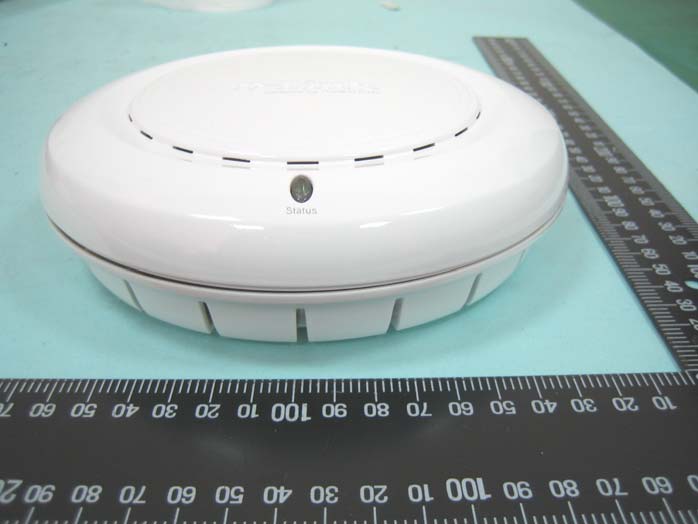

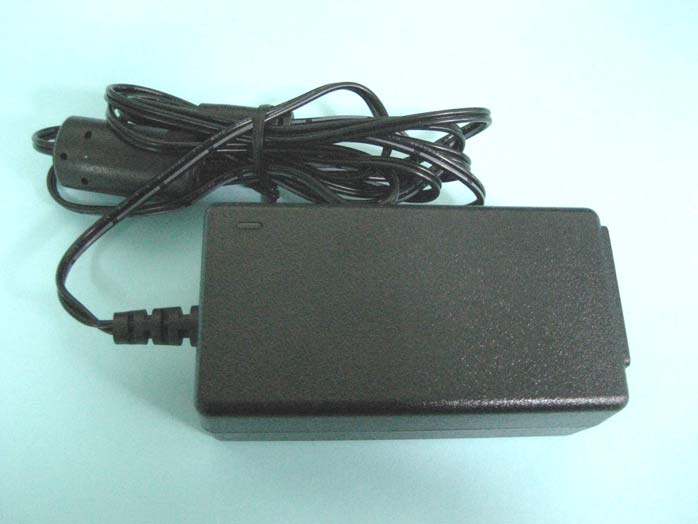

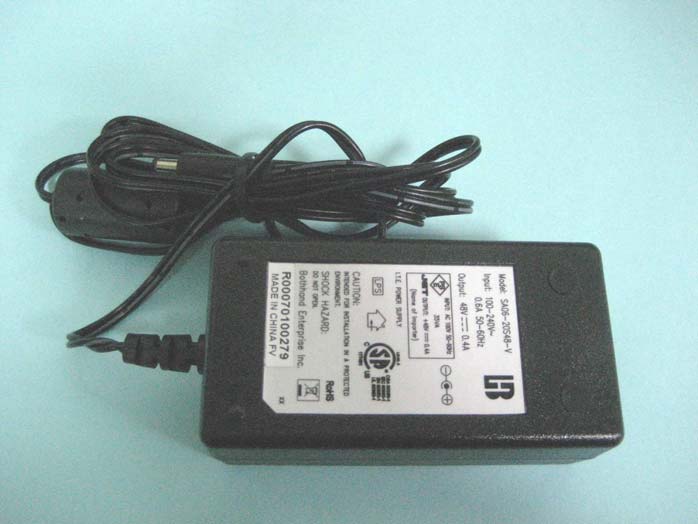

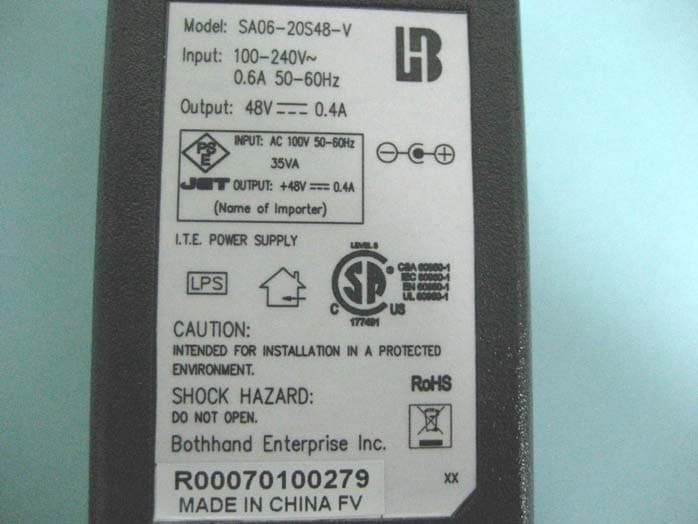

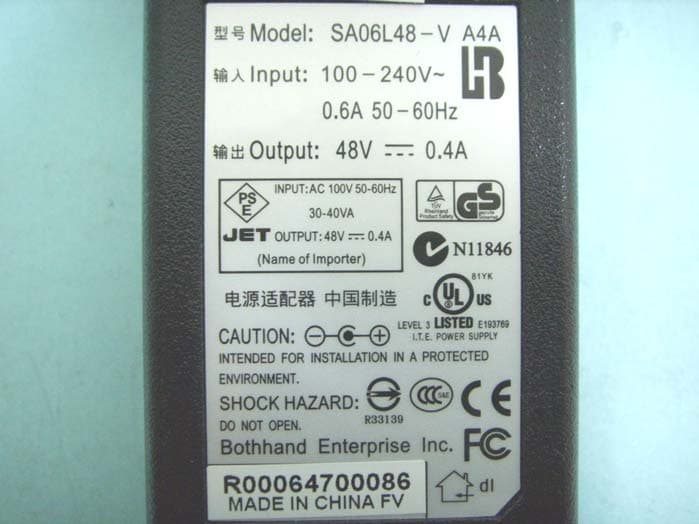

SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Model No.: DWL-3230AP SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 Model No.: DWL-3260AP SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 Adapter 1 SPORTON International Inc. PAGE NUMBER : A8 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255 Adapter 2 SPORTON International Inc. PAGE NUMBER : A10 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 23, 2007 FAX : 886-2-2696-2255

55mm*31mm

REPORT NO. : 6N2704 SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Model No.: DWL-3230AP REPORT NO. : 6N2704 SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : FAX : 886-2-2696-2255 REPORT NO. : 6N2704 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : FAX : 886-2-2696-2255 REPORT NO. : 6N2704 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : FAX : 886-2-2696-2255 REPORT NO. : 6N2704 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : FAX : 886-2-2696-2255 Model No.: DWL-3260AP REPORT NO. : 6N2704 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : FAX : 886-2-2696-2255 REPORT NO. : 6N2704 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : FAX : 886-2-2696-2255

Report No.: FR6N2704 FCC ID: KA2WL3230APA1 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR6N2704 FCC ID: KA2WL3230APA1 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR6N2704 FCC ID: KA2WL3230APA1 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Printed Max Conducted Power for IEEE 802.11b/g : 20.95dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.05 1.2735 20.9500 124.4515 0.031546 1 Complies Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g : 20.95dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.1 1.6218 20.9500 124.4515 0.040174 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company D-Link Corporation. Applicant Address No.289, Shinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. FCC ID KA2WL3230APA1 Manufacturer’s company Alpha Networks Inc. Manufacturer Address No. 10-1, Li-Hsin Rd. 1, Science-Based Industrial Park, Hsinchu 300, Taiwan R.O.C Product Name Wireless Lan Access Point Brand Name D-Link Model Name DWL-3260AP, DWL-3230AP Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Nov. 27, 2006 Final Test Date Jan. 30, 2007 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR6N2704 Page No. : i of ii FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Multiple Listing......................................................................................................................................................................5 3.8. Table for Supporting Units ...................................................................................................................................................................5 3.9. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.10. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................10 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................16 4.3. Power Spectral Density Measurement ..............................................................................................................................................18 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................24 4.5. Radiated Emissions Measurement ....................................................................................................................................................30 4.6. Band Edge Emissions Measurement .................................................................................................................................................50 4.7. Antenna Requirements .....................................................................................................................................................................59 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 60 6. TEST LOCATION.............................................................................................................................................. 62 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A17 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 APPENDIX C. …

Text truncated - open the document above for the full version.

Report No.: FR6N2704 Page No. : 30 of 62 FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 4.5. Radiated Emissions Measurement 4.5.1. Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 4.5.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 100KHz / 100KHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP Report No.: FR6N2704 Page No. : 31 of 62 FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 4.5.3. Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. Report No.: FR6N2704 Page No. : 32 of 62 FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 4.5.4. Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1.5m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1.5m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [6 dB]. 4.5.5. Test Deviation There is no deviation with the original standard. 4.5.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3m Report No.: FR6N2704 Page No. : 33 of 62 FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 4.5.7. Results of Radiated Emissions (9kHz~30MHz) Temperature 25°C Humidity 63% Test Engineer Jordan Hsiao Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions that are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. Report No.: FR6N2704 Page No. : 34 of 62 FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 4.5.8. Results of Radiated Emissions (30MHz~1GHz) Temperature 25°C Humidity 63% Test Engineer Jordan Hsiao Configurations 802.11g CH 6 / Mode 5 Horizontal Report No.: FR6N2704 Page No. : 35 of 62 FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6N2704 Page No. : 36 of 62 FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 4.5.9. Results for Radiated Emissions (1GHz~10 th Harmonic) Temperature 25°C Humidity 63% Test Engineer Jordan Hsiao Configurations 802.11b CH 1 Horizontal Report No.: FR6N2704 Page No. : 37 of 62 FCC ID: KA2WL3230APA1 Issued Date : Jan. 31, 2007 Vertical Report No.: F…

Text truncated - open the document above for the full version.

Report No.: FR6N2704 FCC ID: KA2WL3230APA1 Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR6N2704 FCC ID: KA2WL3230APA1 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR6N2704 FCC ID: KA2WL3230APA1 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~1GHz FRONT VIEW REAR VIEW Report No.: FR6N2704 FCC ID: KA2WL3230APA1 Page No. : 4 of 5 30MHz ~1GHz FRONT VIEW REAR VIEW Report No.: FR6N2704 FCC ID: KA2WL3230APA1 Page No. : 5 of 5 Above 1GHz FRONT VIEW REAR VIEW
