KA2WLG122C1IEEE802.11g Wireless USB Adapter

Manual Building Networks for People 802.11g Wireless USB Adapter DWL-G122 2 Contents Package Contents................................................................................ 3 Introduction............................................................................................ 4 Features and Benefits........................................................................... 6 Wireless Basics.................................................................................... 7 Installation Considerations.................................................................... 8 Getting Started ...................................................................................... 9 Using the Configuration Utility.............................................................. 11 Using the Configuration Utility with Macintosh OS............................... 20 Networking Basics.............................................................................. 24 Troubleshooting................................................................................... 37 Technical Specifications...................................................................... 40 Contacting Technical Support.............................................................. 42 Warranty and Registration................................................................... 43 3 D-Link AirPlus TM G DWL-G122 2.4 GHz Wireless USB 2.0 Adapter At least 32MB of memory and a 300MHz processor Properly installed and working USB Controller Windows XP/2000/Me/98SE
A computer or laptop with an available USB port


Manual on CD-ROM Quick Installation Guide Cradle Contents of Package: Package Contents If any of the above items are missing, please contact your reseller. System Requirements:



Mac OS X (v10.3x)
4 Introduction The D-Link AirPlus G DWL-G122 Wireless USB Adapter is a convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. With transfer rates up to 54Mbps you can connect to a wireless network at home, at the office or at any wireless hotspot. Now you can stay connected wherever you are and wherever you go. The DWL-G122 is Wi-Fi compliant, meaning that it can connect and interoperate with other 802.11b or 802.11g Wi-Fi-compliant wireless routers, access points and adapters. The DWL-G122 connects to any available USB port on a laptop or desktop Windows and Macintosh-based computer and also includes a USB cradle. With the optional USB cradle, the DWL-G122 can be positioned virtually anywhere at a workstation to achieve the best available wireless signal reception - whether that workstation is in your office, on your deck or patio, by the pool, at the local coffee shop, or in an airport terminal while waiting to board your next flight. The adapter works with Apple Mac OS X (v10.2x or later) Jaguar, Microsoft Windows XP, Windows 2000 and other Windows operating systems to ensure that you’ll be up and running on a wireless network in just a matter of seconds. Using its default settings, the DWL-G122 automatically connects to other D-Link Air or AirPlus wireless products as soon as it’s active. In addition to featuring 64- or 128-bit WEP encryption, the DWL-G122 offers the added security of WPA(Wi-Fi Protected Access)/WPA2 when used with other WPA / WPA2 devices in a network with a RADIUS server. For home users that will not incorporate a RADIUS server in their network, the security for the DWL-G122, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before when you use the Pre- Shared Key mode of WPA / WPA2. TM 5 Features and Benefits Provides high-speed wireless connection at up to 54Mbps ** 2 Environmental factors may adversely affect range 1 WPA2 is only for Windows users
Better Security with WPA/WPA2 1 - In addition to 64-,128-bit WEP encryption,you can also securely connect to a wireless network using WPA(Wi-Fi Protected Access) providing you a much higher level of security for your data and communication than has previously been available. Convenience of Plug & Play installation Compact size for placement anywhere Fully 802.11b/802.11g compatible USB 2.0 standard


Powered by the USB port; no external power source is required


User-friendly configuration and diagnostic utilities Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode Connects at up to 328 feet indoors 2


One year warranty
Optimal wireless reception using its cradle (included). Position the DWL-G122 almost anywhere in your workspace to achieve the best reception possible.
6 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to- use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A wireless local area network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial to many users. People use WLAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. Low Implementatio…

Text truncated - open the document above for the full version.

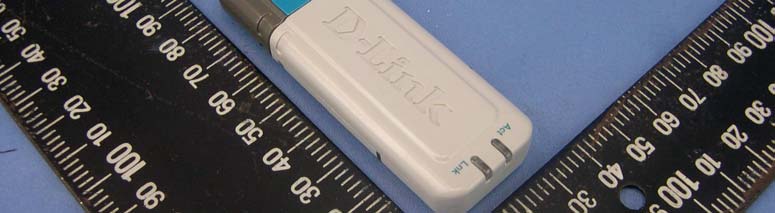

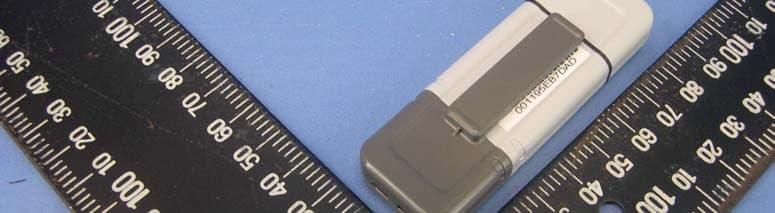

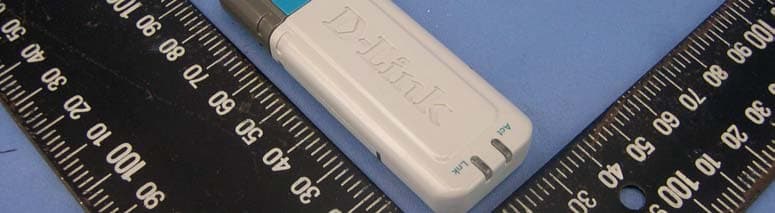

Page 1 CONSTRUCTION PHOTOS OF EUT

Label Location Label FCC ID：KA2WLG122C1

Page 2 Page 3 Page 4

FCC ID: KA2WLG122C1 Report No. RF941005H01 Operational Description This device is an IEEE802.11g Wireless USB Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (IEEE802.11g Wireless USB Adapter) is powered by host equipment. The antenna type used in this product is Printed Antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: KA2WLG122C1 Report no.: SA941005H011Report Format Version 2.0.2 SAR TEST REPORT REPORT NO.: SA941005H01 MODEL NO.: DWL-G122 OEM MODEL NO.: WUS-G07 RECEIVED: Oct. 05, 2005 TESTED: Oct. 18, 2005 ISSUED: Oct. 20, 2005 APPLICANT: D-LINK Corporation ADDRESS: No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 36 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: KA2WLG122C1 Report no.: SA941005H012Report Format Version 2.0.2 TABLE OF CONTENTS 1.CERTIFICATION.......................................................................................................3 2.GENERAL INFORMATION........................................................................................4 2.1GENERAL DESCRIPTION OF EUT..........................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM..................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION..................8 3.DESCRIPTION OF SUPPORT UNITS....................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS.................................13 4.1.DESCRIPTION OF ANTENNA LOCATION..............................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION.......................................................14 4.3.DESCRIPTION OF TEST MODE............................................................................15 4.4.SUMMARY OF TEST RESULTS.............................................................................15 5.TEST RESULTS......................................................................................................16 5.1TEST PROCEDURES.............................................................................................16 5.2MEASURED SAR RESULTS...................................................................................18 5.3SAR LIMITS............................................................................................................20 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.....................................................21 5.5TEST EQUIPMENT FOR TISSUE PROPERTY.......................................................23 6.SYSTEM VALIDATION............................................................................................24 6.1TEST EQUIPMENT.................................................................................................24 6.2TEST PROCEDURE...............................................................................................25 6.3VALIDATION RESULTS..........................................................................................27 6.4SYSTEM VALIDATION UNCERTAINTIES...............................................................28 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES........................................29 7.1.PROBE CALIBRATION UNCERTAINTY.................................................................29 7.2.ISOTROPY UNCERTAINTY....................................................................................30 7.3.BOUNDARY EFFECT UNCERTAINTY...................................................................30 7.4.PROBE LINEARITY UNCERTAINTY.......................................................................31 7.5.READOUT ELECTRONICS UNCERTAINTY...........................................................31 7.6.RESPONSE TIME UNCERTAINTY.........................................................................31 7.7.INTEGRATION TIME UNCERTAINTY....................................................................32 7.8.PROBE POSITIONER MECHANICAL TOLERANCE..............................................33 7.9.PROBE POSITIONING............................................................................................33 7.10.PHANTOM UNCERTAINTY....................................................................................34 7.11.DASY4 UNCERTAINTY BUDGET...........................................................................35 8.INFORMATION ON THE TESTING LABORATORIES.............................................36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: KA2WLG122C1 Report no.: SA941005H013Report Format Version 2.0.2 1. CERTIFICATION PRODUCT: IEEE 802.11g Wireless USB Adapter MODEL: DWL-G122 OEM MODEL: WUS-G07 BRAND: D-Link OEM BRAND: Alpha APPLICANT: D-LINK Corporation TESTED: Oct. 18, 2005 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment (model: DWL-G122) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Oct. 20, 2005 Rennie Wang TECHNICAL ACCEPTANCE :, DATE:Oct. 20, 2005 Responsible for RF Stanely Hsu APPROVED BY:, DATE: Oct. 20, 2005 Cody Chang / Deputy Manager FCC ID: KA2WLG122C1 Report no.: SA941005H014Report Format Version …

Text truncated - open the document above for the full version.

FCC ID: KA2WLG122C1 Report No.: RF941005H011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.:RF941005H01 MODEL NO.: DWL-G122, WUS-G07 RECEIVED:Oct. 05, 2005 TESTED:Oct. 12 to 14, 2005 ISSUED: Oct. 19, 2005 APPLICANT:D-LINK Corporation ADDRESS:No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: KA2WLG122C1 Report No.: RF941005H012Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 9 3.5DESCRIPTION OF SUPPORT UNITS........................................................ 10 3.6CONFIGURATION OF SYSTEM UNDER TEST ......................................... 10 4TEST TYPES AND RESULTS......................................................................11 4.1CONDUCTED EMISSION MEASUREMENT ...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................11 4.1.2TEST INSTRUMENTS .................................................................................11 4.1.3TEST PROCEDURES................................................................................. 12 4.1.4TEST SETUP .............................................................................................. 12 4.1.5EUT OPERATING CONDITIONS................................................................ 13 4.1.6TEST RESULTS.......................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ................................................... 16 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 16 4.2.2TEST INSTRUMENTS ................................................................................ 17 4.2.3TEST PROCEDURES................................................................................. 18 4.2.4TEST SETUP .............................................................................................. 19 4.2.5EUT OPERATING CONDITIONS................................................................ 19 4.2.6TEST RESULTS.......................................................................................... 20 4.2.7TEST RESULTS – DSSS ............................................................................ 21 4.2.8TEST RESULTS – OFDM ........................................................................... 24 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS – DSSS ............................................................................ 29 4.3.7TEST RESULTS – OFDM ........................................................................... 32 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 4.4.2TEST INSTRUMENTS ................................................................................ 35 4.4.3TEST PROCEDURES................................................................................. 36 4.4.4TEST SETUP .............................................................................................. 36 FCC ID: KA2WLG122C1 Report No.: RF941005H013Report Format Version 2.0.4 4.4.5EUT OPERATING CONDITIONS................................................................ 36 4.4.6TEST RESULTS – DSSS ............................................................................ 37 4.4.7TEST RESULTS – OFDM ........................................................................... 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS – DSSS ............................................................................ 41 4.5.7TEST RESULTS – OFDM ......................................…

Text truncated - open the document above for the full version.

FCC ID: KA2WLG122C1 Report No.: RF941005H0157Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: KA2WLG122C1 Report No.: RF941005H0158Report Format Version 2.0.4 RADIATED EMISSION TEST
