User Manual DWR-510 V0.1 (Draft) - 1 - DWR-510 HSPA USB Dongle Router User Manual User Manual DWR-510 V0.1 (Draft) - 2 - I. Introduction i ii i. Overview . Overview. Overview . Overview DWR-510 HSPA USB Dongle Router – is a highly integrated wireless solution for 3G and WiFi. The demands of data communication everywhere becomes more due to the great development of 3G HSPA system. DWR-510 adopts Qualcomm MSM6290 solution. It provides up to 7.2 Mbps HSDPA, up to 5.76 Mbps HSUPA, RX antenna diversity and wireless router etc. DWR-510 is fast, reliable and easy to operate. Therefore, user can experience the new features and surf the internet everywhere by DWR-510 dongle router. ii. Features ◎HSUPA data rate up to 5.76 Mbps ◎HSDPA data rate up to 7.2 Mbps ◎UMTS PS domain data rate up to 384 kbps ◎ EDGE packet data rate up to 236.8 kbps ◎GPRS packet data rate up to 115.2 kbps ◎WiFi 802.11 b/g/n ◎Share internet connection with 6 WiFi devices ◎A slide switch to select between WiFi router mode and PC USB modem mode ◎USB interface ◎Multi-color LED indicating status of network connection ◎Support Microsoft Windows XP / Vista / Windows 7 ◎Support Linux (Router mode only) ◎Support Mac OS (Router mode only) iii. Product Review ◎Modem mode Modem mode provides the 3G access only from USB interface. User needs to set the slide switch to modem mode then device will operate in 3G USB modem mode. User needs to launch connection manager utility to access 3G data transaction. User Manual DWR-510 V0.1 (Draft) - 3 - Modem Mode Modem Mode Switch configuration ◎Router Mode DWR-510 will become 3G / WiFi Router in this mode and can share 3G bandwidth to other devices that connect to DWR-510 by WiFi. DWR-510 allows up to 8 WiFi enabled devices to simultaneously connect to the Internet. User Manual DWR-510 V0.1 (Draft) - 4 - Router Mode It is recommended to choose this mode when there is no access point showed in your wireless network. Router Mode Switch configuration User Manual DWR-510 V0.1 (Draft) - 5 - II. Installation i. System Requirements Before you install DWR-510, please make sure your system meets the following requirements. *Desktop or Laptop or applications with USB 1.1/2.0 port *Minimum of 64MB system memory *Operating system: XP/Vista/ Windows 7 ii. Hardware Installation 1. Find an available USB 1.1/2.0 port on your desktop or laptop or other applications. 2. Plug DWR-510 USB adapter into USB port of desktop or laptop or other applications. iii. Setup: Windows XP OS If your computer is running a Windows operating system, it will automatically detect the DWR-510 after device plug into the USB port, and OS displays a “Found New Hardware” window. User Manual DWR-510 V0.1 (Draft) - 6 - 1. Find out the Driver, and launch the Hardware Wizard 2. Please click “Yes, now and every time I connect a device” circle, and “Next>” button. User Manual DWR-510 V0.1 (Draft) - 7 - 3. Please click “Install the software automatically (Recommended)”, and “Next>” button 4. The Hardware Wizard will automatically install the software User Manual DWR-510 V0.1 (Draft) - 8 - 5. If you see the warning Windows Logo testing message, please click “Continue Anyway” 6. Please wait the software installation. User Manual DWR-510 V0.1 (Draft) - 9 - 7. After the “Completing the Found New Hardware Wizard” windows appear, click “Finish” button. User Manual DWR-510 V0.1 (Draft) - 10 - III. Using i. i.i. i. Modem ModemModem Modem mode modemode mode Please push slide switch to “Modem” position to configure device to “Modem mode”. Device will only enable WWAN function in “Modem mode”, WiFi function will be disabled. Steps to use device in “Modem mode”: 1. Please double click “D-Link HSUPA Connection Manager” Icon to launch utility. 2. Please input “PIN code” User Manual DWR-510 V0.1 (Draft) - 11 - 3. After found WWAN Network information and signal bar, please click “connect” icon to connect to WWAN network. 4. The “Dial Up” window will appear, please wait this process to finish. 5. Now, your computer is connecting to WWAN network. You can use internet browser and other internet utility to surf the network. User Manual DWR-510 V0.1 (Draft) - 12 - 6. Menu List: 6.1 Setting 6.1.1 New 6.1.1.1 Contact It’s used for the contact information management. New -> Contact User Manual DWR-510 V0.1 (Draft) - 13 - 6.1.1.2 Message It’s used to edit and send short message. New -> Message 6.1.1.3 Connection Profile It’s used to select built-in APN or modify APN setting. New -> Connection Profile 6.1.2 Connect / Disconnect It’s used to connect or disconnect to WWAN network. User Manual DWR-510 V0.1 (Draft) - 14 - 6.1.3 Router Config 6.1.3.1 Wireless Setting It’s used to modify WiFi setting, including wireless network name (SSID) and security option. Router Config -> Wireless Setting 6.1.3.2 Network Setting It’s used to modify WiFi network setting, including IP and DHCP address. Router Config -> Network Setting User Manual DWR-510 V0.1 (Draft) - 15 - 6.1.3.3 Advanced It’s used to modify WiFi MAC filter setting. Router Config -> Advanced 6.1.3.4 Internet It’s used to modify APN setting for “Router mode” using condition. Router Config -> Internet User Manual DWR-510 V0.1 (Draft) - 16 - 6.1.3.5 Tools It’s used to set password for the management web page in “Router mode” using condition. The default login name and password is admin Router Config -> Tools 6.2 Edit User Manual DWR-510 V0.1 (Draft) - 17 - 6.2.1 Contact It’s used to manage the contact information. 6.2.2 Message It’s used to manage the short message information. User Manual DWR-510 V0.1 (Draft) - 18 - 6.2.3 Connection Profile It’s used to manage the connection profile in “Modem mode” using condition. 6.3 Tools 6.3.1 SIM Card Lock It’s used to lock /unlock SIM card. 6.3.2 PIN Code Change It’s used to change PIN code. User Manual DWR-510 V0.1 (Draft) - 19 - 6.3.3 Network Mode It’s used to configure the WWAN network to “Auto” or “WCDMA only” or “GSM only”. 6.4 Help 6.4.1 About User Manual DWR-510 V0.1 (Draft) - 2…

Text truncated - open the document above for the full version.

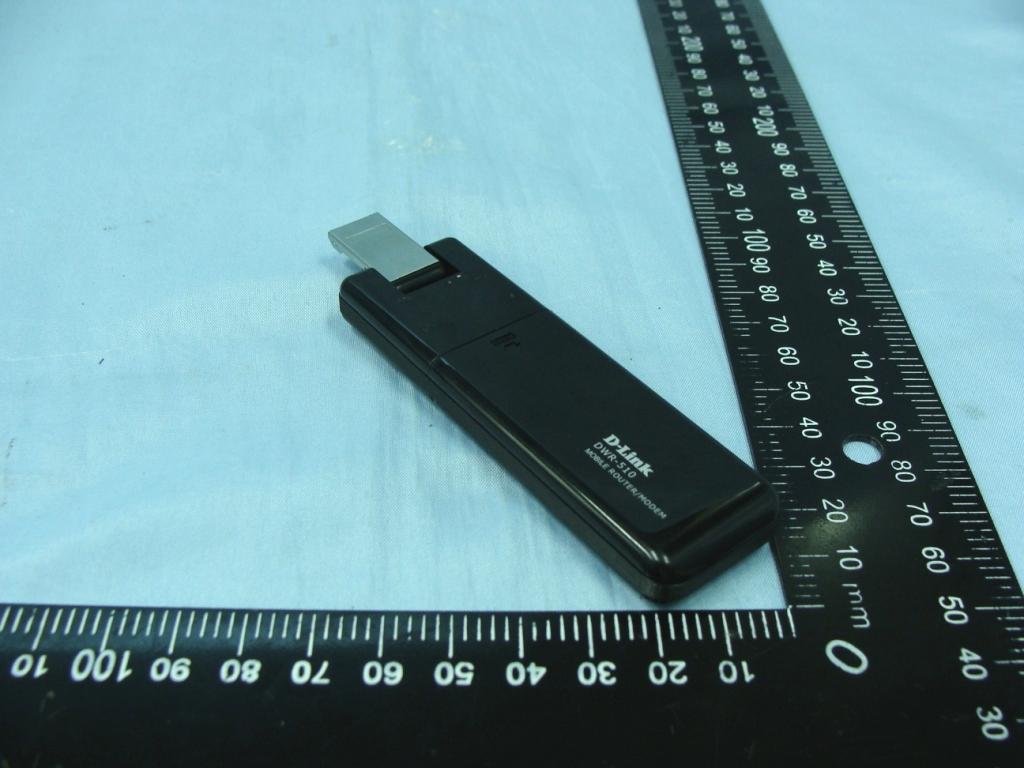

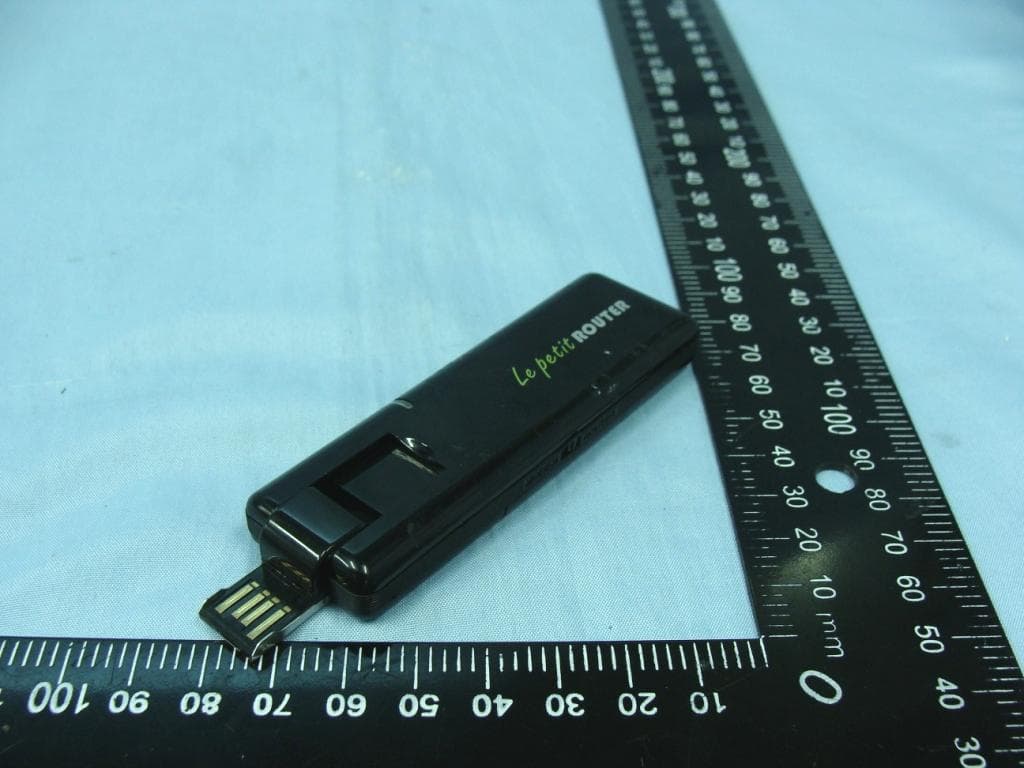

Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 1. External Photograph of EUT Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 26, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 720510

SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Mar. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 FCC SAR Test Report Report No. : FA093032-01 Appendix D. Product Photos Please refer to Sporton report number EP093032-01 as below. Antenna Location 4.4 cm WLAN Antenna (Tx/Rx) WWAN Aux. Antenna (Rx) WWAN Main Antenna (Tx/Rx)

Model:DWR-510 FCC ID: KA2WR510A1 23mm 20mm MADE IN TAIWAN 0700

Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Mar. 24, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 WWAN Main Antenna (Tx/Rx) WLAN Antenna (Tx/Rx) WWAN Aux. Antenna (Rx) 4.4 cm

Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 24, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 2. Internal Photograph of EUT Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 24, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 720510 Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 24, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 WWAN Main Antenna (Tx/Rx) (Tx/Rx) Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 6 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 24, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 WWAN Main Antenna (Tx/Rx) Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 7 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 24, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 WWAN Aux. Antenna (Rx) Photographs of EUT Report No.: EP093032-01 Brand Name: D-Link / Model Name: DWR-510 SPORTON INTERNATIONAL INC. Page Number : 8 of 8 TEL : 886-3-327-3456 Report Issued Date : Mar. 24, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR510A1 WLAN Antenna (Tx/Rx)

SPORTON INTERNATIONAL INC. Page Number : 1 of 33 TEL : 886-3-327-3456 Report Issued Date : Jun. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 04 FCC ID : KA2WR510A1 FCC SAR Test Report Report No. : FA093032-01 FCC SAR Test Report APPLICANT : D-Link Co. EQUIPMENT : DWR-510 3.75G HSUPA USB Adapter BRAND NAME : D-Link MODEL NAME : DWR-510 FCC ID : KA2WR510A1 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Sep. 15, 2010 and completely tested on Apr. 15, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 33 TEL : 886-3-327-3456 Report Issued Date : Jun. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 04 FCC ID : KA2WR510A1 FCC SAR Test Report Report No. : FA093032-01 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage ..................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 System Check_Body_835MHz_100915 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100915 Medium parameters used: f = 835 MHz; σ = 0.993 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.04 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.5 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.956 mW/g; SAR(10 g) = 0.629 mW/g Maximum value of SAR (measured) = 1.04 mW/g 0 dB = 1.04mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 System Check_Body_1900MHz_100915 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_100915 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.47, 4.47, 4.47); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 5.11 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.3 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 6.41 W/kg SAR(1 g) = 4.14 mW/g; SAR(10 g) = 2.26 mW/g Maximum value of SAR (measured) = 4.74 mW/g 0 dB = 4.74mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/4/15 System Check_Body_2450MHz_110415 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_110415 Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.04, 4.04, 4.04); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84 V/m; Power Drift = -0.122 dB Peak SAR (extrapolated) = 29.1 W/kg SAR(1 g) = 12.3 mW/g; SAR(10 g) = 5.65 mW/g Maximum value of SAR (measured) = 13.7 mW/g 0 dB = 13.7mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #01 GSM850_GPRS12_Horizontal Up_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.699 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.09 V/m; Power Drift = -0.150 dB Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.606 mW/g; SAR(10 g) = 0.379 mW/g Maximum value of SAR (measured) = 0.661 mW/g 0 dB = 0.661mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #02 GSM850_GPRS12_Horizontal Down_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.723 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.624 mW/g; SAR(10 g) = 0.370 mW/g Maximum value of SAR (measured) = 0.669 mW/g 0 dB = 0.669mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #02 GSM850_GPRS12_Horizontal Down_0.5cm_Ch189_2D DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.723 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.624 mW/g; SAR(10 g) = 0.370 mW/g Maximum value of SAR (measured) = 0.669 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #03 GSM850_GPRS12_Vertical Back_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (31x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.428 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.83 V/m; Power Drift = -0.122 dB Peak SAR (extrapolated) = 0.635 W/kg SAR(1 g) = 0.355 mW/g; SAR(10 g) = 0.221 mW/g Maximum value of SAR (measured) = 0.386 mW/g 0 dB = 0.386mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #04 GSM850_GPRS12_Vertical Front_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (31x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.259 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.24 V/m; Power Drift = -0.123 dB Peak SAR (extrapolated) = 0.401 W/kg SAR(1 g) = 0.223 mW/g; SAR(10 g) = 0.135 mW/g Maximum value of SAR (measured) = 0.252 mW/g 0 dB = 0.252mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #05 GSM850_GPRS12_Tip Mode_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; T…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #01 GSM850_GPRS12_Horizontal Down_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.699 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.09 V/m; Power Drift = -0.150 dB Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.606 mW/g; SAR(10 g) = 0.379 mW/g Maximum value of SAR (measured) = 0.661 mW/g 0 dB = 0.661mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #02 GSM850_GPRS12_Horizontal Up_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.723 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.624 mW/g; SAR(10 g) = 0.370 mW/g Maximum value of SAR (measured) = 0.669 mW/g 0 dB = 0.669mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #02 GSM850_GPRS12_Horizontal Up_0.5cm_Ch189_2D DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.723 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.624 mW/g; SAR(10 g) = 0.370 mW/g Maximum value of SAR (measured) = 0.669 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #03 GSM850_GPRS12_Vertical Front_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (31x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.428 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.83 V/m; Power Drift = -0.122 dB Peak SAR (extrapolated) = 0.635 W/kg SAR(1 g) = 0.355 mW/g; SAR(10 g) = 0.221 mW/g Maximum value of SAR (measured) = 0.386 mW/g 0 dB = 0.386mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #04 GSM850_GPRS12_Vertical Back_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (31x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.259 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.24 V/m; Power Drift = -0.123 dB Peak SAR (extrapolated) = 0.401 W/kg SAR(1 g) = 0.223 mW/g; SAR(10 g) = 0.135 mW/g Maximum value of SAR (measured) = 0.252 mW/g 0 dB = 0.252mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/15 #05 GSM850_GPRS12_Tip Mode_0.5cm_Ch189 DUT: 093032-01 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: MSL_850_100915 Medium parameters used: f = 836.4 MHz; σ = 0.995 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: …
