KA2WR712C1HSPA+ 3G SOHO Router

Version 1.00 | 04/02/2014 User Manual DWR-712 HSPA+ 3G Router iD-Link DWR-712 User Manual D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies. Copyright © 2014 by D-Link Corporation, Inc. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc. Preface iiD-Link DWR-712 User Manual Table of Contents Product Overview ..............................................................1 Package Contents .........................................................................1 System Requirements .................................................................1 Introduction ...................................................................................2 Hardware Overview .....................................................................3 Rear Panel ................................................................................3 Front Panel ..............................................................................4 LEDs ...........................................................................................5 Installation .........................................................................6 Connect to Your Network ..........................................................6 Wireless Installation Considerations ......................................7 Configuration .....................................................................8 Web-based Configuration Utility ............................................8 Setup .................................................................................................9 Internet .....................................................................................9 Internet Connection Setup Wizard ............................9 Manual Internet Connection Setup ........................11 Wireless Settings .................................................................13 Wireless Connection Setup Wizard..........................13 Manual Wireless Connection Setup ........................15 Wireless Settings ............................................................16 Wireless Security Mode ...............................................17 Wi-Fi Protected Setup .......................................................20 Network Settings ................................................................22 Router Settings ...............................................................22 DHCP Server Settings ...................................................23 IPv6 Settings .........................................................................24 Message Service ..................................................................25 SMS Inbox .........................................................................25 Create Message ..............................................................26 SMSC Setting ...................................................................26 Voice ........................................................................................27 Call Forwarding ..............................................................27 Call Waiting ......................................................................27 USSD ........................................................................................28 Advanced ......................................................................................29 Virtual Server ........................................................................29 Application Rules ................................................................31 QoS Engine............................................................................32 MAC Address Filter .............................................................33 URL Filter ................................................................................34 Outbound Filter ...................................................................35 Inbound Filter ......................................................................36 SNMP .......................................................................................37 Routing ...................................................................................38 Advanced Wireless .............................................................39 Advanced Network ............................................................41 Network Scan .......................................................................42 DMZ .........................................................................................43 Tools ................................................................................................44 Admin .....................................................................................44 Table of Contents iiiD-Link DWR-712 User Manual Table of Contents Time .........................................................................................45 Syslog ......................................................................................46 E-mail Settings .....................................................................47 System ....................................................................................48 Firmware ................................................................................49 Dynamic DNS .......................................................................50 System Check .......................................................................51 Schedules ..............................................................................52 Connection Rese…

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: D-Link Corporation Address: No.289 , Sinhu 3rd Rd. , Neihu District City: Taipei City Country: Taiwan R.O.C. To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: KA2WR712C1 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

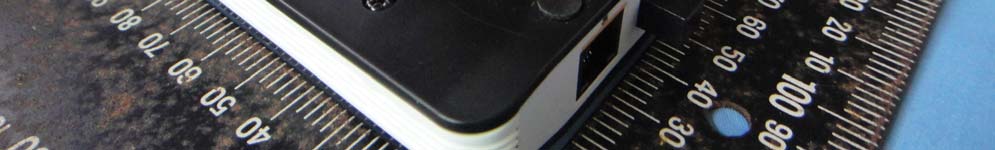

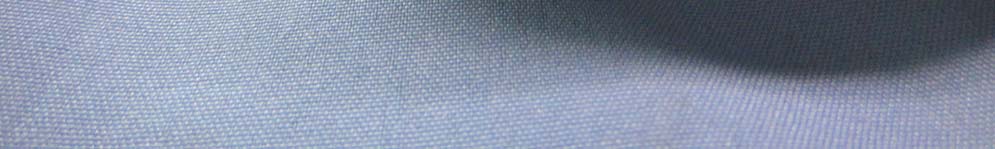

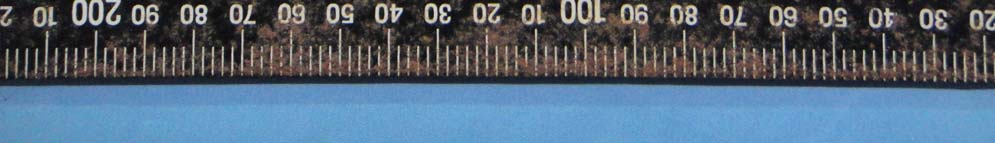

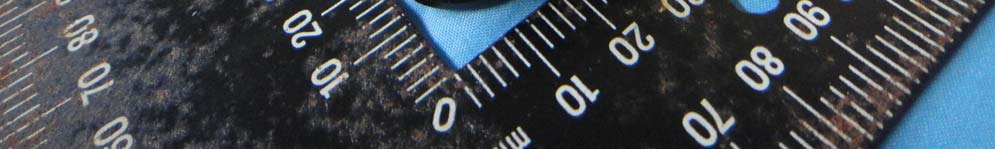

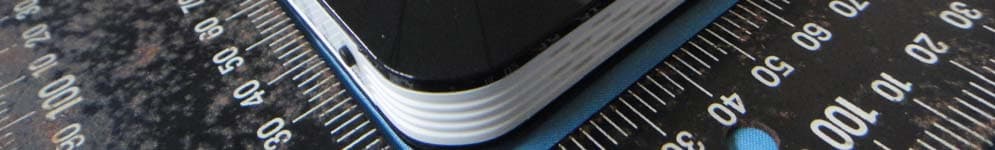

Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A1 / 12 External Photo (DWR-712) Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A2 / 12 Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A3 / 12 Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A4 / 12 External Photo Antenna External Photo Adapter Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A5 / 12

DWR-712 Diagram Label location Label location

Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A6 / 12 Internal Photo (DWR-712) Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A7 / 12 2.4GHz PCB Antenna (GY196HT467-017) Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A8 / 12 Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A9 / 12 Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A10 / 12 Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A11 / 12 Compliance Certification Services Inc. Report No.：T131017N91 Date of Issue: October 30, 2013 Page A12 / 12

Compliance Certification Services Inc. Report No.: T131017N91-MF Date of Issue: April 25, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT HSPA+ 3G SOHO Router Model DWR-712 RF Module MediaTek Model: RT5350 Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification Antenna Gain (2.4GHz) 3.39 dBi (Numeric gain: 2.18) Maximum Average output power IEEE 802.11b Mode : 15.49 dBm (35.400 mW) IEEE 802.11g Mode : 16.74 dBm (47.206 mW) IEEE 802.11n HT20 Mode : 15.05 dBm (31.989 mW) IEEE 802.11n HT40 Mode : 14.54 dBm (28.445 mW) Maximum Tune up Power IEEE 802.11b Mode : 16.49 dBm (44.566 mW) IEEE 802.11g Mode : 17.74 dBm (59.429 mW) IEEE 802.11n HT20 Mode : 16.05 dBm (40.272 mW) IEEE 802.11n HT40 Mode : 15.54 dBm (35.810 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T131017N91-MF Date of Issue: April 25, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 25, 2014 Initial Issue ALL Eva Lin Compliance Certification Services Inc. Report No.: T131017N91-MF Date of Issue: April 25, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 377 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/377 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T131017N91-MF Date of Issue: April 25, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result 1 2412 44.566 2.18 20 0.0193 1 Pass IEEE 802.11g mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result 1 2412 59.429 2.18 20 0.0258 1 Pass IEEE 802.11n HT20 mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result 1 2412 40.272 2.18 20 0.0175 1 Pass IEEE 802.11n HT40 mode: Ch. Frq.(MHz) P (mW)Gain (num.) D (cm)Power density in mW / cm 2 Limit (mW/cm2) Result 6 2437 35.81 2.18 20 0.0155 1 Pass

Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 1 / 111 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2012 TEST REPORT For HSPA+ 3G SOHO Router Model Number: DWR-712 Brand: D-Link Issued for D-Link Corporation No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Issued Date: October 29, 2013 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 2 / 111 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 October 29, 2013 Initial Issue ALL Eva Lin Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 3 / 111 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ..................................................................................7 4. TEST METHODOLOGY ..................................................................................................8 5. FACILITIES AND ACCREDITATIONS............................................................................8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 9 6. CALIBRATION AND UNCERTAINTY.............................................................................10 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 10 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................11 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 12 7.3 EUT OPERATING CONDITION .............................................................................................. 13 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................14 8.1 6DB BANDWIDTH ................................................................................................................... 14 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 25 8.3 POWER SPECTRAL DENSITY ............................................................................................... 30 8.4 CONDUCTED SPURIOUS EMISSION.................................................................................... 40 8.5 RADIATED EMISSIONS ..........................................................................................................54 8.5.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS .................................................. 54 8.5.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz.................................................. 58 8.5.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ................................................. 60 8.5.4 RESTRICTED BAND EDGES.......................................................................................... 84 8.6 POWERLINE CONDUCTED EMISSIONS .............................................................................. 100 9. ANTENNA REQUIREMENT ............................................................................................106 9.1 STANDARD APPLICABLE ...................................................................................................... 106 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 106 APPENDIX I SETUP PHOTOS ...........................................................................................107 APPENDIX II PHOTOGRAPHS OF EUT ................................................................A1 Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 4 / 111 1. TEST REPORT CERTIFICATION Applicant ： D-Link Corporation Address ： No. 289, Sinhu 3rd Rd., Neihu District, Taipei City 114, Taiwan R.O.C. Manufacture ： Advance Multimedia Internet Technology Inc. Address ： No.28, Lane 31 , Sec. 1 , Huandong Rd., Sinshih District , Tainan City 74146 , Taiwan Equipment Under Test ： HSPA+ 3G SOHO Router Model Number ： DWR-712 Brand Name ： D-Link Date of Test ： October 21, 2013 – October 24, 2013 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Sect…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 107 / 111 APPENDIX I SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 108 / 111 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 109 / 111 Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 110 / 111 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.: T110519402-RP1 FCC ID：KA2WR712C1 Report No.：T131017N91-RP1 Page 111 / 111 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
