KA2WR930A1LTE Mobile Router

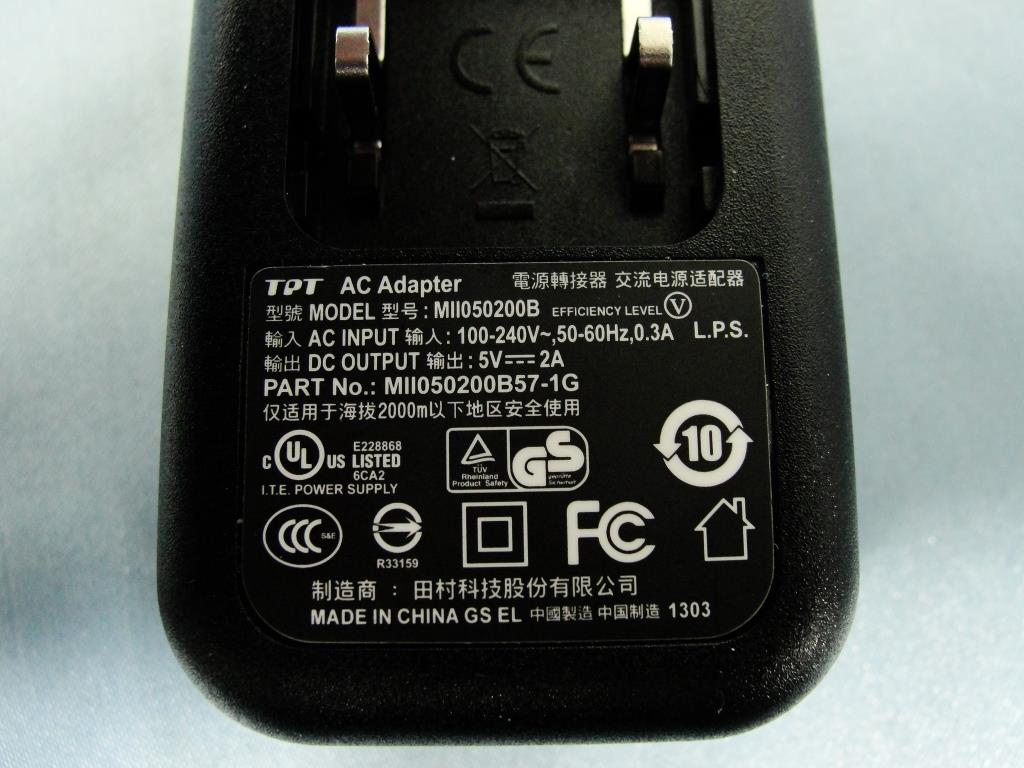

Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 1 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 1. External Photograph of EUT Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 2 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 3 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 4 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 720510 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 5 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Specification of Accessory AC Adapter Brand Name Tamura Model Name MII050200B Battery Brand Name WELLTECH ENERGY Model Name QDP USB Cable Brand Name GOLDEN BRIDGE Model Name 801-000-00008949 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 6 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 7 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 AC Adapter Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 8 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 720510 Battery

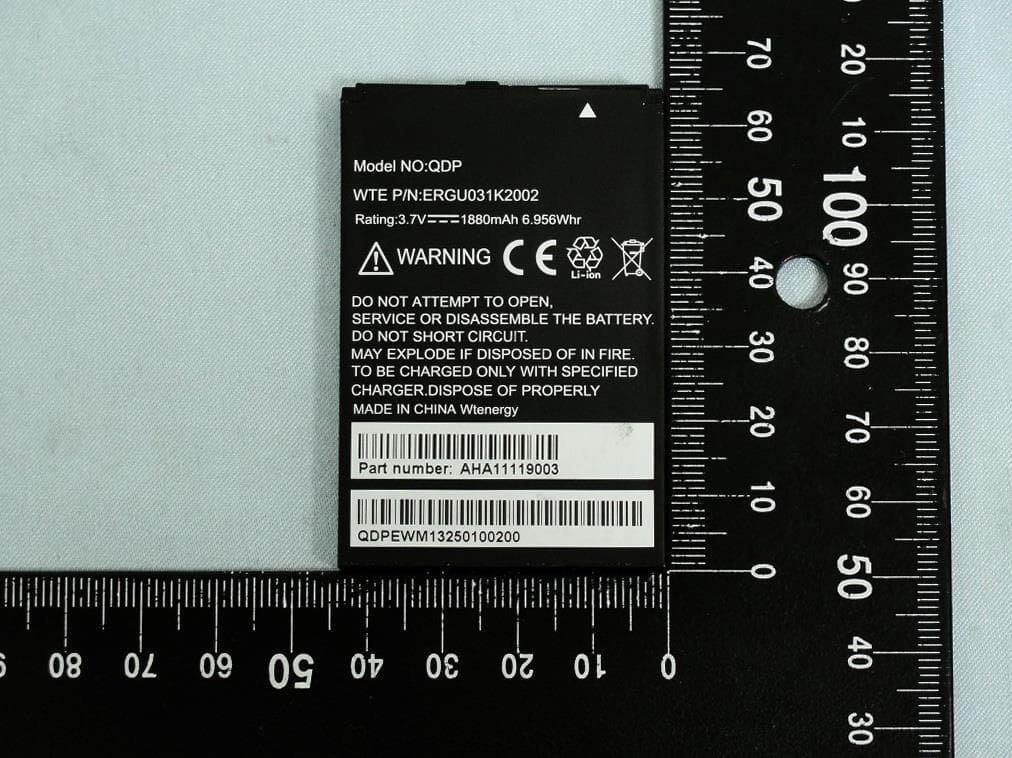

Back of the Device Battery Compartment

Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 9 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 3. Internal Photograph of EUT Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 10 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 11 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 12 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 13 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 14 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 15 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 16 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 17 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 720510 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 18 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 19 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 20 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 21 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 WWAN Main Antenna Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 22 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 23 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 WWAN Aux. Antenna Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 24 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Photographs of EUT Report No.: EP431455 Brand Name: D-Link / Model Name: DWR-930 SPORTON INTERNATIONAL INC. Page Number : 25 of 25 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 WLAN Antenna

SPORTON INTERNATIONAL INC. Page 1 of 37 Issued Date : Apr. 24, 2014 TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Form version. : FAA140305 FCC ID : KA2WR930A1 FCC SAR Test Report Report No. : FA431455 FCC SAR Test Report APPLICANT : D-Link Corporation EQUIPMENT : LTE Mobile Router BRAND NAME : D-Link MODEL NAME : DWR-930 FCC ID : KA2WR930A1 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page 2 of 37 Issued Date : Apr. 24, 2014 TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Form version. : FAA140305 FCC ID : KA2WR930A1 FCC SAR Test Report Report No. : FA431455 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 6 4.3 General LTE SAR Test and Reporting Considerations ........................................................................................... 8 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 8. Measurement Procedures ...........................................................................................................................................12 8.1 Spatial Peak SAR Evaluation ................................................................................................................................12 8.2 Power Reference Measurement............................................................................................................................13 8.3 Area Scan .............................................................................................................................................................13 8.4 Zoom Scan ............................................................................................................................................................14 8.5 Volume Scan Procedures ......................................................................................................................................14 8.6 Power Drift Monitoring ...........................................................................................................................................14 9. Test Equipment List .....................................................................................................................................................15 10. System Verification ....................................................................................................................................................16 10.1 Tissue Verification ...............................................................................................................................................16 10.2 System Performance Check Results ...................................................................................................................17 11. RF Exposure Positions ..............................................................................................................................................18 11.1 Wireless Router ...................................................................................................................................................18 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................18 13. Antenna Location ................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/2 System Check_Body_835MHz_140402 DUT: D835V2-4d162 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_140402 Medium parameters used: f = 835 MHz; σ = 0.963 S/m; ε r = 54.527; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.61, 9.61, 9.61); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.09 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.339 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.63 W/kg SAR(1 g) = 2.45 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 3.10 W/kg 0 dB = 3.10 W/kg = 4.91 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/7 System Check_Body_835MHz_140407 DUT: D835V2-4d162 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_140407 Medium parameters used: f = 835 MHz; σ = 0.994 S/m; ε r = 54.715; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.61, 9.61, 9.61); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.19 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.339 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.49 W/kg; SAR(10 g) = 1.64 W/kg Maximum value of SAR (measured) = 3.20 W/kg 0 dB = 3.20 W/kg = 5.05 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/11 System Check_Body_1900MHz_140411 DUT: DD1900V2-5d182 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_140411 Medium parameters used: f = 1900 MHz; σ = 1.545 S/m; ε r = 53.277; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(8.17, 8.17, 8.17); Calibrated: 2013/12/23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.0 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.029 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 15.6 W/kg SAR(1 g) = 9.45 W/kg; SAR(10 g) = 5.09 W/kg Maximum value of SAR (measured) = 12.8 W/kg 0 dB = 12.8 W/kg = 11.07 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/12 System Check_Body_1900MHz_140412 DUT: D1900V2-5d182 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_140412 Medium parameters used: f = 1900 MHz; σ = 1.563 S/m; ε r = 51.122; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(7.85, 7.85, 7.85); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/11/5 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.7 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 95.247 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 9.92 W/kg; SAR(10 g) = 5.11 W/kg Maximum value of SAR (measured) = 13.8 W/kg 0 dB = 13.8 W/kg = 11.40 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/3 System Check_Body_2450MHz_140403 DUT: D2450V2-924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_140403 Medium parameters used: f = 2450 MHz; σ = 2.02 S/m; ε r = 53.849; ρ = 1000 kg/m 3 23.2 22.2 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(7.32, 7.32, 7.32); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/11/5 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 22.1 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 100.5 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 28.6 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6.16 W/kg Maximum value of SAR (measured) = 20.3 W/kg 0 dB = 20.3 W/kg = 13.07 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/12 System Check_Body_2600MHz_140412 DUT: D2600V2-1070 Communication System: CW ; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: MSL_2600_140412 Medium parameters used: f = 2600 MHz; σ = 2.209 S/m; ε r = 51.123; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(7.08, 7.08, 7.08); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/11/5 - Phantom: SAM Right; Type: QD000P40CC; Serial: TP:1383 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/2 #01_GSM850_GPRS (4 Tx slots)_Front_1cm_Ch251 Communication System: GSM850 ; Frequency: 848.8 MHz;Duty Cycle: 1:2.08 Medium: MSL_850_140402 Medium parameters used: f = 849 MHz; σ = 0.977 S/m; ε r = 54.395; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.61, 9.61, 9.61); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch251/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.27 W/kg Configuration/Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 36.867 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.673 W/kg Maximum value of SAR (measured) = 1.26 W/kg 0 dB = 1.26 W/kg = 1.00 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/11 #02_GSM1900_GPRS (4 Tx slots)_Back_1cm_Ch661 Communication System: PCS ; Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: MSL_1900_140411 Medium parameters used: f = 1880 MHz; σ = 1.523 S/m; ε r = 53.341; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(8.17, 8.17, 8.17); Calibrated: 2013/12/23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2013/11/7 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch661/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.19 W/kg Configuration/Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.290 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.904 W/kg; SAR(10 g) = 0.527 W/kg Maximum value of SAR (measured) = 1.16 W/kg 0 dB = 1.16 W/kg = 0.64 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/7 #03_WCDMA V_RMC 12.2Kbps_Front_1cm_Ch4233 DUT: 431455 Communication System: WCDMA ; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: MSL_850_140407 Medium parameters used: f = 847 MHz; σ = 1.007 S/m; ε r = 54.629; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.61, 9.61, 9.61); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch4233/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.444 W/kg Configuration/Ch4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.466 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.516 W/kg SAR(1 g) = 0.366 W/kg; SAR(10 g) = 0.251 W/kg Maximum value of SAR (measured) = 0.446 W/kg 0 dB = 0.446 W/kg = -3.51 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/12 #04_WCDMA II_RMC 12.2Kbps_Back_1cm_Ch9400 Communication System: WCDMA ; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: MSL_1900_140412 Medium parameters used: f = 1880 MHz; σ = 1.54 S/m; ε r = 51.17; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(7.85, 7.85, 7.85); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/11/5 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Version 14.6.10 (7164) Configuration/Ch9400/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.05 W/kg Configuration/Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.105 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.767 W/kg; SAR(10 g) = 0.440 W/kg Maximum value of SAR (measured) = 1.00 W/kg 0 dB = 1.00 W/kg = 0.00 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/7 #05_LTE Band 5_10M_QPSK_1RB_0Offset_Front_1cm_Ch20450 Communication System: LTE ; Frequency: 829 MHz;Duty Cycle: 1:1 Medium: MSL_850_140407 Medium parameters used: f = 829 MHz; σ = 0.99 S/m; ε r = 54.783; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3954; ConvF(9.61, 9.61, 9.61); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2014/1/30 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Configuration/Ch20450/Area Scan (51x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.622 W/kg Configuration/Ch20450/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.393 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.705 W/kg SAR(1 g) = 0.502 W/kg; SAR(10 g) = 0.349 W/kg Maximum value of SAR (measured) = 0.606 W/kg 0 dB = 0.606 W/kg = -2.18 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/4/12 #06_LTE Band 7_20M_QPSK_1RB_99Offset_Right Side_1cm_Ch21350 Communication System: LTE ; Frequency: 2560 MHz;Duty Cycle: 1:1 Medium: MSL_2600_140412 Medium parameters used: f = 2560 MHz; σ = 2.156 S/m; ε r = 51.082; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(7.08, 7.08, 7.08); Calibrated: 2013/11/4; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/11/5 - Phantom: SAM Right; Type: QD000P40CC; Serial: TP:1383 - Measurement SW: DASY52, Version 52.8 (7);SEMCAD X Vers…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 83 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Report Template No.: BU5-FG22/24 Version 1.0 FCC RF Test Report Report No. : FG431455A FCC RF Test Report APPLICANT : D-Link Corporation EQUIPMENT : LTE Mobile Router BRAND NAME : D-Link MODEL NAME : DWR-930 FCC ID : KA2WR930A1 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Mar. 14, 2014 and testing was completed on Apr. 04, 2014. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown to be compliant with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 83 TEL : 886-3-327-3456 Report Issued Date : Apr. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : KA2WR930A1 Report Template No.: BU5-FG22/24 Version 1.0 FCC RF Test Report Report No. : FG431455A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ....................................................................................... 5 1.4 Product Specification subjective to this standard .............................................................................. 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator ............................... 6 1.7 Testing Location ................................................................................................................................ 7 1.8 Applicable Standards ........................................................................................................................ 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode.......................................................................................................................................... 8 2.2 Connection Diagram of Test System .............................................................................................. 10 2.3 Support Unit used in test configuration ........................................................................................... 10 2.4 Measurement Results Explanation Example .................................................................................. 10 3 TEST RESULT ........................................................................................................................................... 11 3.1 Conducted Output Power Measurement ......................................................................................... 11 3.2 Peak-to-Average Ratio .................................................................................................................... 13 3.3 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 25 3.4 99% Occupied Bandwidth and 26dB Bandwidth Measurement...................................................... 29 3.5 Band Edge Measurement ................................................................................................................ 46 3.6 Conducted Spurious Emission Measurement ................................................................................. 52 3.7 Field Strength of Spurious Radiation Measurement ....................................................................... 65 3.8 Frequency Stability Measurement ................................................................................................... 77 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 82 5 UNCERTAINTY OF EVALUATION ...........................................................................................…

Text truncated - open the document above for the full version.
