Manual Building Networks for People IEEE 802.11g Wireless USB Adapter WUA-1340 4 Introduction The D-Link WUA-1340 Wireless USB Adapter is a convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. With transfer rates up to 54Mbps you can connect to a wireless network at home, at the office or at any wireless hotspot. Now you can stay connected wherever you are and wherever you go. The WUA-1340 is Wi-Fi compliant, meaning that it can connect and interoperate with other 802.11b or 802.11g Wi-Fi-compliant wireless routers, access points and adapters. The WUA-1340 connects to any available USB port on a laptop or desktop Windows and Macintosh-based computer and also includes a USB cradle. With the optional USB cradle, the WUA-1340 can be positioned virtually anywhere at a workstation to achieve the best available wireless signal reception - whether that workstation is in your office, on your deck or patio, by the pool, at the local coffee shop, or in an airport terminal while waiting to board your next flight. The adapter works with Apple Mac OS X (v10.3x or later) Jaguar, Microsoft Windows XP, Windows 2000 and other Windows operating systems to ensure that you’ll be up and running on a wireless network in just a matter of seconds. Using its default settings, the WUA-1340 automatically connects to other D-Link Air or AirPlus wireless products as soon as it’s active. In addition to featuring 64- or 128-bit WEP encryption, the WUA-1340 offers the added security of WPA(Wi-Fi Protected Access)/WPA2 when used with other WPA / WPA2 devices in a network with a RADIUS server. For home users that will not incorporate a RADIUS server in their network, the security for the WUA-1340, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before when you use the Pre- Shared Key mode of WPA / WPA2. 1 Features and Benefits Provides high-speed wireless connection at up to 54Mbps ** 2 Environmental factors may adversely affect range 1 WPA2 is only for Windows users
Better Security with WPA/WPA2 1 - In addition to 64-,128-bit WEP encryption,you can also securely connect to a wireless network using WPA(Wi-Fi Protected Access) providing you a much higher level of security for your data and communication than has previously been available. Convenience of Plug & Play installation Compact size for placement anywhere Fully 802.11b/802.11g compatible USB 2.0 standard


Powered by the USB port; no external power source is required


User-friendly configuration and diagnostic utilities Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode Connects at up to 328 feet indoors 2


One year warranty
Optimal wireless reception using its cradle (included). Position the WUA-1340 almost anywhere in your workspace to achieve the best reception possible.
6 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to- use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A wireless local area network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other fixed infrastructure have proven to be beneficial to many users. People use WLAN technology for many different purposes: Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Management decisions based on real-time information can significantly improve worker efficiency. Low Implementation Costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benefit from WLANs ease of implementation. WLANs can operate in locations where installation of wiring may be impractical. Installation and Network Expansion - Installing a WLAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Wireless technology allows the network to go where wires cannot go - even outside the home or office. Inexpensive Solution - Wireless network devices are as competitively priced as conventional Ethernet network devices. Scalability - WLANs can be configured in a variety of ways to meet the needs of specific applications and installations. Configurations are easily changed and range from Peer-to-Peer networks suitable for a small number of users to larger Infrastructure networks to accommodate hundreds or thousands of users, depending on the number of wireless devices deployed. 2 Installation Considerations The WUA-1340 lets you access your network using a wireless connection from virtually anywhere within its operating range. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise. 4 Keep the number of walls and ceilings between the WUA-1340 and other network devices to a minimum - each wall or ceiling can reduce your WUA-134…

Text truncated - open the document above for the full version.

D-Link Corporation NO.8,Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C TEL: +886 3-563-6666 FAX: +886 3-578-1861 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: KA2WUA1340A1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- Akira Huang / Director D-Link Corporation Tel: +886-2-29161600 ext.2600 Fax: +886-2-29146299 E-mail: [email protected]

D-Link Corporation NO.8, Li shing 7 th Rd, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-563-6666 FAX: 886-3-578-1861 POWER OF ATTORNEY To whom it may concern: We, the undersigned, D-Link Corporation hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, -------------------------------------------------- Akira Huang / Director D-Link Co. Ltd Phone: 886-2-29161600 ext.2600 Fax: 886-2-29146299 E-mail: [email protected]

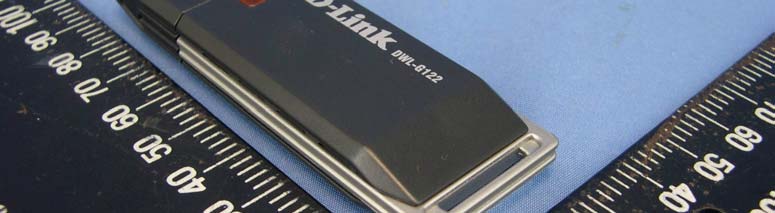

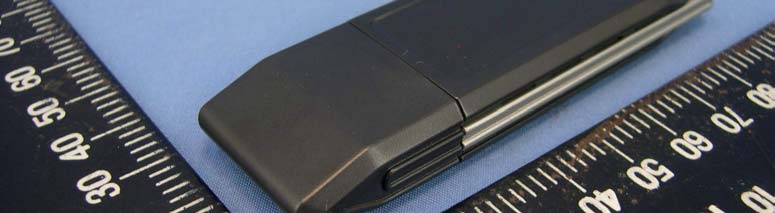

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2
