KA2WUA2340A1Wireless USB Adapter

Manual Building Networks for People 802.11g (2.4GHz) Wireless G USB 2.0 Adapter WUA-2340 D-Link AirPlus XTREME G TM 3 D-Link AirPlus Xtreme G TM WUA-2340 2.4 GHz Wireless G USB 2.0 Adapter At least 64MB of memory and a 500MHz processor Properly installed and working USB Controller Windows XP/2000 „ A computer or laptop with an available USB 2.0 port „ „ „ Manual on CD-ROM Quick Installation Guide Cradle Contents of Package: Package Contents If any of the above items are missing, please contact your reseller. System Requirements: „ „ „ „ 4 Introduction The D-Link AirPlus Xtreme G WUA-2340 Wireless G USB Adapter is an 802.11b/802.11g high-performance,convenient Plug & Play USB 2.0 solution that brings wireless networking to your laptop or desktop PC. With a maximum wireless signal rate of up to 54Mbps (108Mbps* in Turbo mode) you can connect to a wireless network at home, at the office or at any wireless hotspot. Now you can stay connected wherever you are and wherever you go. The WUA-2340 is Wi-Fi compliant, meaning that it can connect and interoperate with other 802.11b or 802.11g Wi-Fi-compliant wireless routers, access points and adapters. The WUA-2340 connects to any available USB port on a laptop or desktop Windows -based computer and also includes a USB cradle. With the optional USB cradle, the WUA-2340 can be positioned virtually anywhere at a workstation to achieve the best available wireless signal reception - whether that workstation is in your office, on your deck or patio, by the pool, at the local coffee shop, or in an airport terminal while waiting to board your next flight. The adapter works with Microsoft Windows XP and Windows 2000 operating systems to ensure that you’ll be up and running on a wireless network in just a matter of seconds. Using its default settings, the WUA-2340 automatically connects to other D-Link AirPlus Xtreme G TM wireless products as soon as it active. TM *Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and evironmental factors lower actual data throughput rate. The WUA-2340 has the newest, strongest and most advanced security features available today. When used with other 802.11 WPA (Wi-Fi Protected Access) and 802.1x compatible products in a network with a RADIUS server, the security features include: WPA: Wi-Fi Protected Access which authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA uses TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This ensures much greater security than the standard WEP security. (By contrast, the previous WEP encryption implementations required the keys to be changed manually.) 5 For home users that will not incorporate a RADIUS server in their network, the security for the WUA-2340, used in conjunction with other WPA-compatible 802.11 products, will still be much stronger than ever before. Utilizing the Pre-Shared Key mode of WPA, the WUA-2340 will obtain a new security key every time it connects to the 802.11 network. You only need to input your encryption information once in the configuration menu. No longer will you have to manually input a new WEP key frequently to ensure security. With the WUA-2340 , you will automatically receive a new key every time you connect, vastly increasing the safety of your communication. Introduction (continued) 802.1x: Authentication which is a first line of defense against intrusion. In the authentication process, the Authentication Server verifies the identity of the client attempting to connect to the network. Unfamiliar clients would be denied access. 6 Features and Benefits ** 3 Environmental factors may adversely affect range. User-friendly configuration and diagnostic utilities. Supports Infrastructure networks via an access point and Peer-to-Peer communication in Ad-Hoc mode. Connects at up to 328 feet indoors 3 . „ „ „ 1 year warranty. „ 2 Using a USB 1.1 port will adversely affect throughput. 1 Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Compact size for placement anywhere. „ Convenience of Plug & Play installation. „ Fully 802.11b/802.11g compatible. „ Powered by the USB port; no external power source is required. „ USB 2.0 standard 2 . „ Better Security with 802.1x and WPA - In addition to 64-,128-bit WEP encryption, you can also securely connect to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of security for your data and communication than has previously been available. „ Provides maximum wireless signal rate of up to 54Mbps (108Mbps 1 in Turbo mode). „ Optimal wireless reception using its cradle (included). Position the WUA-2340 almost anywhere in your workspace to achieve the best reception possible. „ 7 Wireless Basics Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards. D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. D-Link wireless products will allow you access to the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking brings. A wireless local area network (WLAN) is a computer network that transmits and receives data with radio signals instead of wires. WLANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more ef…

Text truncated - open the document above for the full version.

D-Link Corporation NO.8,Li Hsing Rd VII, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C TEL: +886 3-563-6666 FAX: +886 3-578-1861 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: KA2WUA2340A1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- Akira Huang / Director D-Link Corporation Tel: +886-2-29161600 ext.2600 Fax: +886-2-29146299 E-mail: [email protected]

D-Link Corporation NO.8, Li shing 7 th Rd, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-563-6666 FAX: 886-3-578-1861 POWER OF ATTORNEY To whom it may concern: We, the undersigned, D-Link Corporation hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, -------------------------------------------------- Akira Huang / Director D-Link Co. Ltd Phone: 886-2-29161600 ext.2600 Fax: 886-2-29146299 E-mail: [email protected]

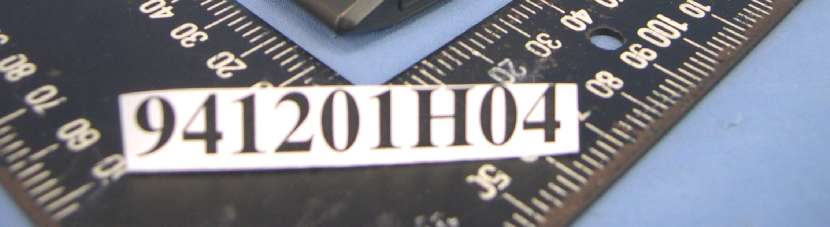

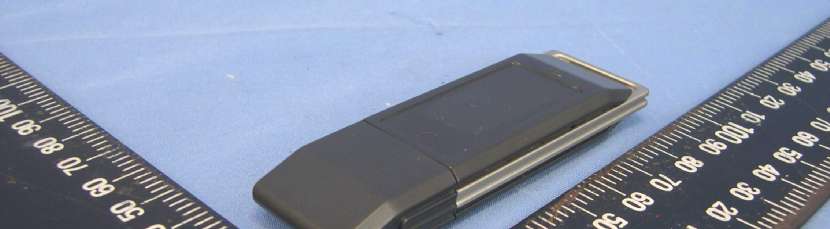

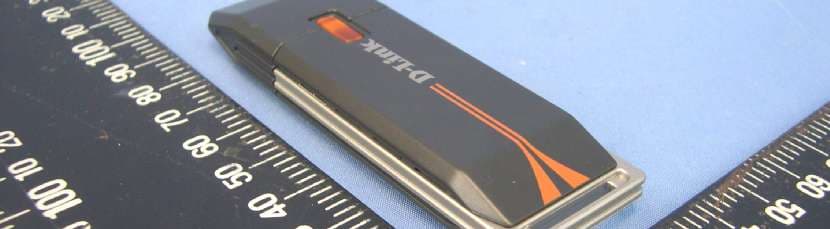

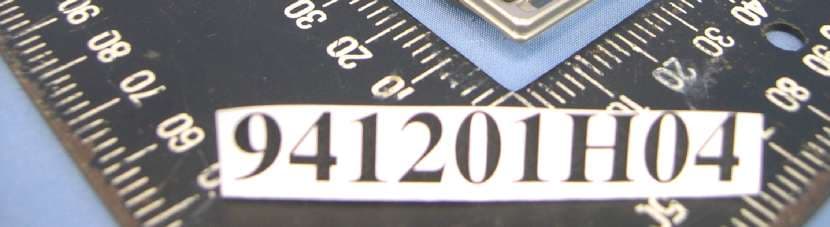

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID：KA2WUA2340A1 Label Location Label

Page 4 Page 5 Page 6

FCC ID: KA2WUA2340A1 Report No. RF941201H04 Operational Description This device is a Wireless USB Adapter, the maximum data rate could be up to 54Mbps (108Mbps in turbo mode) which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless USB Adapter) is powered by host equipment. The antenna used in this product is printed antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: KA2WUA2340A1 Report no.: SA941201H041Report Format Version 2.0.2 SAR TEST REPORT REPORT NO.: SA941201H04 MODEL NO.: WUA-2340 RECEIVED: Dec. 01, 2005 TESTED: Dec. 07, 2005 ISSUED: Dec. 12, 2005 APPLICANT: D-LINK Corporation ADDRESS: No.8, Li-shing Road VII, Science-based Industrial Park, Hsinchu, Taiwan ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 36 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: KA2WUA2340A1 Report no.: SA941201H042Report Format Version 2.0.2 TABLE OF CONTENTS 1.CERTIFICATION.......................................................................................................3 2.GENERAL INFORMATION........................................................................................4 2.1GENERAL DESCRIPTION OF EUT..........................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM..................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION..................8 3.DESCRIPTION OF SUPPORT UNITS....................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS.................................13 4.1.DESCRIPTION OF ANTENNA LOCATION..............................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION.......................................................14 4.3.DESCRIPTION OF TEST MODE............................................................................15 4.4.SUMMARY OF TEST RESULTS.............................................................................15 5.TEST RESULTS......................................................................................................16 5.1TEST PROCEDURES.............................................................................................16 5.2MEASURED SAR RESULTS...................................................................................18 5.3SAR LIMITS............................................................................................................20 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.....................................................21 5.5TEST EQUIPMENT FOR TISSUE PROPERTY.......................................................23 6.SYSTEM VALIDATION............................................................................................24 6.1TEST EQUIPMENT.................................................................................................24 6.2TEST PROCEDURE...............................................................................................25 6.3VALIDATION RESULTS..........................................................................................27 6.4SYSTEM VALIDATION UNCERTAINTIES...............................................................28 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES........................................29 7.1.PROBE CALIBRATION UNCERTAINTY.................................................................29 7.2.ISOTROPY UNCERTAINTY....................................................................................30 7.3.BOUNDARY EFFECT UNCERTAINTY...................................................................30 7.4.PROBE LINEARITY UNCERTAINTY.......................................................................31 7.5.READOUT ELECTRONICS UNCERTAINTY...........................................................31 7.6.RESPONSE TIME UNCERTAINTY.........................................................................31 7.7.INTEGRATION TIME UNCERTAINTY....................................................................32 7.8.PROBE POSITIONER MECHANICAL TOLERANCE..............................................33 7.9.PROBE POSITIONING............................................................................................33 7.10.PHANTOM UNCERTAINTY....................................................................................34 7.11.DASY4 UNCERTAINTY BUDGET...........................................................................35 8.INFORMATION ON THE TESTING LABORATORIES.............................................36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: KA2WUA2340A1 Report no.: SA941201H043Report Format Version 2.0.2 1. CERTIFICATION PRODUCT: Wireless USB Adapter MODEL: WUA-2340 BRAND: D-Link APPLICANT: D-LINK Corporation TESTED: Dec. 07, 2005 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Dec. 12, 2005 Joanna Wang TECHNICAL ACCEPTANCE:, DATE:Dec. 12, 2005 Responsible for RF Stanely Hsu APPROVED BY:, DATE:Dec. 12, 2005 Cody Chang / Deputy Manager FCC ID: KA2WUA2340A1 Report no.: SA941201H044Report Format Version 2.0.2 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless USB Adapter …

Text truncated - open the document above for the full version.

FCC ID: KA2WUA2340A1 Report No.: RF941201H041Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941201H04 MODEL NO.: WUA-2340 RECEIVED: Dec. 01, 2005 TESTED: Dec. 06 to 08, 2005 ISSUED: Dec. 09, 2005 APPLICANT: D-LINK Corporation ADDRESS: No.8, Li-shing 7th Rd. Science-based Industrial Park, Hsinchu, Taiwan. R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: KA2WUA2340A1 Report No.: RF941201H042Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS..............................10 3.5DESCRIPTION OF SUPPORT UNITS........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................12 4TEST TYPES AND RESULTS.....................................................................13 4.1CONDUCTED EMISSION MEASUREMENT..............................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................13 4.1.2TEST INSTRUMENTS.................................................................................13 4.1.3TEST PROCEDURES.................................................................................14 4.1.4TEST SETUP..............................................................................................14 4.1.5EUT OPERATING CONDITIONS................................................................15 4.1.6TEST RESULTS..........................................................................................16 4.2RADIATED EMISSION MEASUREMENT...................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................18 4.2.2TEST INSTRUMENTS.................................................................................19 4.2.3TEST PROCEDURES.................................................................................20 4.2.4TEST SETUP..............................................................................................21 4.2.5EUT OPERATING CONDITIONS................................................................22 4.2.6TEST RESULTS..........................................................................................23 4.2.7TEST RESULTS – DSSS.............................................................................25 4.2.8TEST RESULTS – OFDM............................................................................28 4.36dB BANDWIDTH MEASUREMENT...........................................................32 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT........................................32 4.3.2TEST INSTRUMENTS.................................................................................32 4.3.3TEST PROCEDURE....................................................................................33 4.3.4TEST SETUP..............................................................................................33 FCC ID: KA2WUA2340A1 Report No.: RF941201H043Report Format Version 2.0.4 4.3.5EUT OPERATING CONDITIONS................................................................33 4.3.6TEST RESULTS –DSSS..............................................................................34 4.3.7TEST RESULTS-OFDM..............................................................................37 4.4MAXIMUM PEAK OUTPUT POWER..........................................................42 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........42 4.4.2TEST INSTRUMENTS.................................................................................42 4.4.3TEST PROCEDURES.................................................................................43 4.4.4TEST SETUP..............................................................................................43 4.4.5EUT OPERATING CONDITIONS................................................................43 4.4.6TEST RESULTS – DSSS.............................................................................44 4.4.7TEST RESULTS –OFDM.............................................................................45 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................46 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................46 4.5.2TEST INSTRUMENTS.................................................................................46 4.5.3TEST PROCEDURE....................................................................................47 4.5.4TEST SETUP..............................................................................................47 4.5.5EUT OPERATING CONDITIONS................................................................47 4.5.6TEST RESULTS –DSSS..............................................................................48 4.5.7TEST RESULTS –OFDM.............................................................................51 4.6BAND EDGES ME…

Text truncated - open the document above for the full version.

FCC ID: KA2WUA2340A1 Report No.: RF941201H0470Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (WITH USB CRADLE) FCC ID: KA2WUA2340A1 Report No.: RF941201H0471Report Format Version 2.0.4 RADIATED EMISSION TEST (WITHOUT USB CRADLE) FCC ID: KA2WUA2340A1 Report No.: RF941201H0472Report Format Version 2.0.4 RADIATED EMISSION TEST (WITH USB CRADLE)
