KA9HJC-X1B22 channel GMRS/FRS Transceiver with Bluetooth

GMRS X1 BT MAIN PART LIST 작성일 : 2007/04/11 NO규 격품 목 명Q'tyUNIT부 품 번 호 1RES CF 1608 5% SMDCR 1/16W 000JV3EAR2 14 207 2RES CF 1608 5% SMDCR 1/16W 100JV1EAR302 3RES CF 1608 5% SMDCR 1/16W 101JV2EAR301 305 4RES CF 1608 5% SMDCR 1/16W 102JV2EAR116 525 5RES CF 1608 5% SMDCR 1/16W 103JV3EAR407 505 584 6RES CF 1608 5% SMDCR 1/16W 104JV16EAR10 38 40 115 408 502 503 514 515 516 540 548 555 574 613 618 7RES CF 1608 5% SMDCR 1/16W 105JV1EAR8 8RES CF 1608 5% SMDCR 1/16W 122JV2EAR561 622 9RES CF 1608 5% SMDCR 1/16W 123JV3EAR519 535 542 10RES CF 1608 5% SMDCR 1/16W 124JV1EAR585 11RES CF 1608 5% SMDCR 1/16W 152JV1EAR319 12RES CF 1608 5% SMDCR 1/16W 153JV1EAR210 13RES CF 1608 5% SMDCR 1/16W 154JV3EAR547 556 623 14RES CF 1608 5% SMDCR 1/16W 155JV1EAR504 15RES CF 1608 5% SMDCR 1/16W 181JV2EAR5 11 16RES CF 1608 5% SMDCR 1/16W 182JV1EAR403 17RES CF 1608 5% SMDCR 1/16W 183JV1EAR543 18RES CF 1608 5% SMDCR 1/16W 220JV7EAR104 112 212 320 401 501 528 19RES CF 1608 5% SMDCR 1/16W 221JV2EAR15 202 20RES CF 1608 5% SMDCR 1/16W 222JV2EAR1 537 21RES CF 1608 5% SMDCR 1/16W 223JV5EAR520 530 551 553 554 22RES CF 1608 5% SMDCR 1/16W 224JV4EAR6 7 406 531 23RES CF 1608 5% SMDCR 1/16W 225JV1EAR37 24RES CF 1608 5% SMDCR 1/16W 273JV1EAR546 25RES CF 1608 5% SMDCR 1/16W 274JV1EAR583 26RES CF 1608 5% SMDCR 1/16W 331JV2EAR9 213 27RES CF 1608 5% SMDCR 1/16W 332JV4EAR206 317 318 581 28RES CF 1608 5% SMDCR 1/16W 333JV1EAR541 29RES CF 1608 5% SMDCR 1/16W 390JV1EAR12 30RES CF 1608 5% SMDCR 1/16W 392JV1EAR304 31RES CF 1608 5% SMDCR 1/16W 393JV1EAR617 32RES CF 1608 5% SMDCR 1/16W 470JV2EAR113 203 33RES CF 1608 5% SMDCR 1/16W 471JV1EAR204 34RES CF 1608 5% SMDCR 1/16W 472JV9EAR41 306 307 524 529 532 539 552 572 35RES CF 1608 5% SMDCR 1/16W 473JV4EAR109 510 512 513 36RES CF 1608 5% SMDCR 1/16W 4R7JV2EAR526 527 37RES CF 1608 5% SMDCR 1/16W 562JV3EAR522 523 571 38RES CF 1608 5% SMDCR 1/16W 563JV6EAR102 506 517 518 534 616 39RES CF 1608 5% SMDCR 1/16W 564JV1EAR620 40RES CF 1608 5% SMDCR 1/16W 681JV1EAR303 41RES CF 1608 5% SMDCR 1/16W 682JV2EAR214 624 42RES CF 1608 5% SMDCR 1/16W 683JV1EAR511 43RES CF 1608 5% SMDCR 1/16W 820JV1EAR507 44RES CF 1608 5% SMDCR 1/16W 821JV1EAR114 PDF created with pdfFactory trial version www.pdffactory.com GMRS X1 BT MAIN PART LIST 작성일 : 2007/04/11 NO규 격품 목 명Q'tyUNIT부 품 번 호 45RES CF 1608 5% SMDCR 1/16W 823JV3EAR405 533 545 46RES CF 1608 5% SMDCR 1/16W 824JV4EAR39 521 538 544 47RES THERMISTOR SMDTCT3GJ103H370V1EATH1 48RES CF 5%RC 1/2W 4R7JV1EAR559 49VR SEMI SMDEVM3YSX50BQ(20K)3EAVR201 401 501 50VR ROTARY0906-20SP-B10K 31C1EASVR501 51CAP CER 1608 SMDGRM1885C1HR5R0CZ01D1EAC607 52CAP CER 1608 SMDGRM1885C1H1R0CZ01D4EAC113 119 308 310 53CAP CER 1608 SMDGRM1885C1H1R5CZ01D1EAC205 54CAP CER 1608 SMDGRM1885C1H3R0CZ01D2EAC223 226 55CAP CER 1608 SMDGRM1885C1H4R0CZ01D1EAC204 56CAP CER 1608 SMDGRM1885C1H5R0CZ01D5EAC40 229 301 305 306 57CAP CER 1608 SMDGRM1885C1H6R0CZ01D5EAC121 206 207 304 309 58CAP CER 1608 SMDGRM1885C1H101JZ01D4EAC1 302 514 519 59CAP CER 1608 SMDGRM1885C1H110JZ01D2EAC123 222 60CAP CER 1608 SMDGRM1885C1H110JZ01D1EAC313 61CAP CER 1608 SMDGRM1885C1H120JZ01D2EAC212 307 62CAP CER 1608 SMDGRM1885C1H180JZ01D3EAC120 213 216 63CAP CER 1608 SMDGRM1885C1H220JZ01D7EAC104 106 109 126 314 407 408 64CAP CER 1608 SMDGRM1885C1H221JZ01D1EAC102 65CAP CER 1608 SMDGRM1885C1H270JZ01D1EAC208 66CAP CER 1608 SMDGRM1885C1H390JZ01D1EAC43 67CAP CER 1608 SMDGRM1885C1H470JZ01D2EAC42 218 68CAP CER 1608 SMDGRM1885C1H471JZ01D4EAC404 405 503 531 69CAP CER 1608 SMDGRM1885C1H820JZ01D1EAC402 C5 7 16 36 37 38 41 107 117 118 122 124 125 209 215 220 225 C228 303 311 505 511 520 591 594 609 611 619 625 626 634 635 C637 638 641 642 71CAP CER 1608 SMDGRM188R71E103KA01D5EAC11 517 593 608 631 72CAP CER 1608 SMDGRM188R71H122KA01D1EAC529 73CAP CER 1608 SMDGRM188R71H223KA01D1EAC516 74CAP CER 1608 SMDGRM188R71H272KA01D2EAC527 528 75CAP CER 1608 SMDGRM188R71H273KA01D3EAC507 76CAP CER 1608 SMDGRM188R71H333KA01D2EAC127 128 77CAP CER 1608 SMDGRM188R71H472KA01D3EAC403 515 526 78CAP CER 1608 SMDGRM188R71H473KA01D2EAC315 316 79CAP CER 1608 SMDGRM188F51E104ZA01D18EAC214 406 409 501 502 508 509 510 512 513 518 523 525 586 587 588 642 644 80CAP CER 1608 SMDGRM188F51E224ZA01D3EAC636 639 640 81CAP CER 1608 SMDGRM188F51E474ZA01D4EAC6 317 401 506 82CAP TANT A SMDTMCMA 1C 106MTRF4EAEC203 506 522 525 83CAP TANT A SMDTMCMA 1E 225MTRF4EAEC202 204 505 514 84CAP TANT A SMDTMCMA 1D 475MTRF3EAEC302 401 527 85CAP TANT A SMDTMCMA 1V 105MTRF1EAEC508 86CAP TANT A SMDTMCMA 1A 226MTRF1EAEC205 EACAP CER 1608 SMD70GRM188R71H102KA01D36 PDF created with pdfFactory trial version www.pdffactory.com GMRS X1 BT MAIN PART LIST 작성일 : 2007/04/11 NO규 격품 목 명Q'tyUNIT부 품 번 호 87CAP TANT B SMDTMCMB 0J 227MTRF4EAEC501 502 503 504 88CAP ELECSME50 VB 10MCC2EAEC511 89CAP ELECSME50 VB 1MCC1EAEC510 90CAP ELECSME50 VB 4R7MCC1EAEC515 91CAP ELECSME25 VB 47M1EAEC201 92CAP ELECSHL 1CVB 220M1EAEC524 93VC TRIMMER 3PI SMDSTC3M10-T11EAVC301 94TR SMDKRA3011EAQ1 95TR RF SMD2SC33571EAQ202 96TR RF SMD2SC4226 R254EAQ104 203 301 302 97TR RF SMDDTA123JUAT1064EAQ3 507 508 509 98TR RF SMDDTC144EUAT1063EAQ2 204 501 99TR RF SMDKTA1001Y4EAQ205 503 511 512 100TR RF SMD2SC4081 T106 R4EAQ502 504 513 514 101TR RF SMD2SC4099 T106 P1EAQ103 102TR RF SMDNE5510279A1EAQ201 103FET RF SMDBF998RA(MOR)GS08121EAQ102 104TR RF SMDKRA3071EAQ506 105IC SW SMDMC14066BDTR21EAU504 106IC SW SMDTC7W66FU1EAU509 107IC OPAMP SMDNJM324V2EAU506 508 108IC PLL SMDTB31202FN1EAU301 109IC SUBAUDIO SMDCMX808A1EAU507 110IC IF DET SMDTA31136FN1EAU401 111IC AMP SMDNJM2073M1EAU505 112IC REG SMDR1111N331BTR2EAREG501 502 113IC MEM EEPROM SMDCAT24C02WI-GT31EAU502 114IC CPU OTP SMDHD64738024WV1EAU503 115DIODE VVC SMD1SV2291EAD301 116DIODE SW SMDDAN2172EAD102 506 117DIODE SMD1SV2702EAD1 304 118DIODE SMDKDS1601EAD2 119DIODE PIN SMDMMBV3401L2EAD101 201 120DIODE1N40011EAD504 121LED GRN SMDPY1113F2EALED501 502 122LED BLUE DIPSM-L-3F1100-UB1EALED503 123LCD HJCDG-0007171EALCD501 124X-TAL SMDSX-2112 21.25M1EAX301 125OSC X-TAL SMD16SX1 4.032M1EAX501 126OSC X-TAL20.945M 30PPM QT-3081EA…

Text truncated - open the document above for the full version.

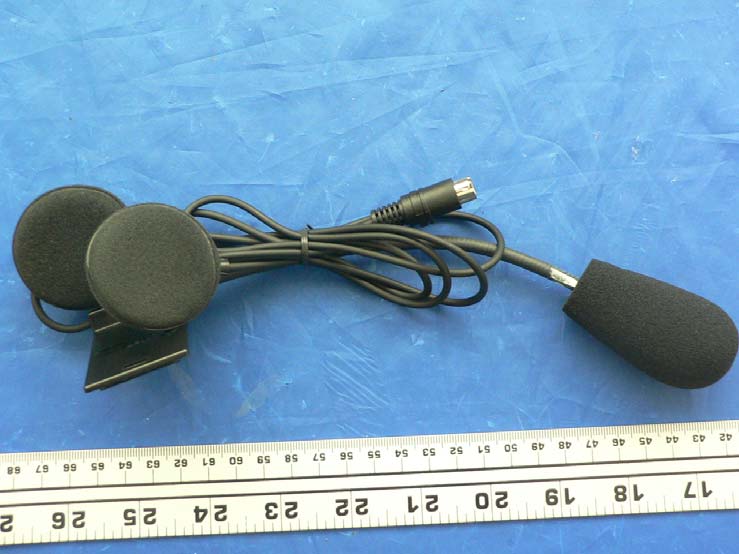

External Photos EUT – Front View EUT – Back View EUT – Battery off View EUT – Port View - 1 EUT – Port View - 2 EUT – Accessory (Battery) EUT – Accessory (Headset 1) EUT – Accessory (Headset 2)

Vigor Sport, Inc. dba Chatter Box FCC ID: KA9HJC-X1B Report #: R0703304-95 Page 30 of 41 FCC Part 95 Report EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code Suggested Label Location on EUT FCC ID: KA9HJC-X1B

Internal Photos EUT – Cover off View EUT – Main and Sub-PCBA Component Board View-1 EUT – Main and Sub-PCBA Component Board View-2 EUT – Main and Sub-PCBA Component Board View-3 EUT – Main PCBA Component Board and LCD View

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government (REV.1) SAR EVALUATION REPORT For Vigor Sports, Inc. dba ChatterBox 16918 Edwards Rd. Cerrito s, CA 90703, USA FCC ID: KA9HJC-X1B Model: GMRS X1 Bluetooth This Report Concerns: Original Report Equipment Type: 22 channel GMRS/FRS Transceiver with Bluetooth Test Engineer: Eric Hong Report Number: R0703304-SAR Report Date: 2007-04-30 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratories Corporation (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Vigor Sport, Inc. dba Chatter Box FCC ID: KA9HJC-X1B Report #: R0703304-SAR SAR Evaluation Report Page 2 of 63 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): IEEE C95.1, CFR 47 §2.1093 Test Procedure(s): FCC OET Bulletin 65 Supplement C IEEE 1528-2003 Device Category: Exposure Category: Portable Device General Population/Uncontrolled Exposure Device Type: Two Way Radio Modulation Type: FM TX Frequency Range: 462.5625 ~ 462.7250 MHz 467.5625 ~ 467.7125 MHz Max. Conducted Power Tested: 31.75 dBm Antenna Type(s): Integral Antenna Body-Worn Accessories: Speaker and Microphone Face-Head Accessories: Speaker and Microphone 1.345 W/Kg (Head Tissue); Max. SAR Level(s) Measured: 1.355 W/Kg (Body Tissue) (50% Duty Cycle) This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C. The results and statements contained in this report pertain only to the device(s) evaluated. Tested By: Eric Hong Testing Engineer Bay Area Compliance Laboratories Corp. EUT Photo Vigor Sport, Inc. dba Chatter Box FCC ID: KA9HJC-X1B Report #: R0703304-SAR SAR Evaluation Report Page 3 of 63 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES ...............................................................................................4 SAR LIMITS.................................................................................................................................................................5 EUT DESCRIPTION ....................................................................................................................................................6 MECHANICAL DESCRIPTION.........................................................................................................................................6 FACILITIES AND ACCREDITATION .....................................................................................................................7 DESCRIPTION OF TEST SYSTEM ..........................................................................................................................8 MEASUREMENT SYSTEM DIAGRAM...........................................................................................................................10 SYSTEM COMPONENTS...............................................................................................................................................12 EQUIPMENT LIST AND CALIBRATION .............................................................................................................20 EQUIPMENTS LIST & CALIBRATION INFO...................................................................................................................20 SAR MEASUREMENT SYSTEM VERIFICATION ..............................................................................................21 SYSTEM ACCURACY VERIFICATION...........................................................................................................................21 EUT TEST STRATEGY AND METHODOLOGY .................................................................................................22 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................22 CHEEK/TOUCH POSITION...........................................................................................................................................23 EAR/TILT POSITION....................................................................................................................................................23 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS..............................................................................24 SAR EVALUATION PROCEDURE.................................................................................................................................25 DASY4 SAR EVALUATION PROCEDURE...................................................................................................................26 SAR MEASUREMENT RESULTS ...........................................................................................................................28 SAR TEST DATA........................................................................................................................................................28 APPENDIX A – MEASUREMENT UNCERTAINTY ............................................................................................29 APPENDIX B – PROBE CALIBRATION CERTIFICATES .................................................................................31 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES ...............................................................................40 APPENDIX D – DAE3 CALIBRATION CERTIFICATES ....................................................................................46 APPENDIX E - TEST SYSTEM VERIFICATIONS SCANS .................................................…

Text truncated - open the document above for the full version.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government (REV.1) FCC PART 95 MEASUREMENT AND TEST REPORT For Vigor Sports, Inc. dba ChatterBox 16918 Edwards Rd. Cerritos, CA90703, USA FCC ID: KA9HJC-X1B Model: GMRS X1 Bluetooth This Report Concerns: Original Report Product Type: 22 channel GMRS/FRS Transceiver with Bluetooth Test Engineer: Dan Coronia Report Number: R0703304-95 Report Date: 2007-04-30 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 Vigor Sport, Inc. dba Chatter Box FCC ID: KA9HJC-X1B Report #: R0703304-95 Page 2 of 41 FCC Part 95 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 MECHANICAL DESCRIPTION.........................................................................................................................................4 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................5 TEST METHODOLOGY..................................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................6 TEST FACILITY.............................................................................................................................................................6 SYSTEM TEST CONFIGURATION ..........................................................................................................................7 JUSTIFICATION.............................................................................................................................................................7 BLOCK DIAGRAM.........................................................................................................................................................7 EQUIPMENT MODIFICATIONS.......................................................................................................................................7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 INTERFACE PORTS AND CABLING.................................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................8 SUMMARY OF TEST RESULTS ...............................................................................................................................9 §2.1046, §95.639 – RF OUTPUT POWER ................................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST RESULT.............................................................................................................................................................11 §2.1047 & §95.637 - MODULATION CHARACTERISTICS.................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 ENVIRONMENTAL CONDITIONS..................................................................................................................................12 TEST RESULTS...........................................................................................................................................................13 §2.1049, §95.633 AND §95.335 - OCCUPIED BANDWIDTH AND EMISSION MASK......................................14 APPLICABLE STANDARDS...........................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.......................................................................................…

Text truncated - open the document above for the full version.

Set up Photos Radiated Emissions – Front View Radiated Emissions – Rear View
