KAVPDT500VHF BODY WORN RADIO-TX

INSTRUCTION MANUAL DIGITAL BODY WORN TRANSMITTER Model PDT-500BW Limited Warranty Law Enforcement Associates warrants its devices and equipment for a period of one (1) year from the date of shipment to be free of defects in workmanship or materials unless otherwise stated. The liability of Law Enforcement Associates., under this warranty is limited to replacing, repairing or issuing credit, at its option, for any devices which are returned by the purchaser during such warranty period, provided: Law Enforcement Associates is notified in writing within five days, after discovery of such defects by the purchaser. Proof of purchase must accompany notification The defective units are returned to Law Enforcement Associates with transportation charges prepaid by the purchaser. No C.O.D. shipments will be accepted. Equipment damaged in shipment must be reported to and claim forms filed with carrier by customer. In shipments to factory, notice and claim procedures will be initiated by Law Enforcement Associates. Law Enforcement Associates examination of such units shall disclose to its satisfaction that such defects exist and have not been caused by misuse, misapplication, neglect, improper installation, improper storage, alteration, physical damage or accidents. The warranty shall not apply to materials ordinarily susceptible to field damage or any accessories of disposable nature. This warranty does not apply to, and Law Enforcement Associates does not independently warrant, items or systems sold by Law Enforcement Associates which are produced by other manufacturers and or which warranty cards or documents of the original manufacturers are included in shipment from Law Enforcement Associates with respect to such items, the purchaser must look to the warranty of the original manufacturer and Law Enforcement Associates disclaims all warranty, expressed or implied. The foregoing warranties are in lieu of all other warranties, whether oral, written, expressed, implied or statutory. Implied warranties of fitness and merchantability shall not apply. Manufacturer's warranty obligations and purchaser's remedies thereunder (except as to title) are solely and exclusively as stated herein. In no case will manufacturer be liable for consequential damages, labor performed in connection with removal and replacement of the system or any other loss incurred because of interruption of service. Specifications Model: PDT-500BW Catalog #: 95300 FCC ID KAVPDT500 Frequency Range: 150 MHz – 174 MHz Frequency Step Size: 2.5kHz Number of Channels: 3 via selector switch Power Output: 125mW, 250mW or 500mW into 50 Ohm (Selectable via configuration utility) Spurious Emissions: Per FCC 47 CFR Part 90.210, Emission Mask Frequency Stability: +/- 2ppm, -30 to +85C Microphone: External electret Antenna: External. SMA jack. Power Source: 1 - 9V alkaline or lithium battery Dimensions: 2.64”W x 2.8”L x .77”D Run time estimate 3.5 hours to half power at 500mW Immediately after unpacking the shipping carton, inspect the contents for damaged or missing items. Report damaged or missing items immediately to AID, Inc. and to the carrier delivering the parcel. The equipment is shipped inside a high impact carrying case. Open the case and inspect the contents. The carrying case should contain the following: • Transmitter • Shock absorbing foam insert • (2) 9Volt batteries • Instruction manual • Software • Microphone • Antenna • USB transfer cable Battery installation Remove battery door and install nine volt battery. The battery compartment is polarized so that it is impossible to install the battery backwards. If the battery is installed wrong, the door will not close. Attach peripheral accessories Install the microphone and antenna to the appropriate jacks. The transmitter is now ready to be used. Never turn the transmitter power on without the antenna attached as it will damage the transmitter. Programming Settings Connect the programming cable to the USB port. Use the provided software to program the power level and frequencies for your transmitter. Refer to the software manual for procedures. Channel Select Use the channel select switch on the side of the unit to set and use preprogrammed frequencies. Technical Support If you are experiencing difficulty, contact the factory for assistance or for return authorization. You may call the Technical Support department of Law Enforcement Associates between the hours of 8:00 am and 5:30 P.M. EST/EDT Monday through Thursday. Law Enforcement Associates 2609 Discovery Drive Suite 125 Raleigh, NC 27616 Phone: (919) 872-6210 Toll Free: (800) 354-9669 Fax: (919) 872-6435 Email: [email protected] Website: http://www.leacorp.com CAUTION There are no user recommended repairs. Adjustments or repairs in the field are not recommended and will void the warranty.

March 30, 2010 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, FL 32669 RE: CONFIDENTIALITY REQUEST FOR: FCC ID: KAVPDT500 500mW DIGITAL AUDIO TRANSMITTER To Whom It May Concern: This letter serves as an official request for Standard Confidentiality under FCC Rule Section 0.457 and 0.459. We request that the schematic diagrams, block diagrams, active bill of material/parts list, and functional description that are required to be submitted with this application be withheld from public view. This information contains Law Enforcement Associates intellectual property and has been disclosed only to third parties for which a Non-Disclosure Agreement has been executed. Disclosure of this design information would place Law Enforcement Associates, Inc., at a competitive disadvantage. Please contact me if there is any information that you may need. Sincerely, Mark D. White Senior Vice President Technical Operations Law Enforcement Associates O: 919-872-6210 F: 919-872-6435 Email: [email protected]

APPLICANT: LAW ENFORCEMENT ASSOCIATES INC. FCC ID: KAVPDT500 EXTERNAL PHOTOS

Assembly P/N 2705300-1 Rev A Top and Bottom Views Assembly P/N 2705300-2 Rev A Top View with and without Shields Assembly P/N 2705300-2 Rev A Bottom View Assembly P/N 2705300-1 and 2 Rev A Assembled

Applicant: Law Enforcement Associates Inc. FCC ID: KAVPDT500 Model: PDT-500BW DUT Type: Wireless Body-worn Digital Voice Transmitter (VHF) Frequency Range: 150.8 - 173.4 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 46 Date(s) of Evaluation June 09, 2010 Test Report Serial No. 042310KAV-T1015-S90V Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date June 21, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Controlled / Occupational Test Lab Certificate No. 2470.01 FCC SAR TEST REPORT R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT / MANUFACTURER LAW ENFORCEMENT ASSOCIATES, INC. DEVICE UNDER TEST (DUT) WIRELESS BODY-WORN DIGITAL VOICE TRANSMITTER (VHF) DEVICE MODEL(S) PDT-500BW TRANSMIT FREQUENCY RANGE 150.8 - 173.4 MHz (VHF Band) MANUF. RATED OUTPUT POWER 27.4 dBm 550 mW Conducted MODULATION TYPE(S) 4-Level FSK BIT RATE(S) 4800 bits/second ANTENNA TYPE(S) Wire Antenna POWER SOURCE 9V Battery DEVICE IDENTIFIER(S) FCC ID:KAVPDT500 APPLICATION TYPE FCC TCB Certification APPLICABLE RULE PART(S) FCC Part 90 STANDARD(S) APPLIED FCC 47 CFR §2.1093 FCC OET Bulletin 65, Supplement C (01-01) FCC KDB 447498 D01v04 PROCEDURE(S) APPLIED IEEE 1528-2003 FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Worn on Body (TNT) RF EXPOSURE LIMIT(S) APPLIED Controlled / Occupational RF EXPOSURE EVALUATION(S) Body-worn DATE OF SAMPLE RECEIPT April 23, 2010 DATE(S) OF EVALUATION June 09, 2010 TEST REPORT SERIAL NO. 042310KAV-T1015-S90V TEST REPORT REVISION NO. Revision 1.0 Initial Release June 21, 2010 Testing Performed ByTest Report Prepared By TEST REPORT SIGNATORIES Sean Johnston - Celltech Labs Jon Hughes - Celltech Labs Celltech Compliance Testing and Engineering Laboratory TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Applicant: Law Enforcement Associates Inc. FCC ID: KAVPDT500 Model: PDT-500BW DUT Type: Wireless Body-worn Digital Voice Transmitter (VHF) Frequency Range: 150.8 - 173.4 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 46 Date(s) of Evaluation June 09, 2010 Test Report Serial No. 042310KAV-T1015-S90V Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date June 21, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Controlled / Occupational Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION (FCC) Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name LAW ENFORCEMENT ASSOCIATES, INC. Applicant Information Address 2609 Discovery Drive, Suite 125, Raleigh, NC 27616 United States Standard(s) Applied FCC 47 CFR §2.1093 FCC OET Bulletin 65, Supplement C FCC KDB 447498 D01v04 Procedure(s) Applied IEEE1528-2003 Device Classification(s) FCC Licensed Non-Broadcast Transmitter Worn on Body (TNT) - Part 90 Device Identifier(s) FCC ID: KAVPDT500 Device Description Wireless Body-worn Digital Voice Transmitter (VHF) Device Model(s) PDT-500BW Test Sample Serial No.None (Identical Prototype) Transmitter Box Dimensions 2.8” L x 2.64” L x .77” D DUT Modulation Type(s) 4-Level FSK DUT Bit Rate(s) 4800 bits/second Transmitter Frequency Range 150.8 - 173.4 MHz (VHF Band) Antenna Band Freq. (MHz) Nc=3 / Antenna dBm mW Method 150.8 126.4 440Conducted 156.4 226.6 460Conducted 150-162 MHz 162.0 326.6 460Conducted 162.0 126.6 460Conducted 167.7 226.6 460Conducted RF Output Power Levels Tested 162-174 MHz 173.4 327.4 550Conducted Wire Antenna 150 - 162 MHz Length = 47 cm P/N: 91204P Antenna Type(s) Tested Wire Antenna 162 - 174 MHz Length = 45 cm P/N: 91204P Battery Type(s) Tested 9V Lithium (UltraLife) 9V Alkaline (Duracell) Body-worn Accessory Tested None (Touch Position) Audio Accessory Tested Electret Microphone P/N: 91304 Max. SAR Level(s) EvaluatedBody-worn 0.548 W/kg 1g average FCC Spatial Peak SAR Limit Body-worn 8.0 W/kg 1g average Occupational / Controlled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 for the Controlled / Occupational Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and IEEE Standard 1528-2003. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved BySean JohnstonLab Manager Celltech Labs Inc. Applicant: Law Enforcement Associates Inc. FCC ID: KAVPDT500 Model: PDT-500BW DUT Type: Wireless Body-worn Digital Voice Transmitter (VHF) Frequency Range: 150.8 - 173.4 MHz 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 46 Date(s) of Evaluation June 09, 2010 Test Report Serial No. 042310KAV-T1015-S90V Test Report Revision No. …

Text truncated - open the document above for the full version.

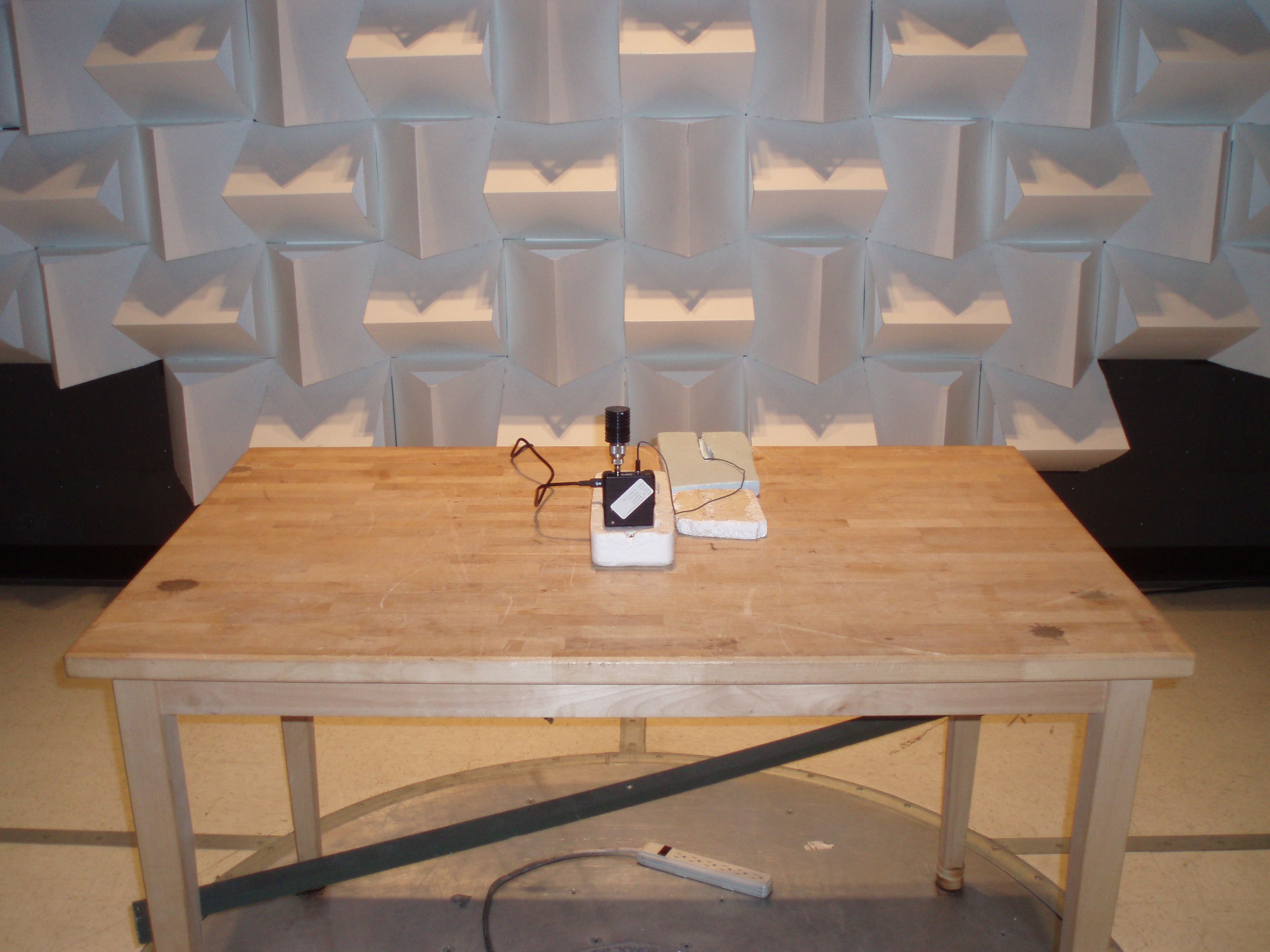

FCC PART 90 TEST REPORT APPLICANT LAW ENFORCEMENT ASSOCIATES INC. 2609 DISCOVERY DR., SUITE 125 RALEIGH NORTH CAROLINA 27616 USA FCC ID KAVPDT500 MODEL NUMBER PDT-500BW PRODUCT DESCRIPTION VHF BODY WORN RADIO - TX DATE SAMPLE RECEIVED 3/23/2010 DATE TESTED 4/8/2010 TESTED BY Nam Nguyen APPROVED BY Mario R. de Aranzeta TIMCO REPORT NO. 664AUT10TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: LAW ENFORCEMENT ASSOCIATES INC. FCC ID: KAVPDT500 Report: L\LAW_KAV\664AUT10\664AUT10TestReport.doc Page 2 of 20 TABLE OF CONTENTS GENERAL REMARKS ................................................................................................3 GENERAL INFORMATION .........................................................................................4 EQUIPMENT LIST .....................................................................................................5 TEST PROCEDURE ..................................................................................................6 RF POWER OUTPUT .................................................................................................7 MODULATION CHARACTERISTICS ...........................................................................8 VOICE MODULATED COMMUNICATION EQUIPMENT ...............................................9 OCCUPIED BANDWIDTH ........................................................................................ 11 OCCUPIED BANDWIDTH PLOTS ............................................................................. 13 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ........................... 14 FIELD STRENGTH OF SPURIOUS EMISSIONS ........................................................ 15 FREQUENCY STABILITY ......................................................................................... 17 FREQUENCY STABILITY ......................................................................................... 18 Applicant: LAW ENFORCEMENT ASSOCIATES INC. FCC ID: KAVPDT500 Report: L\LAW_KAV\664AUT10\664AUT10TestReport.doc Page 3 of 20 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 7/8/2010 Tested by: Nam Nguyen Applicant: LAW ENFORCEMENT ASSOCIATES INC. FCC ID: KAVPDT500 Report: L\LAW_KAV\664AUT10\664AUT10TestReport.doc Page 4 of 20 GENERAL INFORMATION DUT Specification DUT Description VHF BODY WORN RADIO - TX FCC ID KAVPDT500 Model Number PDT-500BW Operating Frequency (150.10 -174.00) MHz Type of Emission 4K0F1E Modulation 4 level FSK DUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions The temperature was 26ºC with a relative humidity of 50% . Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 90 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: LAW ENFORCEMENT ASSOCIATES INC. FCC ID: KAVPDT500 Report: L\LAW_KAV\664AUT10\664AUT10TestReport.doc Page 5 of 20 EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 Applicant: LAW ENFORCEMENT ASSOCIATES INC. FCC ID: KAVPDT500 Report: L\LAW_KAV\664AUT10\664AUT10TestReport.doc Page 6 of 20 TEST PROCEDURE Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C:2004, using a 50uH LISN. Both lines were observed with the UUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a peak power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the …
