KAWAPKBMS1454Microwave Oven

BUILT-IN MICROWAVE OVEN Use & Care Guide For questions about features, operation/performance, parts accessories or service, call: 1-800-422-1230, or visit our website at... www.kitchenaid.com Table of Contents ............................................................................................................ 2 Model KBMS1454R 8205301/4619-694-50831 2 TABLE OF CONTENTS MICROWAVE OVEN SAFETY........................................................3 Electrical Requirements ...............................................................5 PARTS AND FEATURES ................................................................6 Turntable ......................................................................................6 MICROWAVE OVEN CONTROL....................................................6 Display ..........................................................................................7 Number Codes .............................................................................7 Start ..............................................................................................7 Add a Minute ................................................................................7 Cancel/Off ....................................................................................7 Clock ............................................................................................7 Options .........................................................................................7 Tones............................................................................................7 Demo Mode..................................................................................7 Control Lock.................................................................................7 MICROWAVE OVEN USE ..............................................................8 Food Characteristics ....................................................................8 Cooking Guidelines ......................................................................8 Cookware and Dinnerware ..........................................................8 Aluminum Foil and Metal .............................................................9 Cooking Power.............................................................................9 Cooking ......................................................................................10 Preset Cooking...........................................................................10 Reheating ...................................................................................10 Defrosting ...................................................................................11 One Touch Sensor Cooking.......................................................11 Keep Warm.................................................................................12 MICROWAVE OVEN CARE..........................................................15 General Cleaning........................................................................15 TROUBLESHOOTING ..................................................................16 ASSISTANCE OR SERVICE.........................................................17 Replacement Parts.....................................................................17 WARRANTY ..................................................................................18 3 MICROWAVE OVEN SAFETY You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: SAVE THESE INSTRUCTIONS WARNING:To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: ■ Read all instructions before using the microwave oven. ■ Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section. ■ The microwave oven must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in this section and in the provided Installation Instructions. ■ Install or locate the microwave oven only in accordance with the provided Installation Instructions. ■ Some products such as whole eggs in the shell and sealed containers – for example, closed glass jars – are able to explode and should not be heated in the microwave oven. ■ Use the microwave oven only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. ■ As with any appliance, close supervision is necessary when used by children. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: ■ Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. ■ The microwave oven should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment. ■ See door surface cleaning instructions in the “Microwave Oven Care” section. ■ To reduce the risk of fire in the oven cavity: – Do not overcook food. Carefully attend the microwave oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking…

Text truncated - open the document above for the full version.

-----Original Message----- From: Monica Roos ES-STO Sent: Monday, December 20, 2004 8:54 AM To: Roland Gubisch ES-Box Cc: Bo Berglof ES-STO; TCB_Admin ES-Crt Subject: SV: Whirlpool Microwave oven FCC ID: KAWAPKBMS1454 Dear Roland, Thanks for your quick reviewing of this application. Please see my comments below. Vänliga hälsningar / Best regards Monica Roos _____________________________________________ Från: Roland Gubisch ES-Box Skickat: den 17 december 2004 20:42 Till: Monica Roos ES-STO Kopia: Bo Berglof ES-STO; TCB_Admin ES-Crt Ämne: Whirlpool Microwave oven FCC ID: KAWAPKBMS1454 Dear Monica, Review of this TCB application is complete, and the equipment has been found to meet the technical requirements for certification. Please respond to the following additional requests for information or clarification: ADMINISTRATIVE The magnetron vendor and model type(s) used in this oven must be listed on the Grant. Please provide the magnetron vendor and model number(s) used. [Intertek Semko] Please look at page 3, sub-clause 2.2, for the requested information of the magnetron. TECHNICAL 1. The test report indicates AC conducted measurements down to 9 kHz. For future reference, this low range only applies to induction cookers. The range of conducted measurements for microwave ovens is 150 kHz - 30 MHz, per 18.307(b). It is not necessary to amend the test report on this point. [Intertek Semko] Noted 2. The test report shows a radiated spurious emission limit of 43.6 dBuV/m at 300m. The calculated emission limit per 18.305(b) is 25 x SQRT(power/500) microvolts/m at 300m. For the measured RF power of 860 W, this would be 25 x SQRT(1.72) or 32.8 microvolts/m or 30.3 dBuV/m at 300m. The measured emissions still comply with this lower calculated limit. Please comment. [Intertek Semko] Regarding the calculated limit at 300 m, it’s a miscalculation. We calculated the value the other way around and the correct value should of course be 30,3 dBμV/m. Please see attached updated test report (page 10, 11 and 13). Certification can proceed as soon as the two necessary points above are addressed. [Intertek Semko] Looking forward to receive the Grant! Thank you, Roland

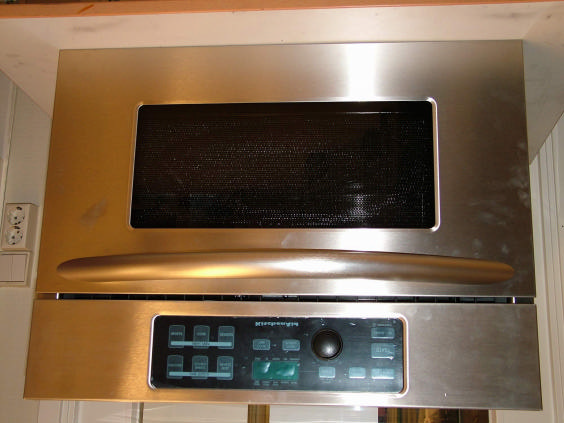

1(2) EXTERNAL PHOTOS FCC ID: KAWAPKBMS1454 2(2)

CHANGE DATE NAME CHANGE FIG FOR INQUIRY FOR TOOLING SUPERS. - 2 166 10 A3 CHECK ORG. DAT.. PROPERTY OF NASRETDIN Whirlpool Sweden AB 1 3301 AMT 557/KA/IN US KBMS1454PSS ----- 8591 557 54711 2004-XX-XX D Whirlpool Sweden AB D 5 6 KITR Copy not included in the distribution code in T- 008 is not approved. All rights strictly reserved. Reproduction or issue to third parties without written authority from the proprietor. in any form whatever is not permitted BC A 4 CB A 23 1 6 5 4 23 1 2004-XX-XX JET DESIGN PART: T:\FUNCTIONS\T\LBL\166\8591\557\5471101 CLEANING INSTRUCTIONClean door and control panelwith a soft cloth moistened withwarm water or liquid detergent.Do not use an abrasive cleaner. 8591 557 54711 XNYWWZZZZZ FCC ID: KAWAPKBMS1454 KITCHENAID, BENTON HARBOR, MI, USA; MISSISSAUGA, ONTARIO, CANADA 8591 557 54711 XNYWWZZZZZ 8591 557 54711 XNYWWZZZZZ PRECAUTIONS FOR SAFE USE TO AVOID POSSIBLEEXPOSURE TO EXCESSIVE MICROWAVE ENERGYDO NOT Attempt To Operate This Oven With:(a) Object Caught In Door. (b) Door That Does Not Close Properly.(c) Damaged Door, Hinge, Latch, or Sealing Surface. 8591 557 54711 XNYWWZZZZZ NOTES:A. SERIAL NUMBER XN = Factory code Y = YearW = WeekZ = Serial number For further information see:CODING AND NUMBERING SYSTEMS , 05-003,PRODUCT SERIAL NUMBER IDENTIFICATION. B. MANUFACTURED M = Month when manufacturedY = Year when manufactured C. GENERAL Label location acc to 8231 210 XXXX D. CODES REQUIREMENTS All reprinting must be with thermal transfer ribbon.For approved ribbons refer to 8231 210 2535. KBMS1454RSS- 0 XNYWWZZZZZ MMMMMMMM YYYY MODEL NO. E.C.N SERIAL NO MANUFACTURED HOUSEHOLD MICROWAVE OVEN · INPUT 120V 60Hz 15 AMP 3 WIRE AC ONLYRATED 15 AMP · OUTPUT 1000 WATTS 2450 MHz · COMPLIES WITH D.H.H.S STANDARDS 21 CFR 1030.10 · DHHS CODE NO: IR MADE IN SWEDEN

1(1) MARKING PLATE LOCATION FCC ID: KAWAPKBMS1454

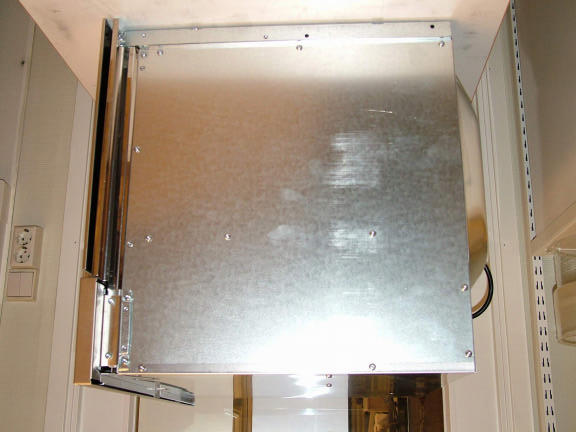

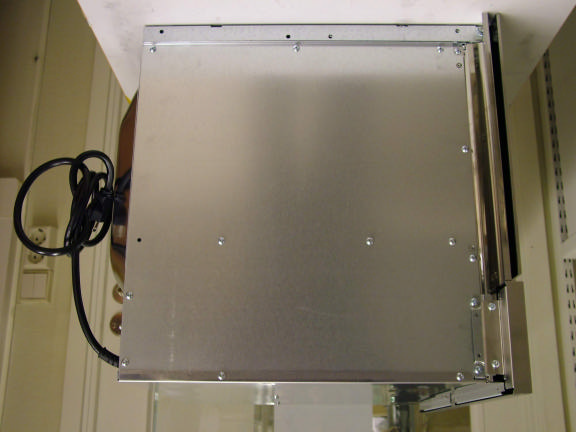

1(6) INTERNAL PHOTOS FCC ID: KAWAPKBMS1454 Overview Overview 2(6) Power board Control board 3(6) Control board Mains filter 4(6) PCB’s 5(6) Power board Power board 6(6)

Tech Sheet Do not discard 8205304 / 4619-694-50861 FOR SERVICE TECHNICIAN’S USE ONLY PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a.Do not operate or allow the oven to be operated with the door open. b.Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary: 1. Interlock Operation 2. Proper Door Closing 3. Seal and Sealing Surfaces (Arcing, Wear & Other Damage) 4. Damage to or Loosening of Hinges & Latches 5. Evidence of Dropping or Abuse c.Before turning on microwave power for any service test or inspection within the microwave generating compartments, check the magnetron, waveguide or transmission line, and cavity for proper alignment, integrity and connections. d.Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation, and transmission systems shall be repaired, replaced, or adjusted by procedures described in service manual before the oven is released to the owner. e.A microwave leakage check to verify compliance with the Federal Performance Standard should be performed on each oven prior to release to the owner. f.Do not attempt to operate the oven if the door glass is broken. WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock. 2 Microwave Oven Power Output Test The power output of the magnetron can be measured by the following tap water temperature rise test. NOTES:
Be sure oven cavity is clean and cool (not used recently).
The magnetron output will be lower with lower line voltages. 1.Fill a glass beaker with 32 oz (946 mL) of tap water. Stir the water with a thermometer (digital recommended) and record the temperature. This starting temperature of the water should be between 50ºF and 75ºF (10°C and 24°C). 2.Place the beaker and water in the center of the microwave oven. Operate on HIGH power level for 60 seconds. 3.When the microwave oven is finished, stir the thermometer through the water and record the temperature. 4.Subtract the cold water temperature from the warm water temperature to get the temperature rise. Normal range is as shown in the following table. Voltage (VAC under load) Temperature Rise ºFºC 120V18.9 - 24.310.5 - 13.5 108V16.2 - 21.69 - 12 Failure Codes Indications DisplayLikely Failure ConditionRecommended Repair Procedure Flashing colon “:” Power failureAfter a power failure, the colon “:” will be flashing. Press any key to end this indication. The colon will then be steady when in standby. F2Keyboard failure1.Unplug microwave oven or disconnect power. 2.Replace membrane switch. 3.If problem persists, replace electronic control. 4.Plug in microwave oven or reconnect power. F3HHumidity sensor failure1.Unplug microwave oven or disconnect power. 2.Connect a new sensor to the electronic control (at P2). 3.Plug in microwave oven or reconnect power. 4.If no failure code appears when starting sensor function:
Unplug microwave oven or disconnect power.
Replace old sensor. 5.If failure code appears when starting sensor function:
Unplug microwave oven or disconnect power.
Replace electronic control. 6.Plug in microwave oven or reconnect power. F6Microwave relay failure1.Check wiring to Relay 4903 for short circuits. 2.If wiring is OK:
Unplug microwave oven or disconnect power.
Replace electronic control.
Plug in microwave oven or reconnect power. 3 WIRING DIAGRAMS Schematic Diagram ElectronicControl 4 Pictorial Diagram HIGH VOLTAGE COMPONENTS H.V. C A P A C IT O R H.V. TRANSFORMER H.V. DIODE MAGNETRON F F A Y/G Y/G THERMOSTAT CAVITY MW Relay4903 Y BU BU BR BR BR W G BR BR BR BKBK BR R R BR BR BK BK BR BR BR W W W W R R R W BK W BR R R W W WW R BU BU BU BU BU Y BKR W BU P3 P1 P2 P16 1 1 12 1 6 8 1 2 23 1 2 TT Relay4906 Fan Relay4901 Light Relay4902 P10 7001 P4 1 1 6 USER INTERFACE BOARD SELECTOR BOARD DISPLAY ELECTRONIC CONTROL TOUCH PANEL (MEMBRANE SWITCH) P34 P35 P72 P79 P61 P60 P30 P31 7 0 0 1 P32 P73 P40 P4 P74 1 6 Y/G TURNTABLEMOTOR HUMIDITYSENSOR LINE FILTER FUSE & FUSE SADDLE POWER CORD MAGNETRONTHERMOSTAT NO LOAD CAVITYTHERMOSTAT CAVITY LAMP Interlock Secondary Switch Left InterlockPrimary Switch InterlockMonitor Switch Right CAVITY LIGHTTRANSFORMER 1 2 3 4 FAN MOTOR 5 Pictorial Diagram USER INTERFACE BOARD SELECTOR BOARD DISPLAY TOUCH PANEL (MEMBRANE SWITCH) P34 P35 P72 P79 P61 P60 P30 P31 7001 P32 P73 P40 P4 P74 1 6 H.V. Transformer Turntable Motor Cooling Fan Motor Cavity Light Transformer Primary Interlock Switch MW Relay 4903 BU R BU Y BU BR BR BR BR BK BK BR P3 P1 P2 P16 1 1 6 8 1 2 23 1 2 TT Relay 4906 Fan Relay 4901 Light Relay 4902 P10 7001 P4 BK R W HUMIDITY SENSOR 1 1 6 Y/G Y/G Primary Interlock Switch Secondary Interlock Switch Secondary Interlock Switch Secondary Interlock Switch 6 Parts Layout (not to scale) A. Secondary interlock switch B. Touch panel (membrane switch) C. Humidity sensor D. Fuse holder E. Line fuse (20 amp) F. User interface board G. Electronic control H. L.V. light transformer I. Line filter J. Cooling fan motor K. H.V. transformer L. H.V. diode M. H.V. capacitor N. Magnetron O. Magnetron thermostat—opens at 293ºF (145ºC), closes at 250ºF (121ºC) P. Monitor interlock switch Q. Primary interlock switch R. No load cavity thermostat assembly—opens at 257ºF (125ºC), closes at 185ºF (85ºC) S. Turntable motor T. Cavity thermostat assembly—opens at 239ºF (115ºC), closes at -31ºF (-35ºC) U. Cavity lamp Primary, Secondary, and Monitor Interlock Switch Checkout Procedure SwitchCheck ByDoor OpenDoor Closed Primary Interlock 1.Unplug microwave oven or disconnect power. 2.Disconnect the wires at the Primary Interlock Switch. 3.Check from the common terminal (white/brown wires) to the normally open terminal (white wire). -+ Secondary Interlock 1.Unplug microwave oven or disconnect power. 2.Disconnect the wires at t…

Text truncated - open the document above for the full version.

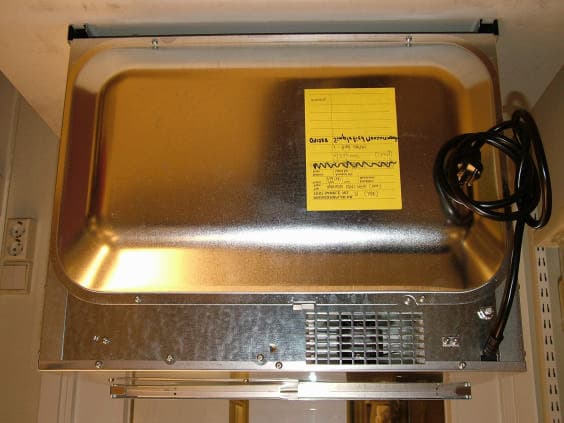

1(1) TEST SET-UP PHOTO FCC ID: KAWAPKBMS1454
