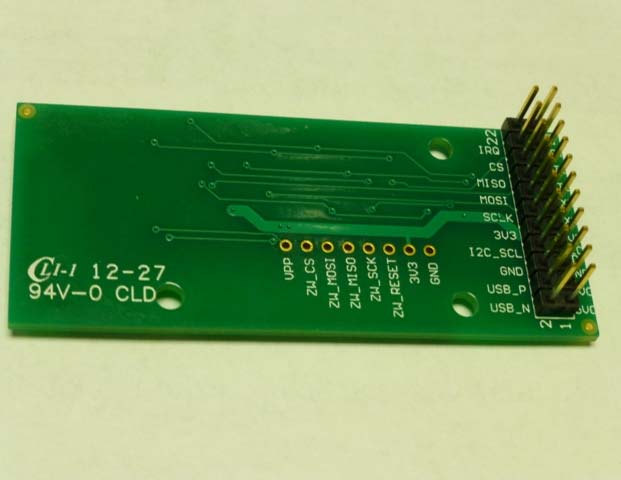

SLZW0001 User Manual Instructions for Installation: 1. Unplug the SysLINK. 2. Observe proper ESD (grounding) procedures. 3. Remove the four screws on the bottom of the SysLINK unit. 4. Remove the top cover of the SysLINK by pressing on the tabs in the rear of the unit. 5. Open the SLZW0001 box and carefully remove the card. 6. Select any open option card connector in the SysLINK and insert the pins from the SLZW0001 into the connector, confirming the three screw holes line up with the mezzanine locations. 7. Insert the three screws supplied with the SLZW0001 into their respective holes and tighten. Be careful not to overtighten the screws. 8. Re-assemble the SysLINK unit. 9. Power on the SysLINK – the LED corresponding to the Systech Z-Wave Option Card will be Yellow at first, then Green when SLZW0001 is active. Instructions for Labeling the Unit: Attach a label on the bottom of the Syslink that states the below: Contains: FCCID: KJM-SLZW0001 and IC: 3288A-SLZW0001. This device complies with FCC Rules standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Include the following statements in the user manual for the final product: Notice: This device complies with FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Avis: Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. Notice: Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Avis: Sous la réglementation d'Industrie Canada, ce transmetteur radio ne peut fonctionner qu’en utilisant seulement une antenne d'un type et d’un maximum (ou moins) de gain approuvé pour l'émetteur par Industrie Canada. Pour réduire des potentielles interférences radio pour les autres utilisateurs, le type d'antenne et son gain doivent être choisis de sorte que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Warning: Changes or modifications not expressly approved by Systech Corporation could void the user’s authority to operate the equipment. The SLZW0001 module is approved for co-location use with the following modules. Co-location use is prohibited with other radio equipment or modules. Vendor Model FCC ID Cellular Module (1 of these) Fusion FW2770p XU9‐FW2770P Foxlink MV84PG QVZ‐MV84PG Novatel E362 PKRNVWE362 Hauwei EM820W QISEM820W Wi‐Fi Module SparkLAN WPER‐150GN RYK‐WPER150GN Bluetooth Module (1 of these) Vencer VD‐2100 VHVBTVD2100 Panasonic ENW89820A1KFT7VPAN17 Zigbee Module (1 of these) Anaren A2530E24A or A2530E24CX7J‐A11091301 Anaren A8520E24A91 or A8520E24C91X7J‐A10051702 The SLZW0001 module, when used in combination with the above modules must be installed in a manner so as to provide at least 21.5 cm separation distance from the antenna to the body of a user of the final product.

Page 1 of 2 NTS TCB 41039 Boyce Road Fremont, CA, 94538 To whom it may concern: The enclosed documents constitute a formal submittal and application for Equipment Authorization for a modular low power 908.4 MHz FSK modulated transmitter pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47 15.249), Intentional Radiators RSS-Gen Issue 3, December 2010, “General Requirements and Information for the Certification of Radiocommunication Equipment” RSS-210, Issue 8, December 2010, “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” This module may be co-located with the following modular devices in end products produced by Systech: Vendor Model Technology FCC ID Band Cellular Module (1 of these) Fusion FW2770p EVDO Rev F A XU9‐FW2770P 824.7‐848.31 1851.25 ‐ 1908.75 Foxlink MV84PG EVDO Rev A QVZ‐MV84PG 824.7‐848.31 1851.25 ‐ 1908.75 Novatel E362 LTE PKRNVWE362 824.2‐848.8 1850.2‐1909.8 779.5‐784.5 Hauwei EM820W HSPA + QISEM820W 824.2‐848.8 1850.2‐1909.8 Wi‐Fi Module SparkLAN WPER‐150GN RYK‐ WPER150GN 2412‐2462 Bluetooth Module (1 of these) Vencer VD‐2100 Mini USB Adapter VHVBTVD2100 2402‐2480 Panasonic ENW89820A1KF T7VPAN17 2402‐2480 Zigbee Module (1 of these) Anaren A2530E24A or With Range Extender X7J‐A11091301 2403‐2480 A2530E24C Anaren A8520E24A91 or w/o Range Extender X7J‐A10051702 2406‐2474 Page 2 of 2 A8520E24C91 Zwave Module (1 of these) Systech SLZW0001 EUT (FSK transmitter) KJMSLZW0001 908.4 RF exposure has been calculated for each combination of all different transmitter types. The end products will never be sold with more than one of each type of radio module but may be sold with less than one of each type. National Technical Systems – Silicon Valley, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, David W. Bare Chief Engineer

Limited Modular Approval is being requested for this device. The following paragraphs detail the requirements for modules and explain how the module meets those requirements. Where requirements are not met a justification for a limited modular approval is presented. FCC §15.212 Requirements for Single Modular Transmitters (includes RSS GEN Section 3.2.2) (a) Single modular transmitters consist of a completely self-contained radiofrequency transmitter device that is typically incorporated into another product, host or device. Split modular transmitters consist of two components: a radio front end with antenna (or radio devices) and a transmitter control element (or specific hardware on which the software that controls the radio operation resides). All single or split modular transmitters are approved with an antenna. All of the following requirements apply, except as provided in paragraph (b) of this section. (1) Single modular transmitters must meet the following requirements to obtain a modular transmitter approval. (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The module contains a shield made of tin-plated brass. The shield covers component U1 on the schematic. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Data to the modulation circuit is buffered on the module via component U1 on the schematic ZWave_Schematic_80-200740-00.pdf. (iii) The modular transmitter must have its own power supply regulation. The module contains its own power supply regulation and the rf reference oscillator is contained within the module. Power supply regulation is provided via component U1 on the schematic ZWave_Schematic_80-200740-00.pdf (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The antenna is a PCB trace monopole. Seen from the following radiation pattern of the ZM1220, the vertical polarization of the antenna is fairly omni-directional and its gain is about 4dBi.", The RF port on the module is used for test purposes. Installation instructions for the module explain that only these antennas may be used with the device and that the end user shall not be able to access the antenna port or change antennas. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). Test data contained in this application is for the device tested in a stand-alone configuration. Radiated spurious emissions data and AC conducted emissions data demonstrating compliance with the requirements of Part 15 of the FCC rules for intentional radiators and RSS GEN/RSS 210 has been provided. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The module is appropriately labeled (refer to the label and label location drawings contained within this application). Instructions to the end user regarding the labeling requirements for host devices are …

Text truncated - open the document above for the full version.

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration No Systech CorporationJob Number: J87687 Model: ZM3102 T-Log Number: T87722 Account Manager: Christine Krebill Zen Barelka FCCClass: N/A Maximum Permissible Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the s pecification listed above. Date of Evaluation: 9/19/2012 Test Engineer: David Bare Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Device complies with Power Density requirements at 20cm No 21.5 All of the transmitters can operate simultaneously but only on 1 channel at a time. Maximum eirp is calculated as follows: separation: If not, required separation distance (in cm): Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard No deviations were made from the requirements of the standard. Uses the average power for each radio (where given), otherwise uses the peak power; sums EIRP for each radio. Maximum EIRP for all radios is compared to the lowest MPE limit for all transmitter frequencies. MPE CalculationPage 1 of 17 EMC Test Data Client: Contact: Standard: Systech CorporationJob Number: J87687 Model: ZM3102 T-Log Number: T87722 Account Manager: Christine Krebill Zen Barelka FCCClass: N/A Use: General Antenna:Various All transmitters (Cellular, Ralink Wi-Fi, Bluetooth, Zigbee and EUT) Fusion Cellular, Ralink Wi-Fi, Vencer Bluetooth, Aneran X7J-A11091301 Zigbee and EUT Peak AveragedBmWWdBm 824-849 Cellula r24.678.4033.12.028 Varies1 2.02833.07 2400 - 2483.5 WiFi23.8-3.7027.50.5621110.56227.50 2401 - 2483.5 Bluetooth12.121.0013.10.0217910.02113.12 2401 - 2483.5 Zigbee17.713.0020.70.1187910.11820.71 908.4 FS K-3.000.00-3.00.001110.001-3.00 52.72934.36 S (20cm) = 0.543 mW/cm 2 Limit0.549 mW/cm 2 Distance where S<= MPE Limit19.9cm BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP Totals: Fusion Cellular, Ralink Wi-Fi, Vencer Bluetooth, Aneran X7J-A11091301 Zigbee and EUT Peak AveragedBmWWdBm 1850 - 1910 Cellular24.048.9633.01.995Varies11.99533.00 2400 - 2483.5 WiFi23.8-3.7027.50.5621110.56227.50 2401 - 2483.5 Bluetooth12.121.0013.10.0217910.02113.12 2401 - 2483.5 Zigbee17.713.0020.70.1187910.11820.71 908.4 FS K-3.000.00-3.00.001110.001-3.00 52.69634.31 S (20cm) = 0.536 mW/cm 2 Limit0.606 mW/cm 2 Distance where S<= MPE Limit18.8cm BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP Totals: MPE CalculationPage 2 of 17 EMC Test Data Client: Contact: Standard: Systech CorporationJob Number: J87687 Model: ZM3102 T-Log Number: T87722 Account Manager: Christine Krebill Zen Barelka FCCClass: N/A Fusion Cellular, Ralink Wi-Fi, Panasonic Bluetooth, Aneran X7J-A11091301 Zigbee and EUT Peak AveragedBmWWdBm 824-849 Cellula r24.678.4033.12.028 Varies1 2.02833.07 2400 - 2483.5 WiFi23.8-3.7027.50.5621110.56227.50 2401 - 2483.5 Bluetooth-0.500.900.40.0017910.0010.40 2401 - 2483.5 Zigbee17.713.0020.70.1187910.11820.71 908.4 FS K-3.000.00-3.00.001110.001-3.00 52.70934.33 S (20cm) = 0.539 mW/cm 2 Limit0.549 mW/cm 2 Distance where S<= MPE Limit19.8cm Fusion Cellular, Ralink Wi-Fi, Panasonic Bluetooth, Aneran X7J-A11091301 Zi gbee and EUT Peak AveragedBmWWdBm 1850 - 1910 Cellular24.048.9633.01.995Varies11.99533.00 BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP Totals: BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP 1910 2400 - 2483.5 WiFi23.8-3.7027.50.5621110.56227.50 2401 - 2483.5 Bluetooth-0.500.900.40.0017910.0010.40 2401 - 2483.5 Zigbee17.713.0020.70.1187910.11820.71 908.4 FS K-3.000.00-3.00.001110.001-3.00 52.67734.28 S (20cm) = 0.533 mW/cm 2 Limit0.606 mW/cm 2 Distance where S<= MPE Limit18.8cm Totals: MPE CalculationPage 3 of 17 EMC Test Data Client: Contact: Standard: Systech CorporationJob Number: J87687 Model: ZM3102 T-Log Number: T87722 Account Manager: Christine Krebill Zen Barelka FCCClass: N/A Fusion Cellular, Ralink Wi-Fi, Vencer Bluetooth, Aneran X7J-A10051702 Zigbee and EUT Peak AveragedBmWWdBm 824-849 Cellula r24.678.4033.12.028 Varies1 2.02833.07 2400 - 2483.5 WiFi23.8-3.7027.50.5621110.56227.50 2401 - 2483.5 Bluetooth12.121.0013.10.0217910.02113.12 2401 - 2483.5 Zigbee17.302.0019.30.0857910.08519.30 908.4 FS K-3.000.00-3.00.001110.001-3.00 52.69634.31 S (20cm) = 0.536 mW/cm 2 Limit0.549 mW/cm 2 Distance where S<= MPE Limit19.8cm Fusion Cellular, Ralink Wi-Fi, Vencer Bluetooth, Aneran X7J-A10051702 Zi gbee and EUT Peak AveragedBmWWdBm 1850 - BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP Totals: BandMode Output PowerAntenna gain (Max) EIRPChannels Available Channels Used Total EIRP 1850 1910 Cellula r24.048.9633.01.995Varies11.99533.00 2400 - 2483.5 WiFi23.8-3.7027.50.5621110.56227.50 2401 - 2483.5 Bluetooth12.121.0013.10.0217910.02113.12 2401 - 2483.5 Zigbee17.302.0019.30.0857910.08519.30 908.4 FS K-3.000.00-3.00.001110.001-3.00 52.66434.25 S (20cm) = 0.530 mW/cm 2 Limit0.606 mW/cm 2 Distance where S<= MPE Limit18.7cm Totals: MPE CalculationPage 4 of 17 EMC Test Data Client: Contact: Standard: Systech CorporationJob Number: J87687 Model: ZM3102 T-Log Number: T87722 Account Manager: Christine Krebill Zen Barelka FCCClass: N/A Fusion Cellular, Ralink Wi-Fi, Panasonic Bluetooth, Aneran X7J-A10051702 Zigbee and EUT Peak AveragedBmWWdBm 824-849 Cellula r24.678.4033.12.028 Varies1 2.02833.07 2400 - 2483.5 WiFi23.8-3.7027.50.5621110.56227.50 2401 - 2483.5 Bluetooth-0.500.900.40.0017910.0010.40 2401 - 2483.5 Zigbee17.302.0019.30.0857910.08519.30 908.4 FS K-3.000.00-3.00.001110.001-3.00 52.67734.28 S (20cm) = 0.533 mW/cm 2 Limit0.549 mW/cm 2 Distance where S<= MPE Limit19.7cm Fu…

Text truncated - open the document above for the full version.

File: R87921 Rev 1 Page 1 EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 3 / RSS 210 Issue 8 FCC Part 15 Subpart C ZWave Option Module model SLZW0001 FCC ID: KJM-SLZW0001 IC CERTIFICATION #: 3288A-SLZW0001 APPLICANT: Systech Corporation 16510 Via Esprillo San Diego, CA 92127 TEST SITE(S): NTS Silicon Valley 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-7 REPORT DATE: February 4, 2013 REISSUE DATE: February 22, 2013 FINAL TEST DATES: May 30, 2012 TOTAL NUMBER OF PAGES: 31 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ David W. Bare David Guidotti Chief Engineer Senior Technical Writer NTS Silicon Valley is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full NTS Silicon Valley -- EMC Department Test Report Report Date: February 4, 2013 Reissue Date: February 22, 2013 File: R87921 Rev 1 Page 2 REVISION HISTORY Rev# Date Comments Modified By - 02-04-2013 First release 1 02-22-2013 Revised to correct FCC ID DMG NTS Silicon Valley -- EMC Department Test Report Report Date: February 4, 2013 Reissue Date: February 22, 2013 File: R87921 Rev 1 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 4 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS SUMMARY ................................................................................................................................... 6 DEVICES OPERATING IN THE 902 – 928 / 2400 – 2483.5 / 5725 – 5850 MHZ BANDS ................................... 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS .......................................................................... 6 MEASUREMENT UNCERTAINTIES .................................................................................................................... 6 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 7 GENERAL ................................................................................................................................................................ 7 ANTENNA SYSTEM .............................................................................................................................................. 7 ENCLOSURE ........................................................................................................................................................... 7 MODIFICATIONS ................................................................................................................................................... 7 SUPPORT EQUIPMENT ......................................................................................................................................... 7 EUT INTERFACE PORTS ...................................................................................................................................... 7 EUT OPERATION ................................................................................................................................................... 7 TEST SITE ................................................................................................................................................................... 8 GENERAL INFORMATION ................................................................................................................................... 8 CONDUCTED EMISSIONS CONSIDERATIONS ................................................................................................ 8 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................... 8 MEASUREMENT INSTRUMENTATION .............................................................................................................. 9 RECEIVER SYSTEM .............................................................................................................................................. 9 INSTRUMENT CONTROL COMPUTER .............................................................................................................. 9 LINE IMPEDANCE STABILIZATION NETWORK (LISN) ............................…
