KNZ48435

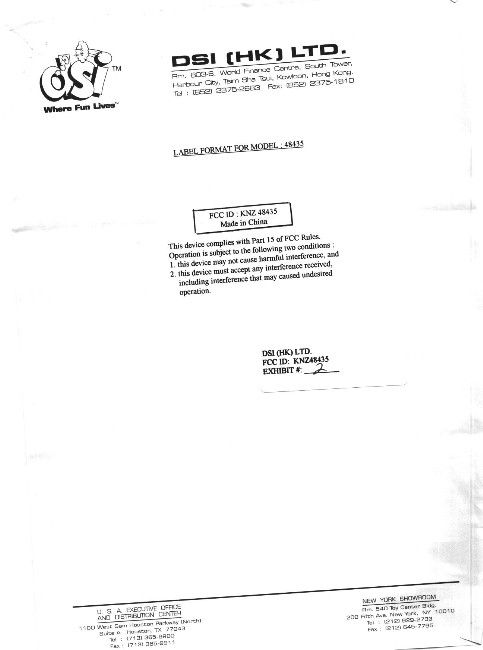

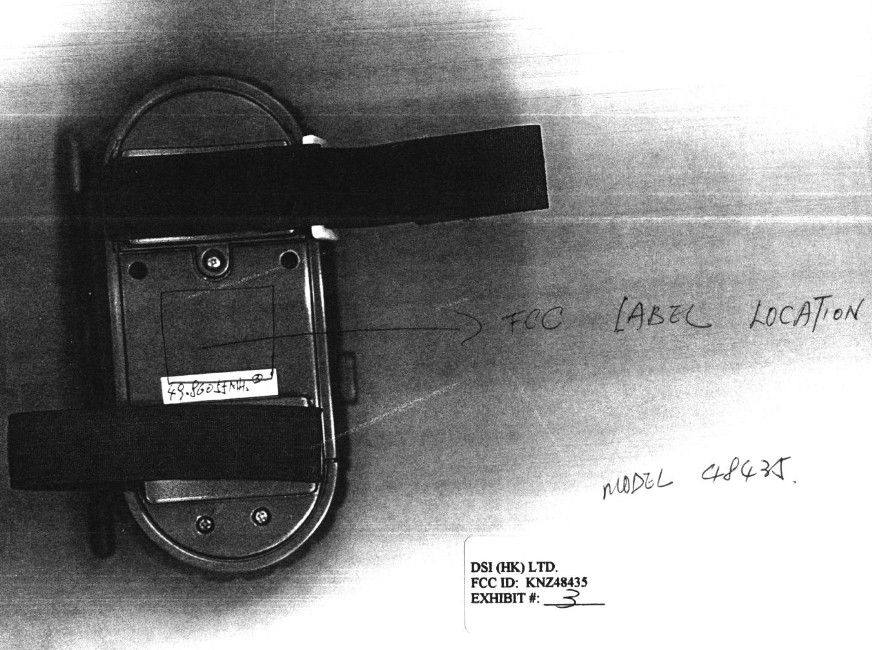

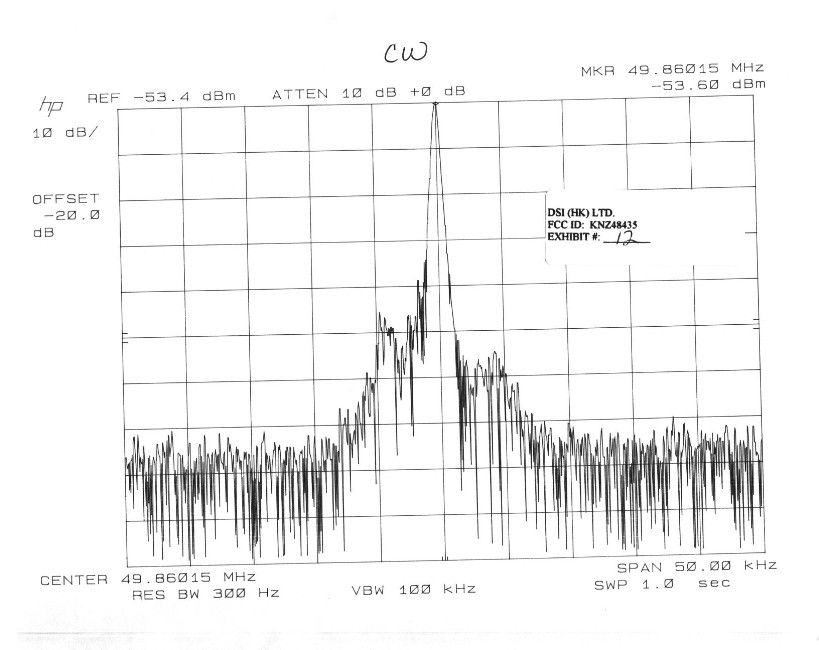

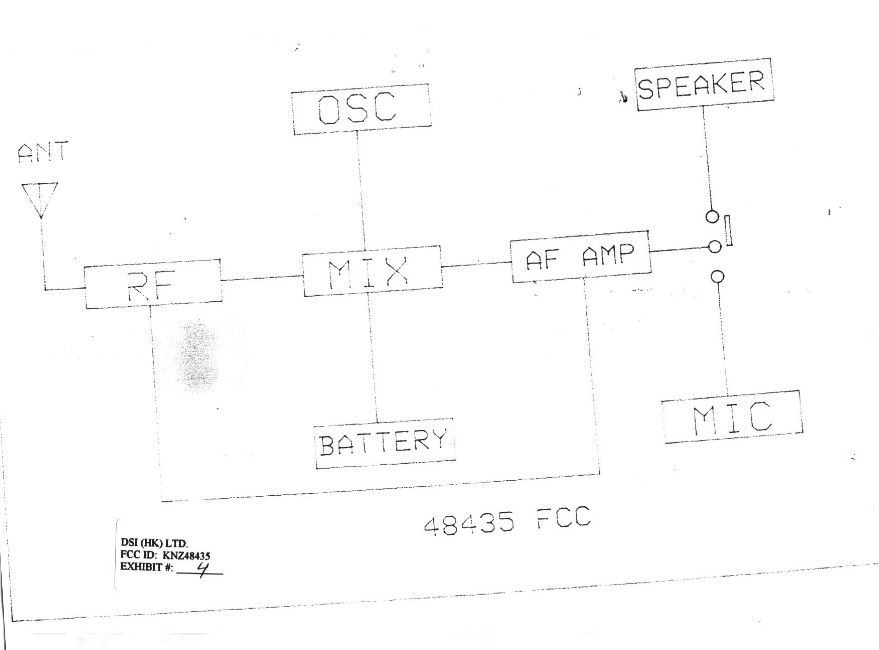

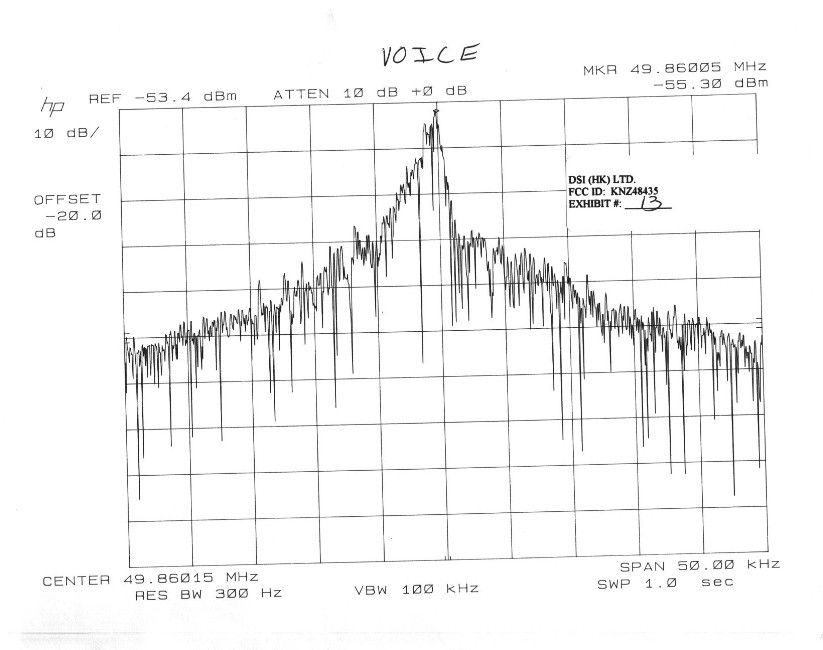

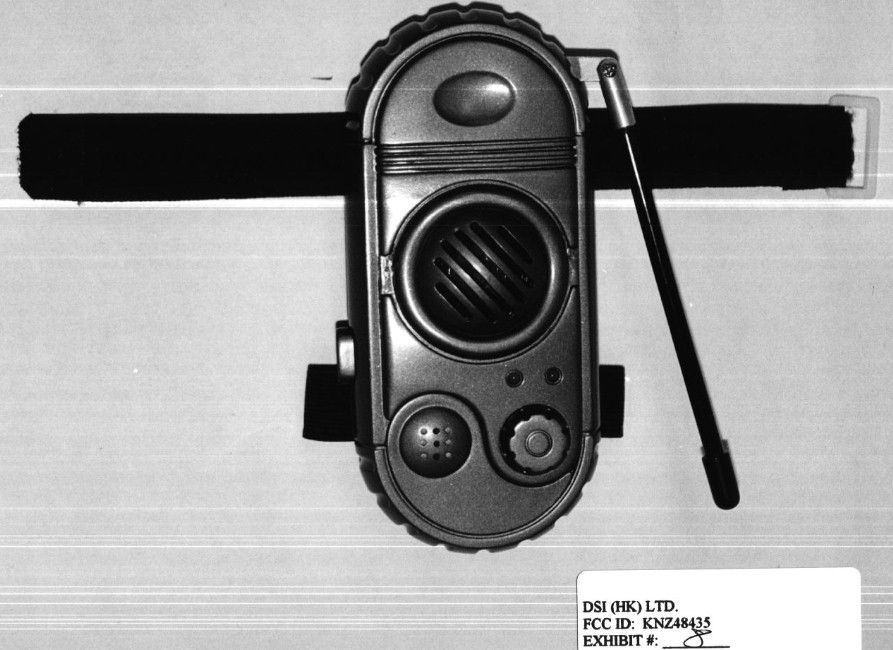

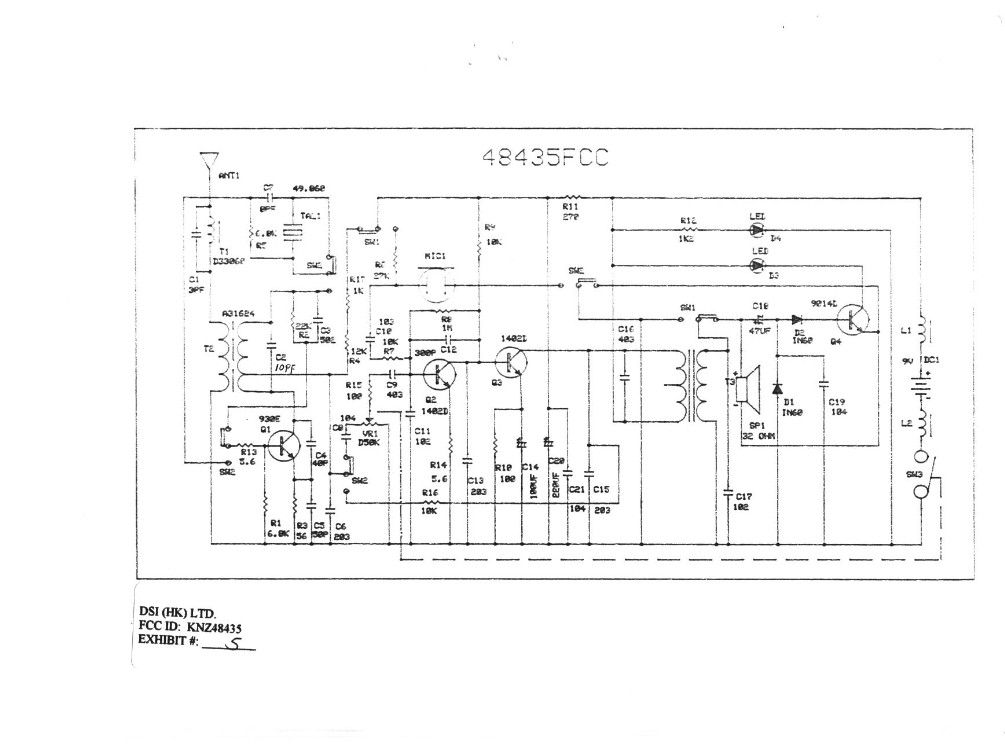

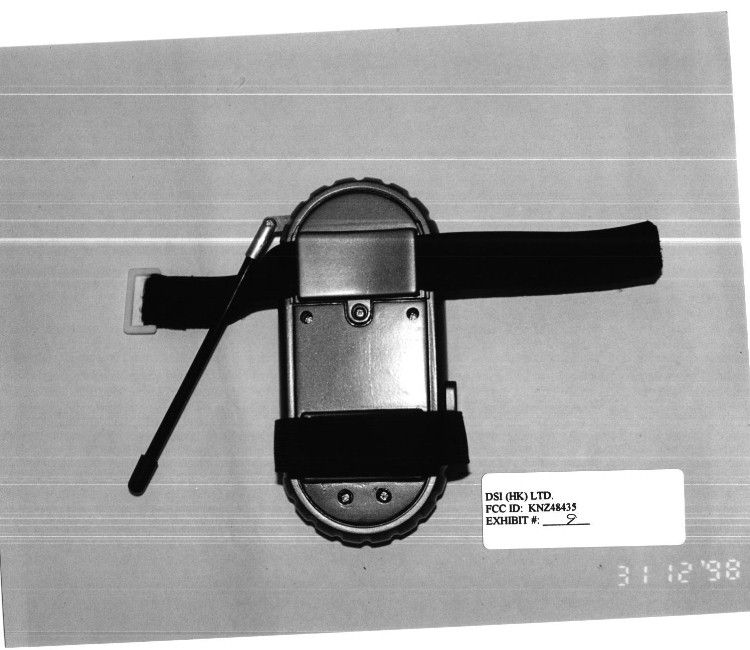

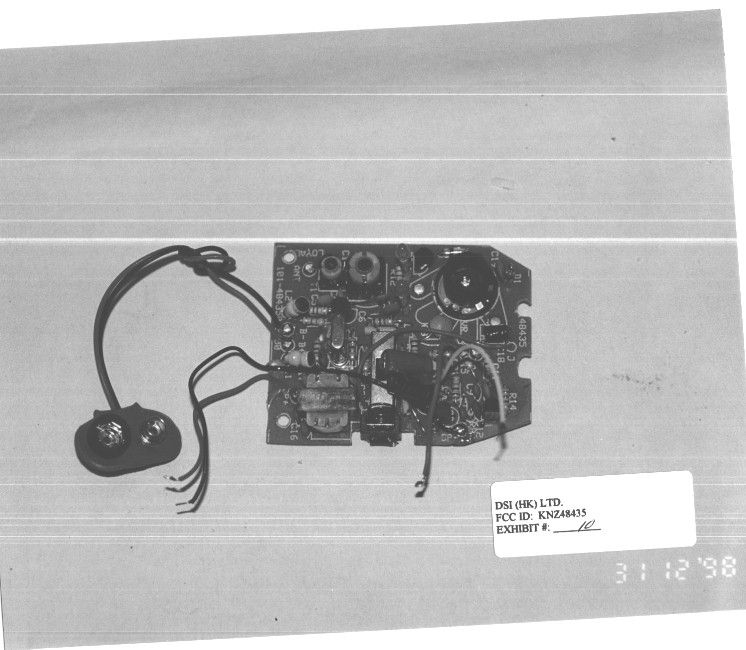

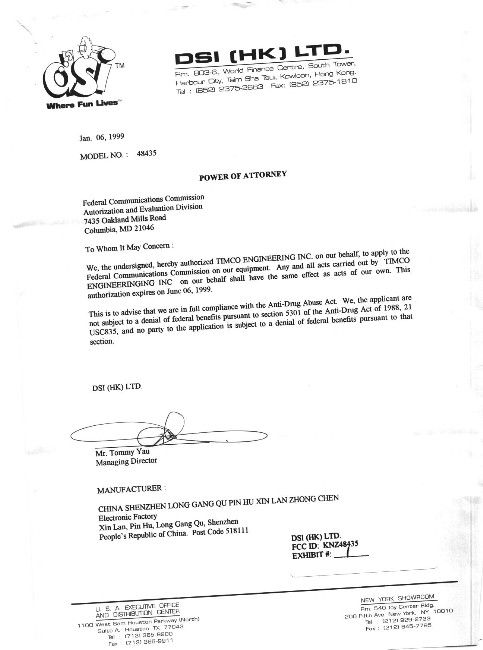

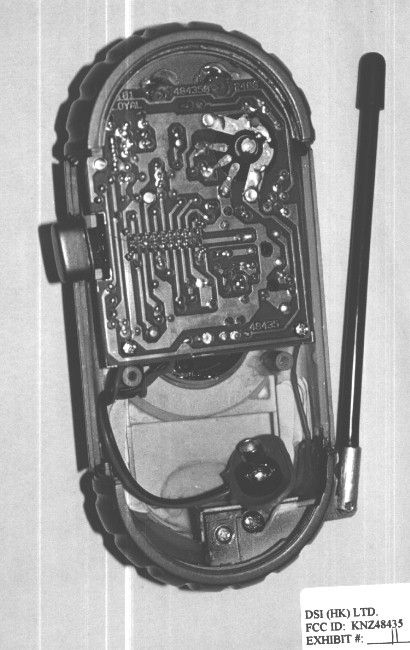

}pDESKJET3( }.OP .PL 11.5" ..REPORT FOR 49 MHZ REMOTE CONTROL TX - UPDATED 6/26/98 PUT CIR DESC ON PA W TEST PRO .SV DATE,JANUARY 22, 1999 .SV APPLICANT,DSI (HK) LTD. .SV FCCID,KNZ48435  --! TABLE OF CONTENTS LIST APPLICANT: &APPLICANT& FCC ID: &FCCID& TEST REPORT CONTAINING: PAGE 1......TEST PROCEDURE PAGE 2......TEST PROCEDURE CONTD. & CIRCUIT DESCRIPTION PAGE 3-4....RADIATION INTERFERENCE TEST DATA PAGE 5......OCCUPIED BANDWIDTH TEST DATA EXHIBITS CONTAINING:  „„ EXHIBIT 1............POWER OF ATTORNEY LETTER  „„ EXHIBIT 2............SAMPLE OF FCC ID LABEL  „„ EXHIBIT 3............SKETCH OF FCC ID LABEL LOCATION  „„ EXHIBIT 4............BLOCK DIAGRAM  „„ EXHIBIT 5............SCHEMATIC  „„ EXHIBIT 6A-6B........PARTS LIST  „„ EXHIBIT 7............INSTRUCTION MANUAL  „„ EXHIBIT 8............EXTERNAL PHOTO - FRONT SIDE  „„ EXHIBIT 9............EXTERNAL PHOTO - BACK SIDE  „„ EXHIBIT 10...........INTERNAL PHOTO - COMPONENT SIDE  „„ EXHIBIT 11...........INTERNAL PHOTO - COPPER SIDE  „„ EXHIBIT 12...........OCCUPIED BANDWIDTH PLOT - CW  „„ EXHIBIT 13...........OCCUPIED BANDWIDTH PLOT - LOUD VOICE APPLICANT: &APPLICANT& FCC ID: &FCCID& REPORT #: &\& PAGE: TABLE OF CONTENTS LIST .PA ð:3Š.op .PL 11.5" ..UPDATED 10/9/97 TO ADD CALIBRATION DATES ..4/23/97 revvised for LISN Description APPLICANT: &APPLICANT& FCC ID: &FCCID& TEST EQUIPMENT LIST .rm 70 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 6/26/98 2. Signal Generator, Hewlett Packard 8640B, cal. 10/1/98 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 5/15/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/15/98 5. h„ Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 8/15/98 6. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 7. Electro-Metric Line Impedance Stabilization Network Model  „„ No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 8. Electro-Metric Line Impedance Stabilization Network Model  „„ No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 9. Special low loss cable was used above 1 GHz 10. Tenney Temperature Chamber TEST PROCEDURE .rm70 GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 55øF with a humidity of 69%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading.  „„ Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro priate sweep speed. The ambient temperature of the UUT was 55øF with a humidity of 69%. APPLICANT: &APPLICANT& FCC ID: &FCCID& REPORT #: &\& PAGE #: 1 .pa ð:`6Š    ! TEST PROCEDURES CONTINUED APPLICANT: &APPLICANT& FCC ID: &FCCID& .rm 65 ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. CIRCUIT_DESCRIPTION: In the transmit mode the speaker is switched so that it is con nected to the input of the audio amplifiers Q1, Q4 & Q5 and the output of Q5 drives the transformer T2, which modulates the voltage of the crystal controlled oscillator, Q6. The crystal controlled oscillator is the transmitter. Q6 is connected to the antenna via the output filter made up of C24, C2, & L1. ANTENNA_AND_GROUND_CIRCUITRY This unit makes use of a external 5" antenna. The antenna is inductively coupled. This unit is powered from a 9.0V battery. No ground connection is provided. The unit relies on the ground tract of the printed circuit board. APPLICANT: &APPLICANT& FCC ID: &FCCID& REPORT #: &\& PAGE #: 2 .PA ð:`6Š.OP .SV RULES,15.235 .SV PASS/FAIL,DOES ..ENTER DOES OR DOES NOT APPLICANT: &APPLICANT& FCC ID: &FCCID& NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: &RULES& REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M .RM 70 TEST DATA: EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHzdBuVdBFACTOR dBdBuV/m@3mdB POL. .TB #5 #18 #31 #41 #51 #62 68 49.86 19.50 0.25 10.99 30.74 49.26 V 9…
