KOBF08SPDJBLear Corporation Receiver

Re: Certification for Lear Receiver Model(s): KOBF08SPDJB FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

RKE/TPM RECEIVER BLOCK DIAGRAM LOW NOISEAMPLIFIER 315 MHz SAWFILTER MIXER 304.3 MHz VCO/PLLLOCALOSCILLATOR ACTIVEFILTER 10.7 MHz CERAMICFILTER IF AMPLIFIER FSK DEMODULATOR ASK DEMODULATOR 9.509 MHz CRYSTAL ACTIVEFILTER DATA SLICER DATA SLICER MICROCONTROLLER RKE OUTPUT 8 MHz CRYSTAL TPM OUTPUT INTERNALANTENNA

November 7, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB Model(s): KOBF08SPDJB Please find enclosed application materials for certification of Lear KOBF08SPDJB Receiver. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Re: Certification for Lear Receiver Model(s): KOBF08SPDJB FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Lear Receiver Model(s): KOBF08SPDJB FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Lear requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Lear has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan November 7, 2006 Re: Certification for Lear Receiver Model(s): KOBF08SPDJB FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Lear Receiver Model(s): KOBF08SPDJB FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Lear Corporation 5200 Auto Club Drive Dearborn, MI 48126 Tom Tang Tel: 313-593 - 9934 Fax: 313-593-9526 It will be manufactured by: EPIC Technologies 200 East Bluegrass Dr. Norwalk, OH 44857 Tom Tang Tel: 313-593 - 9934 Fax: 313-593-9526 Canadian Contact: John J. Jackson Daimler-Chrysler Canada- ARDC 3939 Rhodes Drive Windsor, ON. N8W 5B5 Tel: (519) 973 – 2870 [email protected]

November 7, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Lear Receiver Model(s): KOBF08SPDJB FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB Please find enclosed application materials for certification of Lear KOBF08SPDJB Receiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist November 7, 2006 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Lear Receiver Model(s): KOBF08SPDJB FCC ID: KOBF08SPDJB IC: 3521A-F08SPDJB Please find enclosed application materials for certification of Lear KOBF08SPDJB Receiver. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 3521A-F08SPDJB If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

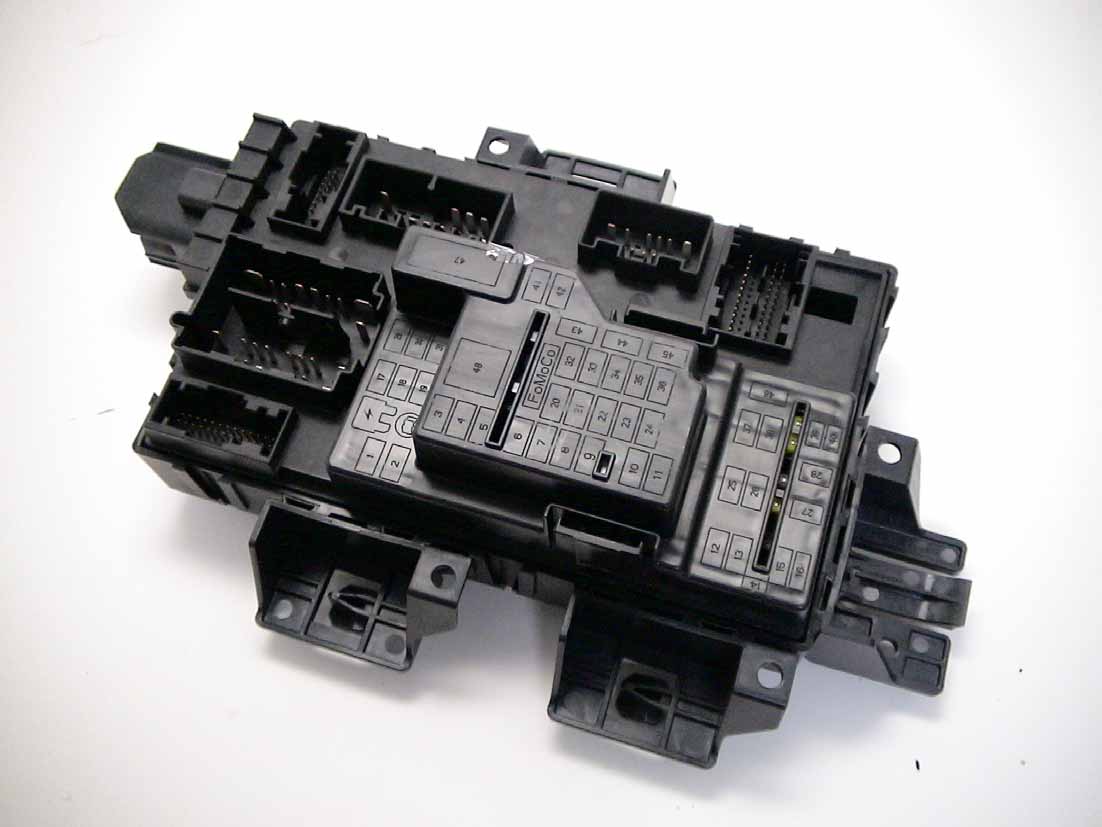

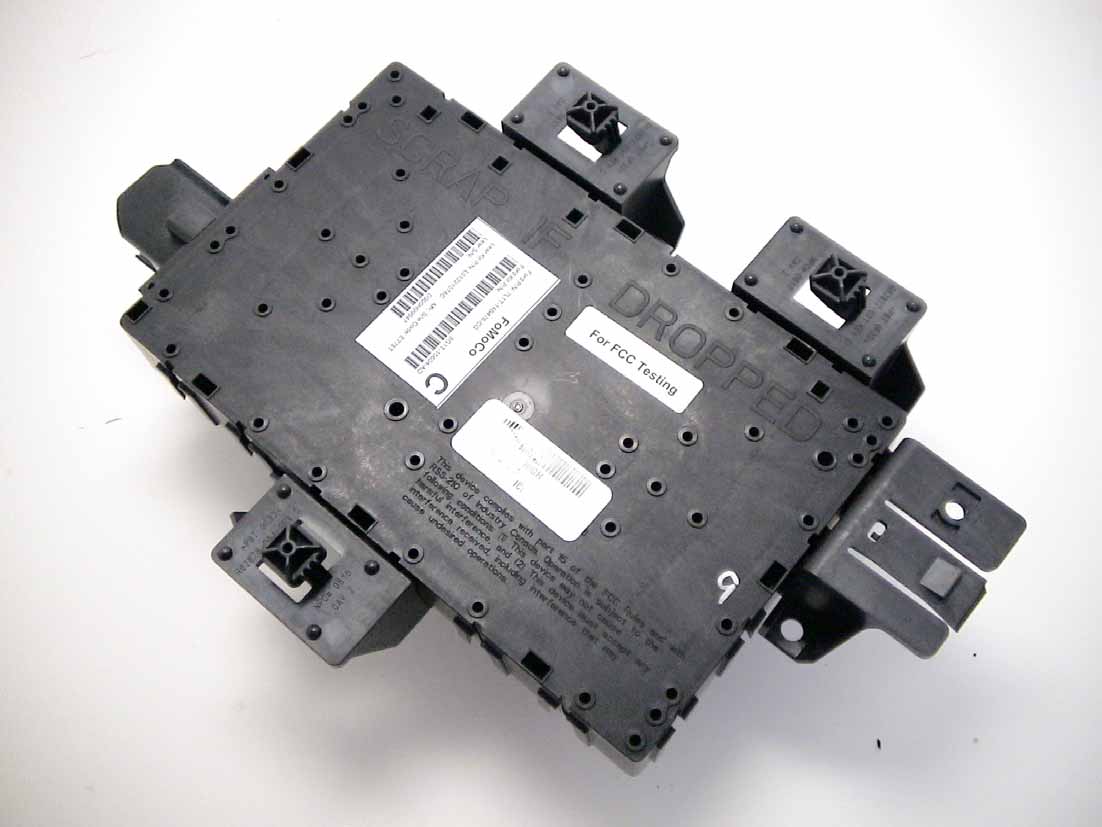

Ford SPDJB Module Description The Ford Smart Power Distribution Junction Bock (SPDJB) Module is a factory installed automotive module, powered from the automotive 12 Volt system and is used to perform four categories of functions. In the first category it supplies a continuous, fused battery voltage to loads in the vehicle. In the second category it provides switched, fused battery supply to loads in the vehicle. The battery voltage supply switching is controlled by the microcontroller in the SPDJB. The microcontroller has an 8 MHz crystal oscillator. The third category is Remote Keyless Entry (RKE), which controls the power door locks and the trunk lock. It receives the 315 MHz ASK 2 kb/s Manchester encoded transmitted signal from the driver carried Key Fob. This signal is received on an antenna mounted on the printed circuit board of the module. The antenna drives a 315 MHz SAW filter which then drives the low noise amplifier input of the high integration superheterodyne receiver integrated circuit. The output of the LNA drives the mixer, which also has the 304.3 MHz VCO/PLL derived local oscillator as an input. A 9.509 MHz crystal oscillator is used as the frequency reference. The output of the mixer drives the 10.7 MHz ceramic filter which then drives the IF amplifier. The IF amp drives the ASK demodulator which is followed by an active low pass filter and then the ASK data slicer. The output of the ASK data slicer drives an input pin of the microcontroller which then decodes the ASK data and drives the door lock and unlock motors when appropriate. The fourth category is Tire Pressure Measurement (TPM). It receives the 315 MHz FSK 9.6 kb/s Manchester encoded transmitted signal from the tire pressure transmitters installed in the vehicle wheels. Most of the circuitry described for the ASK reception is the same for the FSK. The difference is after the IF amp. The IF amp also drives a separate FSK demodulator which then drives an active low pass filter and then FSK data slicer. The output of the FSK data slicer drives an input pin on the microcontroller which then decodes the FSK data and then passes it out on the vehicle bus.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-340 Page 1 of 9 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Lear Corporation Receiver Model(s): KOBFR08SPDJB Report No. 415031-340 November 7, 2006 Copyright © 2006 For: Lear Corporation 5200 Auto Club Dr. Dearborn, MI 48126-9982 Contact: Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart B, and Industry Canada RSS-210/GEN, were performed on Lear Corporation model KOBFR08SPDJB. This device is subject to the Rules and Regulations as a Receiver. As a Digital Device it is exempt, but such measurements were made to assess the receiver's overall emissions. In testing completed on August 30, 2006, the device tested in the worst case met the allowed Class B specifications for radiated emissions by 11.3 dB (see p. 6). The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-340 Page 2 of 9 1. Introduction Lear Corporation model KOBFR08SPDJB was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS- 210, Issue 6 and RSS-Gen, Issue 1, September, 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator X Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-340 Page 3 of 9 3. Configuration and Identification of Device Under Test 3.1 Design and Identification of the Device The DUT was designed by Lear Corporation, 5200 Auto Club Dr., Dearborn, MI 48126-9982. It is identified as: Lear Corporation Receiver Model(s): KOBFR08SPDJB FCC ID: KOBFR08SPDJB IC: 3521A-FR08SPDJB 3.2 Models There is only one model of the device. The DUT is a 315 MHz superheterodyne receiver, designed for onboard automobile security/convenience applications, and as such, it is powered from an automotive 12 VDC source. It is housed in a plastic case approximately 21 by 14 by 10 cm. Antenna is internal. For testing, a generic harness was provided by the manufacturer. 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under Part 15, Subpart B, "Unintentional Radiators". The pertinent test frequencies, with corresponding emission limits, are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (Ref: FCC 15.33, 15.35, and 15.109; IC RSS-210, 2.6 Table 2). Freq. (MHz) E lim (3m) μV/m E lim (3m) dB(μV/m) 30-88 100 40.0 88-216 150 μV/m 43.5 216-960 200 μV/m 46.0 960-2000 500 μV/m 54.0 Note: Quasi-Peak readings apply to 1000 MHz (120 kHz BW) Average readings apply above 1000 MHz (1 MHz BW) 4.2 Power Line Conducted Emission Limits Table 4.3 Conducted Emission Limits (FCC:15.107 (CISPR); IC: RSS-Gen, 7.2.2 Table 2). Frequency Class A (dBμV) Class B (dBμV) MHz Quasi-peak Average Quasi-peak Average .150 - 0.50 79 66 66 - 56* 56 - 46* 0.50 – 5.0…
