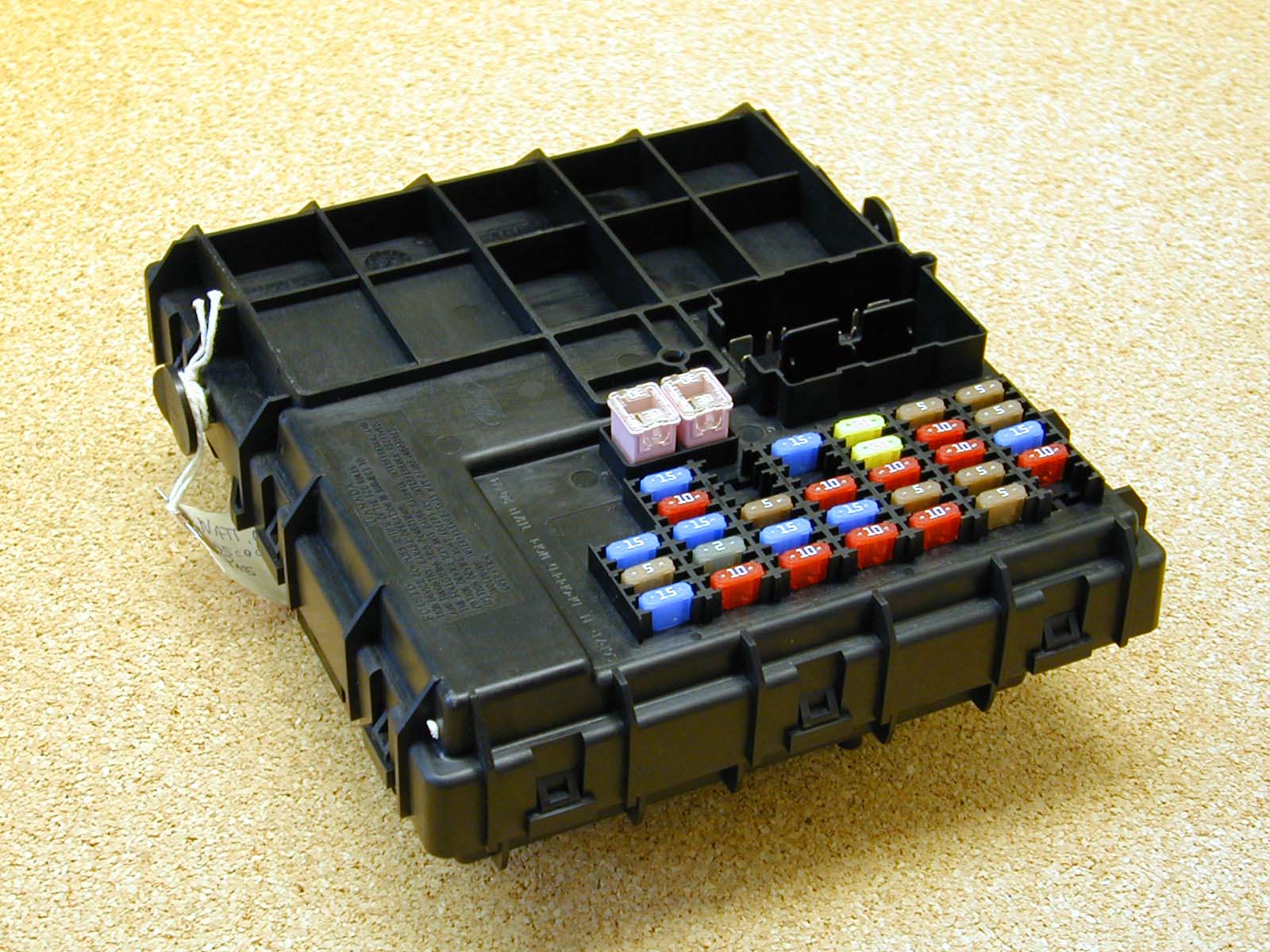

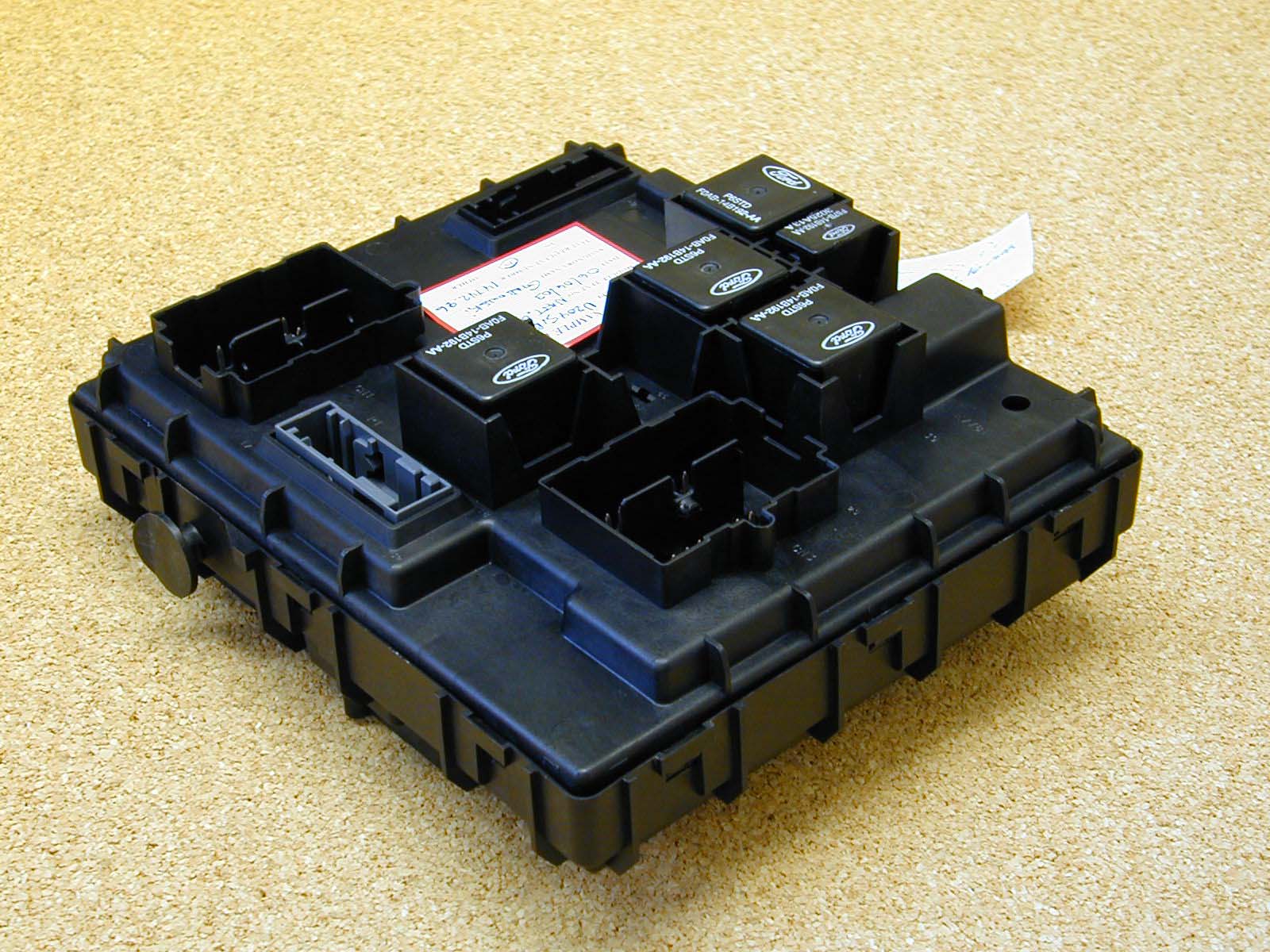

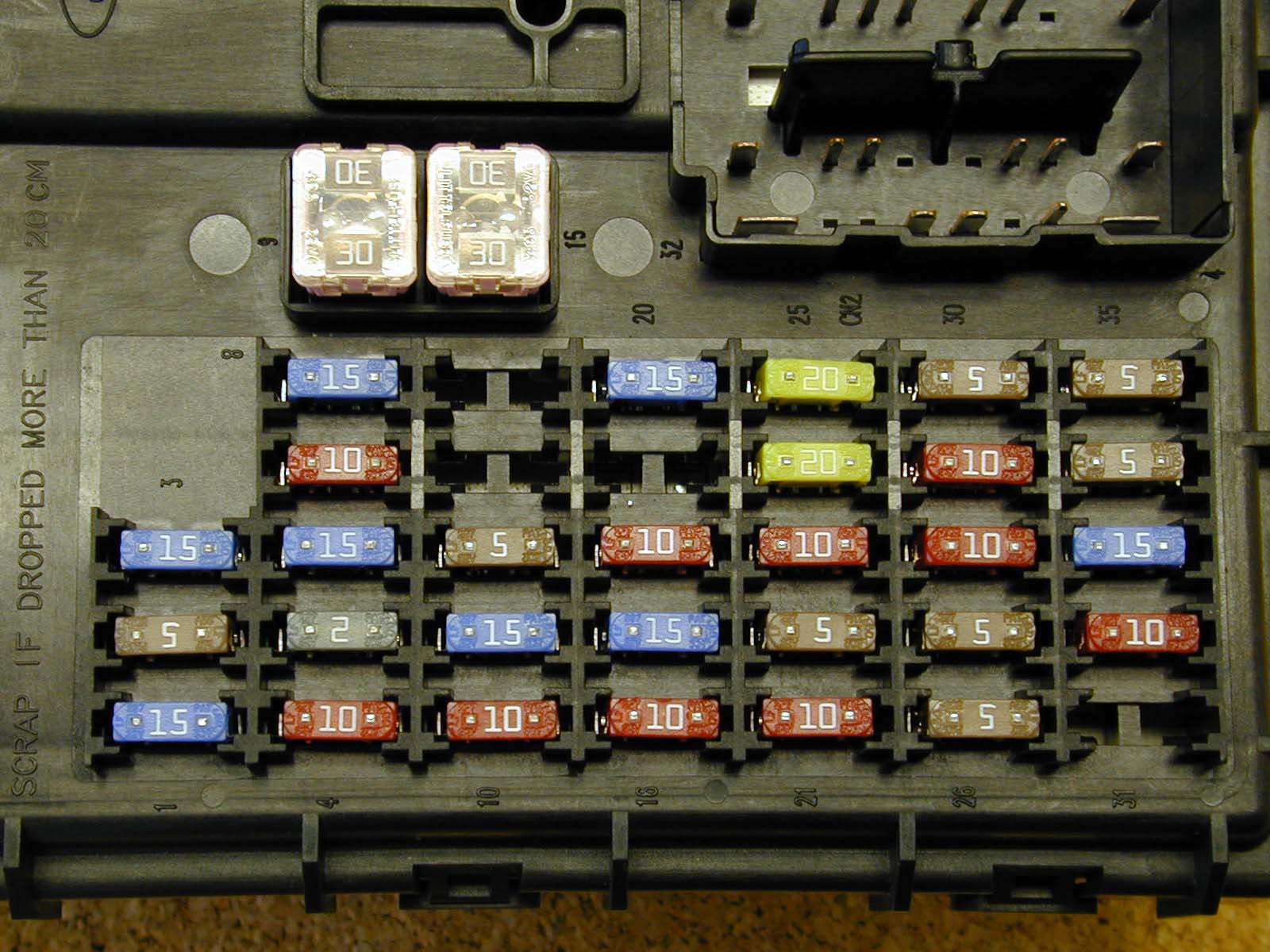

KOBFR04U204Automobile Security/Convenience Receiver

Re: Certification for Lear FR04U204 Receiver Model: FR04U204 FCC ID: KOBFR04U204 IC: 3521A-FR04U204 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: KOBFR04U204 IC: 3521A-FR04U204 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Lear FR04U204 Receiver Model: FR04U204 FCC ID: KOBFR04U204 IC: 3521A-FR04U204 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Lear FR04U204 Receiver Model: FR04U204 FCC ID: KOBFR04U204 IC: 3521A-FR04U204 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Lear requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Lear has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan July 9, 2003 Re: Certification for Lear FR04U204 Receiver Model: FR04U204 FCC ID: KOBFR04U204 IC: 3521A-FR04U204 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Lear FR04U204 Receiver Model: FR04U204 FCC ID: KOBFR04U204 IC: 3521A-FR04U204 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Lear Corporation 5200 Auto Club Drive Dearborn, MI 48126 Gerard Grabowski Tel: (313) 593-9604 Fax: (313) 240-3832 It will be manufactured by: Lear Corporation 5100, West Waters Avenue Tampa, FL 33634 Gerard Grabowski Tel: (313) 593-9604 Fax: (313) 240-3832 Canadian Contact: General Motors, Research & Development and Technology 1908 Colonel Sam Dr. Oshawa, Ontario L1H 8P7 Tom Odell Tel: 905-644-7103 Fax: 905-644-3378 e-mail: [email protected]

ENGINEER Don Fuelling Document I/O Block Diagram DATE 7/12/2001 5200 Auto Club Drive Dearborn, Michigan 48126-9982 313/593-9000 APPROVED BY Project U204 MY2004 SJB Page 1 of 1 VERSION 1.0 E:\Temp\U204IOBlockDiagram_1_CHK.doc MC9S12DG128 Microprocessor 85degC 112pin LQFP Internal PLL Ram: ??KB of 4KB EEPROM: ??KB of 1KB Flash: ??KB of 128KB 5V Voltage Regulator 5V x 100mA 1 A/D Feedback for overvoltage 3 Active High Digital Inputs Isink < 0.13mA/ea. Ign_run_start, Ign_run_accy, Brake_On/Off (BOO) 33 Active Low Digital Inputs Wetting Current t < 0.28mA/ea. (Switches: lfd_ajar, rfd_ajar, rrd_ajar, lrd_ajar, liftgate_ajar, glass_hatch_ajar, park_brake, driver_key_lock, driver_key_unlock, driver_double_lock, other_key_lock, other_key_unlock, key pad_1,2,3, key_in_ign, hood_aja, rear defrost, transmission_park, transmission_reverse, rear_wiper -cont, rear_wiper_interval, rear_wiper_wash, Parklamp_on/off, hazard, auto_lamp, flash-to-flash, low_beam. high_beam, right_turn, left_turn, front_fog_lamp, rear_fog_lamp) Analog Inputs (Stop and Park LampsCurrent Sense) (3 State Switch:Door-Lock/Unlock) 1 RF Inputs 1 Input Capture used to decode the signal 1 Sensor input Auto Lamp 4Mhz +/- 0.5% Oscillator PLL to 16Mhz protects for TPMS. 4Mhz or greater required for MS_CAN Communication Bus Protocol: MS_CAN Bit Width: 6.66uS 8 PWM - Lighting High side drivers (1 Digital Output and 1 A/D Feedback per driver) Battery Saver Interior Lamp Power Left and Right Turn High Beam, Low Beam Trailer Left and right Turn/Stop 13 Low Current Loads using2 Octal Low Side Driver (1 SPI Port, 4 Digital Outputs for CSB', SFPD') 12 Relay Coils: (delayed _ Accesory, Heated_Backlite, Rear_Wipe, Horn_relay, park_lamp,backuplamp, all_lock, driver_unlock, all_unlock, front_fog, rear_fog, headlamp_levell) Keypad Illlumination control Daytime Running Lamps (1 PWM output, 1Key Interupt, 1A/D feedback) PWM Duty Cyle: 72-90% PWM Frequency: 100Hz (?) Sleep Timers Keywakeup IRQ every 35-40mS (1 DIO required to charge/enable/ disable, 1 Key Interupt required to wake MCU from stop mode) Notes: Active High Sink Current = (18.83V - 5.6V)/100K = 0.13mA assuming internal clamp diodes. Active Low Wetting Current = (18.83V)/680 = 28mA current provides by a switched battery supply. 3 Switched Supplys Vccsw: 50mA Max ** Vbatsw1: 300mA Max ** Vbatsw2: 300mA Max ** ** Approx need WCA 3 Digital Outputs, 2 A/D feedbacks on vbatsw1&2l Shift Lock Interlock High Side driver - LNA Low Noise Amplifier Mixer 10.7MHz IF Filter Multi-Stage IF Amp PLL Synthesiser Crystal Oscillator Matching Networks Carrier Freq. Pre- Selector Antenna Data Slicer Envelope Detector Super-Heterodyne Receiver Block Diagram Demodulated Data BlockPurposeExample AntennaCapture radiated RF energy and couple energy into receiver front end. PCB trace, Rigid wire, External wire Frequency Pre-SelectorSuppress image frequency and out of band jamming sources. SAW (Surface Acoustic Wave) Filter. Matching NetworksTransfer maximum energy between the different stages LC network, Integrated filter components. Low Noise AmplifierProvide RF signal amplification with minimum noise. Cascode Amplifier. MixerConvert the input frequency (RF) to an intermediate frequency (IF). Double Balanced Mixer IF FilterSet System BandwidthCeramic, LC networks. IF Cascaded AmplifiersProvide IF signal amplification Cascode Amplifiers Envelope DetectorConvert IF frequency to DC voltage levels. Diode detector with low pass filter. Data SlicerCondition demodulated data to logic levels for microprocessor decoding. Operational Amplifiers using RC timing components

July 9, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KOBFR04U204 Please find enclosed application materials for certification of Lear FR04U204 Receiver. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

July 9, 2003 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Lear FR04U204 Receiver Model: FR04U204 FCC ID: KOBFR04U204 IC: 3521A-FR04U204 Please find enclosed application materials for certification of Lear FR04U204 Receiver. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist July 9, 2003 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Lear FR04U204 Receiver Model: FR04U204 FCC ID: KOBFR04U204 IC: 3521A-FR04U204 Please find enclosed application materials for certification of Lear FR04U204 Receiver. We tested the device and found it to comply with RSS-210. The product is identified by: IC: 3521A-FR04U204 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

FCC ID: KOBFR04U204 IC: 3521A-FR044204 This device complies with part 15 of the FCC Rules, and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

- LNA Low Noise Amplifier Mixer 10.7MHz IF Filter Multi-Stage IF Amp PLL Synthesiser Crystal Oscillator Matching Networks Carrier Freq. Pre- Selector Antenna Data Slicer Envelope Detector Super-Heterodyne Receiver Demodulated Data BlockPurposeExample AntennaCapture radiated RF energy and couple energy into receiver front end. PCB trace, Rigid wire, External wire Frequency Pre-SelectorSuppress image frequency and out of band jamming sources. SAW (Surface Acoustic Wave) Filter. Matching NetworksTransfer maximum energy between the different stages LC network, Integrated filter components. Low Noise AmplifierProvide RF signal amplification with minimum noise. Cascode Amplifier. MixerConvert the input frequency (RF) to an intermediate frequency (IF). Double Balanced Mixer IF FilterSet System BandwidthCeramic, LC networks. IF Cascaded AmplifiersProvide IF signal amplification Cascode Amplifiers Envelope DetectorConvert IF frequency to DC voltage levels. Diode detector with low pass filter. Data SlicerCondition demodulated data to logic levels for microprocessor decoding. Operational Amplifiers using RC timing components

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Lear Corporation Receiver Model: FR04U204 Report No. 415031-180 July 9, 2003 Copyright © 2003 For: Lear Corporation 5200 Auto Club Drive Dearborn, MI 48126 Contact: Gerard Grabowski Tel: (313) 593-9604 Fax: (313) 240-3832 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Edward A. Courtney Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart B, and Industry Canada RSS-210, were performed on Lear Corporation model FR04U204. This device is subject to the Rules and Regulations as a Receiver. As a Digital Device it is exempt, but such measurements were made to assess the receiver's overall emissions. In testing completed on 30-Jun-03, the device tested in the worst case met the allowed FCC (Class B) specifications for radiated emissions by 19.9 dB (see p. 6). The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. 2 1. Introduction Lear Corporation model FR04U204 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-1992 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator X Hewlett-Packard 8657B 3 3. Configuration and Identification of Device Under Test The DUT is a 315 MHz superheterodyne receiver, designed for onboard automobile security/convenience applications, and as such, it is powered from an automotive 12 VDC source. It is housed in a plastic case approximately 6 by 8 by 1.5 inches. Antenna is internal. For testing, a generic and load box was provided by the manufacturer. In the receiver digital section, the decoding, signal processing, etc. are performed by a microprocessor timed by an 4.0 MHz oscillator. The DUT was designed and manufactured by Lear Corporation,5200 Auto Club Drive,Dearborn, MI 48126. It is identified as: Lear Corporation Receiver Model: FR04U204 S/N or P/N: NATT035 FCC ID: KOBFR04U204 IC: 3521A-FR04U204 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under Part 15, Subpart B, "Unintentional Radiators". The pertinent test frequencies, with corresponding emission limits, are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (Ref: 15.33, 15.35, and 15.109). Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Quasi-Peak readings apply to 1000 MHz (120 kHz BW) Average readings apply above 1000 MHz (1 MHz BW) 4.2 Conducted Emission Limits Table 4.2. Conducted Emission Limits (Ref: 15.107). Freq. (MHz) μV dB(μV) 0.450 - 1.705 250 48.0 1.705 - 30.0 250 48.0 Note: Quasi-Peak readings apply here 4 4.3 Antenna Power Conduction Limits Ref: 15.111(a). Pmax = 2 nW; for frequency range see Table 4.1. 5. Emission Tests and Results NOTE: Even though the FCC and/or Industry Canada specify that both the radiated and conductive emissions be measured using the Quasi-Peak and/or average detection schemes, we normally use peak detection since especially the Quasi-Peak is cumbersome to use with our instrumentation. In case the measurement fails to meet the limits, or the measurement is…
