KOBFR07P150Onboard Automobile Security/Convenience Receiver

Re: Certification for Lear Receiver Model: FR07P150 FCC ID: KOBFR07P150 IC: 3521A-FR07P150 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: KOBFR07P150 IC: 3521A-FR07P150 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Lear Receiver Model: FR07P150 FCC ID: KOBFR07P150 IC: 3521A-FR07P150 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Lear Receiver Model: FR07P150 FCC ID: KOBFR07P150 IC: 3521A-FR07P150 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Lear requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Lear has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan September 24, 2005 Re: Certification for Lear Receiver Model: FR07P150 FCC ID: KOBFR07P150 IC: 3521A-FR07P150 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Lear Receiver Model: FR07P150 FCC ID: KOBFR07P150 IC: 3521A-FR07P150 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Lear Corporation 5200 Auto Club Drive Dearborn, MI 48126 Thomas LeMense Tel: 313.593.9658 Fax: 313.240.3062 It will be manufactured by: Lear Corporation 2200 Linden Ave Zanesville, OH 43701 Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 Canadian Contact: Tom Odell 1908 Colonel Sam Drive Oshawa, ON L1H 8P7 Tel: (905) 644 - 7103

September 24, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: KOBFR07P150 IC: 3521A-FR07P150 Please find enclosed application materials for certification of Lear FR07P150 Receiver. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

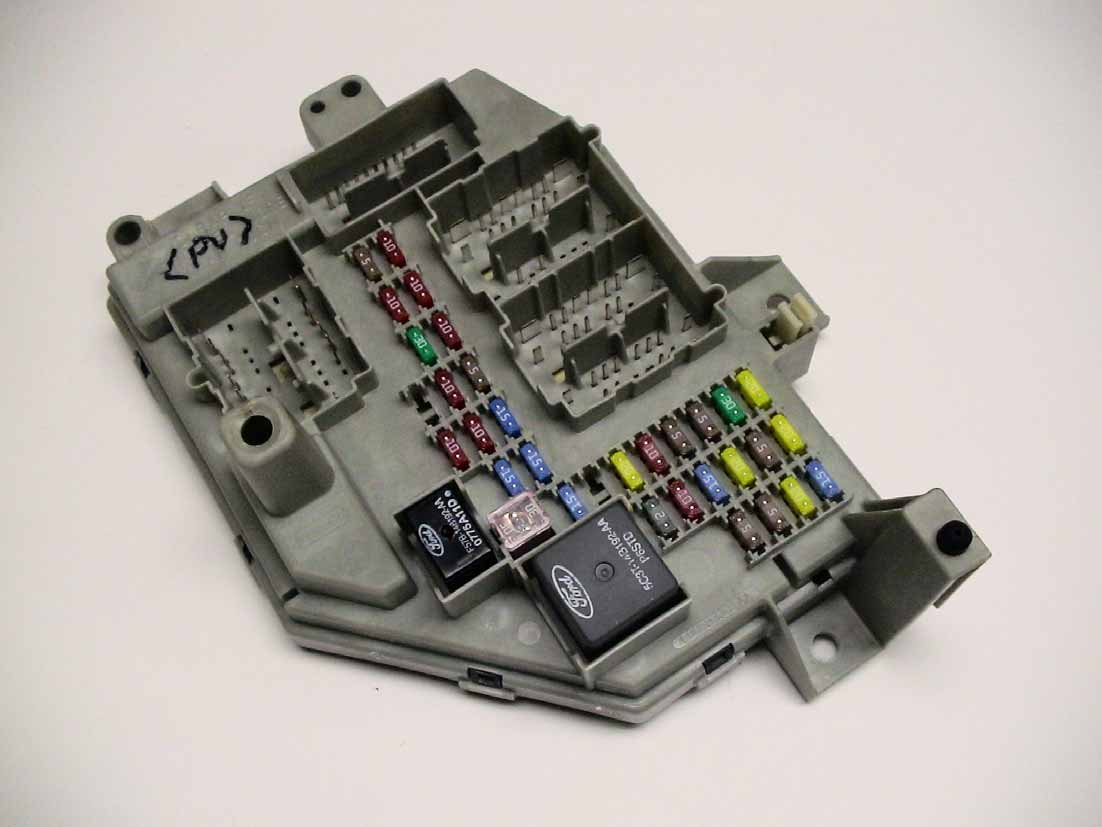

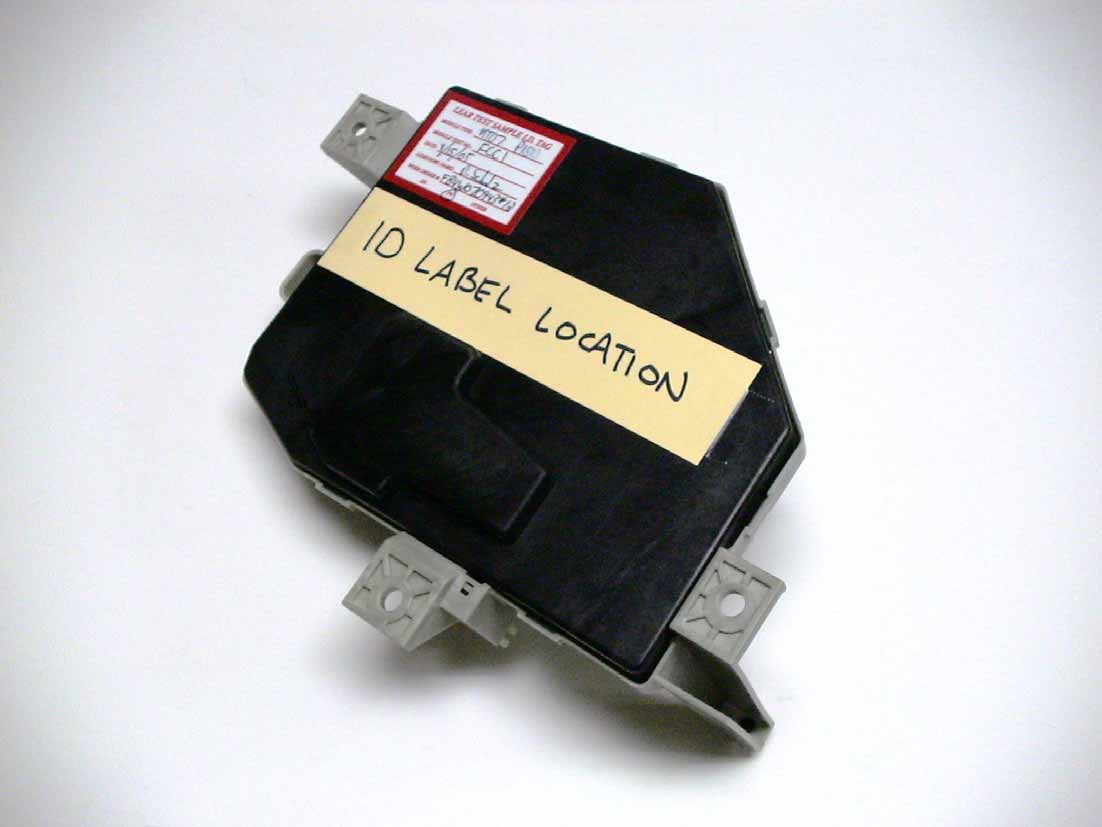

DUT with Harness DUT (top) DUT (bottom)

5200 Auto Club Drive Dearborn, Michigan 48126-9982 5200 Auto Club Drive Dearborn, Michigan 48126-9982

DUT Apart (top) DUT Apart (bottom) PCB 1 & 2 (top) PCB 1 (top) PCB 2 (top) PCB 3 (top) PCB s apart (top) PCB 3 ( bottom ) PCB 2 ( bottom ) PCB s apart ( bottom ) PCB 1 ( bottom ) RF section, PCB 2 (top) RF section, PCB 2 ( bottom )

- LNA Low Noise Amplifier Mixer 10.7MHz IF Filter Multi-Stage IF Amp PLL Synthesise r Cryst a l Oscillator Matching Networks Carrier Freq. Pre- Selector Antenna Data Slicer Envelope Detector Super-Heterodyne Receiver Demodulated Data Block Purpose Example Antenna Capture radiated RF energy and couple energy intoreceiver front end. PCB trace, Rigid wire,External wire Frequency Pre-Selector Suppress image frequencyand out of band jammingsources. SAW (Surface AcousticWave) Filter. Matching Networks Transfer maximum energy between the different stages LC network, Integratedfilter components. Low Noise Amplifier Provide RF signal amplification withminimum noise. Cascode Amplifier. Mixer Convert the input frequency (RF) to an intermediatefrequency (IF). Double Balanced Mixer IF Filter Set System Bandwidth Ceramic, LC networks. IF Cascaded Amplifiers Provide IF signal amplification Cascode Amplifiers Envelope Detector Convert IF frequency to DC voltage levels. Diode detector with lowpass filter. Data Slicer Condition demodulated datato logic levels formicroprocessor decoding. Operational Amplifiersusing RC timingcomponents

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-260 Page 1 of 9 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Lear Corporation Receiver Model(s): FR07P150 Report No. 415031-260 September 23, 2005 Copyright © 2005 For: Lear Corporation 5200 Auto Club Dr. Dearborn, MI 48126-9982 Contact: Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart B, and Industry Canada RSS-210/Gen, were performed on Lear Corporation model FR07P150. This device is subject to the Rules and Regulations as a Receiver. As a Digital Device it is exempt, but such measurements were made to assess the receiver's overall emissions. In testing completed on September 20, 2005, the device tested in the worst case met the allowed FCC and IC (Class B) specifications for radiated emissions by 9.9 dB (see p. 6). The conducted emissions tests do not apply, since the device is powered from a 12 VDC system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-260 Page 2 of 9 1. Introduction Lear Corporation model FR07P150 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 6 and RSS-Gen, Issue 1, September, 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator X Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-260 Page 3 of 9 3. Configuration and Identification of Device Under Test The DUT is a superheterodyne receiver, designed for onboard automobile security/convenience applications, and as such, it is powered from an automotive 12 VDC source. It is housed in a plastic case approximately 8 by 6 by 3 inches. Antenna is internal. For testing, a generic harness provided by the manufacturer. In the receiver digital section, the decoding, signal processing, etc. are performed by a microprocessor timed by an 4.0 MHz oscillator. The DUT was designed by Lear Corporation, 5200 Auto Club Dr., Dearborn, MI 48126-9982. It is identified as: Lear Corporation Receiver Model: FR07P150 FCC ID: KOBFR07P150 IC: 3521A-FR07P150 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under Part 15, Subpart B, "Unintentional Radiators". The pertinent test frequencies, with corresponding emission limits, are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (Ref: FCC 15.33, 15.35, and 15.109; IC RSS-210, 2.6 Table 2). Freq. (MHz) E lim (3m) μV/m E lim (3m) dB(μV/m) 30-88 100 40.0 88-216 150 μV/m 43.5 216-960 200 μV/m 46.0 960-2000 500 μV/m 54.0 Note: Quasi-Peak readings apply to 1000 MHz (120 kHz BW) Average readings apply above 1000 MHz (1 MHz BW) 4.2 Conducted Emission Limits Table 4.3 Conducted Emission Limits (FCC:15.107 (CISPR); IC: RSS-Gen, 7.2.2 Table 2). Frequency Class A (dBμV) Class B (dBμV) MHz Quasi-peak Average Quasi-peak Average .150 - 0.50 79 66 66 - 56* 56 - 46* 0.50 – 5.0 73 60 56 46 5.0 – 30.0 73 60 60 50 Notes: 1. The l…

Text truncated - open the document above for the full version.

DUT on OATS DUT on OATS (close-up)
