KODM17317017" Color Monitor

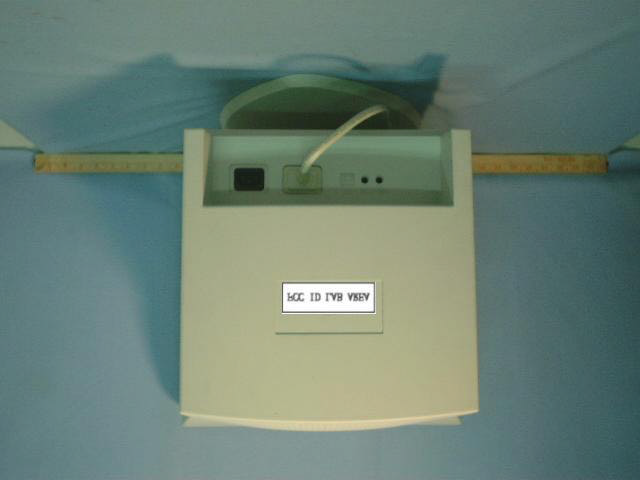

FCC ID LABEL FORMAT AND LOCATION Applicant:DTS TECHNOLOGY CO., LTD. FCC ID:KODM173170 FCC ID:KODM173170 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA




     !"#$
 %












 Prepared for    !"   #    $   Prepared by
  % &     $   '()(( "! *'()(( (! (+! REPORT NO:99E7915 DATE:MAY 13, 1999 EUT:17" COLOR MONITOR W/ MAX. RESOLUTION OF 1280X1024 NON-INTERLACED(70 KHz) FCC ID:KODM173170 0 OF 16








   !"#$ % This report shall not be reproduced except in full, without the written approval of CES. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE..............................................1 2. PRODUCT DESCRIPTION.....................................................2 3. TESTED SYSTEM DETAILS...................................................2 4. TEST FACILITY...........................................................3 5. ACCREDITATION AND LISTING...............................................3 6. MEASUREMENT INSTRUMENTATION.............................................3 7. MEASURING INSTRUMENT CALIBRATION........................................4 8. UNITS OF MEASUREMENT....................................................4 9. ANTENNAS................................................................4 10. CLASSIFICATION OF DIGITAL DEVICE........................................5 11. RADIATED EMISSION LIMITS................................................5 12. CONDUCTED EMISSION LIMITS...............................................6 13. CONDUCTED EMISSION TEST PROCEDURE.......................................6 14. RADIATED EMISSION TEST PROCEDURE........................................7 15. AMBIENT CONDITIONS......................................................7 16. SYSTEM TEST CONFIGURATION...............................................7 17. EQUIPMENT MODIFICATIONS.................................................9 18. EUT SETUP PHOTOS.......................................................10 19. TEST EQUIPMENT LIST....................................................12 20. CORRECTION FACTOR......................................................13 21. TEST RESULT SUMMARY....................................................14 APPENDICES ..................................................................16 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .CONDUCTED EMISSION PLOT .RADIATED EMISSION DATA .EUT PHOTOGRAPHS REPORT NO:99E7915 DATE:MAY 13, 1999 EUT:17" COLOR MONITOR W/ MAX. RESOLUTION OF 1280X1024 NON-INTERLACED(70 KHz) FCC ID:KODM173170 1 OF 16








   !"#$ % This report shall not be reproduced except in full, without the written approval of CES.  %









       !"#$%"
$&
 $&

&&
'$&      ((()%((( TYPE OF EQUIPMENT: INFORMATION TECHNOLOGY EQUIPMENT (ITE) MEASUREMENT DISTANCE: ( ) 3 METER (
) 10 METER TECHNICAL LIMIT: CLASS B FCC RULES: PART 15 MEASUREMENT PROCEDURE ANSI C63.4:92 / EN55022 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATION MADE ON EUT YES NO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 21 for comments) NO RADIATED EMISSION TEST RESULT -0.84 dB @ 113.839 MHz/HORIZONTAL CONDUCTED EMISSION TEST RESULT -2.52 dB @ 4.598 MHz/L1 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties.

 *
*+



   +



   REPORT NO:99E7915 DATE:MAY 13, 1999 EUT:17" COLOR MONITOR W/ MAX. RESOLUTION OF 1280X1024 NON-INTERLACED(70 KHz) FCC ID:KODM173170 2 OF 16








   !"#$ % This report shall not be reproduced except in full, without the written approval of CES. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) X101=8MHz CHIPSET BRAND AND PART NO. UMC, NT68P61A NUMBER OF PCB LAYERS 1 LAYER BOARD REVISION NO. REV:A2 POWER REQUIREMENTS AC 100~240V NO. OF EXTERNAL I/O CONNECTORS 1 MAX. RESOLUTION 1280X1024 MAX. HOR/VERT FREQUENCY(KHz/Hz) 70KHz/100Hz Model Differences: Model NameBrand NameTested (Checked) CM-17J DTS, ARCUS, ACETECH, COIN, MAGTRON, SENORG, SUAVE IN-17 INTEX C1770D SUNNY UQ-1744 UNIQ 3. TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: Host Computer Device TypeManufacturerModel NumberSerial NumberFCC ID HOST COMPUTER VIVA VIVA586-133 HS-02 DOC HARD DRIVE Maxtor 71336AP HD-02 N/A FLOPPY DRIVE Panasonic JU-257A606P FD-02 N/A DVD-ROM DRIVE MATSUSHITA SR-8582-B N/A IU09TB062CRB VGA CARD TNC TRUESPEED S3_968 PCI CV08 JDF-968PCI-001 I/O CARD BUILT-IN N/A N/A N/A SOUND CARD LABWAY A211A60 N/A LWHA211A60 External Peripheral Devices Device Type ManufacturerModel NumberSerial No.FCC ID / DoC REPORT NO:99E7915 DATE:MAY 13, 1999 EUT:17" COLOR MONITOR W/ MAX. RESOLUTION OF 1280X10…
