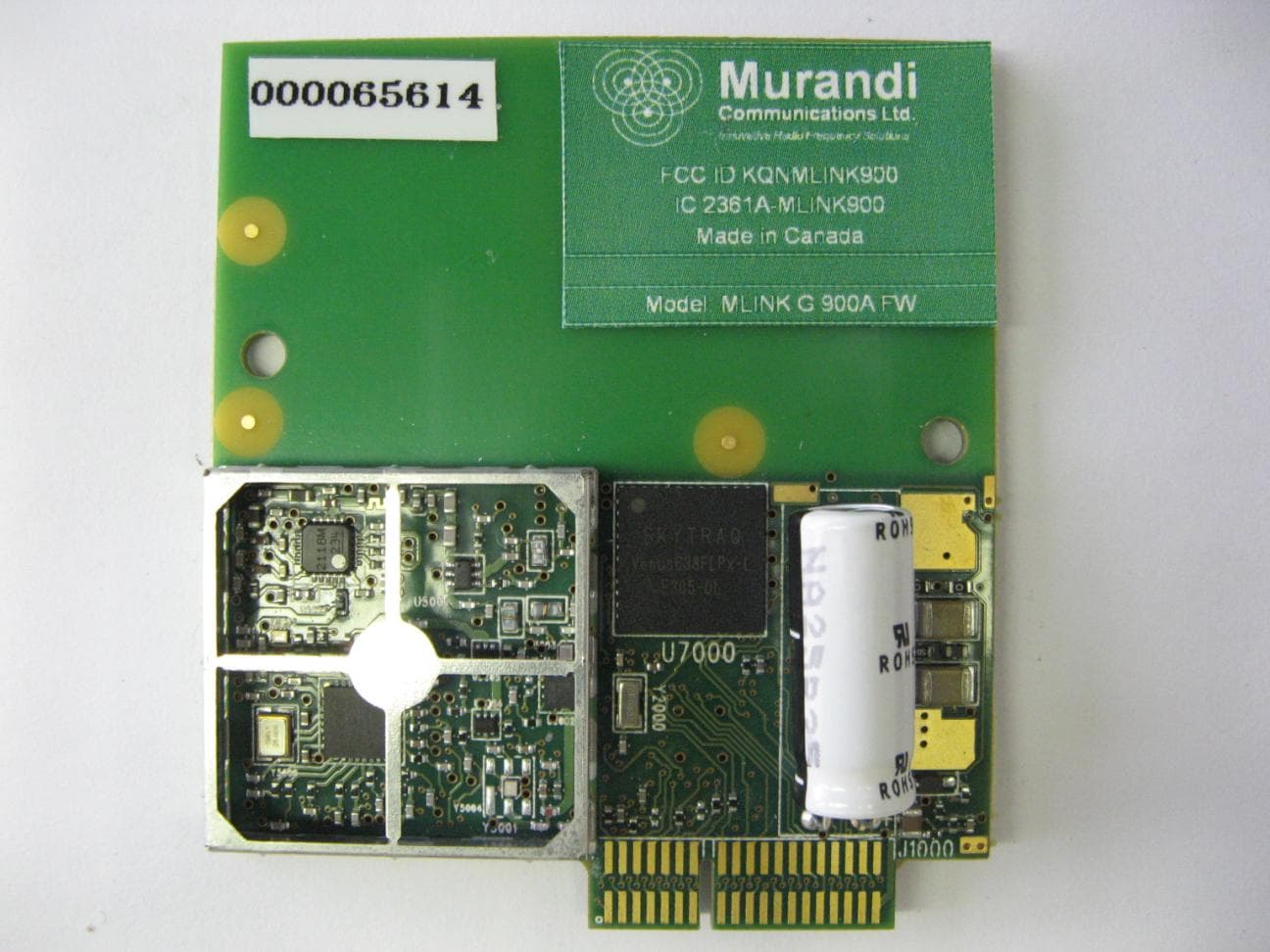

KQNMLINK900FREQUENCY HOPPING TRANSCEIVER WITH GPS

Murandi Communications Ltd

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: May 21, 2014
Application Purpose: Original Equipment
Date of Application: May 21, 2014
Equipment Note: FREQUENCY HOPPING TRANSCEIVER WITH GPS
Frequency Range: 903.00000000 - 927.00000000
Company: Murandi Communications Ltd
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Murandi Communications Ltd. Innovative Radio Frequency Solutions MLink User’s Guide Revision – Rev 5 May 14, 2014 User’s Guide Page 2 5/14/2014 10:30 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Table of Contents 1 LEGAL DISCLAIMER AND CONDITIONS OF USE ............................................................... 2 2 REVISION HISTORY ............................................................................................................... 3 3 ABBREVIATIONS .................................................................................................................... 3 4 REFERENCE DOCUMENTS .................................................................................................. 4 5 PRODUCT OVERVIEW ........................................................................................................... 4 6 FEATURES .............................................................................................................................. 4 7 SPECIFICATIONS ................................................................................................................... 4 7.1 PHYSICAL ............................................................................................................................ 4 7.2 ELECTRICAL ........................................................................................................................ 4 7.3 DATA RATES ....................................................................................................................... 5 7.4 INTERFACES ........................................................................................................................ 5 7.5 FIRMWARE .......................................................................................................................... 5 7.6 ENVIRONMENTAL ................................................................................................................. 5 8 REGULATORY CERTIFICATION ........................................................................................... 5 8.1 UNITED STATES (FCC) ........................................................................................................ 5 8.1.1 Labeling Requirements ................................................................................................ 5 8.1.2 FCC Notices ................................................................................................................ 6 8.2 CANADA (IC) ....................................................................................................................... 6 8.3 APPROVED ANTENNAS ......................................................................................................... 7 9 INTEGRATION INSTRUCTIONS ............................................................................................ 9 9.1 MOUNTING .......................................................................................................................... 9 9.2 INTERFACES ........................................................................................................................ 9 9.2.1 900 MHz and GPS Antenna ........................................................................................ 9 9.2.2 900 MHz and GPS RF connector .............................................................................. 10 9.2.3 Digital/Baseband ........................................................................................................ 10 1 Legal Disclaimer and Conditions of Use This document contains information for the Murandi MLink 900 Transceiver and accompanying accessories (“Product”) and is provided “as is”. The purpose of providing such information is to enable a Product Developer to understand the Product and how to integrate it into a wireless data solution. Reasonable effort has been made to make the information in this document reliable and consistent with specifications, test measurements and other information. However, Murandi Communications Ltd. and its affiliated companies, directors, officers, employees, agents, trustees or consultants (“Murandi”) assume no responsibility for any typographical, technical, content or other inaccuracies in this document. Murandi reserves the right in its sole discretion and without notice to you to change Product specifications and materials and/or revise this document or withdraw it at any time. The Product Developer assumes the full risk of using the Product specifications and any other information provided. Your use of the information contained in this Guide is restricted to the development activity authorized under the agreement(s) between you and Murandi, and is otherwise subject to all applicable terms and conditions of such agreement(s), including without limitation software license, warranty, conditions of use and confidentiality provisions. User’s Guide Page 3 5/14/2014 10:30 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary 2 Revision History Revision Date Description Draft Feb 10, 2014 Initial release Rev 1 Feb 27, 2014 Added integration instructions Rev 2 May 2, 2014 Grammatical & text clean up Rev 3 May 11, 2014 Added coaxial cable specifications for use with Yagi Antenna Rev 4 May 12, 2014 Updated the requirements for the external antenna. Rev 5 May 14, 2014 Updated the integration instructions. 3 Abbreviations Abbreviation Description Attn attenuator BW bandwidth dB decibel dBc decibel relative to carrier power dBi decibel relative to an isotrop…

Text truncated - open the document above for the full version.

ID Label/Location Info

Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Murandi Communications Ltd. Innovative Radio Frequency Solutions MLink FCC and IC Labels Revision – Rev 1 Mar 4, 2014 FC & IC Labels Page 2 3/4/2014 8:29 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Table of Contents 1 REVISION HISTORY ............................................................................................................... 2 2 ABBREVIATIONS .................................................................................................................... 2 3 REFERENCE DOCUMENTS .................................................................................................. 3 4 INTRODUCTION ...................................................................................................................... 3 5 LABEL ...................................................................................................................................... 3 6 COMPLIANCE STATEMENT .................................................................................................. 4 7 EXAMPLE PICTURE ............................................................................................................... 5 8 REVISIONS .............................................................................................................................. 5 1 Revision History Revision Date Description Draft Feb 10, 2014 Initial release Rev 1 Mar 4, 2014 Add additional labels for various models. The details of each revision are captured in Revision Details Section 6. 2 Abbreviations Abbreviation Description Attn attenuator BW bandwidth dB decibel dBc decibel relative to carrier power dBi decibel relative to an isotropic antenna dBm decibel relative to 1 milliwatt FCC federal communications commission FHSS frequency hopping spread spectrum GPS global positioning system IC Industry Canada ISM industrial, scientific and medical ISR interrupt service routine kHz kilohertz LCD liquid crystal display LED light emitting diode LNA low noise amplifier mA milliampere mcd millicandle MHz mega-hertz mm millimeter msec millisecond mV millivolt PA power amplifier PLL phase locked loop ppm parts per million FC & IC Labels Page 3 3/4/2014 8:29 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Abbreviation Description RBW resolution bandwidth RF radio frequency RTC Real time clock TBC to be confirmed TBD to be determined TRP total radiated power μA microampere TDD Time division duplex UART universal asynchronous receiver/transmitter V volts W width 3 Reference Documents 1. Pictures (IMG_1673.jpg, IMG_1677.jpg, IMG_1680.jpg, IMG_1682.jpg, IMG_1684.jpg, & IMG_1695.jpg) 4 Introduction This document contains information regarding the FCC and IC labels for the Murandi Communications MLink 900 MHz transceiver as part of the FCC & IC submission. 5 Label The MLink module is < 2” x 2” and therefore too small accommodate the compliance statement. Therefore the compliance statement is captured on final product or User’s Guide. Below is a sketch of the Label. Figure 5.1 – FCC & IC Label for Integral Antenna Model 1.2” 0.85” FC & IC Labels Page 4 3/4/2014 8:29 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Figure 5.2 – FCC & IC Label for External Antenna Model 6 Compliance Statement The following compliance statement will be captured on the exterior of the final product or in the User’s Guide. Manufacturer’s name Brand name or Trade Name Contains MLink 900 FCC ID: KQNMLINK900 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interferences, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 6.1 – FCC Label 1” 0.85” FC & IC Labels Page 5 3/4/2014 8:29 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary 7 Example Picture Example pictures of the label location on the modules are shown below. Picture 7.1 – MLink with FCC& IC Label 8 Revisions

Operational Description

Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Murandi Communications Ltd. Innovative Radio Frequency Solutions MLink Functional Circuit Description Revision – Rev 2 Apr 30, 2014 Functional Circuit Description Page 2 5/1/2014 11:41 AM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Table of Contents 1 REVISION HISTORY ............................................................................................................... 2 2 ABBREVIATIONS .................................................................................................................... 2 3 REFERENCE DOCUMENTS .................................................................................................. 3 4 INTRODUCTION ...................................................................................................................... 3 5 FUNCTIONAL DESCRIPTION ................................................................................................ 3 6 REVISIONS .............................................................................................................................. 4 1 Revision History Revision Date Description Draft Feb 10, 2014 Initial Draft Rev 1 Feb 27, 2014 Added additional information regarding the TX power control. Rev 2 Apr 30, 2014 Minor correction to frequency hopping description The details of each revision are captured in Revision Details Section 6. 2 Abbreviations Abbreviation Description Attn attenuator BW bandwidth dB decibel dBc decibel relative to carrier power dBi decibel relative to an isotropic antenna dBm decibel relative to 1 milliwatt FCC federal communications commission GPS global positioning system IC Industry Canada ISM industrial, scientific and medical ISR interrupt service routine kHz kilohertz LCD liquid crystal display LED light emitting diode LFSR linear feedback shift register LNA low noise amplifier mA milliampere mcd millicandle MHz mega-hertz mm millimeter msec millisecond mV millivolt PA power amplifier PLL phase locked loop ppm parts per million RBW resolution bandwidth Functional Circuit Description Page 3 5/1/2014 11:41 AM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Abbreviation Description RF radio frequency RTC Real time clock TBC to be confirmed TBD to be determined TRP total radiated power μA microampere TDD Time division duplex UART universal asynchronous receiver/transmitter V volts W width 3 Reference Documents 1. MLink Block Diagrams – Draft, Feb 10, 2014 2. Schematics (MLINK – Rev 3.pdf) 3. Bill of Materials (MLINK – Rev 3.bom) 4. Pictures (IMG_1673.jpg, IMG_1677.jpg, IMG_1680.jpg, IMG_1682.jpg, IMG_1684.jpg, & IMG_1695.jpg) 4 Introduction This document contains high level functional description for the Murandi Communications MLink 900 MHz transceiver as part of the FCC & IC submission. 5 Functional Description MLink 900 is an ultra low energy efficiency, long range, half duplex transceiver operating in the 900 MHz ISM band utilizing frequency hopping with GFSK modulation. MLink 900 can be broken down into four sub modules: ISM RF Deck (including integral antenna), GPS module (including integral antenna), Digital and Power Supply. These are shown in figure 5.1.1 of the block diagrams (Ref 1). The ISM RF Deck can be further broken down into the following key sub modules: TX Chain (PA), RX Chain (RX RF Front End Filter, LNA, RX RF Band Pass Filter, & Attn) and common modules (Transceiver (Analog Devices ADF7023), TR Switch, & Front End Filter). Please see Figure 5.2.1 of the block diagrams (Ref 1). Coordination of the operation of MLink 900 (radio link, power management, peripheral interface) is handled by the Firmware running on the microprocessor in the digital module. For the radio link in particular, in RX mode, the TR Switch is configured to the RX Chain where the LNA and Attn are adjusted to optimize the RF signal level into the Transceiver IC. The Transceiver IC down converts the RF signal to a 400 kHz IF and then FM demodulates it. In TX mode the Transceiver IC directly up converts the baseband signal to RF. After which the RF signal is amplified to the calibrated power by the PA, conducted through the TR switch (which is configured to the TX chain), and finally, low pass filtered before radiating from the integral antenna. Power (3VX) for the PA is provided by the regulator captured in figure 5.4.1 of the block diagrams (Ref 1). Similarly power (Vmain) for Transceiver IC incorporates several internal low drop out regulators. Furthermore to ensure that emissions are controlled, all interface lines (including power supply lines) are decoupled/filtered as they enter/exit the RF shielded area. Functional Circuit Description Page 4 5/1/2014 11:41 AM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary The RF output power is controllable in 1 dB steps over a minimum 12 dB dynamic range with a maximum conducted power up to 29 dBm. The maximum output power is limited by the saturated RF power of the PA (Ref 1 – Figure 5.2.1). Two parameters are used to control the RF output power over the dynamic range:  Fine Control - the RF output level from the Transceiver IC (Ref 1 – Figure 5.2.1) is programmable in 0.5 dB steps  Course Control - the bias voltage to the PA (Ref 1 – Figure 5.2.1) is controllable in 7 steps. In order to conserve energy in strong link margin environments the PA bias is reduced, reducing both the RF output power of the PA a…

Text truncated - open the document above for the full version.

RF Exposure Info

Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Murandi Communications Ltd. Innovative Radio Frequency Solutions Maximum Permitted Exposure Revision – Draft Feb 24, 2014 MPE Page 2 3/4/2014 8:07 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Table of Contents 1 REVISION HISTORY ............................................................................................................... 2 2 ABBREVIATIONS .................................................................................................................... 2 3 REFERENCE DOCUMENTS .................................................................................................. 3 4 INTRODUCTION ...................................................................................................................... 3 5 GENERAL INFORMATION ..................................................................................................... 3 6 ANTENNA ................................................................................................................................ 3 6.1 INTEGRAL ANTENNA ............................................................................................................. 3 6.2 EXTERNAL YAGI ANTENNA ................................................................................................... 4 7 OPERATING CONFIGURATION AND EXPOSURE CONDITIONS ....................................... 4 8 MPE CALCULATION ............................................................................................................... 4 9 CONCLUSION ......................................................................................................................... 5 10 REVISIONS .......................................................................................................................... 5 1 Revision History Revision Date Description Draft Feb 24, 2014 Initial release The details of each revision are captured in Revision Details Section 6. 2 Abbreviations Abbreviation Description Attn attenuator BW bandwidth dB decibel dBc decibel relative to carrier power dBi decibel relative to an isotropic antenna dBm decibel relative to 1 milliwatt FCC federal communications commission GPS global positioning system IC Industry Canada ISM industrial, scientific and medical ISR interrupt service routine kHz kilohertz LCD liquid crystal display LED light emitting diode LNA low noise amplifier mA milliampere mcd millicandle MHz mega-hertz MPE Page 3 3/4/2014 8:07 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary Abbreviation Description mm millimeter msec millisecond mV millivolt PA power amplifier PLL phase locked loop ppm parts per million RBW resolution bandwidth RF radio frequency RTC Real time clock TBC to be confirmed TBD to be determined TRP total radiated power μA microampere TDD Time division duplex UART universal asynchronous receiver/transmitter V volts W width 3 Reference Documents 1. MLink Antenna Specification – Draft, Feb 10, 2014 2. A09-Y8NF Yagi Antenna datasheet – May 2003 (A09-Y8NF.pdf) 3. MLink Circuit Description – Draft, Feb 10, 2014 4 Introduction This document shows how compliance with maximum RF exposure is met by the MLink module operating under FCC 15.247 and RSS 210 with integral and external Yagi antennas. 5 General Information Device category: Mobile with Integral antenna Fixed with external Yagi antenna Environment: Uncontrolled exposure in general public (uncontrolled environment) for Integral and external Yagi antenna 6 Antenna The MLink module is design for used with two antennas types – an Integral Antenna and an External Yagi Antenna. 6.1 Integral Antenna The integral antenna is a custom design specifically for use with MLink 900 module with a measured peak gain of 2.1 dBi (Ref 1). Configuration Antenna Polarization Type Freq. Band Max. Gain (dBi) Mobile or Fixed Vertical Omni 900 MHz 2.1 MPE Page 4 3/4/2014 8:07 PM Murandi Communications Ltd. 106, 4715 - 13th St. NE, Calgary, Alberta, Canada, T2E 6M3 Tel: (403) 777-9988 email [email protected] Fax: (403) 777-9989 www.murandi.com Confidential and Proprietary 6.2 External Yagi Antenna The external Yagi Antenna is made by several manufacturers (MaxStream Inc (A08-Y8NF) and Laird Technologies (PC904)) with a gain of 4.8 dBd (7 dBi) including a 1.2 dB min cable loss. Configuration Antenna Polarization Type Freq. Band Max. Gain (dBi) Fixed Vertical Yagi 900 MHz 7 7 Operating Configuration and Exposure Conditions The max conducted power for the MLink 900 module is 29 dBm with a 50% max duty cycle (max TX of 100 ms followed by 100 ms RX). The integral antenna is directly connected to the MLink 900 module, while the external Yagi antenna is connected through an RF cable. 8 MPE Calculation From FCC 1.1311 Table 1(B) and RSS-102 section 4.2 the MPE is 0.6 mW/cm 2 max @ 900 MHz. The MPE at 20 cm is separation is calculated as follows: MLink 900 module conducted TX power 29 dBm = 800 mW With 50% duty cycle 800 mW x 50% = 400 mW Spherical surface area with a 20 cm radius 4πr 2 = 5000 cm 2 For an isotropic antenna the RF intensity at 20 cm is 400 mW / 5000 cm 2 = 0.08 mW/cm 2 For the Integral Antenna with max 2.1 dBi gain (1.62 linear gain) the max RF intensity at 20 cm is 0.08 mW/cm 2 x 1.62 = 0.13 mW/cm 2 @ 20 cm separation which is less than the 0.6 mW/cm 2 max @ 20 cm specification Similarly for the External Yagi Antenna with max 7 dBi gain (5 linear gain) the max RF intensity at 20 cm is 0.08 mW/cm 2 x 6 = 0.4 mW/cm 2 @ 20 cm separation which is less than the 0.6 mW/cm 2 max @ 20 cm spe…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT PER FCC PT 15.247 AND IC RSS-210 ISSUE 8 FHSS APPLICANT MURANDI COMMUNICATIONS LTD. ADDRESS 106, 4715 - 13 ST. N.E. CALGARY ALBERTA T2E 6M3 CANADA FCC ID KQNMLINK900 IC 2361A-MLINK900 MODELS MLINK G 900A FW MLINK G 900C FW PRODUCT DESCRIPTION FREQUENCY HOPPING TRANSCEIVER WITH GPS DATE SAMPLE RECEIVED April 24 th 2014 DATE TESTED April 24 th - 28 th , 2014 TESTED BY Mario de Aranzeta APPROVED BY Mario de Aranzeta REPORT ISSUE DATE May 1 st 2014 TOTAL PAGES 46 TIMCO REPORT NO. 254AUT14TestReport TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: MURANDI COMMUNICATIONS LTD. FCC ID: KQNMLINK900 IC: 2361A-MLINK900 REPORT: V:\M\ MURANDI\254AZUT14\254ZAUT14TestReport.docx Page 2 of 46 TABLE OF CONTENTS ATTESTATION ................................................................................................ 3 REPORT SUMMARY ......................................................................................... 4 TEST ENVIRONMENT AND TEST SETUP ............................................................. 4 DUT DESCRIPTION ......................................................................................... 5 EMC EQUIPMENT LIST .................................................................................... 6 TEST PROCEDURES ........................................................................................ 7 POWER LINE CONDUCTED INTERFERENCE ........................................................ 8 NUMBER OF HOPPING CHANNELS .................................................................... 9 DWELL TIME OF A HOPPING CHANNEL ............................................................ 10 20 dB BANDWIDTH ...................................................................................... 14 CARRIER FREQUENCY SEPARATION ................................................................ 16 POWER OUTPUT ........................................................................................... 17 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................. 18 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................... 23 RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND .............. 43 APPLICANT: MURANDI COMMUNICATIONS LTD. FCC ID: KQNMLINK900 IC: 2361A-MLINK900 REPORT: V:\M\ MURANDI\254AZUT14\254ZAUT14TestReport.docx Page 3 of 46 ATTESTATION This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. AUTHORIZED BY: Mario de Aranzeta SIGNATURE: FUNCTION: Project Manager DATE: May 1 th , 2014 APPLICANT: MURANDI COMMUNICATIONS LTD. FCC ID: KQNMLINK900 IC: 2361A-MLINK900 REPORT: V:\M\ MURANDI\254AZUT14\254ZAUT14TestReport.docx Page 4 of 46 REPORT SUMMARY Disclaimer: The test results relate only to the items tested. Purpose of Test: To demonstrate that the DUT is complia…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Goulbourne(Technical Manager)

[email protected]403-777-9988Fax: 403-777-9989

Test Firm

Timco Engineering, Inc.Bruno Clavier

[email protected]352-472-5500Fax: 352 472 2030

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	903 MHz - 927 MHz	800.00 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Single Modular Approval. Professional installation is required for the external antenna as described in this filing. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee, provided that the OEM, integrator, and/or end user has complied with all of the instructions provided by the Grantee. This device is to be used only for mobile and fixed applications (applications with ≥20cm spacing). OEM integrators must be provided labeling requirements for finished products. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. End-users and installers must be provided with transmitter operating conditions for satisfying RF exposure compliance. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations.
