KR537978000Transceiver for Remote Vehicle Access

The device under test is manufactured by the grantee (Continental Automotive GmbH) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the enduser. Continental Automotive GmbH will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID:KR537978000, IC:7812D-37978000 This device complies with Part 15 of the FCC Rules and wit h Industry Canada license-exempt RSS standard(s) . Operation is subject to the following two conditions: (1) This device may not caus e harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux C NR d'Industrie Canada applicables aux appareils radio exempts de licence. L'expl oitation est autorisée aux deux c onditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilis ateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Note: Changes or modifications not expressively approved by the party responsible for compliance could void the us er's authority to operate the equipment. The term “IC:” before the radio cert ification number only signifi es that Industry Canad a technical specifications were met. ******************************************************************************

Continental Automotive GmbH Siemensstr. 12 93055 Regensburg Postfach 100 953 93009 Regensburg Phone +49 941 790-0 Fax +49 941 790-4999 www.continental-corporation.com Registered Office: Hanover Registered Court: Amtsgericht Hanover HRB 59424 General Managers: Gerard Cordonnier, Helmut Matschi, Harald Stuhlmann Date February 13, 2013 Your message dated Our Reference Your reference Confidentiality Request for FCC ID:KR537978000 IC:7812D-37978000 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Continental Automotive GmbH has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. Continental Automotive GmbH – Postfach 100 953 – 93009 Regensburg Dagmar Kolar QL RBG 43 Phone +49 (941) 790-6699 Fax +49 (941) 790-996699 [email protected] - 2 - NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Dagmar Kolar / Manager RF Homologation

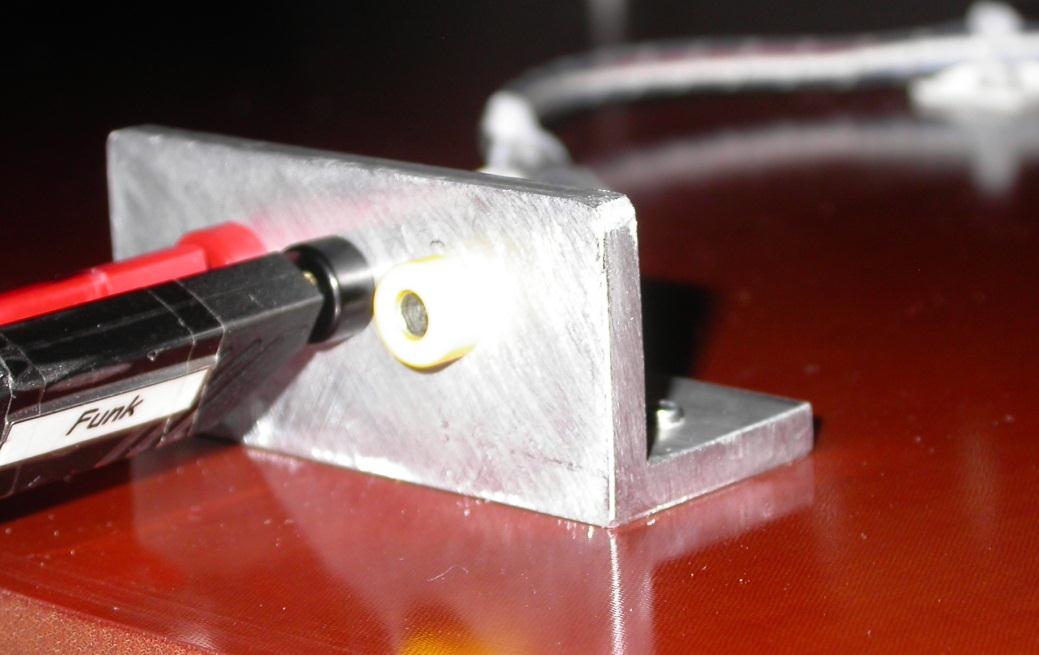

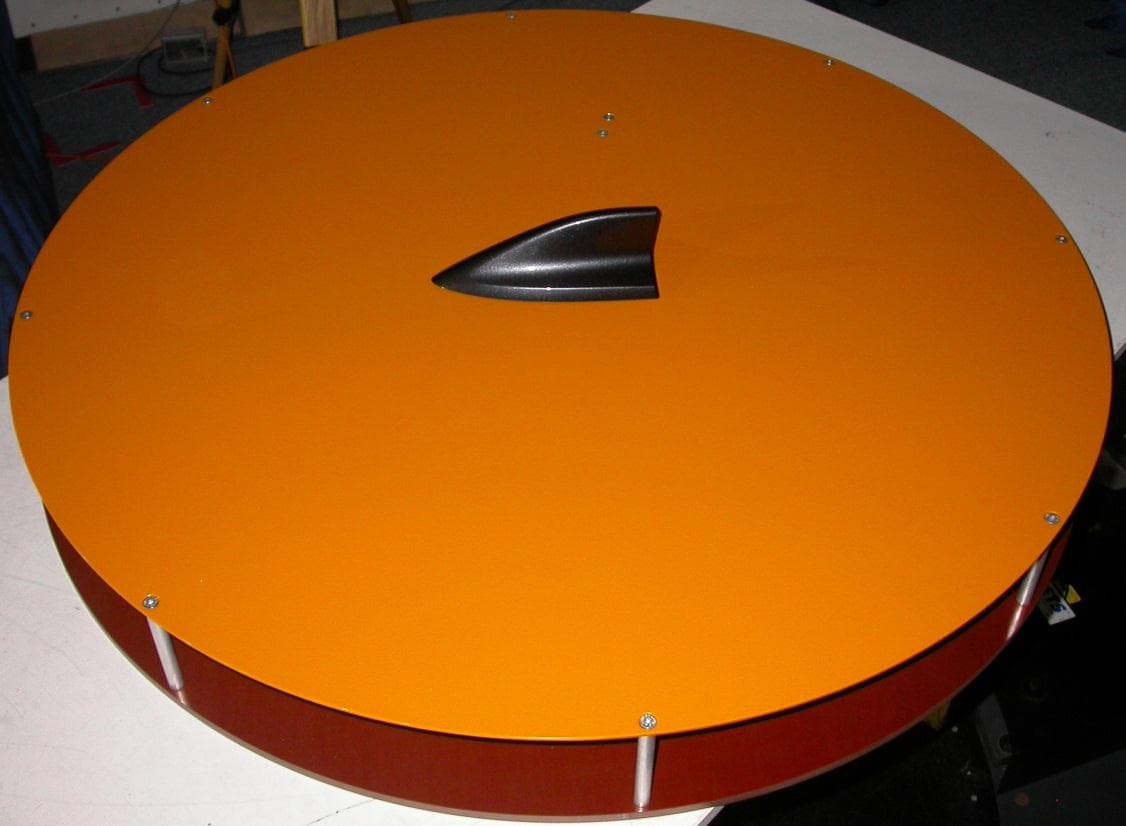

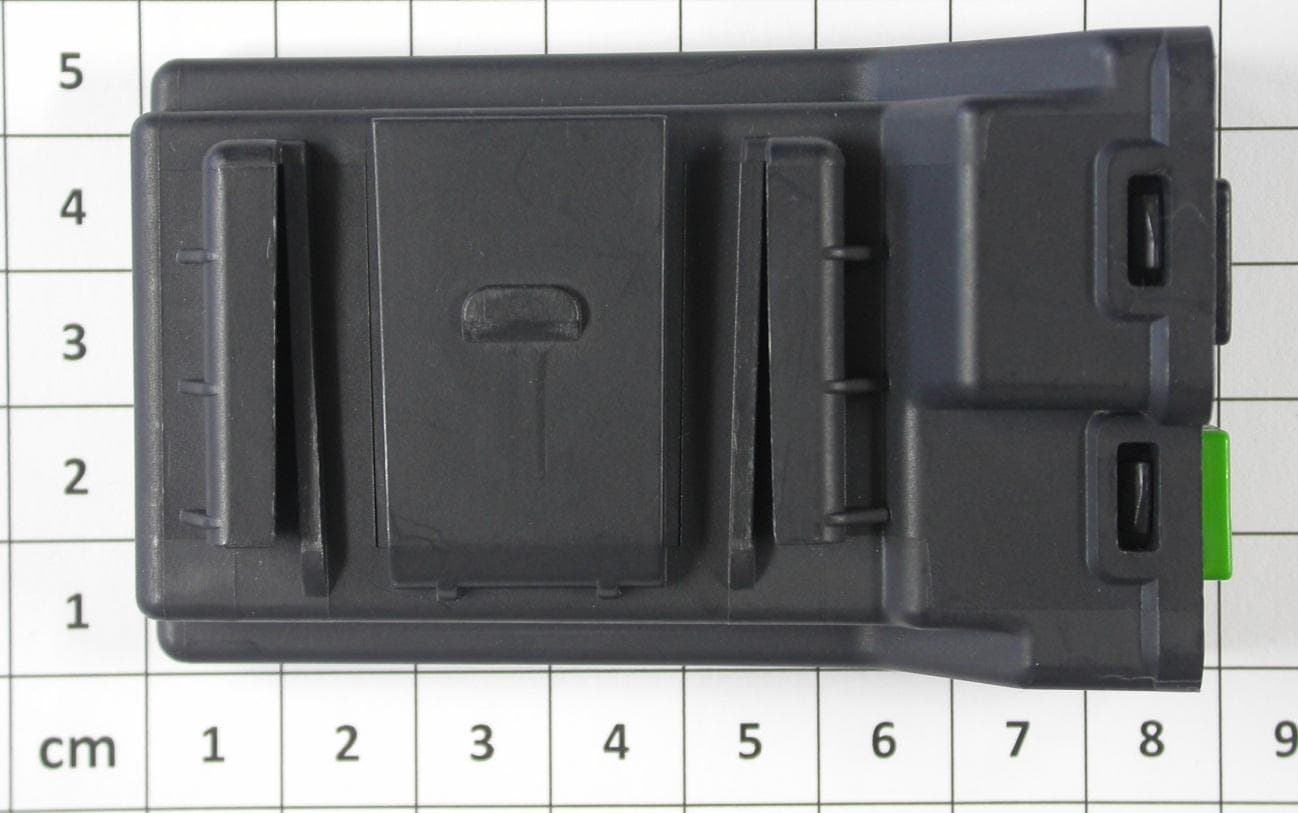

Attachment A to File No.: T36248-01 1 P h o t o d o c u m e n t a t i o n o f t h e E U T 1.1 External views: - Test setup:

FCC ID:KR537978000 IC:7812D-37978000 Page 1 of 2 Continental Radio Transmitter A2C37978000 Label Information: Continental Model: A2C37978000 FCC ID:KR537978000 IC:7812D-37978000 Owner Manual Canada IC:7812D-37978000 Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC ID:KR537978000 IC:7812D-37978000 Page 2 of 2 Owner Manual USA FCC ID:KR537978000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Label Location

- Car roof antenna, 39150-TZ6A-A013-M1 and 39150-TZ5A-A012-M1: - 39150-TZ6A-A013-M1 - 39150-TZ5A-A012-M1

1.2 Internal views:

FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-01HU, page 1 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 EMI − T E S T R E P O R T - FCC Part 15.249, RSS210 - Test Report No. : T36248-01-01HU 20. February 2013 ______________________________________________________________________________________________ Date of issue Type / Model Name : A2C37978000 Product Description : Transceiver for remote vehicle access Applicant : Continental Automotive GmbH Address : Siemensstr. 12 93055 Regensburg, Germany Manufacturer : Continental Guadalajara México, S.A. de C.V. Address : Camino a la Tijera No.3 45640 Tlajomulco de Zuῇiga, Jalisco, Mexico Licence holder : Continental Automotive GmbH Address : Siemensstr. 12 93055 Regensburg, Germany Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-01HU, page 2 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 2.1 Test result summery 4 2.2 GENERAL REMARKS: 5 2.3 FINAL ASSESSMENT: 5 3 E Q U I P M E N T U N D E R T E S T 6 3.1 Photo documentation of the EUT – Please see attachment A 6 3.2 Power supply system utilised 6 3.3 Short description of the equipment under test (EUT) 6 4 T E S T E N V I R O N M E N T 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 4.4 Measurement protocol for FCC and IC 8 5 T E S T C O N D I T I O N S A N D R E S U L T S 10 5.1 Conducted emissions 10 5.2 Radiated emission of the fundamental wave 11 5.3 Spurious emissions radiated 13 5.4 20 dB bandwidth 19 5.5 Bandwidth of momentary signals 29 5.6 Antenna application 39 5.7 Receiver radiated emissions 40 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 43 FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-01HU, page 3 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2012) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2012) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.249 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz ANSI C63.4: 2009 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-01HU, page 4 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 2 S U M M A R Y 2.1 Test result summery The A2C37978000 is a transceiver for remote vehicle access: Operating in the 902 MHz – 928 MHz band: FCC Rule Part RSS Rule Part Description Result 15.207(a) RSS Gen, 7.2.4 AC power line conducted emissions not applicable 15.215(c) RSS Gen, 4.6.3 -20 dBc EBW not applicable 15.249(a) RSS-210, A8.4(4) Field strength of fundamental passed 15.249(d) RSS-210, A8.5 Out-of-band emission, radiated passed 15.205(a) RSS-Gen, 7.2.2 Emissions in restricted bands passed 15.35(c) RSS-Gen, 4.5 Pulsed operation not applicable 15.107 RSS Gen, 7.2.4. AC power line conducted emissions not applicable RSS-Gen, 7.2.6 Transmitter frequency stability not applicable RSS-Gen, 4.6.1 99 % Bandwidth passed OET Bulletin 65 RSS102, 3.2 Co-location, Co-transmission not applicable The mentioned RSS Rule Parts in the above table are related to: RSS Gen, Issue 3, December 2010 RSS 210, Issue 8, December 2010 RSS 102, Issue 4, March 2010 FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-01HU, page 5 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 2.2 GENERAL REMARKS: All radiated tests have been performed on samples which are in original state in a test mode function with two different car roof antennas. - No. 1: 39150 – TZ6A – A013 – M1 - No. 2: 39150 – TZ5A – A012 – M1 For technical differences between the two antennas please refer to the manufacturer documents. The EuT has an external antenna and is powered by a vehicle battery. 2.3 FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 31. January 2013 Testing concluded on : 31. January 2013 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager Radio Group Markus Huber FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-01HU, page 6 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010…

Text truncated - open the document above for the full version.

FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-00HU, page 11 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 5.2 Radiated emission of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS 1 Test distance: 3 m 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.249(a): The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the effective limits. 5.2.2 Description of Measurement The radiated power of the fundamental wave from the EUT is measured in the frequency range of 30 to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 meter non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. The set up of the Equipment under test will be in accordance to ANSI C63.4- 2003. The Interface cables that are closer than 40 centimetres to the ground plane are bundled in the center in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the center of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 meters, measurement scans are made with both horizontal and vertical antenna polarization`s and the EuT are rotated 360 degrees. FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-00HU, page 13 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 5.3 Spurious emissions radiated For test instruments and accessories used see section 6 Part SER1, SER 2, SER 3. 5.3.1 Description of the test location Test location: OATS 1 Test location: Anechoic chamber 2 Test distance: 3 m 5.3.2 Photo documentation of the test set-up FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-00HU, page 14 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 5.3.3 Applicable standard According to FCC Part 15C, Section 15.249 (d): Emission radiated outside of the specified frequency bands, except harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated limit in FCC Part 15C, Section 15.209, whichever is the lesser attenuation. 5.3.4 Description of Measurement The radiated emissions from the EUT are measured in the frequency range of 9 kHz to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. The set up of the EUT will be in accordance to ANSI C63.4. In the frequency range above 1 GHz a spectrum analyser is used with appropriate linear polarized antennas. If the emission level in peak mode complies with the average limit then testing will be stopped and peak values of the EUT will be reported, otherwise, the emission will be measured in average mode again and reported. During the test, the EUT was set into continuous transmitting mode modulated. Instrument settings: 9 kHz – 150 kHz RBW: 200 Hz 150 kHz - 30 MHz RBW: 9 kHz 30 MHz – 1000 MHz: RBW: 120 kHz 1000 MHz – 40 GHz RBW: 1 MHz FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-00HU, page 19 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 5.4 20 dB bandwidth For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: Anechoic chamber 2 5.4.2 Photo documentation of the test set-up 5.4.3 Applicable standard According to FCC Part 15, Section 15.215(c): Intentional radiators operating under the alternative provisions to the general emission limits, as contained in Section 15.217 through Section 15.257, must be designed to ensure that the 20 dB bandwidth of the emission is contained within the frequency band designated in the rule section under which the equipment is operated. 5.4.4 Description of Measurement The bandwidth is measured at an amplitude level reduced from the reference level by a specified ratio of -20 dB. The reference level is the level of the highest signal amplitude observed from the transmitter at the fundamental frequency. Alternative is the x-dB-down function of the analyser used. The EBW is than directly shown in the marker display. The measurement is performed with normal modulation and a transfer rate means the worst case. FCC ID: KR537978000 IC ID: 7812D-37978000 mikes-testingpartners gmbh File No. T36248-01-00HU, page 29 of 43 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 2010-09-09 5.5 Bandwidth of momentary signals For test instruments and accessories used see section 6 Part MB. 5.5.1 Description of the test location Test location: Anechoic chamber 2 5.5.2 Photo documentation of the test set-up 5.5.3 Test result - Car roof antenna 39150-TZ6A-A013-M1 Fundamental frequency (MHz) 99% bandwidth f1 (MHz) 99% bandwidth f2 (MHz) Measured bandwidth (MHz) Limit (MHz) 926.225 926.099 926.352 0.253 4.63 925.925 925.799 926.052 0.253 4.63 925.775 925.663 925.889 0.225 4.63 926.375 926.263 926.489 0.225 4.63 - Car roof antenna 39150-TZ5A-A012-M1 Fundamental frequency (MHz) 99% bandwidth f1 (MHz) 99% bandwidth f2 (MHz) Measured bandwidth (MHz) Limit (MHz) 926.225 926.114 926.337 0.223 4.63 925…
