KR55WK45022Keyless Entry Transmitter

ATTESTATION STATEMENT FCC ID: KR55WK45022 RF Transmitter 5WK4 5022 SUMMARY: All tests according to FCC Part Subpart C Paragraph 15.231 ! - Performed The equipment under test ! - Fulfills the general approval requirements of FCC Part Subpart C Paragraph 15.231 - MIKES BABT PRODUCT SERVICE GmbH - Responsible Engineer _____________________________ Josef Knab

FCC ID: KR55WK45022 Attachment E 1 5WK4 5022 File-No. T 19905-00 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760

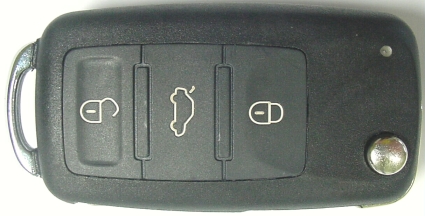

FCC ID: KR55WK45022 General description of the RF transmitter The 315 MHz RF remote control system consisting of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. In general the following functions are provided: - Lock the car - Unlock the car - Unlock trunc Power supply The transmitter is provided with 1 Lithium battery (CR2032) that gives a tension of feeding of +3V. The battery inversion is protected mechanically. Buttons There are three buttons which enable to lock, unlock the doors and unlock the trunk. During activation, the button is forced to the ground via a “pull-up” within the microcontroller. LED The LED is turned on between transmission blocks. Oscillator The oscillator is of PLL type. The operating frequency is about 315 MHz ± 75 kHz. FCC ID: KR55WK45022 Mechanical design The mechanical of the transmitter is composed of four parts: the superior shell the inferior shell metal insert battery support (mechanical protection to afford battery inversion ) The battery placement is integrated in the inferior shell. Technical data Carrier frequency315 MHz ± 75 kHz Output Power< -18 dBm (carrier frequency) Type of modulationASK Method of frequency generationCrystal Number of channels1 Baudrate2 k Baud Power supply3 Volt Type of batteryLithium Transmission rangetypical 10 meters

FCC ID: KR55WK45022 Duty Cycle Typical usage pattern 27 lock / unlock operations in 24 hours with a typical transmission duration of 500 milliseconds Transmitter ON13,5seconds / 24 hours Transmitter OFF86.386,5seconds / 24 hours Duty Cycle: T ON / T (ON+OFF) x 100% = 13,5 / 86.400 x 100 % = 0,015 %

FCC ID: KR55WK45022 TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T 19905-1-00 KJ , Page 1 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 E M I S S I O N -- T E S T R E P O R T Testreport file no. : T 19905-1-00 KJ ______________ Date : December 13, 2000 of issue __________________ Model / Type No. : 5WK4 5022 ______________________________________________ Type : RF Transmitter ______________________________________________ Applicant : SIEMENS Automotive AG ______________________________________________ Manufacturer : SIEMENS Automotive AG ______________________________________________ Licence holder : SIEMENS Automotive AG ______________________________________________ Address : Wernerwerkstrasse 2 ______________________________________________ D-93049 Regensburg ______________________________________________ Test result accrdg. to the regulation(s) at page 3 : POSITIVE This testreport with appendix consists of 27 pages. The testresult only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the testlaboratory. FCC ID: KR55WK45022 File No. T 19905-1-00 KJ , Page 2 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 D I R E C T O R Y Page A) Documentation Directory2 ________ Testregulations3 ________ General information4-5 ________ Discovery of worst case condition 6 ________ Equipment under Test16 ________ Summary17 ________ B) Testdata Conducted emissions 10/150 kHz - 30 MHz 7 ________ Spurious emissions (magnetic field) 10 kHz - 30 MHz 8-9 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz 10-11 ________ Spurious emissions (electric field) 1 GHz - 18 GHz 12-13 ________ Raiated power of the fundamental wave 14 ________ Conducted power of the fundamental wave measured on 15 the antenna terminals ________ Attachment A) Testdata /Bandwith plots A1-A2 ________ B) List of Test Equipment B1 ________ C) Photos of the test setup C1-C2 ________ D) Technical description of the test sample D1-D3 (e.g.CDF, Declaration) ________ E) Photos of the EuTE1-E2 ________ F) Measurement Protocol for FCC, VCCI and AUSTEL -- ________ FCC ID: KR55WK45022 File No. T 19905-1-00 KJ , Page 3 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o - EN 50081-1 / 2.1991 o - EN 50081-2 / 7.1993 -------------------------------------------------------------------------------- o - EN 55011 / 3.1991 o - Group 1 o - Group 2 o - class A o - class B o - EN 55014 / 4.1993 o - Household appliances and similar o - tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55104 / 5.1995 Category: o - EN 55015 / A1:1990 o - EN 55015 / 12.1993 o - EN 55022 / 5.1995 o - class A o - class B o - prEN 55103-1/ 3.1995 o - prEN 50121-3-2 / 3.1995 o - EN 60601-1-2 / 4.1994 o - VCCI o - class 1 o - class 2 o - Part 15 Subpart C (15.209) ! - Part 15 Subpart C (15.231) FCC ID: KR55WK45022 File No. T 19905-1-00 KJ , Page 4 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 A D D R E S S O F T H E T E S T L A B O R A T O R Y ! - MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o - ______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature: 15-35 ° C ______ Humidity 45-60 % ______ Atmospheric pressure 860-1060 mbar _________ POWER SUPPLY SYSTEM UTILIZED Power supply system : Battery Unom = 3 V DC STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error of ± 4dB. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) The 315 MHz RF remote control system consists of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. Number of received/tested samples: 2 / 2 Serial Number: Prototype DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT ! - Black box indicates that the listed condition, standard or equipment is applicable for this Report. o - Blank box indicates that the listed condition, standard or equipment was not applicable for this Report. FCC ID: KR55WK45022 File No. T 19905-1-00 KJ , Page 5 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following…

Text truncated - open the document above for the full version.

FCC ID: KR55WK45022 File No. T19905-1-00 KJ , Page C 1 of C 2 MIKES BABT PRODUCT SERVICE GmbH ! Ohmstrasse 2-4 ! D-94342 Strasskirchen ! Tel.:+49 94 24 94 07-0 ! Fax:+49 94 24 94 07-60 Rev.Nr. 8.6 Test-Setup: SPURIOUS EMISSIONS (electric field) 30 MHz - 1000 MHz FCC ID: KR55WK45022 File No. T19905-1-00 KJ , Page C 2 of C 2 MIKES BABT PRODUCT SERVICE GmbH ! Ohmstrasse 2-4 ! D-94342 Strasskirchen ! Tel.:+49 94 24 94 07-0 ! Fax:+49 94 24 94 07-60 Rev.Nr. 8.6 Test-Setup: SPURIOUS EMISSIONS (electric field) 1 GHz - 18 GHz
