KR55WK47631Immobilizer System 5WK4 7631

Siemens VDO Automotive AG SV C BC P2 RF TG File: S:\Postzula\OPEL\Immo2Gen\Func_Immobiliser_2Gen.doc Page 1 of 3 User Manual of the Siemens VDO OPEL Immobiliser type 5WK4 7631 Siemens VDO Automotive AG SV C BC P2 RF TG File: S:\Postzula\OPEL\Immo2Gen\Func_Immobiliser_2Gen.doc Page 2 of 3 System description of the Opel Immobilizer 2nd Generation Redesign The immobilizer 2nd generation prevents drive away car theft powered by its own engine without having a valid key. It uses an inductive data transmission between transponder (mounted inside the key) and the control unit. This data link is working with a carrier frequency of 125 kHz and uses amplitude modulation for transmitting data to the transponder. For the direction from the transponder to the control unit damping modulation with pulse duration coding is used. Functional description After switching on the ignition the immobilizer transmits a random number to the transponder. It calculates a result and transmits it back to the immobilizer. The result is checked and if it is correct, the engine will be released. After that, the immobilizer is switched off until another start is attempted. The longest period for transmitting 125 kHz is 3 seconds. Typical usage pattern (for Europe only) 15 operations in 24 hours with a transmission duration of 2 seconds. → total transmission duration of 1.25 seconds within 1 hour Transmitter ON 1.25 seconds / hour Transmitter OFF 3598.75 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 1.25 / 3,600 x 100 % = 0.03 % Technical Data Carrier frequency: 125 kHz ± 5kHz Field strength: < 40 dBμA/m @ 10m Type of modulation ASK Number of channels: 1 Power supply: 12 V DC Type of battery: car battery Transmission range: 20 cm Siemens VDO Automotive AG SV C BC P2 RF TG File: S:\Postzula\OPEL\Immo2Gen\Func_Immobiliser_2Gen.doc Page 3 of 3 Block diagrams of the transmitter: ECU Ubat Transponder Antenne Kl. 30 Kl. 31 Kl. 15 Relais DWA W-Leitung Motor- kontrolleuchte K-Leitung Motorsteuerung Kl. 30 Kl. 30 510 Ohm Tester 10 kOhm Label design European Community: Siemens VDO 5WK4 7631 USA/CAN: Siemens VDO 5WK4 7631 IC: 267T-5WK47631 FCC ID:KR55WK47631 This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. NOTE: Changes or modifications not expressly approved by the manufacturer could void the user ́s authority to operate the equipment. 125kHz

Annex No.6 Block Diagram EUT : Siemens VDO 5WK4 7631 Page 1 of 1

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Siemens VDO Automotive AG SV C BC 6 RBG, Osterhofener Straße 14a, 93055 Regensburg / Germany would like the following documents regarding this submission for FCC ID: KR55WK47631 to be kept confidential. IMMOBILIZER 5WK4 7631 1. Page 6 of 6 Annex no. 7 document “Schematics” The above material contains trade secret or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, m. dudde hochfrequenz-technik Manfred Dudde

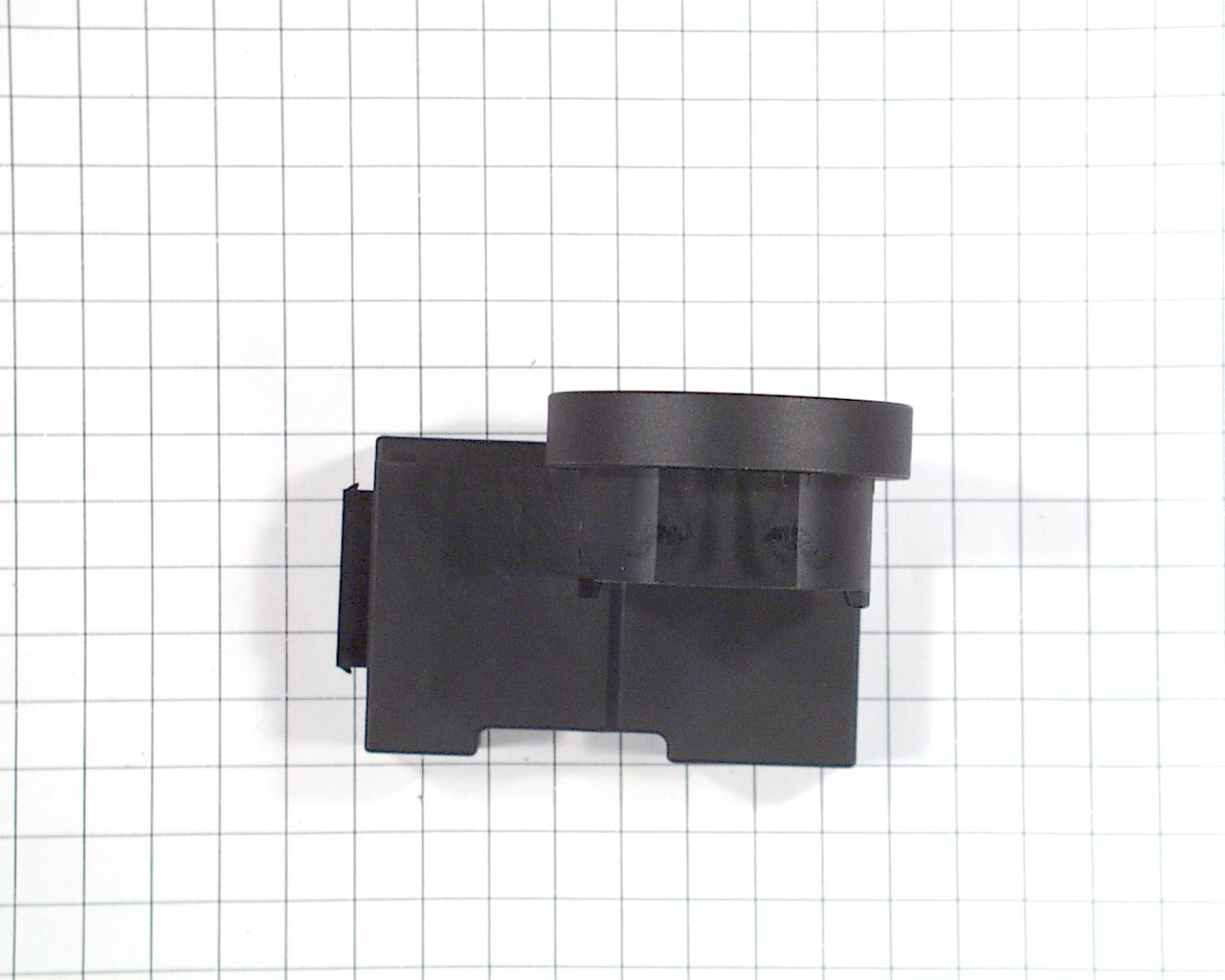

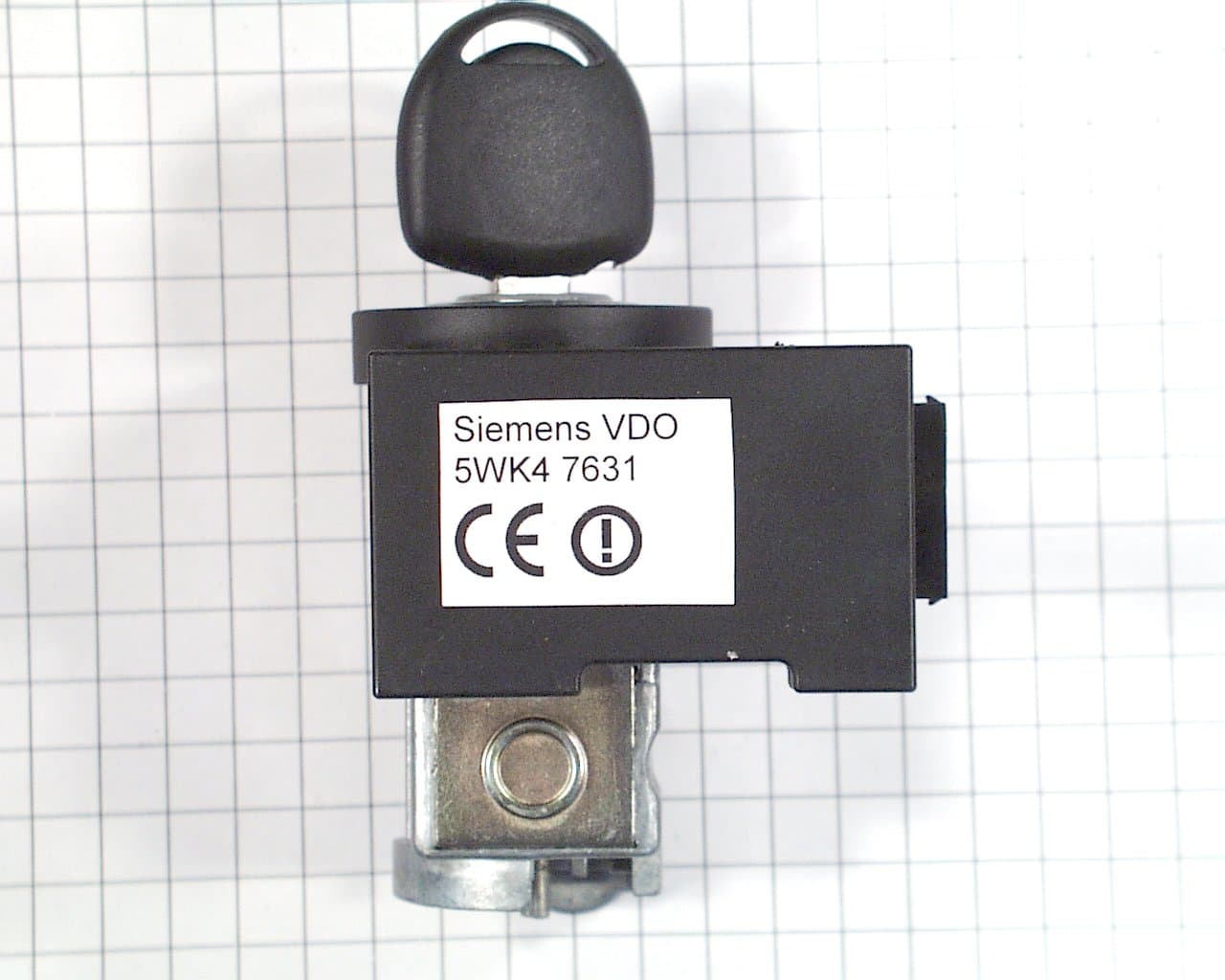

Annex No.2 Page 1 of 2 External Photographs EUT : Siemens VDO 5WK4 7631 External Front View Photo Annex No.2 Page 2 of 2 External Rear View Photo

Annex No.4 Page 1 of 1 EUT : Conti Temic EZS-NCV2 Sketch of FCC ID Lable Location

Annex No.3 Page 1 of 2 Internal Photographs EUT : Siemens VDO 5WK4 7631 Internal Component Side Photo Annex No.3 Page 2 of 2 Internal Solder Side Photo

Siemens VDO Automotive AG SV C BC P2 RF TG File: S:\Postzula\OPEL\Immo2Gen\Func_Immobiliser_2Gen.doc Page 2 of 3 System description of the Opel Immobilizer 2nd Generation Redesign The immobilizer 2nd generation prevents drive away car theft powered by its own engine without having a valid key. It uses an inductive data transmission between transponder (mounted inside the key) and the control unit. This data link is working with a carrier frequency of 125 kHz and uses amplitude modulation for transmitting data to the transponder. For the direction from the transponder to the control unit damping modulation with pulse duration coding is used. Functional description After switching on the ignition the immobilizer transmits a random number to the transponder. It calculates a result and transmits it back to the immobilizer. The result is checked and if it is correct, the engine will be released. After that, the immobilizer is switched off until another start is attempted. The longest period for transmitting 125 kHz is 3 seconds. Typical usage pattern (for Europe only) 15 operations in 24 hours with a transmission duration of 2 seconds. → total transmission duration of 1.25 seconds within 1 hour Transmitter ON 1.25 seconds / hour Transmitter OFF 3598.75 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 1.25 / 3,600 x 100 % = 0.03 % Technical Data Carrier frequency: 125 kHz ± 5kHz Field strength: < 40 dBμA/m @ 10m Type of modulation ASK Number of channels: 1 Power supply: 12 V DC Type of battery: car battery Transmission range: 20 cm

Page 1 of 20 m. dudde hochfrequenz-technik Rottland 5a Datum: 14.02.02 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com TEST REPORT 03001690 2003-08-01 Trade Name: Siemens VDO Model: 5WK4 7631 Serial No: none Prototype Equipment Category: Immobilizer Manufacturer: Siemens VDO Automotive AG Address: Osterhofener Straße 14a D-93055 Regensburg Germany Phone: +49-941-790-3554 Fax: +49-941-790-133554 E-mail: [email protected] RELEVANT STANDARD: 47 CFR Part 15C - Intentional Radiators USED: TEST REPORT PREPARED BY: Ralf Trepper m.dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax : +49 2207 968920 E-mail: [email protected] TEST PERSONNEL: SIGNATURE OF THE COMPANY OFFICIAL: Ralf Trepper Manfried Dudde FCC ID: KR55WK47631 Test Report : 03001690 Page 2 of 20 Issue Date:01.08.2003 EUT : 5WK4 7631 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 email [email protected] CONTENTS 1 GENERAL INFORMATION 3 1.1 Purpose 3 1.2 Limits and Reservations 3 1.3 Test Location 3 1.4 Manufacturer 3 1.5 Dates 3 2 PRODUCT DESCRIPTION 4 2.1 Equipment Under Test (EUT) 4 2.2 EUT Peripherals 4 2.2.1 DC Power supply (power supply for EUT) 4 2.2.2 Notebook Computer none 4 2.2.3 AC Adapter none 4 2.3 Mode of Operation During Testing 4 2.4 Modifications Required for Compliance 5 3 TEST RESULTS SUMMARY 5 4 ANTENNA REQUIREMENT 6 4.1 Regulation 6 4.2 Result 6 5 RADIATED EMISSIONS 7 5.1 Regulation 7 5.2 Radiated Emissions Test, 9 kHz to 30 MHz (Magnetic Field Test) 10 5.2.1 Test Equipment 10 5.2.2 Test Procedures 10 5.2.3 Calculation of Field Strength Limits 11 5.2.4 Field Strength Calculation 11 5.2.5 Test Results 12 5.3 Radiated Emissions Test, 30 MHz to 2 GHz 13 5.3.1 Test Equiprnent 13 5.3.2 Test Procedures 13 5.3.3 Calculation of Field Strength Limits 14 5.3.4 Calculation of Average Correction Factor 14 5.3.5 Field Strength Calculation 14 5.3.6 Test Results 16 6 CONDUCTED EMISSIONS 17 6.1 Regulation 17 6.2 Test Equipment 17 6.3 Test Procedures 17 6.4 Test Results 18 7 MISCELLANEOUS COMMENTS AND NOTES 19 8 LIST OF ANNEXES 20 FCC ID: KR55WK47631 Test Report : 03001690 Page 3 of 20 Issue Date:01.08.2003 EUT : 5WK4 7631 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 email [email protected] 1 GENERAL INFORMATION 1.1 Purpose The purpose of this report is to show compliance to the FCC regulations for unlicensed devices operating under section 15.209 of the Code of Federal Regulations title 47. 1.2 Limits and Reservations The test results in this report apply only to the particular Equipment Under Test (EUT) as declared in this report. This test report shall not be reproduced except in full without the written permission of m.dudde hochfrequenz-technik. 1.3 Test Location Company Name: m.dudde high frequency technology Street: Rottland 5a City: 51429 Bergisch Gladbach Country: Germany Laboratory: FCC Registration Number: 699717 This site has been fully described in a report submitted to the FCC, and accepted in the letter dated Registration Number .699717 Phone: +49-2207-9689-0 Fax: +49-2207-9689-20 Mail: [email protected] Web: http://www.dudde.com 1.4 Manufacturer Company Name: Siemens VDO Aotomotive AG SV C ER 6 RBG Street: Osterhofener Str. 14 a City: D-93055 Regensburg Country: Germany Name for contact purposes: Dagmar Kolar Phone: +49-941-790-3554 Fax: +49-941-790-133554 Mail: [email protected] 1.5 Dates Date of receipt of EUT: 2003 Julie 15 Test date: 2003 August 01 FCC ID: KR55WK47631 Test Report : 03001690 Page 4 of 20 Issue Date:01.08.2003 EUT : 5WK4 7631 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 email [email protected] 2 PRODUCT DESCRIPTION 2.1 Equipment Under Test (EUT) Device: Inductive system Trade Name: Siemens VDO Model: 5WK4 7631 Serial Number: none (Prototype) FCC ID: KR55WK47631 Power: 12.0 VDC Transmit Frequency: 125 kHz ± 5kHz Type of modulation: A1D (ASK) Interface: none Variants: 5WK4 7631 Highest frequency generated or used in the device: Q1 : 8 MHz 2.2 EUT Peripherals The EUT was tested in a typical system consisting of: 2.2.1 DC Power supply (power supply for EUT) Type: Manufacturer: Rhode&Schwarz Serial Number: 2.2.2 Notebook Computer none Type: Manufacturer: Serial Number: Highest frequency generated or used in the device: 2.2.3 AC Adapter none Type: Manufacturer Serial Number: 2.3 Mode of Operation During Testing The 5WK4 7631 was tested in a typical fashion. The Rhode&Schwarz DC Power supply was connected to the DC input port of the 5WK4 7631 special connector. During preliminary emission tests the 5WK4 7631 was operated in continuous TRANSMITTING and READING mode for worst case emission mode investigation. Therefore, final qualification testing was completed with 5WK4 7631 operated in the both continuous modes. All tests performed with applicant typical voltage (12 Volts DC). FCC ID: KR55WK47631 Test Report : 03001690 Page 5 of 20 Issue Date:01.08.2003 EUT : 5WK4 7631 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 email [email protected] 2.4 Modifications Required for Compliance None. 3 TEST RESULTS SUMMARY Summary of Test Results Requirement CFR Section Report Section Test Result Antenna Requirement 15.203 4 Pass Radiated Emissions 15.209,15.109 5 Pass Conducted Emissions 15.207 6 * The client has made the determination that EUT Condition, Characterization, and Mode of Operation are representative of production units, and meet the requirements of the specifications referenced herein. Consistent with Industry practice, measurement and test equipment not directly involved in obtaining measurement results but having an impact on measurements (such as cable loss, antenna fac…

Text truncated - open the document above for the full version.

Annex No.1 Page 1 of 1 Photographs of Test Setups (Inductive application measurements) EUT : Siemens VDO 5WK4 7631 Photographs of Test Setups (Spurious measurements) EUT : Siemens VDO 5WK4 7631
