KR55WK47993Radio Frequency Transmitter type E60

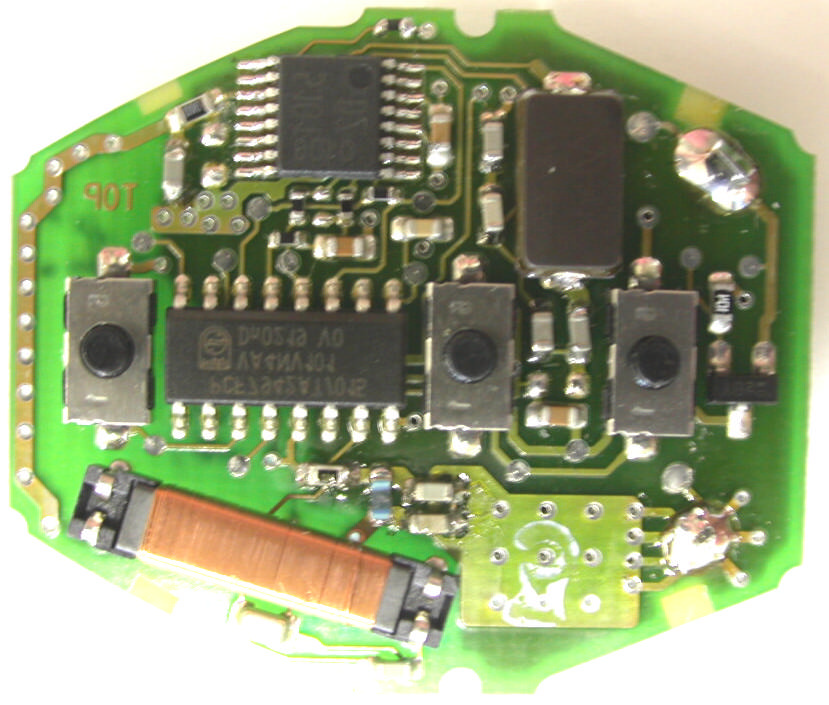

Siemens VDO Automotive AGSV C CE AIS LF IC: 267T-5WK47993 FCC ID:KR55WK47993 File: S:\Postzula\BMW\E60\Func_E60.docPage 1 of 6 User Manual of the Siemens VDO Radio Frequency Transmitter type E60 Siemens VDO Automotive AGSV C CE AIS LF IC: 267T-5WK47993 FCC ID:KR55WK47993 File: S:\Postzula\BMW\E60\Func_E60.docPage 2 of 6 General description of the RF transmitter E60 The RF remote control system E60 consists of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. In general the following functions are provided: - Lock the car - Unlock the car - Unlock the trunk of the car Power supply The transmitter is provided with 1 Lithium accumulator (VL 2020) that gives a power supply of +3V. Buttons There are three buttons which enable to lock and unlock the doors and to unlock the trunk. During activation, the button is forced to the ground via a “pull-up” within the microcontroller. Typical usage pattern (for Europe only) 10 lock/unlock operations in 24 hours with a transmission duration of 0.28 seconds 4 lock/unlock operations in 24 hours with a transmission duration of 6 seconds → total transmission duration of 8.8 seconds within 24 hours Transmitter ON0.366seconds / hour Transmitter OFF3599.634seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.366 / 3,600 x 100 % = 0.01 % Siemens VDO Automotive AGSV C CE AIS LF IC: 267T-5WK47993 FCC ID:KR55WK47993 File: S:\Postzula\BMW\E60\Func_E60.docPage 3 of 6 Block diagrams of the transmitter Button's PLL Transmitter IC 9,84375 MHz Crystal 125 kHz LF Circuit (L/C) 315 MHz Loop Antenna μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 616,54kHz Tx, RF data 4,807 kBit/sec 315 MHz Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 434,2 MHz 434 MHz Loop Antenna Siemens VDO Automotive AGSV C CE AIS LF IC: 267T-5WK47993 FCC ID:KR55WK47993 File: S:\Postzula\BMW\E60\Func_E60.docPage 4 of 6 Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 868,4 MHz 868,4 MHz Loop Antenna Siemens VDO Automotive AGSV C CE AIS LF IC: 267T-5WK47993 FCC ID:KR55WK47993 File: S:\Postzula\BMW\E60\Func_E60.docPage 5 of 6 Variants ModelDescription 5WK4 7991868.4MHz variant for Europe 5WK4 7992434.2MHz variant for Europe 5WK4 7993315MHz variant for USA 5WK4 7994315MHz variant reduced power for Japan Technical Data Carrier frequency model 5WK4 7991:868.4 MHz ± 0.05% Carrier frequency model 5WK4 7992:434.2 MHz ± 0.05% Carrier frequency model 5WK4 7993:315 MHz ± 0.05% Carrier frequency model 5WK4 7994:315 MHz ± 0.05% Output power model 5KW4 7991/2/3:< 10 mW Field strength model 5WK47994: < 500μV/m @ 3m Type of modulation model 5KW4 7991/2/3: FSK Type of modulation model 5KW4 7994: ASK Method of frequency generation:PLL Number of channels:1 Power supply:akku (VL 2020) Type of akkku:lithium Transmission range:<10 m NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user ́s authority to operate the equipment. Siemens VDO Automotive AGSV C CE AIS LF IC: 267T-5WK47993 FCC ID:KR55WK47993 File: S:\Postzula\BMW\E60\Func_E60.docPage 6 of 6 Label design Europe: (433MHz + 868 MHz)Japan: (315MHz) Siemens VDOSiemens VDO 5WK4 7991 or 5WK4 7994 5WK4 7992 USA/CAN: (315 MHz) Siemens VDO 5WK4 7993 IC: 267T-5WK47993 FCC ID:KR55WK47993 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

Attachment E4 FCC ID:KR55WK47993 File No. T 22559-02 HU MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0

Attachment E2 FCC ID:KR55WK47993 File No. T 22559-02 HU MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E2 FCC ID:KR55WK47993 File No. T 22559-02 HU MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E3 FCC ID:KR55WK47993 File No. T 22559-02 HU MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0

FCC ID: KR55WK47993 TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T 22559-1-02 HU , Page 1 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 E M I S S I O N -- T E S T R E P O R T Test Report File No. : T 22559-1-02 HU ________________ Date : September 23, 2002 of issue ________________ Type Designation:5WK4 7993 ______________________________________________ Kind of Product:Transmitter of a Keyless Entry System ______________________________________________ Applicant:Siemens VDO Automotive AG ______________________________________________ Manufacturer:Siemens VDO Automotive AG ______________________________________________ Licence holder:Siemens VDO Automotive AG ______________________________________________ Address:Siemensstrasse 12 ______________________________________________ D – 93055 Regensburg, Germany ______________________________________________ Test result accdg. to the regulation(s) at page 3 :Positive This test report with attachment consists of 26 pages. The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. FCC ID: KR55WK47993 File No. T 22559-1-02 HU , Page 2 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 D I R E C T O R Y Page Documentation Directory2 ________ Test regulations3 ________ General information4-5 ________ Discovery of worst case condition6 ________ Equipment under Test14 ________ Summary15 ________ Test data Conducted emissions 10/150 kHz - 30 MHz7 ________ Spurious emissions (magnetic field) 9 kHz - 30 MHz8-9 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz10 ________ Spurious emissions (electric field) 1 GHz - 18 GHz11 ________ Radiated power of the fundamental wave12 ________ Conducted power of the fundamental wave measured on13 the antenna terminals ________ Attachment A)Test dataA1-A3 ________ B)List of Test EquipmentB1 ________ C)Photos of the test setupC1-C2 ________ D)Technical description of the test sampleD1-D3 (e.g. CDF, Declaration) ________ E)Photos of the EuTE1-E2 ________ F)Measurement Protocol for FCC, VCCI and AUSTEL-- ________ FCC ID: KR55WK47993 File No. T 22559-1-02 HU , Page 3 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o- EN 50081-1/ 2.1991 o- EN 50081-2/ 7.1993 -------------------------------------------------------------------------------- o- EN 55011/ 3.1991o- Group 1o- Group 2 o- class Ao- class B o- EN 55014/ 4.1993o- Household appliances and similar o- tools o- Semiconductor devices o- EN 55014 / A2:1990 o- EN 55104/ 5.1995Category: o- EN 55015 / A1:1990 o- EN 55015 / 12.1993 o- EN 55022 / 5.1995o- class Ao- class B o- prEN 55103-1/ 3.1995 o- prEN 50121-3-2/ 3.1995 o- EN 60601-1-2/ 4.1994 o- VCCIo- class 1o- class 2 o- Part 15 Subpart C (15.209) n- Part 15 Subpart C (15.231) FCC ID: KR55WK47993 File No. T 22559-1-02 HU , Page 4 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 A D D R E S S O F T H E T E S T L A B O R A T O R Y n-MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o-______________________________________ ______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature:15-35 ° C ____________ Humidity45-60 % ____________ Atmospheric pressure 860-1060 mbar ____________ POWER SUPPLY SYSTEM UTILIZED Power supply systemo 230V/50 Hz / 1φn 3V DC o 400V/50 Hz 3PEo 400V/50 Hz 3NPE STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report accdg. to NIS 81 /5.1994 „The Treatment of Uncertainty in EMC Measurements“ and is documented in the MIKES BABT Product Service quality system accdg. to EN 45001. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EuT) Transmitter of a Keyless Entry System for automobiles. Number of received/tested samples: 1 / 1 Serial Number: Prototyp Project: E60 DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT n The black square indicates that the listed condition, standard or equipment is applicable for this report. o Blank box indicates that the listed condition, standard or equipment was not applicable for this report. FCC ID: KR55WK47993 File No. T 22559-1-02 HU , Page 5 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-1992 procedures…

Text truncated - open the document above for the full version.

FCC ID: KR55WK47993 File No. T 22559-1-02 HU , Page C 1 of C 2 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 Test-Setup: SPURIOUS EMISSIONS (electric field) 30 MHz - 1000 MHz FCC ID: KR55WK47993 File No. T 22559-1-02 HU , Page C 2 of C 2 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 Test-Setup: SPURIOUS EMISSIONS (electric field) 1000MHz – 10-harmonics
