KR55WK49046Remote Control for Vehicle Access

Continental Automotive Technologies GmbH

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jun 03, 2004
Application Purpose: Original Equipment
Date of Application: Jun 03, 2004
Equipment Note: Remote Control for Vehicle Access
Frequency Range: 315.00000000 - 315.00000000
Company: Continental Automotive Technologies GmbH
Country: Germany

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Annex No.5 Technical Description Key 5WK4 9046 Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49046 FCC ID:KR55WK49046 I:\POSTZULA\MB_DC\DesignKey\Original_Doku\Func_Designkey.doc Page 1 of 7 User Manual of the Siemens VDO Remote Control Transmitter Type: Designkey Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49046 FCC ID:KR55WK49046 I:\POSTZULA\MB_DC\DesignKey\Original_Doku\Func_Designkey.doc Page 2 of 7 General description of the Designkey "Keyless Go" The Designkey incorporates two main functional features. 1. RF remote control system : activation by button press 2. Keyless go system : activation by an external LF-signal source. In both activation modes the Designkey answers with the available RF (radio frequency) interface. For remote control function additionally IR (infra red) communication is in use. In regular application the RF receiver is located within the control unit which is mounted in the car interior. The Designkey RF transmitter antenna is mechanically integrated in the key head. The RF transmitter is used to transmit different information by a unidirectional transmission line to the RF receiver within the control unit. In regular application the following functions are provided by the Designkey : - Lock the car - Unlock the car - Unlock the trunk of the car - Driver authentication ( Keyless Go ) - Panic activation ( USA only ) Power supply The transmitter is provided with 2 Lithium batteries (CR 2025) that both gives a power supply of +3V. Buttons There are three buttons which enable to lock and unlock the doors and to unlock the trunk and an extra button in case of required panic function (USA only). During activation, by button press the microcontroller port is forced to ground via a “pull-up” within the microcontroller. Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49046 FCC ID:KR55WK49046 I:\POSTZULA\MB_DC\DesignKey\Original_Doku\Func_Designkey.doc Page 3 of 7 Typical usage pattern (for Europe only) 96 lock/unlock operations in 24 hours with typical transmission duration of 0.8 seconds → 4 lock/unlock operations with one hour Transmitter ON 3.2 seconds / hour Transmitter OFF 3,596.8 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 3.2 / 3,600 x 100 % = 0.08 % Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49046 FCC ID:KR55WK49046 I:\POSTZULA\MB_DC\DesignKey\Original_Doku\Func_Designkey.doc Page 4 of 7 Block diagrams of the transmitter μC for RF Tx and IR RxTx data transmission μC for button and LF communication Button's Keyless Go - Control Unit IR- Transmitter IR - Receiver RF transmitter LED Power management Manchester coded Battery A Battery B standard μC interface 9,84375 MHz Crystal for 315,0 MHz 13,5687 MHz Crystal for 433.92 MHz Crystal Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49046 FCC ID:KR55WK49046 I:\POSTZULA\MB_DC\DesignKey\Original_Doku\Func_Designkey.doc Page 5 of 7 Variants Model Description 5WK4 9045 433.92 MHz variant for Europe 5WK4 9046 315.00 MHz variant for USA Technical Data Carrier frequency model 5WK4 9045: 433.92 MHz ± 0.05% Carrier frequency model 5WK4 9046: 315.00 MHz ± 0.05% Output power model 5KW49045 : < 10 mW Field strength model 5WK49046 : < 6000μV/m @ 3m Type of modulation: FSK Method of frequency generation: PLL Number of channels: 1 Power supply: battery (2x CR 2025) Type of battery: lithium Transmission range: <10 m NOTE: Changes or modifications not expressly approved by the manufacturer could void the users authority to operate the equipment. Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49046 FCC ID:KR55WK49046 I:\POSTZULA\MB_DC\DesignKey\Original_Doku\Func_Designkey.doc Page 6 of 7 Label design Europe: (433.92 MHz) USA/CAN: (315 MHz) Siemens VDO 5WK4 9045 Siemens VDO 5WK4 9046 IC: 267T-5WK4 9046 FCC ID: KR55WK49046 This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49046 FCC ID:KR55WK49046 I:\POSTZULA\MB_DC\DesignKey\Original_Doku\Func_Designkey.doc Page 7 of 7 Homologation functionality For homologation use the Designkey samples are programmed with a special software which allows to set the RF transmission in following modes : 1 ) Constant carrier high frequency 2 ) Constant carrier low frequency 3 ) 1 kBit Modulation 4 ) 10 kBit Modulation The following diagram shows how to activate the different homologation modes. OFF Constant LOW FREQ. (LED Blink 200ms) Constant HIGH FREQ. (LED Blink 200ms) Modulated 1kbit/s (LED Blink 20ms) Modulated 10 kbit/s (LED Blink 50ms) trunk button any button open button close or panic or trunk button close button close button trunk or open or panic button any button panic button open button

Block Diagram

Annex No.7 Page 1 of 2 Block Diagram : Key 5WK4 9046 Oscillator frequencies generated or used in the device: : 9.844MHz Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49046 FCC ID:KR55WK49046 I:\POSTZULA\MB_DC\DesignKey\Original_Doku\Func_Designkey.doc Page 4 of 7 Block diagrams of the transmitter μC for RF Tx and IR RxTx data transmission μC for button and LF communication Button's Keyless Go - Control Unit IR- Transmitter IR - Receiver RF transmitter LED Power management Manchester coded Battery A Battery B standard μC interface 9,84375 MHz Crystal for 315,0 MHz 13,5687 MHz Crystal for 433.92 MHz Crystal

Cover Letter(s)

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com telefication Z.H. Herrn Wouters Edisonstraat 12a 6902 PK Zevenaar Netherland Unser Zeichen: Si04/056 Datum: 2004-05-13 Betreff: Beantragung einer Zulassung in den USA für folgendes Gerät: Key 5WK4 9046, geprüft gem. FCC Part 15C Antragsteller: SiemensVDO Automotive AG Siemensstraße 12 93055 Regensburg GERMANY Sehr geehrter Herr, Wouters zwecks Beantragung der Zulassung des o.g. Gerätes in den USA übersenden wir Ihnen anbei folgende Unterlagen: • Vollmacht des Herstellers für m. dudde hochfrequenz-technik • Testbericht Nr. 04001978 vom 12.05.2004, mit Anhängen Sollten Sie weitere Informationen benötigen, stehen wir Ihnen gerne jederzeit zur Verfügung. Mit freundlichen Grüßen m. dudde HF – Technik i. A. Ralf Trepper Anlagen : Annex 1 bis Annex 8 , Form 731, Request of Confidentiality

External Photos

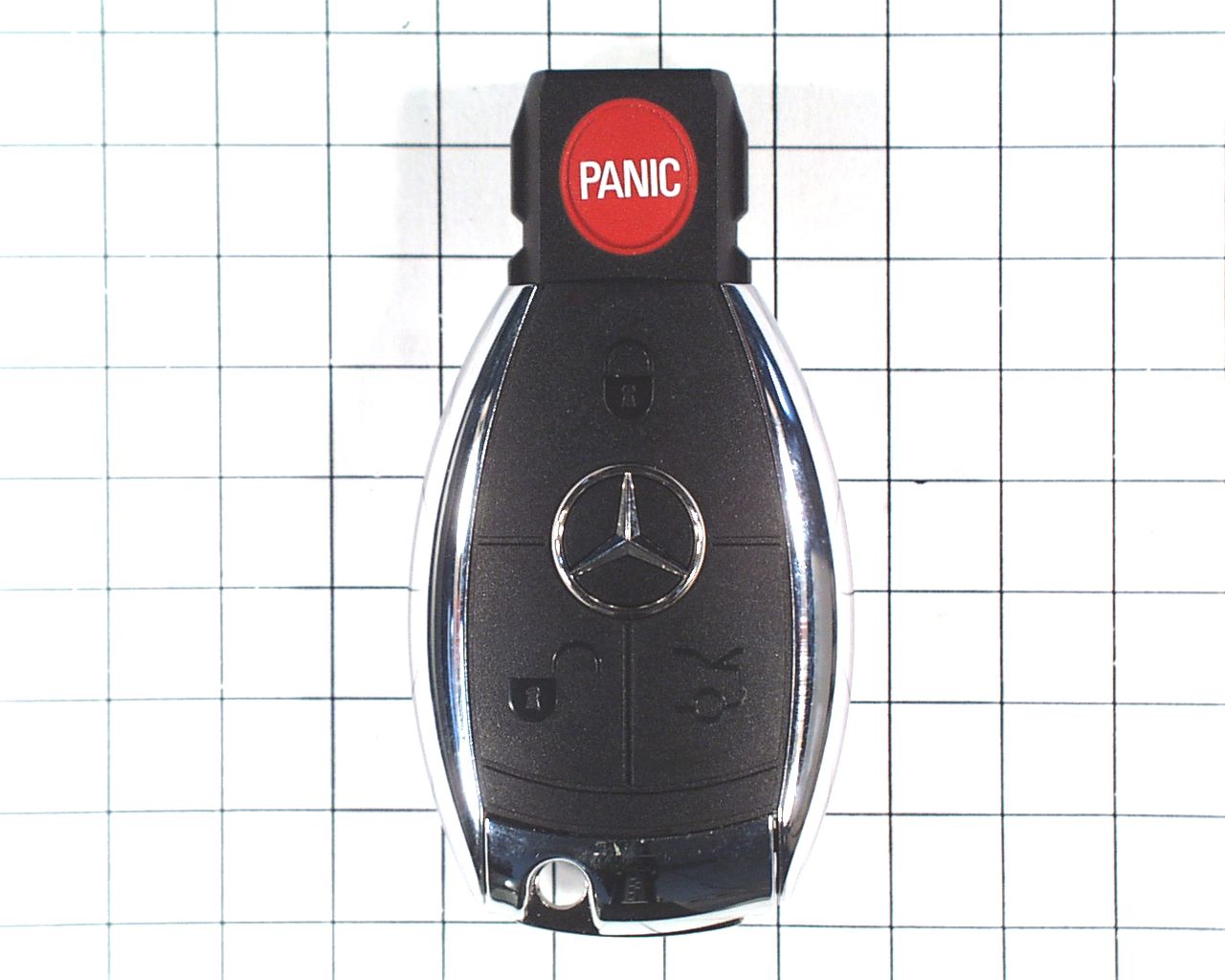

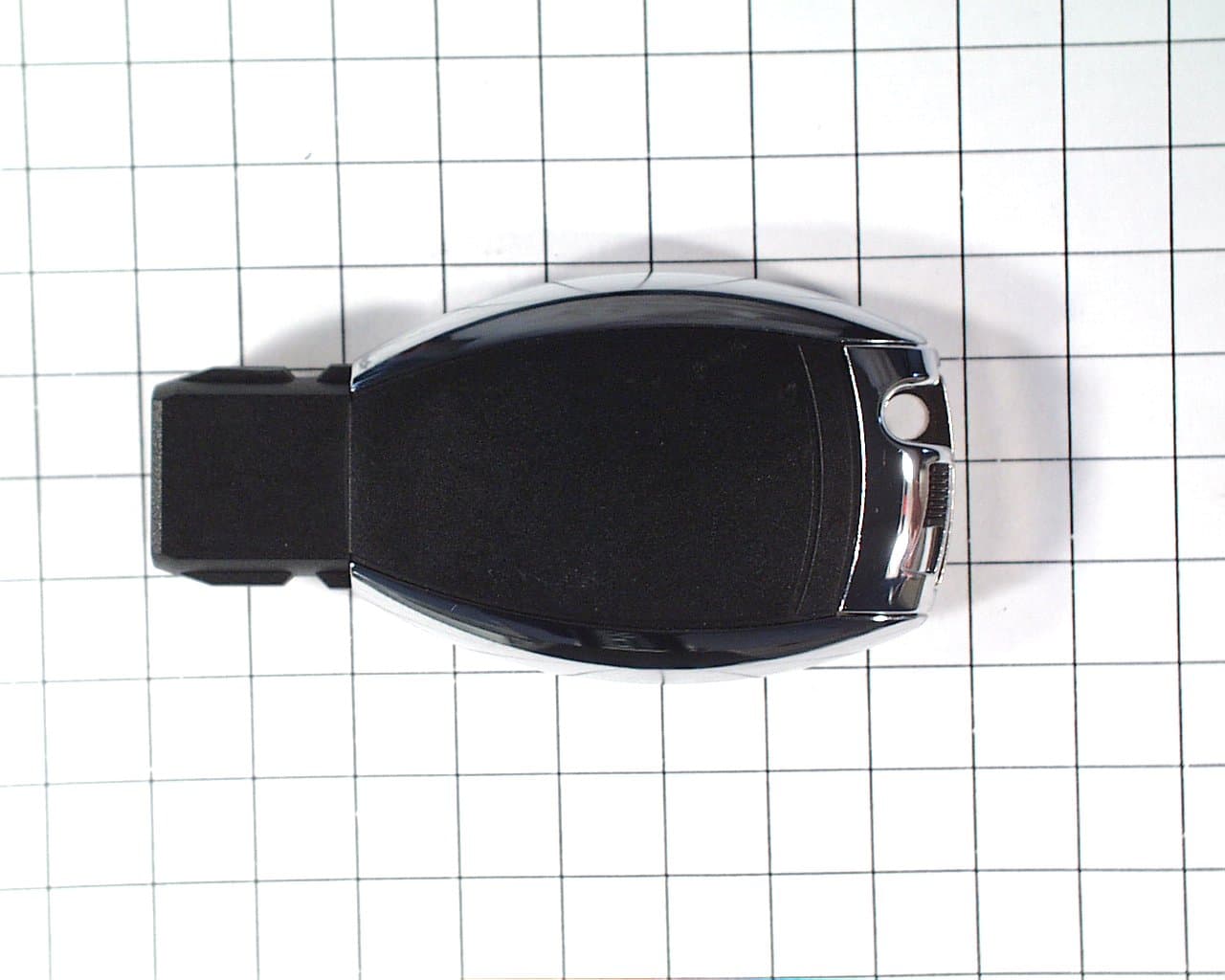

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

ID Label/Location Info

Annex No.4 Page 1 of 2 FCC ID LABEL SAMPLE SKETCH OF FCC ID LABLE LOCATION Annex No.4 Page 2 of 2 LABEL DESIGN

Internal Photos

Annex No.2 Page 1 of 2 Internal Photographs of the Equipment Under Test INTERNAL UPPER SIDE PHOTO Annex No.2 Page 2 of 2 INTERNAL LOWER SIDE PHOTO

Operational Description

Test Report

Test Report : 04001978 Page 1 of 23 EUT : Key 5WK4 9046 FCC ID: KR55WK49046 Issue date: 2004-05-12 m. dudde hochfrequenz-technik Rottland 5a Vers. Datum:2002-12 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com TTI-P-G 128/96 Test Report acc. to the relevant standard: 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to Siemens VDO Key 5WK4 9046 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test Report : 04001978 Page 2 of 23 EUT : Key 5WK4 9046 FCC ID: KR55WK49046 Issue date: 2004-05-12 m. dudde hochfrequenz-technik Rottland 5a Vers. Datum:2002-12 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Manufacturers Details Manufacturer Siemens VDO Automotive AG Manufacturers Grantee Code KR5 Siemens VDO Automotive AG Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Fax: +49 0941 790 136699 Manufacturers Address E-mail: [email protected] 47 CFR Part 15C - Intentional Radiators Relevant Standard Used ANSI C63.4-1992 Test Report prepared by Ralf Trepper m.dudde hochfrequenz-technik (Labor) Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax : +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment Category Transmitter Trade Name Siemens VDO Type designation 5WK4 9046 Serial No. --- Variants Test Report : 04001978 Page 3 of 23 EUT : Key 5WK4 9046 FCC ID: KR55WK49046 Issue date: 2004-05-12 m. dudde hochfrequenz-technik Rottland 5a Vers. Datum:2002-12 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com 0 Test result CFR Section Report Chapter Requirements headline Test result OK 15.203 10.1 Antenna requirement pass fail n.a. 15.231 (b) 10.2 Field strength limits (Fundamental) pass fail n.a. 15.205(b) 15.209 10.2 Radiated spurious emissions pass fail n.a. 15.231 (a) 10.4 Periodic operation characteristics pass fail n.a. 15.231 (c) 10.5 20 dB bandwidth pass fail n.a. Test requirements kept yes no . Signature Test Personnel ........................................ Ralf Trepper . Signature of the Company Official ......................................... Manfried Dudde Test Report : 04001978 Page 4 of 23 EUT : Key 5WK4 9046 FCC ID: KR55WK49046 Issue date: 2004-05-12 m. dudde hochfrequenz-technik Rottland 5a Vers. Datum:2002-12 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com List of contents Page 0 Test result............................................................................................................................................. 3 1 Testing laboratory................................................................................................................................5 2 Introduction......................................................................................................................................... 5 3 Product................................................................................................................................................. 6 4 Test schedule........................................................................................................................................ 6 5 Product and measurement documentation......................................................................................... 7 6 Observations and comments................................................................................................................ 7 7 Summary.............................................................................................................................................. 7 8 Conclusions......................................................................................................................................... 8 9 Operation description.......................................................................................................................... 9 10.1 Antenna requirement...................................................................................................................... 10 10.1.1 Regulation ...................................................................................................................................... 10 10.1.2 Result ............................................................................................................................................. 10 10.2 Radiated emissions......................................................................................................................... 11 10.2.1 Regulation ...................................................................................................................................... 11 10.2.2 Test equipment ............................................................................................................................... 13 10.2.2 Test procedures............................................................................................................................... 13 10.2.3 Calculation of field strengths limits ................................................................................................ 14 10.2.4 Calculation of average correction factor.......................................................................................... 14 10.2.5 Calculation of the field strengths .................................................................................................... 14 10.2.6 Result ............................................................................................................................................. 15 10.3.1 Periodic operation..............…

Text truncated - open the document above for the full version.

Test Report

Annex No.3 Page 1 of 1 OCCUPIED BANDWITH PLOT

Test Setup Photos

Annex No.6 Page 1 of 1 Test Setup Photos : Siemens Vdo Key 5WK4 9046
