Annex No.5 Technical Description Key: 5WK4 9127 Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 1 of 6 User Manual of the Siemens VDO Remote Control System Type: 5WK4 9125 5WK4 9126 5WK4 9127 5WK4 9128 Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 2 of 6 General description of the RF transmitter PL2 TX The RF remote control system consists of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. In general the following functions are provided: - Lock the car - Unlock the car - Unlock the trunk of the car Power supply The transmitter is provided with 1 Lithium accumulator (VL 2020) that gives a power supply of +3V. Buttons There are three buttons which enable to lock and unlock the doors and to unlock the trunk. During activation, the button is forced to the ground via a “pull-up” within the microcontroller. Typical usage pattern (for Europe only) 10 lock/unlock operations in 24 hours with typical transmission duration of 2 seconds → 0,42 lock/unlock operations with one hour Transmitter ON 0.84 seconds / hour Transmitter OFF 3599.16 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.84 / 3,600 x 100 % = 0.02% Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 3 of 6 Block diagrams of the transmitter Button's PLL Transmitter IC 9,84375 MHz Crystal 125 kHz LF Circuit (L/C) 315 MHz Loop Antenna μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 616,54kHz Tx, RF data 4,807 kBit/sec 315 MHz Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 434,2 MHz 434 MHz Loop Antenna Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 4 of 6 Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 868,4 MHz 868,4 MHz Loop Antenna Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 5 of 6 Variants Model Description 5WK4 9125 868.4MHz variant for Europe 5WK4 9126 434.2MHz variant for Europe 5WK4 9127 315MHz variant for USA 5WK4 9128 315MHz variant reduced power for Japan Technical Data Carrier frequency model 5WK4 9125: 868.4 MHz ± 0.05% Carrier frequency model 5WK4 9126: 434.2 MHz ± 0.05% Carrier frequency model 5WK4 9127: 315.0 MHz ± 0.05% Carrier frequency model 5WK4 9128: 315 MHz ± 0.05% Output power model 5KW4 9125/6/7: < 10 mW Field strength model 5WK49128: < 500μV/m @ 3m Type of modulation model 5KW4 9125/6/7: FSK Type of modulation model 5KW4 9128: ASK Method of frequency generation: PLL Number of channels: 1 Power supply: accumulator (VL 2020) - Nominal voltage: 3 V - Lowest voltage: 2, 1 V - Highest voltage: 3, 3 V Type of accumulator: lithium Transmission range: <10 m Type of RF-antenna: Loop antenna Length of RF-antenna: 34 mm Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 6 of 6 Label design Europe: (434 MHz) Europe: (868 MHz) Siemens VDO Siemens VDO 5WK4 9126 5WK4 9125 Japan: (315 MHz) Siemens VDO 5WK4 9128 USA/CAN: (315 MHz) Siemens VDO 5WK49127 IC: 267T-5WK49127 FCC ID:KR55WK49127 This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

Annex No.7 Page 1 of 1 Block Diagram : Key: 5WK4 9127 Oscillator frequencies generated or used in the device: : 9.84375MHz / 315 MHz

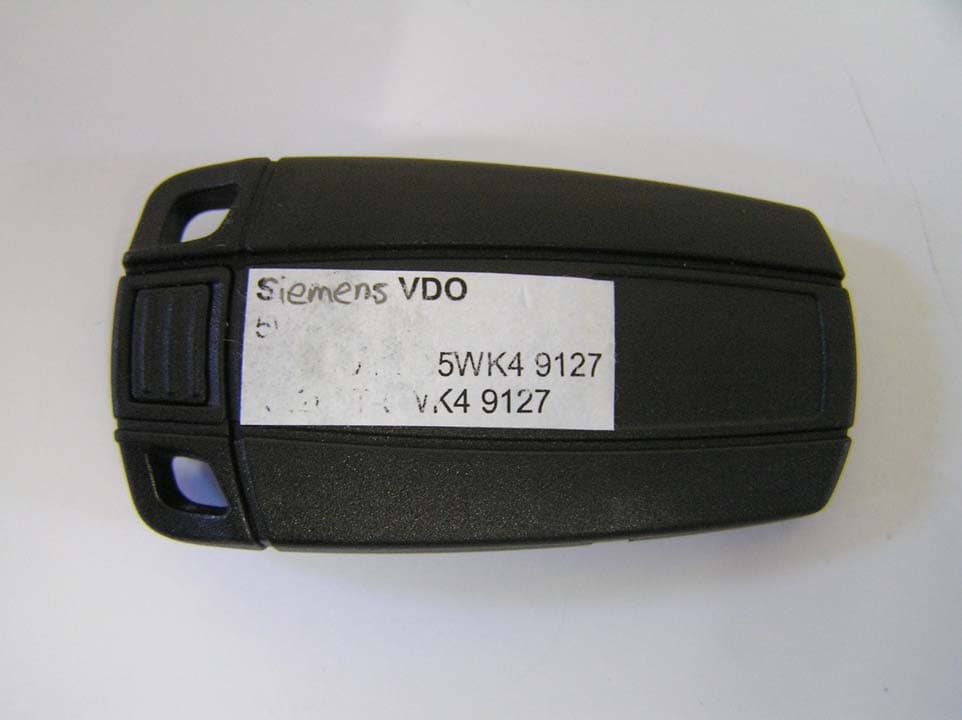

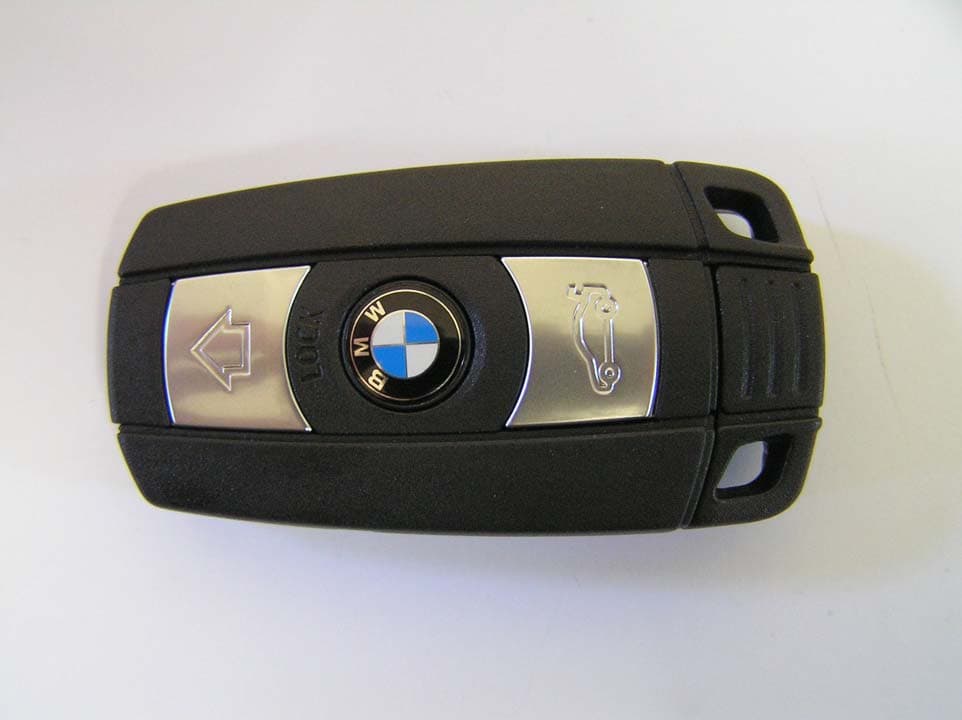

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Key: 5WK4 9127 Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

Annex No.4 Page 1 of 2 LABEL SAMPLE SKETCH OF LABLE LOCATION Key: 5WK4 9127 Annex No.4 Page 2 of 2

Annex No.2 Page 1 of 2 Internal Photographs of the Equipment Under Test INTERNAL UPPER SIDE PHOTO Key: 5WK4 9127 Annex No.2 Page 2 of 2 INTERNAL LOWER SIDE PHOTO

Annex No.5 Technical Description Key: 5WK4 9127 Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 1 of 6 User Manual of the Siemens VDO Remote Control System Type: 5WK4 9125 5WK4 9126 5WK4 9127 5WK4 9128 Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 2 of 6 General description of the RF transmitter PL2 TX The RF remote control system consists of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. In general the following functions are provided: - Lock the car - Unlock the car - Unlock the trunk of the car Power supply The transmitter is provided with 1 Lithium accumulator (VL 2020) that gives a power supply of +3V. Buttons There are three buttons which enable to lock and unlock the doors and to unlock the trunk. During activation, the button is forced to the ground via a “pull-up” within the microcontroller. Typical usage pattern (for Europe only) 10 lock/unlock operations in 24 hours with typical transmission duration of 2 seconds → 0,42 lock/unlock operations with one hour Transmitter ON 0.84 seconds / hour Transmitter OFF 3599.16 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.84 / 3,600 x 100 % = 0.02% Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 3 of 6 Block diagrams of the transmitter Button's PLL Transmitter IC 9,84375 MHz Crystal 125 kHz LF Circuit (L/C) 315 MHz Loop Antenna μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 616,54kHz Tx, RF data 4,807 kBit/sec 315 MHz Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 434,2 MHz 434 MHz Loop Antenna Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 4 of 6 Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 868,4 MHz 868,4 MHz Loop Antenna Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 5 of 6 Variants Model Description 5WK4 9125 868.4MHz variant for Europe 5WK4 9126 434.2MHz variant for Europe 5WK4 9127 315MHz variant for USA 5WK4 9128 315MHz variant reduced power for Japan Technical Data Carrier frequency model 5WK4 9125: 868.4 MHz ± 0.05% Carrier frequency model 5WK4 9126: 434.2 MHz ± 0.05% Carrier frequency model 5WK4 9127: 315.0 MHz ± 0.05% Carrier frequency model 5WK4 9128: 315 MHz ± 0.05% Output power model 5KW4 9125/6/7: < 10 mW Field strength model 5WK49128: < 500μV/m @ 3m Type of modulation model 5KW4 9125/6/7: FSK Type of modulation model 5KW4 9128: ASK Method of frequency generation: PLL Number of channels: 1 Power supply: accumulator (VL 2020) - Nominal voltage: 3 V - Lowest voltage: 2, 1 V - Highest voltage: 3, 3 V Type of accumulator: lithium Transmission range: <10 m Type of RF-antenna: Loop antenna Length of RF-antenna: 34 mm Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49127 FCC ID:KR55WK49127 I:\POSTZULA\BMW\PL2_TX-ext\Technische_Doku_doc\Func_PL2ext_TX.doc Page 6 of 6 Label design Europe: (434 MHz) Europe: (868 MHz) Siemens VDO Siemens VDO 5WK4 9126 5WK4 9125 Japan: (315 MHz) Siemens VDO 5WK4 9128 USA/CAN: (315 MHz) Siemens VDO 5WK49127 IC: 267T-5WK49127 FCC ID:KR55WK49127 This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

Test report no.: 06002941 Page 1 of 21 EUT : 5WK4 9127 FCC ID: KR55WK49127 Date of issue: 2006-01-24 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 E-mail: [email protected] http://www.dudde.com TTI-P-G-128/96 Test Report acc. to the relevant standard: 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to Siemens VDO Automotive AG 5WK4 9127 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test report no.: 06002941 Page 2 of 21 EUT : 5WK4 9127 FCC ID: KR55WK49127 Date of issue: 2006-01-24 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 E-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer Siemens VDO Automotive AG Manufacturer’s grantee code KR5 Siemens VDO Automotive AG Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Manufacturer’s address Fax: +49 0941 790 136699 47 CFR Part 15C - Intentional Radiators Relevant standard used ANSI C63.4-1992 Test report prepared by Ralf Trepper m.dudde hochfrequenz-technik (Laboratory) Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transmitter (Key) Trade name Siemens VDO Type designation 5WK4 9127 Serial no. None --- Variants Test report no.: 06002941 Page 3 of 21 EUT : 5WK4 9127 FCC ID: KR55WK49127 Date of issue: 2006-01-24 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 E-mail: [email protected] http://www.dudde.com 0 Test result CFR Section Report Chapter Requirements Headline Test result OK 15.203 10.1 Antenna requirement pass fail n.a. 15.231 (b) 10.2 Field strength limits (fundamental) pass fail n.a. 15.205(b) 15.209 10.2 Radiated spurious emissions pass fail n.a. 15.231 (a) 10.3 Periodic operation characteristics pass fail n.a. 15.231 (c) 10.4 20 dB bandwidth pass fail n.a. Test requirements kept yes no . Signature (Technical engineer) ........................................ Ralf Trepper . Signature (Manager) ..................................... Manfried Dudde Test report no.: 06002941 Page 4 of 21 EUT : 5WK4 9127 FCC ID: KR55WK49127 Date of issue: 2006-01-24 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 E-mail: [email protected] http://www.dudde.com List of contents Page 0 Test result ............................................................................................................................................... 3 1 Testing laboratory ................................................................................................................................... 5 2 Introduction............................................................................................................................................ 5 3 Product................................................................................................................................................... 6 4 Test schedule .......................................................................................................................................... 6 5 Product and measurement documentation................................................................................................ 7 6 Observations and comments.................................................................................................................... 7 7 Summary ................................................................................................................................................ 7 8 Conclusions ........................................................................................................................................... 8 9 Operation description.............................................................................................................................. 9 10.1 Antenna requirement ......................................................................................................................... 10 10.1.1 Regulation ...................................................................................................................................... 10 10.1.2 Result ............................................................................................................................................. 10 10.2 Radiated emissions ........................................................................................................................... 11 10.2.1 Regulation ...................................................................................................................................... 11 10.2.2 Test equipment ............................................................................................................................... 12 10.2.2.1 Test procedures............................................................................................................................ 12 10.2.3 Calculation of field strength limits .................................................................................................. 13 10.2.4 Calculation of average correction factor.......................................................................................... 13 10.2.5 Calculation of the field strengths .................................................................................................... 13 10.2.6 Result ............................................................................................................................................. 14 10.3.1 Periodic op…

Text truncated - open the document above for the full version.

Annex No.3 Page 1 of 1 OCCUPIED BANDWITH PLOT Key: 5WK4 9127

Annex No.9 Page 1 of 1 Periodic operation characteristics Manually operated transmitter deactivation Key: 5WK4 9127 15.231 (a1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released

Annex No.6 Page 1 of 2 Test Setup Photos : Key: 5WK4 9127 Annex No.6 Page 2 of 2
