KR55WK49137Inductive system, Vehicle Immobilizer

Continental Automotive Technologies GmbH
Inductive system, Vehicle Immobilizer - FCC ID KR55WK49137 - Continental Automotive Technologies GmbH
Click to zoom

Application Details

Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant
Apr 25, 2006
Application Purpose
Original Equipment
Date of Application
Apr 25, 2006
Equipment Note
Inductive system, Vehicle Immobilizer
Frequency Range
0.12500000 - 0.12500000
Company
Continental Automotive Technologies GmbH
Country
Germany

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Annex No.5 Page 1 of 6 Functional Description User Manual 5WK4 9137 Annex No.5 Page 2 of 6 Annex No.5 Page 3 of 6 Annex No.5 Page 4 of 6 Annex No.5 Page 5 of 6 Annex No.5 Page 6 of 6

Block Diagram

©Siemens VDO Automotive AG 2005 | M. Hofmann | SV C BC S52 PM11 Block Diagram PGS R56 MC9S12DG128B QFP80 2Mhz P1 P2 P3 DATA Leistungs- endstufe Relais 0 Relais 1 Relais 2 Relais 3 Relais 4 Relais 5 PP3/PWM3 PP1/PWM1 PP2/PWM2 PP0/PWM0 PT0/IOC0 PB1 PB0 PA6 PB5 PB3 PB4 ERROR ON/OFF Powersupply VCC CAN PA_SUB BUS PS0/RXD0 PS1/TXD0 PM0/RXCAN0 PM1/TXCAN0 RX CAN TX CAN RX TX V12_SENSE PAD0 NTC PT6 TEMP PAD1 I_SEC PAD2 KL_30 ResetVCC KL_31 FBD_ON PT3 PT4 PT1 Modulator 125kHz Antenne 1 Antenne 3 DC DC I_SEC PT2 Antenne 5 PB7 ON_SNT LowPower_EN Antenne 2 Antenne 4 Relais 2 Relais 1 Relais 3 Relais 5 Relais 4 TAG rechts TAG links PP5/PWM5 PP7/PWM7

External Photos

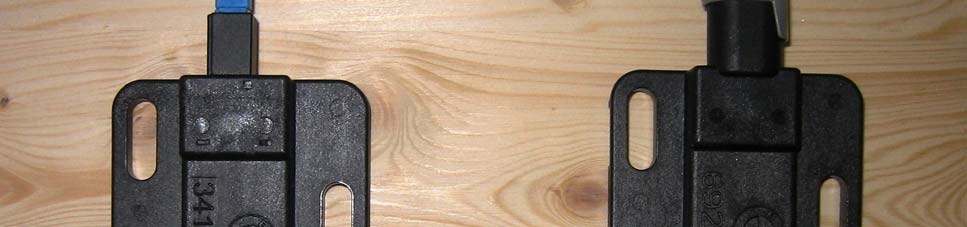

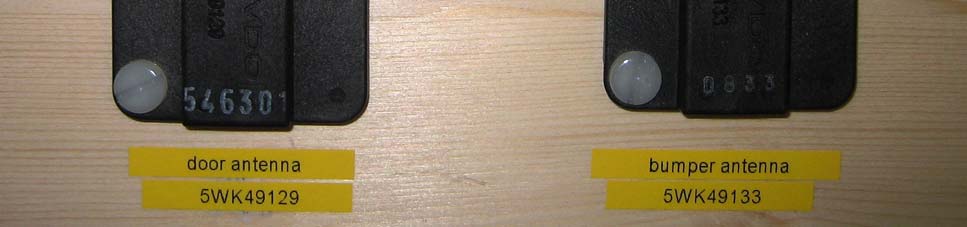

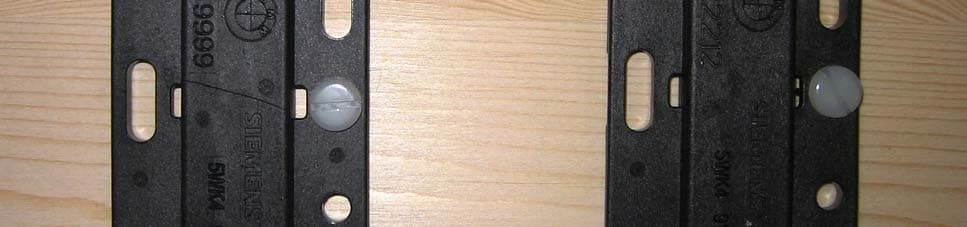

Annex No.1 Page 1 of 4 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO 5WK4 9137 Annex No.1 Page 2 of 4 EXTERNAL REAR VIEW PHOTO Annex No.1 Page 3 of 4 Annex No.1 Page 4 of 4

ID Label/Location Info

Annex No.4 Page 1 of 2 LABEL SAMPLE SKETCH OF LABLE LOCATION 5WK4 9137 Annex No.4 Page 2 of 2

Internal Photos

Annex No.2 Page 1 of 2 Internal Photographs of the Equipment Under Test INTERNAL UPPER SIDE PHOTO 5WK4 9137 Annex No.2 Page 2 of 2 INTERNAL LOWER SIDE PHOTO

Operational Description

Annex No.5 Page 1 of 6 Functional Description User Manual 5WK4 9137 Annex No.5 Page 2 of 6 Annex No.5 Page 3 of 6 Annex No.5 Page 4 of 6 Annex No.5 Page 5 of 6 Annex No.5 Page 6 of 6

Test Report

Annex No.3 Page 1 of 1 OCCUPIED BANDWITH PLOT 5WK4 9137 door antenna 5WK4 9129 bumper antenna 5WK4 9133

Test Report

Test report no. 06003122 Page 1 of 22 EUT : 5WK4 9137 FCC ID: KR55WK49137 Date of issue: 2006-04-04 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com TTI-P-G-128/96 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to Siemens VDO Automotive 5WK4 9137 with door antenna 5WK4 9129 & bumper antenna 5WK4 9133 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test report no. 06003122 Page 2 of 22 EUT : 5WK4 9137 FCC ID: KR55WK49137 Date of issue: 2006-04-04 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer Siemens VDO Automotive Manufacturer’s grantee code KR5 Siemens VDO Automotive Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Fax: +49 0941 790 136699 Manufacturer’s address E-mail: [email protected] 47 CFR Part 15C - Intentional Radiators Relevant standard used ANSI C63.4-1992 Test report prepared by Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax : +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment category Inductive system Trade name Siemens VDO Type designation 5WK4 9137 Serial no. none 5WK4 9137 with door antenna 5WK4 9129 5WK4 9137 with bumper antenna 5WK4 9133 Variants Test report no. 06003122 Page 3 of 22 EUT : 5WK4 9137 FCC ID: KR55WK49137 Date of issue: 2006-04-04 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com 0 Test result CFR Section Report Chapter Requirements Headline Test result OK 15.203 10.1 Antenna Requirement pass fail n.a. 15.205 15.209 10.2 Radiated spurious emissions pass fail n.a. Test requirements kept yes no . Signature test personnel ........................................ Ralf Trepper . Signature of the company official ......................................... Manfried Dudde Test report no. 06003122 Page 4 of 22 EUT : 5WK4 9137 FCC ID: KR55WK49137 Date of issue: 2006-04-04 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com List of contents Page 0 Test result .............................................................................................................................................. 3 1 Testing laboratory .................................................................................................................................. 5 2 Introduction........................................................................................................................................... 5 3 Product.................................................................................................................................................. 6 4 Test schedule ......................................................................................................................................... 6 5 Product and measurement documentation............................................................................................... 7 6 Observations and comments................................................................................................................... 7 7 Summary ............................................................................................................................................... 7 8 Conclusions .......................................................................................................................................... 8 9 Operation description............................................................................................................................. 9 10.1 Antenna Requirement ........................................................................................................................ 11 10.1.1 Regulation ...................................................................................................................................... 11 10.1.2 Result ............................................................................................................................................. 11 10.2 Radiated emission............................................................................................................................. 12 10.2.1 Regulation ...................................................................................................................................... 12 10.2.2 Test equipment ............................................................................................................................... 13 10.2.3 Test procedures............................................................................................................................... 14 10.2.4 Calculation of field strength Section 15.209 below 30 MHz ........................................................... 15 10.2.5 Calculation of field strength Section 15.209 above 30 MHz ........................................................... 15 10.2.6 Calculation of the field strength ...................................................................................................... 16 10.2.7 Calculation of Average Correction Factor....................................................................................... 16 11 Additional information to this test report ......................................................…
