Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49143 FCC ID:KR55WK49143 C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 1 of 6 User Manual of the Siemens VDO Remote Control System Type: PL2 ID Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49143 FCC ID:KR55WK49143 C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 2 of 6 General description of the RF transmitter PL2 ID The RF remote control system consists of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. In general the following functions are provided: - Lock the car - Unlock the car - Unlock the trunk of the car Power supply The transmitter is provided with 1 Lithium battery (CR 2032) that gives a power supply of +3V. Buttons There are three buttons which enable to lock and unlock the doors and to unlock the trunk. During activation, the button is forced to the ground via a “pull-up” within the microcontroller. Typical usage pattern (for Europe only) 10 lock/unlock operations in 24 hours with typical transmission duration of 2 seconds → 0,42 lock/unlock operations with one hour Transmitter ON 0.84 seconds / hour Transmitter OFF 3599.16 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.84 / 3,600 x 100 % = 0.02% Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49143 FCC ID:KR55WK49143 C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 3 of 6 Block diagrams of the transmitter Button's PLL Transmitter IC 9,84375 MHz Crystal 125 kHz LF Circuit (L/C) 315 MHz Loop Antenna μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 616,54kHz Tx, RF data 4,807 kBit/sec 315 MHz Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 434,2 MHz 434 MHz Loop Antenna Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49143 FCC ID:KR55WK49143 C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 4 of 6 Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 868,4 MHz 868,4 MHz Loop Antenna Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49143 FCC ID:KR55WK49143 C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 5 of 6 Variants Model Description 5WK4 9141 868.4MHz variant for Europe 5WK4 9142 434.2MHz variant for Europe 5WK4 9143 315MHz variant for USA 5WK4 9144 315MHz variant reduced power for Japan Technical Data Carrier frequency model 5WK4 9141: 868.4 MHz ± 0.05% Carrier frequency model 5WK4 9142: 434.2 MHz ± 0.05% Carrier frequency model 5WK4 9143: 315.0 MHz ± 0.05% Carrier frequency model 5WK4 9144: 315 MHz ± 0.05% Output power model 5KW4 9141/2/3: < 10 mW Field strength model 5WK49144: < 500μV/m @ 3m Type of modulation model 5KW4 9141/2/3: FSK Type of modulation model 5KW4 9144: ASK Method of frequency generation: PLL Number of channels: 1 Power supply: battery (CR 2032) Type of battery: lithium Transmission range: <10 m NOTE: Changes or modifications not expressly approved by the manufacturer could void the user ́s authority to operate the equipment. Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49143 FCC ID:KR55WK49143 C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 6 of 6 Label design Europe: (434 MHz) Europe: (868 MHz) Siemens VDO Siemens VDO 5WK4 9142 5WK4 9141 Japan: (315 MHz) Siemens VDO 5WK4 9144 USA/CAN: (315 MHz) Siemens VDO 5WK4 914b3 IC: 267T-5WK49143 FCC ID:KR55WK49143 This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

Annex No.7 Page 1 of 1 Block Diagram : Key 5WK4 9123 Block diagram of the transmitter Technical Data: Carrier frequency 315.0 MHz ± 0.05% Output power/field strength: < 10 mW Type of modulation: FSK Method of frequency generation: PLL Number of channels: 1 Power supply: akku (VL 2020) Type of battery: lithium Transmission range: < 10 m Oscillator frequencies generated or used in the device: Resonator 9.844MHz Button's PLL Transmitter IC 9,84375 MHz Crystal 125 kHz LF Circuit (L/C) 315 MHz Loop Antenna μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 616,54kHz Tx, RF data 4,807 kBit/sec 315 MHz Button's PLL Transmitter IC 13,5687 MHz Crystal 125 kHz LF Circuit (L/C) μC for LF communication / RF - transmittion Power Supply 2,2 to 3,3 V μC reference frequency 847,5kHz Tx, RF data 5,3 kBit/sec 434,2 MHz 434 MHz Loop Antenna

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Siemens VDO Automotive AG, Osterhofener Straße 14a, 93055 Regensburg / Germany would like the following documents regarding this submission for FCC ID: KR55WK4 9143 to be kept confidential. KEY 5WK4 9143 1. Page 4 of 4 Annex no. 8 document “Schematics” The above material contains trade secret or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, m. dudde hochfrequenz-technik Manfred Dudde

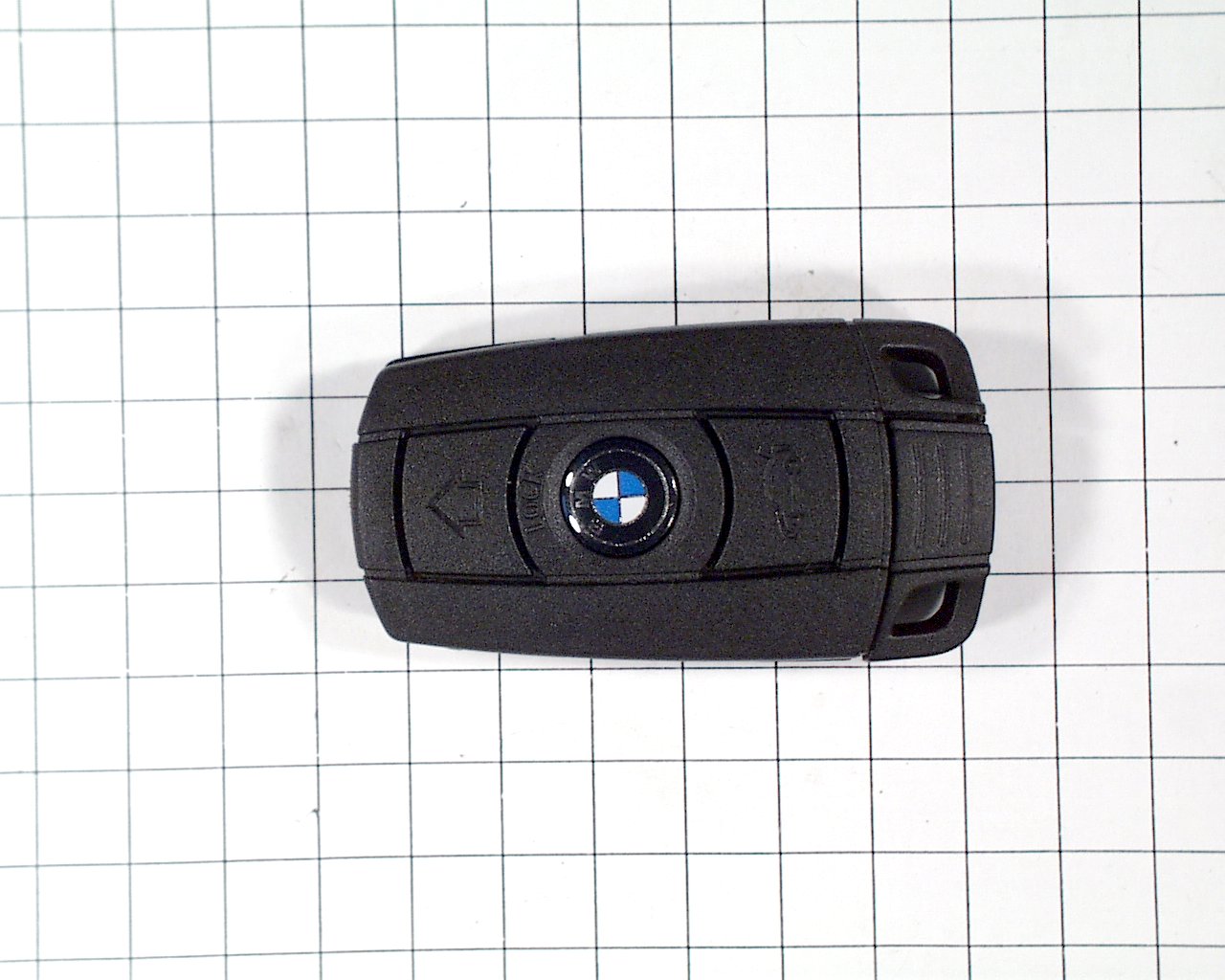

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

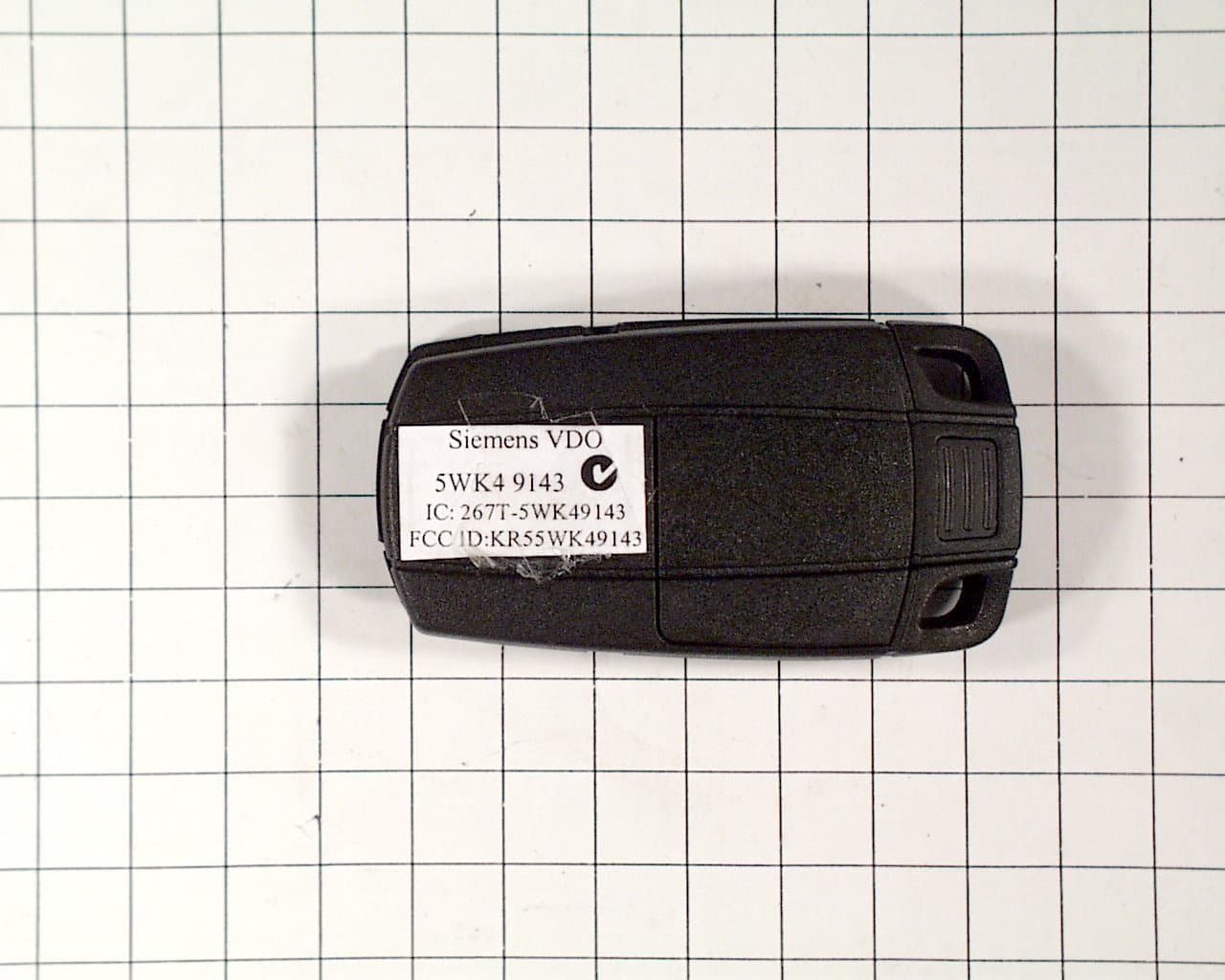

Annex No.4 Page 1 of 2 FCC ID LABEL SAMPLE USA/CAN: (315 MHz) Siemens VDO 5WK4 914b3 IC: 267T-5WK49143 FCC ID:KR55WK49143 This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Annex No.4 Page 2 of 2 SKETCH OF FCC ID LABLE LOCATION

Annex No.2 Page 1 of 2 Internal Photographs of the Equipment Under Test INTERNAL COMPONENT SIDE PHOTO Annex No.2 Page 2 of 2 INTERNAL SOLDER SIDE PHOTO

Siemens VDO Automotive AG SV C BC P2 RF TG IC: 267T-5WK49143 FCC ID:KR55WK49143 C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 2 of 6 General description of the RF transmitter PL2 ID The RF remote control system consists of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. In general the following functions are provided: - Lock the car - Unlock the car - Unlock the trunk of the car Power supply The transmitter is provided with 1 Lithium battery (CR 2032) that gives a power supply of +3V. Buttons There are three buttons which enable to lock and unlock the doors and to unlock the trunk. During activation, the button is forced to the ground via a “pull-up” within the microcontroller. Typical usage pattern (for Europe only) 10 lock/unlock operations in 24 hours with typical transmission duration of 2 seconds → 0,42 lock/unlock operations with one hour Transmitter ON 0.84 seconds / hour Transmitter OFF 3599.16 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.84 / 3,600 x 100 % = 0.02%

Annex No.3 Page 1 of 1 OCCUPIED BANDWITH PLOT

Page 1 of 21 m. dudde hochfrequenz-technik Rottland 5a Datum: 14.02.03 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com TEST REPORT No.: 03001833 Date : 2003.12.10 EQUIPMENT UNDER TEST: Trade Name: Siemens VDO Automotive AG Model: Key 5WK4 9143 Serial No: none Prototype Equipment Category: Transmitter Manufacturer: Siemens VDO Automotive AG Address: Osterhofener Straße 14a D-93055 Regensburg Germany Phone: +49-941-790-6699 Fax: +49-941-790-136699 E-mail: [email protected] RELEVANT STANDARD: 47 CFR Part 15C - Intentional Radiators USED: ANSI C63.4-2002 TEST REPORT PREPARED BY: Ralf Trepper m.dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax : +49 2207 968920 E-mail: [email protected] TEST PERSONNEL: SIGNATURE OF THE COMPANY OFFICIAL: Ralf Trepper Manfried Dudde FCC ID: KR55WK49143 Test Report : 03001833 Page 2 of 21 Issue Date: 2003-12-10 EUT: Key 5WK4 9143 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 email [email protected] CONTENTS 1 GENERAL INFORMATION .................................................................................................................. 4 1.1 Purpose ................................................................................................................................................................... 4 1.2 Limits and Reservations .......................................................................................................................................... 4 1.3 Test Location ........................................................................................................................................................... 4 1.4 Manufacturer ........................................................................................................................................................... 4 1.5 Dates ....................................................................................................................................................................... 4 2 PRODUCT DESCRIPTION ................................................................................................................... 5 2.1 Equipment Under Test (EUT) ............................................................................................................................. 5 2.2 EUT Peripherals ...................................................................................................................................................... 5 2.4 Modifications Required for Compliance.............................................................................................................. 5 4 ANTENNA REQUIREMENT ..................................................................................................................... 7 4.1 Regulation ............................................................................................................................................................... 7 4.2 Result ...................................................................................................................................................................... 7 5 RADIATED EMISSIONS ............................................................................................................................ 8 5.1 Regulation ............................................................................................................................................................... 8 5.2 Test Equipment ....................................................................................................................................................... 9 5.3 Test Procedures ...................................................................................................................................................... 9 5.4 Calculation of Field Strength Limits....................................................................................................................... 10 5.5 Calculation of Average Correction Factor ............................................................................................................. 10 5.6 Field Strength Calculation ..................................................................................................................................... 10 5.7 Test Results...................................................................................................................................................... 11 5.7.1 Model Key 5WK4 9143.............................................................................................................................. 11 6 CONDUCTED EMISSIONS TESTS ........................................................................................................ 13 6.1 Regulation ............................................................................................................................................................. 13 6.2 Test Equipment ..................................................................................................................................................... 13 6.3 Test Procedures .................................................................................................................................................... 13 6.4 Test Results........................................................................................................................................................... 13 7 PERIODIC OPERATION CHARACTERISTICS.................................................................................. 14 7.1 Periodic Operation................................................................................................................................................. 14 7.1.1 Regulation...........................................................................…
