KR55WK49167Keyless Vehicle Module

SIEMENS VDO Automotive SV C BC P2 RF IC:267T-5WK49167 FCC ID:KR55WK49167 Page 1 of 5 User Manual / Functional Description of the Siemens VDO Keyless Vehicle Module Type 5WK4 9167 SIEMENS VDO Automotive SV C BC P2 RF IC:267T-5WK49167 FCC ID:KR55WK49167 Page 2 of 5 1. SYSTEM OVERVIEW This short system description gives an overview about the functionality of the Keyless Vehicle (KV) system and from the Keyless Vehicle Module (KVM). The vehicle and the Passive Key (PK) will communicate via challenge / response. By any request the KVM sends a challenge via the respective LF-antennas with 125 KHz to the Passive Key. The PK’s within the detection range answer via Radio Frequency (RF) transmission. The external RF-Receiver sends the data from the received signal via serial link to the KVM. The system will provide a specific PK detection function for inside and outside detection range. Different failure modes and diagnostic data will be displayed to the driver from KVM via the Mid Speed CAN-Bus to display at the cluster. For back up reasons, the Passive Key will provide a metal key blade for locking / unlocking the vehicle and for starting the engine after key is inserted in ignition switch (ignition key cylinder) and turned to crank position. SIEMENS VDO Automotive SV C BC P2 RF IC:267T-5WK49167 FCC ID:KR55WK49167 Page 3 of 5 2. BLOCK DIAGRAM The block diagram below shows the main electronic units of Keyless Vehicle Module: SIEMENS VDO Automotive SV C BC P2 RF IC:267T-5WK49167 FCC ID:KR55WK49167 Page 4 of 5 3. Duty Cycle 20 actuations of access control system within 24 hours with a typical transmission time of 0.08 seconds. 0.07 seconds / hour. Transmission time T ON 0.07 seconds / hours Off time T OFF 3599.93 seconds / hours Duty Cycle: T ON / T (ON+OFF) x 100% = 0,07 / 3.600 x 100 % = 0.02 % 4. LIST OF VARIANTS 5WK 49167 Keyless Vehicle Module 5WK4 7897 LF antenna standard 5WK4 7898 LF antenna slim line (housing variant) 5. TECHNICAL DESCRIPTION Carrier frequency: 125 kHz +/- 1,875 kHz Field strength: < 42 dBμA/m @ 10 m Modulation: ASK Supply voltage: U B = 12.8 V ± 0.2 V Battery type Car battery Range: < 2 m 6. LABEL DESIGN EUROPE Siemens VDO 5WK 49167 SIEMENS VDO Automotive SV C BC P2 RF IC:267T-5WK49167 FCC ID:KR55WK49167 Page 5 of 5 7. LABEL DESIGN USA, CANADA Siemens VDO 5WK 49167 FCC ID:KR55WK49167 IC:267T-5WK49167 owner manual: warning statement This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Note: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

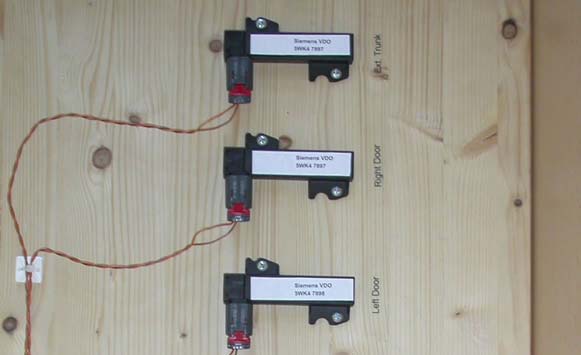

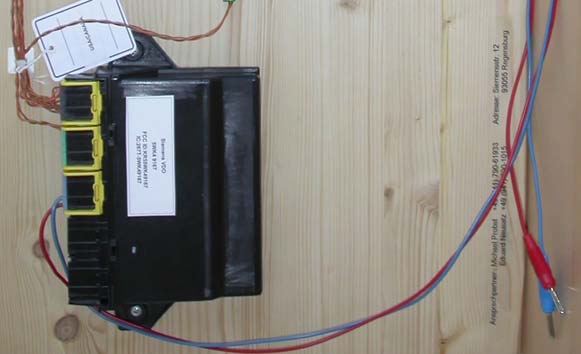

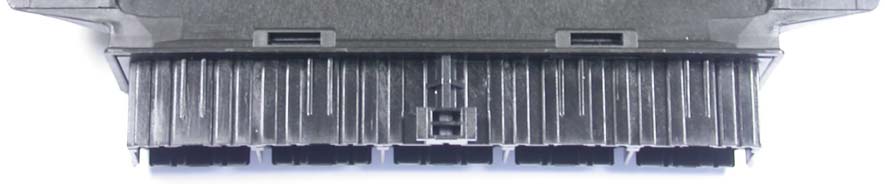

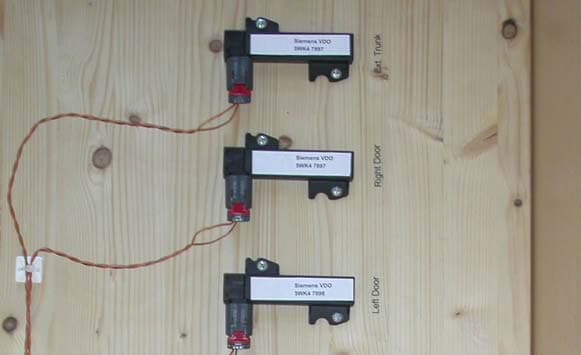

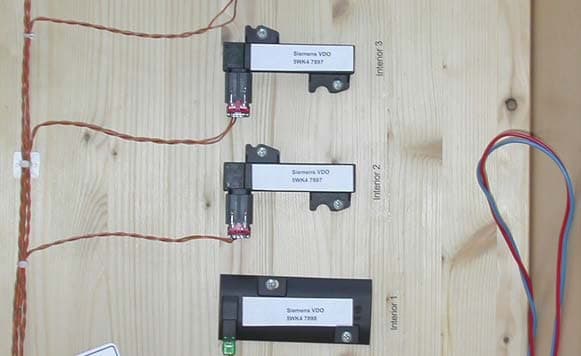

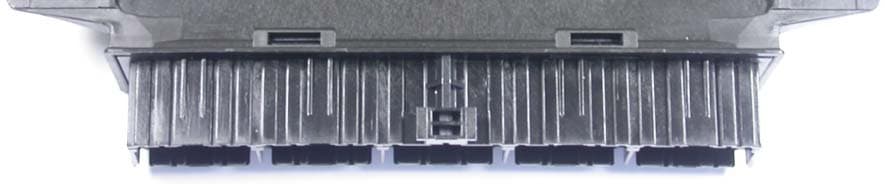

FCC ID:KR55WK49167 File No. T30197-00-00HU, page 1 of 5 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 1 EQUIPMENT UNDER TEST 1.1 Photo documentation of the EuT Complete System T30197-00-00HU External Photo Top view FCC ID:KR55WK49167 File No. T30197-00-00HU, page 2 of 5 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Electronic T30197-00-00HU External Photo Top view FCC ID:KR55WK49167 File No. T30197-00-00HU, page 3 of 5 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Electronic T30197-00-00HU External Photo Rear view FCC ID:KR55WK49167 File No. T30197-00-00HU, page 4 of 5 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Antenna T30197-00-00HU External Photo Front view Antenna T30197-00-00HU External Photo Rear view FCC ID:KR55WK49167 File No. T30197-00-00HU, page 5 of 5 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Antenna T30197-00-00HU External Photo Front view Antenna T30197-00-00HU External Photo Rear view

LABEL DESIGN USA, CANADA Siemens VDO 5WK4 9167 FCC ID:KR55WK49167 IC:267T-5WK49167

FCC ID:KR55WK49167 File No. T30197-00-00HU, page 2 of 5 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Electronic T30197-00-00HU External Photo Top view

FCC ID:KR55WK49167 File No.T30197-00-00HU, page 1 of 4 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 1 EQUIPMENT UNDER TEST 1.1 Photo documentation of the EuT Electronic T30197-00-00HU Internal Photo Front view FCC ID:KR55WK49167 File No.T30197-00-00HU, page 2 of 4 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Electronic T30197-00-00HU Internal Photo Rear view FCC ID:KR55WK49167 File No.T30197-00-00HU, page 3 of 4 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Antenna T30197-00-00HU Internal Photo Rear view FCC ID:KR55WK49167 File No.T30197-00-00HU, page 4 of 4 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Antenna T30197-00-00HU Internal Photo Rear view

FCC ID:KR55WK49167 File No. T30197-00-04HU, page 1 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T30197-00-04HU December 08, 2005 ______________________________________________________________________________________________ Date of issue Type / Model Name : 5WK4 9167 Product Description : Keyless vehicle module Applicant : Siemens VDO Automotive AG Address : Siemensstrasse 12 D-93055 Regensburg, Germany Manufacturer : Siemens VDO Automotive AG Address : Siemensstrasse 12 D-93055 Regensburg, Germany Licence holder : Siemens VDO Automotive AG Address : Siemensstrasse 12 D-93055 Regensburg, Germany Test Result according to the standards listed in clause 1 test standards: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID:KR55WK49167 File No. T30197-00-04HU, page 2 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 14 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 14 4 TEST ENVIRONMENT 15 4.1 ADDRESS OF THE TEST LABORATORY 15 4.2 ENVIRONMENTAL CONDITIONS 15 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 15 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 15 4.5 DISCOVERY OF WORST CASE MEASUREMENT CONDITIONS 16 5 TEST CONDITIONS AND RESULTS 17 5.1 CONDUCTED EMISSIONS 17 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 18 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 21 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 24 5.5 EMISSION BANDWIDTH 27 6 USED TEST EQUIPMENT AND ACCESSORIES 29 FCC ID:KR55WK49167 File No. T30197-00-04HU, page 3 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (October 01, 2004) Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions FCC ID:KR55WK49167 File No. T30197-00-04HU, page 4 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 2 SUMMARY GENERAL REMARKS: FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 05. September 2005 Testing concluded on : 06. September 2005 Checked by: Tested by: _______________________________ _____________________________ Klaus Gegenfurtner Markus Huber Dipl. Ing.(FH) FCC ID:KR55WK49167 File No. T30197-00-04HU, page 5 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT Complete System T30197-00-00HU External Photo Top view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 6 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Electronic T30197-00-00HU External Photo Top view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 7 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Electronic T30197-00-00HU External Photo Rear view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 8 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Electronic T30197-00-00HU Internal Photo Front view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 9 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Electronic T30197-00-00HU Internal Photo Rear view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 10 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Antenna T30197-00-00HU External Photo Front view Antenna T30197-00-00HU External Photo Rear view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 11 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Antenna T30197-00-00HU Internal Photo Rear view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 12 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Antenna T30197-00-00HU External Photo Front view Antenna T30197-00-00HU External Photo Rear view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 13 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 Antenna T30197-00-00HU Internal Photo Rear view FCC ID:KR55WK49167 File No. T30197-00-04HU, page 14 of 29 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 3.2 Power supply system utilised Power supply voltage : 12.8 V / DC 3.3 Short description of the Equipment under Test (EuT) The EuT is a part of a keyless vehicle system. The System consist of a module and lf-antennas. Number of tested samples: 1 Serial number: Prototype EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - TX-mode EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were c…

Text truncated - open the document above for the full version.

FCC ID:KR55WK49167 File No. T30197-00-00HU, page 9 of 20 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres Test distance: 10 metres 5.2.2 Photo documentation of the test set-up FCC ID:KR55WK49167 File No. T30197-00-00HU, page 12 of 20 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 5.3 Spurious emissions (Magnectic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 10 metres 5.3.2 Photo documentation of the test set-up FCC ID:KR55WK49167 File No. T30197-00-00HU, page 15 of 20 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 5.4 Radiated emissions (electric field) 30 MHz – 1 GHz For test instruments and accessories used see section 6 Part SER 2. 5.4.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up FCC ID:KR55WK49167 File No. T30197-00-00HU, page 18 of 20 mikes-testingpartners gmbh x Ohmstrasse 2-4 x D-94342 Strasskirchen x Tel.:+49 9424-9481-0 x Fax:+49 9424-9481-240 Rev. No. 1.1 5.5 Emission Bandwidth For test instruments and accessories used see section 6 Part MB. 5.5.1 Description of the test location Test location: Shielded Room S4 5.5.2 Photo documentation of the test set-up 5.5.3 Test result Channel Frequency [kHz] 20 dB Bandwidth [kHz] 125,1 4,65 Remarks: It is not required to measure the 20dB Bandwidth, therefore exists no limits in the table above.
