Annex No.5 Technical Description Key: 5WK4 9264 Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 1 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc User Manual / Functional Description of the Siemens VDO Radio Frequency Transmitter Type 5WK49264 Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 2 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc 1. SYSTEM OVERVIEW The RF remote control system consists of a RF transmitter and a RF receiver. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit information for locking or unlocking the vehicle as also Trunk Lid/Approach Light/Panic/comfort open/Comfort Close operations by an unidirectional RF transmission line for normal remote operation by pressing a button. The information will be transmitted on the first channel and afterwards also on the second channel. 2. POWER SUPPLY The transmitter is provided with 1 Lithium battery (CR 2430) that gives a tension of feeding of +3V. The battery inversion is protected mechanically. 3. BUTTONS All buttons are on the top side of the key housing. They are arranged in the following way. Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 3 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc 4. BLOCK DIAGRAMM The block diagram below shows the main electronic units of the transmitter: Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 4 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc 5. TYPICAL USAGE PATTERN 25 lock/unlock /Trunk Lid/Approach Light/Panic/comfort open/Comfort Close operations in 24 hours with average transmission duration of 0.84 seconds → 1, 04 lock/unlock operations within one hour Transmitter ON 0.875 seconds / hour Transmitter OFF 3599.12 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.875 / 3,600 x 100 % = 0.02 % Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 5 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc 6. TECHNICAL DESCRIPTION Carrier frequency (incl. Tolerance): 433, 67 MHz / 434,251MHz Output power/field strength: < 10 mW Type of modulation: GFSK Method of frequency generation: fractional N PLL synthesizer Number of channels: 2 ch Power supply: battery (CR 2430) Nominal voltage 3,0V Voltage supply range: 2,4V ... 3,2V Type of battery: lithium Transmission range: 100 m (system range) Type of antenna: PCB loop antenna Length/size of antenna: ca. 4 ...5cm 7. LABEL DESIGN CANADA, EUROPE, USA Siemens VDO 5WK49264 IC: 267T-5WK49264 FCC ID:KR55WK49264 8. ENTRY OWNERS MANUAL CANADA, USA: NOTE This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. COUTION Changes or modifications not expressly approved by the manufacturer could avoid the user's authority to operate the equipment.

Annex No.7 Page 1 of 5 Block Diagram Functional description Key: 5WK4 9264 BLOCK DIAGRAMM 5WK49264 The block diagram below shows the main electronic units of the transmitter: EE PROMTransponder Power Management RISC Processor Power Supply RF STAGE Buttons 14,75MHz temperature sensor Functional description Remote Key (RK) The Remote Key system consists of the following functional blocks, which can be identified in the block diagram: • Power supply • Microcontroller • Contact less immobilizer interface • User interface (Buttons) • RF stage Power supply The Remote Key is supplied by a single lithium coin cell CR2430. Microcontroller The Philips PCF7945ATT microcontroller is based on an 8Bit Harward architecture RISC core and integrates, among others, these features: • Internal firmware ROM • Internal application Flash-ROM • Internal RAM • Immobilizer security transponder functionality • Internal RC oscillator for CPU clock • Internal temperature sensor Contact less immobilizer interface Immobilizer interface consists of an external tuned LC circuit connected to the microcontroller. User interface (Buttons) For user interaction, the RK is equipped with 5 mechanical buttons. Button signals are low active and are handled by the microcontroller. RF stage RF stage includes the RK's loop antenna. Main component is the Chipcon CC1070 transmitter IC. It is contains a programmable fractional N PLL synthesizer controlling transmission frequency. It integrates also the PLL reference oscillator to which an external high precision crystal is connected. Further the IC takes care of data encoding (e.g. MANCHESTER) and modulation according to the programmable parameters. Global functionality Immobilizer Transponder mode: The microcontroller in combination with the contact less interface circuitry acts as security transponder when coupled to a base station triggering this mode. No RF transmission is used in this operation mode. Remote Key Mode: Triggered from a button press initiated by a user, the microcontroller wakes from sleep mode and initialises the registers of the RF IC needed for operation. Information from internal sensor is used to compensate for temperature related frequency drift of PLL reference crystal. Button information is transmitted to the receiver unit on car side using a defined telegram structure. The Remote Key is a dual channel system and two frequencies within the same frequency band are used for transmission. The same button information is transmitted once per RF channel on short button presses. Longer button presses result in additional comfort telegrams being transmitted, alternating between RF channels, to inform the car about this fact. Annex No.7 Page 5 of 5 Oscillator frequencies generated or used in the device: : 14.75MHz / 433.670 MHz / 434.251 MHz

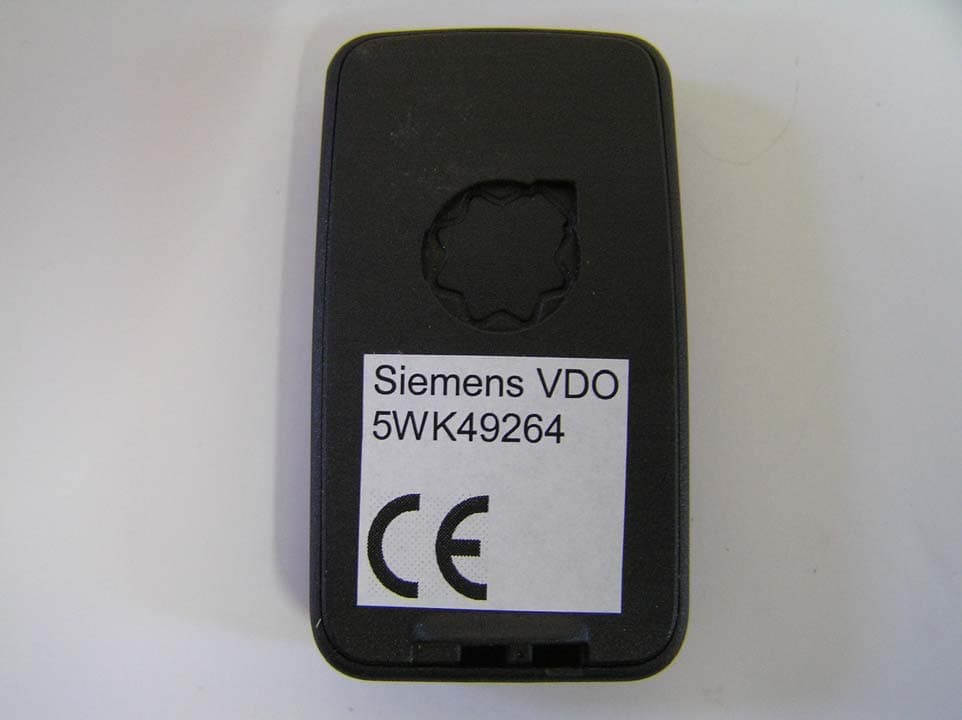

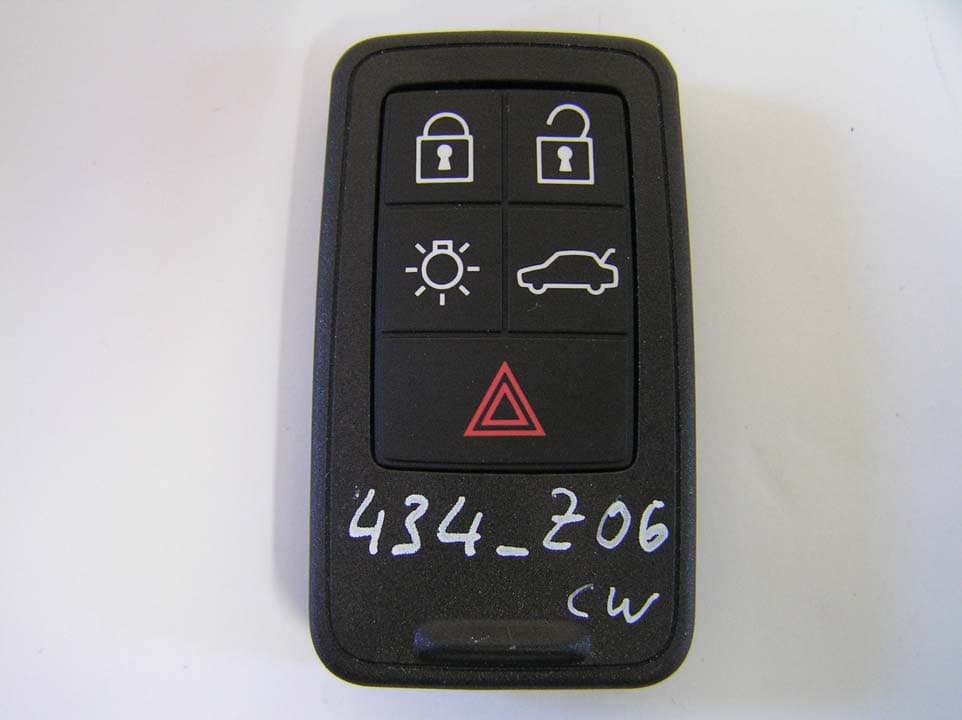

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Key: 5WK4 9264 Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

Annex No.4 Page 1 of 2 LABEL SAMPLE SKETCH OF LABLE LOCATION Key: 5WK4 9264 Annex No.4 Page 2 of 2

Annex No.2 Page 1 of 2 Internal Photographs of the Equipment Under Test INTERNAL UPPER SIDE PHOTO Key: 5WK4 9264 Annex No.2 Page 2 of 2 INTERNAL LOWER SIDE PHOTO

Annex No.5 Technical Description Key: 5WK4 9264 Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 1 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc User Manual / Functional Description of the Siemens VDO Radio Frequency Transmitter Type 5WK49264 Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 2 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc 1. SYSTEM OVERVIEW The RF remote control system consists of a RF transmitter and a RF receiver. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit information for locking or unlocking the vehicle as also Trunk Lid/Approach Light/Panic/comfort open/Comfort Close operations by an unidirectional RF transmission line for normal remote operation by pressing a button. The information will be transmitted on the first channel and afterwards also on the second channel. 2. POWER SUPPLY The transmitter is provided with 1 Lithium battery (CR 2430) that gives a tension of feeding of +3V. The battery inversion is protected mechanically. 3. BUTTONS All buttons are on the top side of the key housing. They are arranged in the following way. Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 3 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc 4. BLOCK DIAGRAMM The block diagram below shows the main electronic units of the transmitter: Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 4 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc 5. TYPICAL USAGE PATTERN 25 lock/unlock /Trunk Lid/Approach Light/Panic/comfort open/Comfort Close operations in 24 hours with average transmission duration of 0.84 seconds → 1, 04 lock/unlock operations within one hour Transmitter ON 0.875 seconds / hour Transmitter OFF 3599.12 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.875 / 3,600 x 100 % = 0.02 % Siemens VDO Automotive AG SV C BC P2 RF IC: 267T-5WK49264 FCC ID:KR55WK49264 Page 5 of 5 File:I:\POSTZULA\EuCD\Y28X_Key-RK\Technische_Doku_doc\Functional descriptionEuCD_RK_434.doc 6. TECHNICAL DESCRIPTION Carrier frequency (incl. Tolerance): 433, 67 MHz / 434,251MHz Output power/field strength: < 10 mW Type of modulation: GFSK Method of frequency generation: fractional N PLL synthesizer Number of channels: 2 ch Power supply: battery (CR 2430) Nominal voltage 3,0V Voltage supply range: 2,4V ... 3,2V Type of battery: lithium Transmission range: 100 m (system range) Type of antenna: PCB loop antenna Length/size of antenna: ca. 4 ...5cm 7. LABEL DESIGN CANADA, EUROPE, USA Siemens VDO 5WK49264 IC: 267T-5WK49264 FCC ID:KR55WK49264 8. ENTRY OWNERS MANUAL CANADA, USA: NOTE This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. COUTION Changes or modifications not expressly approved by the manufacturer could avoid the user's authority to operate the equipment.

Test report no.: 06002945 Page 1 of 22 EUT : 5WK4 9264 FCC ID: KR55WK49264 Date of issue: 2006-01-24 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 E-mail: [email protected] http://www.dudde.com TTI-P-G-128/96 Test Report acc. to the relevant standard: 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to Siemens VDO Automotive AG 5WK4 9264 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test report no.: 06002945 Page 2 of 22 EUT : 5WK4 9264 FCC ID: KR55WK49264 Date of issue: 2006-01-24 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 E-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer Siemens VDO Automotive AG Manufacturer’s grantee code KR5 Siemens VDO Automotive AG Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Manufacturer’s address Fax: +49 0941 790 136699 47 CFR Part 15C - Intentional Radiators Relevant standard used ANSI C63.4-1992 Test report prepared by Ralf Trepper m.dudde hochfrequenz-technik (Laboratory) Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transmitter (Key) Trade name Siemens VDO Type designation 5WK4 9264 Serial no. None --- Variants Test report no.: 06002945 Page 3 of 22 EUT : 5WK4 9264 FCC ID: KR55WK49264 Date of issue: 2006-01-24 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 E-mail: [email protected] http://www.dudde.com 0 Test result CFR Section Report Chapter Requirements Headline Test result OK 15.203 10.1 Antenna requirement pass fail n.a. 15.231(b) 10.2 Field strength limits (fundamental) pass fail n.a. 15.205(b) 15.209 10.2 Radiated spurious emissions pass fail n.a. 15.231(a) 10.3 Periodic operation characteristics pass fail n.a. 15.231(c) 10.4 20 dB bandwidth pass fail n.a. Test requirements kept yes no Signature (Technical engineer) ........................................ Ralf Trepper . Signature (Manager) ..................................... Manfried Dudde Test report no.: 06002945 Page 4 of 22 EUT : 5WK4 9264 FCC ID: KR55WK49264 Date of issue: 2006-01-24 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 E-mail: [email protected] http://www.dudde.com List of contents Page 0 Test result ............................................................................................................................................... 3 1 Testing laboratory ................................................................................................................................... 5 2 Introduction............................................................................................................................................ 5 3 Product................................................................................................................................................... 6 4 Test schedule .......................................................................................................................................... 6 5 Product and measurement documentation................................................................................................ 7 6 Observations and comments.................................................................................................................... 7 7 Summary ................................................................................................................................................ 7 8 Conclusions ........................................................................................................................................... 8 9 Operation description.............................................................................................................................. 9 10.1 Antenna requirement ......................................................................................................................... 10 10.1.1 Regulation ...................................................................................................................................... 10 10.1.2 Result ............................................................................................................................................. 10 10.2 Radiated emissions ........................................................................................................................... 11 10.2.1 Regulation ...................................................................................................................................... 11 10.2.2 Test equipment ............................................................................................................................... 12 10.2.2.1 Test procedures............................................................................................................................ 12 10.2.3 Calculation of field strength limits .................................................................................................. 13 10.2.4 Calculation of average correction factor.......................................................................................... 13 10.2.5 Calculation of the field strengths .................................................................................................... 13 10.2.6 Result ............................................................................................................................................. 14 10.3 Periodic operation…

Text truncated - open the document above for the full version.

Annex No.3 Page 1 of 1 OCCUPIED BANDWITH PLOT Key: 5WK4 9264

Annex No.9 Page 1 of 2 Periodic operation characteristics Manually operated transmitter deactivation Key: 5WK4 9264 15.231 (a1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released Channel 1 (433.670 MHz) Annex No.9 Page 2 of 2 Channel 2 (434.251 MHz)

Annex No.6 Page 1 of 2 Test Setup Photos : Key: 5WK4 9264 Annex No.6 Page 2 of 2
