KR55WK49963Remote Control System

Annex No.5 Page 1 of 8 Functional description Annex No.5 Page 2 of 8 Annex No.5 Page 3 of 8 Annex No.5 Page 4 of 8 Annex No.5 Page 5 of 8 Annex No.5 Page 6 of 8 Annex No.5 Page 7 of 8 Annex No.5 Page 8 of 8

Annex No.7 Page 1 of 1 Block Diagram Oscillator frequencies generated or used in the device: 314.600 MHz / 315.000 MHz (carrier frequency) 16.00 MHz (crystal) 314.6 MHz / 315 MHz

@nfinenfalffi conünarlal Automolive GmbH - P$tach 100 953 - 93009 Regefisburg Phoenix Testlab GmbH Dagmar Kolar AOL RBG 42 Phone +49 (94'l) 790-6699 Fax +49 (94'1) 790-996699 [email protected] D9t€ November 19,2009 : ) Applicants company narhe: Applicant's company address: Applicant's name: Date and Applicant's Signature: Job Title and Department: Attorney's Company name: Attorneyls Company address: Attorney's Name: Power of Attorney Continental Automotive GmbH Siemenstrasse 12 93055 Regensburg Germany Mrs. Dagmar Kolar m09t11t19 m. dudde hochfrequenz-technik Rottland 5 a 51429 Bergisch Gladbach Mr. Andreas Morsbach Mrs. Anja Hittig-Rademacher It ls necessaty,that the peßon egistercd witht FcC, s,ons this tom. I hereby authorize the following person as a representative and all rights regarding the application to obtain Type Certification for the Specified Radio Equipment (mentioned above) are delegated. Date and Attorney's Signaturg: Job Title and Department: Continsntal Aulomolive GhbH s3055 Regensburg Postrach 100 953 93009 Regensburg HRB 59424 Far +49 941 79tr4999 w.conlinenlal<joDoralion,com

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus-Reg.-Nr.:DAT-P-225/96-02 Tel. : +49 22 07-96 89-0 Fax : +49 22 07-96 89-20 email: [email protected] www.dudde.com Request for Confidentiality Date:2010-01-08 RE:Certification Application FCC ID:KR55WK49963 Confidentiality Request To whom it may concern: Persuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s Rules, our customer hereby requests confidential treatment of information accompanying as outlined below: Operationaldescription Schematics Parts list The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful toour customerand provide unjustified benefits totheircompetitors. Thank you for your attention in this matter. m. dudde hochfrequenz-technik Anja Hittig-Rademacher Homologation Manager

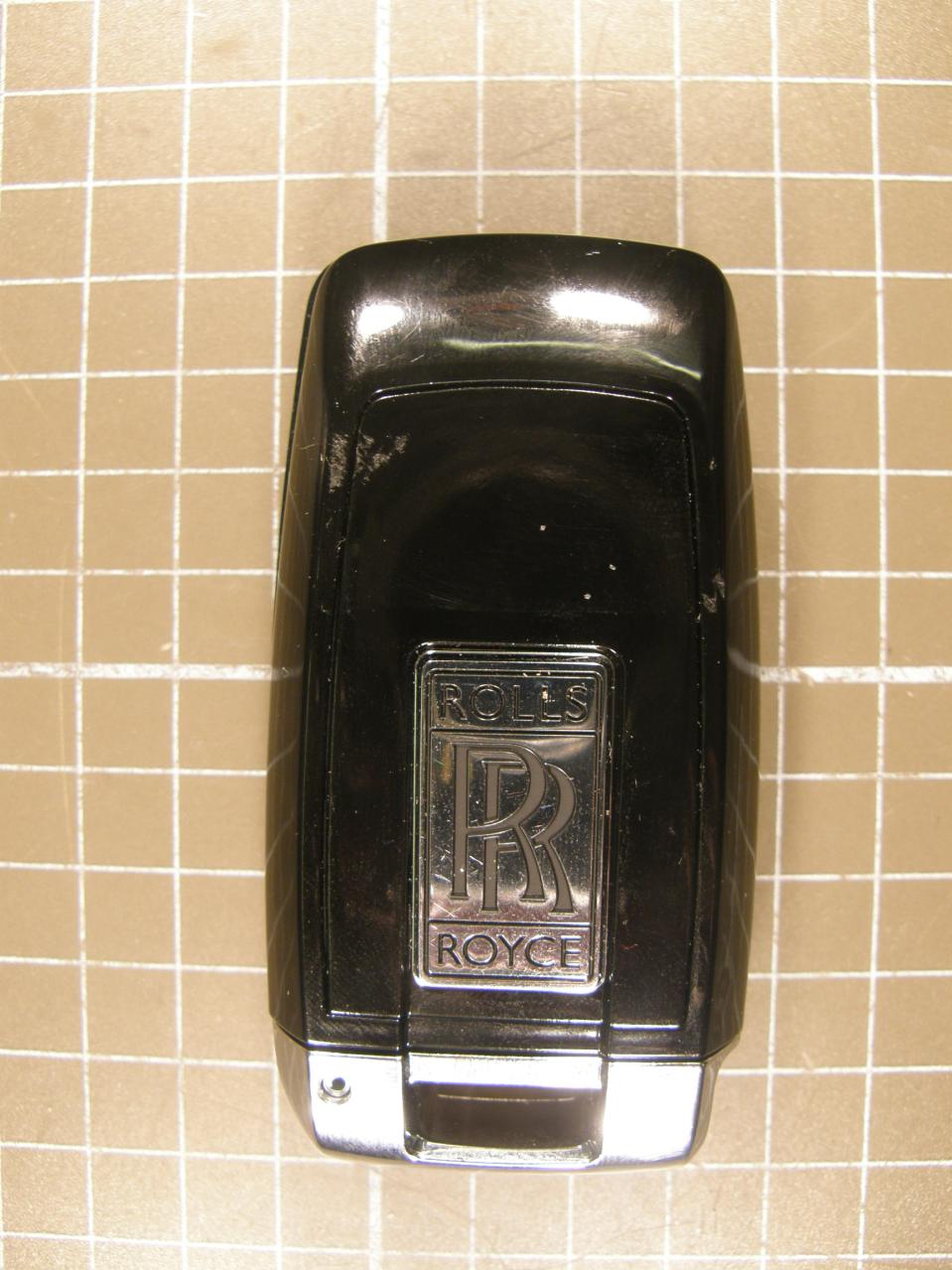

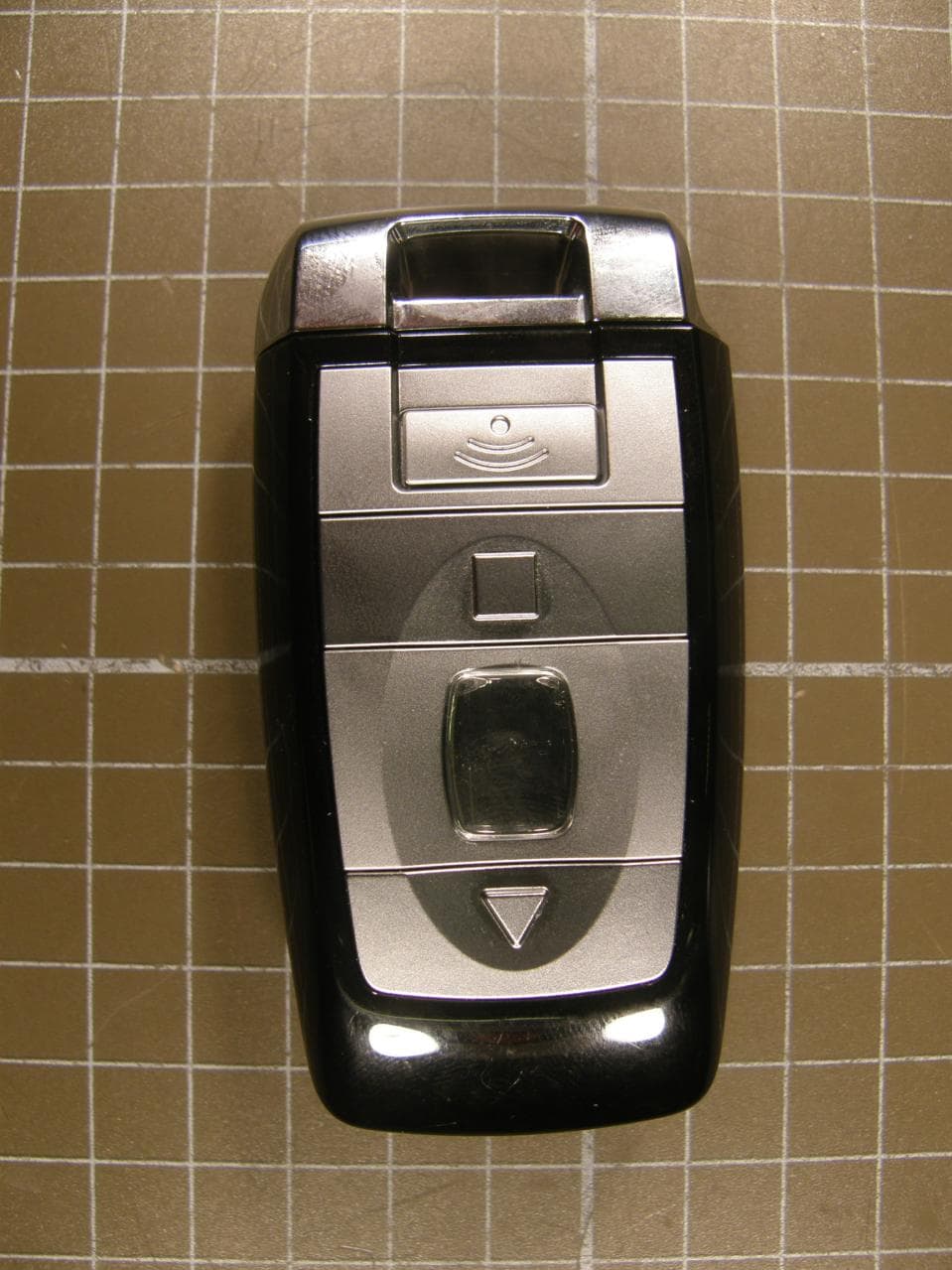

Annex No.1 Page 1 of 2 External photographs of the Equipment Under Test Annex No.1 Page 2 of 2

Annex No.4 Page 1 of 2 Sketch of label location Annex No.4 Page 2 of 2 Label sample

Annex No.2 Page 1 of 4 Internal photographs of the Equipment Under Test Annex No.2 Page 2 of 4 Annex No.2 Page 3 of 4 Antenna Annex No.2 Page 4 of 4 Antenna

Annex No.3 Page 1 of 2 Occupied bandwidth plot 20 dB bandwidth Annex No.3 Page 2 of 2 99 % bandwidth

Annex No.11 Page 1 of 15 Periodic operation characteristics 5WK49963 Annex No.11 Page 2 of 15 (a) The provisions of this Section are restricted to periodic operation within the band 40.66 - 40.70 MHz and above 70 MHz. Except as shown in paragraph (e) of this Section, the intentional radiator is restricted to the transmission of a control signal such as those used with alarm systems, door openers, remote switches, etc. Continuous transmissions, voice, video and the radio control of toys are not permitted. Data is permitted to be sent with a control signal. The following conditions shall be met to comply with the provisions for this periodic operation: (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. Screen shot 1 Annex No.11 Page 3 of 15 Screen shot 2 Screen shot 3 Annex No.11 Page 4 of 15 Screen shot 4 Screen shot 5 Annex No.11 Page 5 of 15 Screen shot 1 to 5 shows the transmitter transmission times of the lower channel after release an button and the following "comfort telegrams" after the successful car units acknowledge. The total transmission time for this operating mode is shorter than 250 ms! Annex No.11 Page 6 of 15 Screen shot 6 Screen shot 7 Annex No.11 Page 7 of 15 Screen shot 8 Screen shot 9 Annex No.11 Page 8 of 15 Screen shot 6 to 10 shows the transmitter transmission times of the upper channel after release an button and the following "comfort telegrams" after the successful car units acknowledge. The total transmission time for this operating mode is shorter than 250 ms! Screen shot 10 Annex No.11 Page 9 of 15 Transmission time lower channel close button Transmission time upper channel close button Annex No.11 Page 10 of 15 Transmission time lower channel open button Transmission time upper channel open button Annex No.11 Page 11 of 15 Transmission time lower channel trunk button Transmission time upper channel trunk button Annex No.11 Page 12 of 15 Transmission time lower channel panic button Transmission time upper channel panic button Annex No.11 Page 13 of 15 Lower channel The screen shot shows the transmitter transmission time during continuous pressing of one arbitrarily button The total transmission time for this operating mode is maximal 1.6 seconds! Annex No.11 Page 14 of 15 Upper channel The screen shot shows the transmitter transmission time during continuous pressing of one arbitrarily button The total transmission time for this operating mode is maximal 1.7 seconds! Annex No.11 Page 15 of 15 Calculation of the average correction factor The average correction factor is computed by analyzing the "worst case" on time in any 100msec time period and using the formula: Corrections Factor + 20*log (worst case on time/100msec). Analysis of the remote transmitter worst case on time in any 100msec time period is an on time of 50msec, therefore the correction factor is 20*log (50/100) = - 6 dB. The maximum correction factor to be applied is 20 dB per section 15.35 of the FCC rules. The measured worst case on time in an 100ms period is 92.4 ms. From this follows: Average correction factor = 20*log (92.4 ms/100 ms) = -0.7 dB

Test report no. 10005903 Page 1 of 33 EUT: 5WK49963 FCC ID: KR55WK49963 Date of issue: 2010-01-05 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 DAT-P-225/96 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4-2003 relating to Continental Automotive GmbH 5WK49963 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range 9 kHz to 40 GHz DAT-P-225/96 Test report no. 10005903 Page 2 of 33 EUT: 5WK49963 FCC ID: KR55WK49963 Date of issue: 2010-01-05 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Manufacturer’s details Manufacturer Continental Automotive GmbH Manufacturer‟s grantee code KR5 Manufacturer‟s address Continental Automotive GmbH Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Fax: +49 0941 790 136699 [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2003 Test report prepared by Technical engineer Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 (0) 2207 96 89-0 Fax: +49 (0) 2207 96 89-20 E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transceiver Trade name Continental Type designation 5WK49963 Serial no. --- Variants --- Test report no. 10005903 Page 3 of 33 EUT: 5WK49963 FCC ID: KR55WK49963 Date of issue: 2010-01-05 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 1. Test result summary CFR Section Report Chapter Requirements Headline Test result 15.203 11.1 Antenna requirement Pass Fail N.t. 15.205 11.2 Restricted bands of operation Pass Fail N.t. 15.209 11.3 Radiated emission limits, general requirements Pass Fail N.t. 15.231(a) 11.4 Periodic operation characteristics Pass Fail N.t. 15.231(b) 11.5 Fundamental frequencies / Field strength limits Pass Fail N.t. 15.231(c) 11.6 Bandwidth (20 dB) Pass Fail N.t. 15.201 (a) 15.209 11.7 Equipment authorization requirement Pass Fail N.t. The equipment meets the requirements Yes No Signature Manager ................................... Manfried Dudde Signature Technician ................................. Ralf Trepper Test report no. 10005903 Page 4 of 33 EUT: 5WK49963 FCC ID: KR55WK49963 Date of issue: 2010-01-05 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Test laboratory .................................................................................................................................................. 5 3. Introduction ...................................................................................................................................................... 5 4. Product ............................................................................................................................................................. 6 5. Test schedule .................................................................................................................................................... 6 6. Product and measurement documentation ......................................................................................................... 7 7. Observations and comments ............................................................................................................................. 7 8. Summary........................................................................................................................................................... 7 9. Conclusions ...................................................................................................................................................... 8 10. Operational description .................................................................................................................................. 9 11.1 Antenna requirement .................................................................................................................................... 10 11.1.1 Regulation ........................................................................................................................................... 10 11.1.2 Result .................................................................................................................................................. 10 11.2 Restricted bands of operation ...................................................................................................................... 11 11.2.1 Regulation ........................................................................................................................................... 11 11.2.2 Result .................................................................................................................................................. 13 11.3 Radiated emission limits, general requirements .......................................................................................... 14 11.3.1 Regulation ........................................................................................................................................... 14 11.3.2 Test equipment ................................................................................................................................... 15 11.3.3 Test procedure .................................................................................................................................... 16 11.3.4 Calculati…
