KR55WK49986Keyless Car Entry Controller

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus- Reg.-Nr.: DAT-P-225/96-02 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 2010-03-23 FCC ID: KR55WK49986 Subject: Compliance Statement in Car Manual Dear Sirs, The products with the above FCC ID are marketed together with cars, where it’s operation is included in the individual owner’s manual of the car. On behalf of our customer Continental Automotive GmbH we hereby assure that the following caution statement as per CFR 47, §15.21 is included in a prominent location of the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC WARNING”: “NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition, we also assure that the following statement is also included in a prominent location in the manual as per CFR 47, §15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Andreas Morsbach Assistant Manager m. dudde hochfrequenz-technik +49 2207 9689-0 [email protected]

@nlinenlalffi C.nlln€nlal Automolrve OnbH - Pos$äch 100 953 - 93009 R€gensbug Phoenix Testlab GmbH Dagmar Kolar AQL RBG 42 Phone +49 (941) 7SG6699 Fax +49 (941) 790-996699 dagmar.kolar@conlinental-corporation,com Dal€ November 19, 2009 Attorney's Company name: Attorney's Company address: Attorney's Name: Applicant s company narhe: Applicant's company address: Applicanfs name: Date and Applicant's Signature: Job Title and Departmeht: It ts neeessaty,that tho peßon togistered witht FCC, signs thi form I hereby authorize the following person as a representätive and all rights regarding the application to obtain Type Certiflcation for the Specifled Radio Equipment (mentioned above) are delegated. Power of Attorney Continenlal Automotive GmbH Siemenstlasse 12 93055 Regensburg Geimany Mrs. Dagmar Kolai 2009t11t19 m. dudde hochfreouenz-technik Rottland 5 a 51429 Bergisch Gladbach Mr. Andreas Morsbach Mrs. Anja Hittig-Rademacher Date and Attorney's Signaturg: Job Title and Department: Conlinot€l Aut'rnolivs GmbH 93055 R€gembüB Pocfäch lO0 953 93009 Regensburs Pnone +49 941 ?904 F.,( +4, 941 7904999 \^,w,continentaldlp@lionxorn Harald Sluhlm€nn HRB 59424

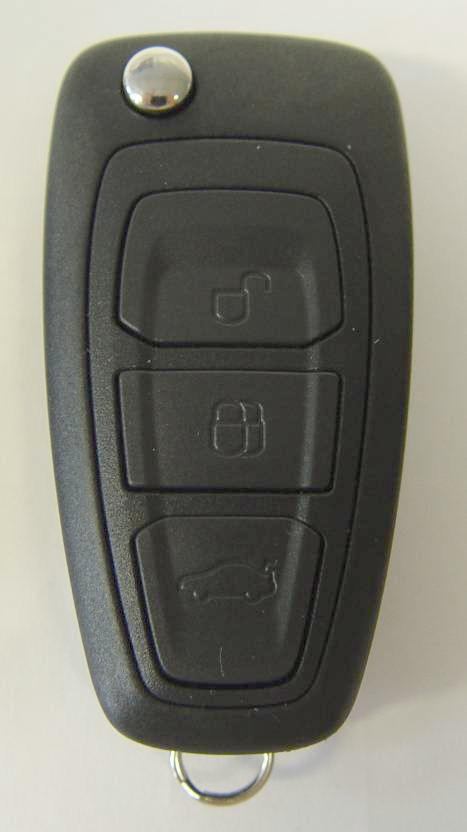

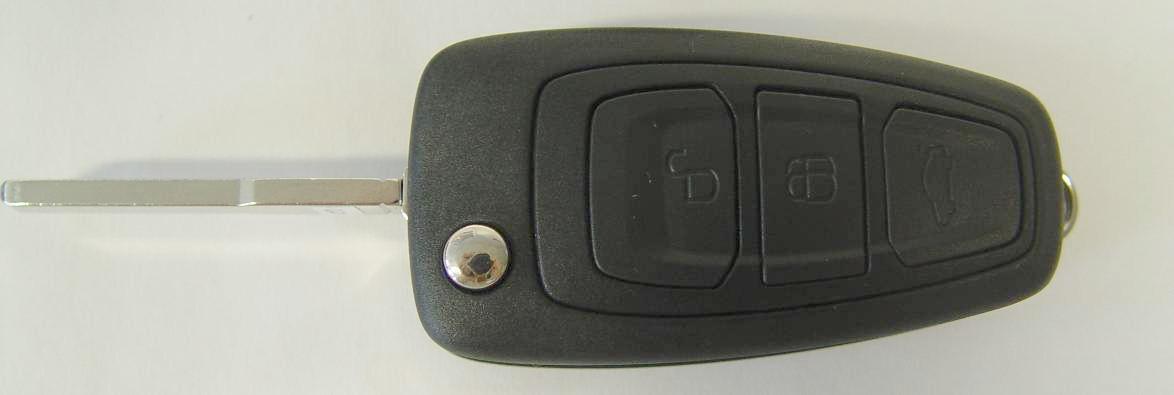

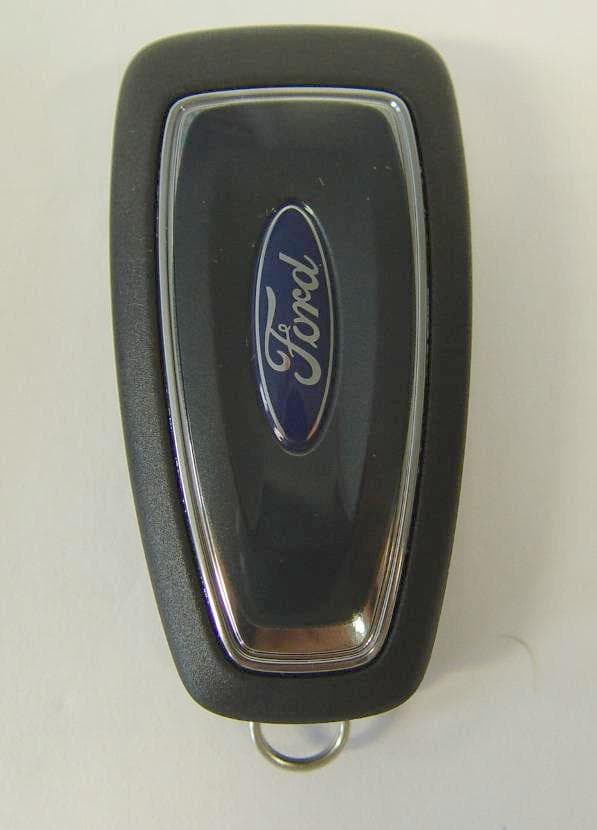

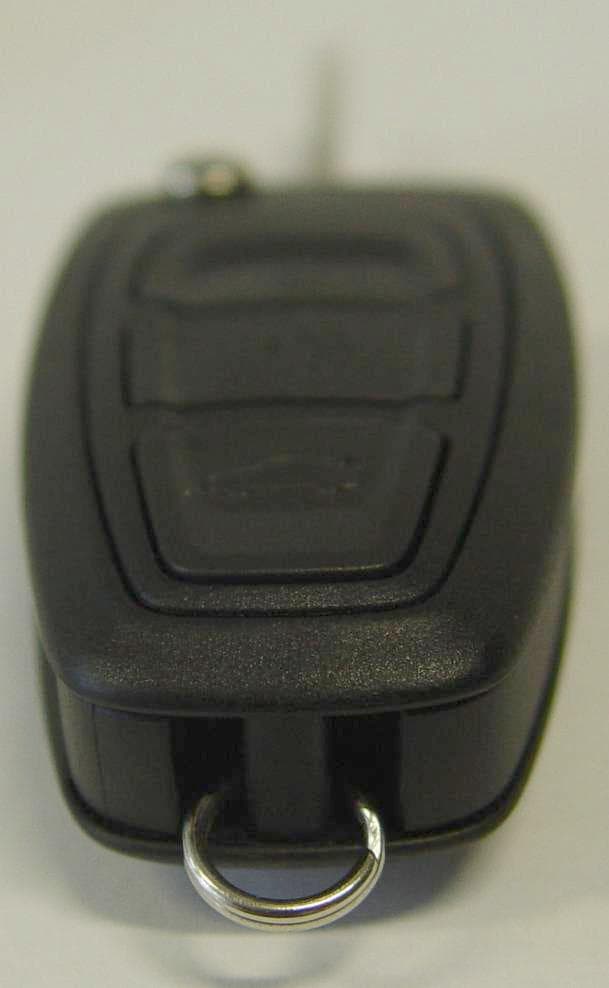

Annex No.1 Page 1 of 3 External photographs of the Equipment Under Test 5WK49986 Annex No.1 Page 2 of 3 Annex No.1 Page 3 of 3

Annex No.4 Page 1 of 2 Label sample & sketch of label location 5WK49986 Annex No.4 Page 2 of 2 Continental FCC ID: KR55WK49986

Annex No.2 Page 1 of 2 Internal photographs of the Equipment Under Test 5WK49986 Annex No.2 Page 2 of 2

Annex No.3 Page 1 of 2 Occupied bandwidth plot 5WK49986 20 dB Bandwidth Annex No.3 Page 2 of 2 99% Bandwidth

Annex No.11 Page 1 of 10 Periodic operation characteristic (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. release point (worst case, all buttons show nearly the same results) Annex No.11 Page 2 of 10 Behavior of the Lowest Channel 433.589 MHz unlock button Annex No.11 Page 3 of 10 lock button Annex No.11 Page 4 of 10 trunk button Annex No.11 Page 5 of 10 Behavior of the Middle Channel 433.920 MHz unlock button Annex No.11 Page 6 of 10 lock button Annex No.11 Page 7 of 10 trunk button Annex No.11 Page 8 of 10 Behavior of the Highest Channel 434.251 MHz unlock button Annex No.11 Page 9 of 10 lock button Annex No.11 Page 10 of 10 trunk button The maximum transmission time by continuous pressing a button is shorter than 6 seconds, independently which button is pressed. The first transmit packed is 120 msec long. Therefore no averaging correction factor shall be used.

Test report no. 10006001 Page 1 of 34 EUT: 5WK49986 FCC ID: KR55WK49986 Date of issue: 2010-02-17 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 DAT-P-225/96 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4-2003 relating to Continental Automotive GmbH 5WK49986 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range 9 kHz to 40 GHz DAT-P-225/96 Test report no. 10006001 Page 2 of 34 EUT: 5WK49986 FCC ID: KR55WK49986 Date of issue: 2010-02-17 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Manufacturer’s details Manufacturer Continental Automotive GmbH Manufacturer‟s grantee code KR5 Manufacturer‟s address Continental Automotive GmbH Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Fax: +49 0941 790 136699 [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2003 Test report prepared by Technical engineer Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 (0) 2207 96 89-0 Fax: +49 (0) 2207 96 89-20 E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name Continental Type designation 5WK49986 Serial no. --- Variants --- Test report no. 10006001 Page 3 of 34 EUT: 5WK49986 FCC ID: KR55WK49986 Date of issue: 2010-02-17 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 1. Test result summary CFR Section Report Chapter Requirements Headline Test result 15.203 11.1 Antenna requirement Pass Fail N.t. 15.205 11.2 Restricted bands of operation Pass Fail N.t. 15.209 11.3 Radiated emission limits, general requirements Pass Fail N.t. 15.231(a) 11.4 Periodic operation characteristics Pass Fail N.t. 15.231(b) 11.5 Fundamental frequencies / Field strength limits Pass Fail N.t. 15.231(c) 11.6 Bandwidth (20 dB) Pass Fail N.t. 15.201 (a) 15.209 11.7 Equipment authorization requirement Pass Fail N.t. The equipment meets the requirements Yes No Signature Manager ................................... Manfried Dudde Signature Technician ................................. Ralf Trepper Test report no. 10006001 Page 4 of 34 EUT: 5WK49986 FCC ID: KR55WK49986 Date of issue: 2010-02-17 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Test laboratory .................................................................................................................................................. 5 3. Introduction ...................................................................................................................................................... 5 4. Product ............................................................................................................................................................. 6 5. Test schedule .................................................................................................................................................... 6 6. Product and measurement documentation ......................................................................................................... 7 7. Observations and comments ............................................................................................................................. 7 8. Summary........................................................................................................................................................... 7 9. Conclusions ...................................................................................................................................................... 8 10. Operational description .................................................................................................................................. 9 11.1 Antenna requirement .................................................................................................................................... 10 11.1.1 Regulation ........................................................................................................................................... 10 11.1.2 Result .................................................................................................................................................. 10 11.2 Restricted bands of operation ...................................................................................................................... 11 11.2.1 Regulation ........................................................................................................................................... 11 11.2.2 Result .................................................................................................................................................. 13 11.3 Radiated emission limits, general requirements .......................................................................................... 14 11.3.1 Regulation ........................................................................................................................................... 14 11.3.2 Test equipment ................................................................................................................................... 15 11.3.3 Test procedure .................................................................................................................................... 16 11.3.4 Calculati…
