KR55WY8201-2-3TX Transmitter

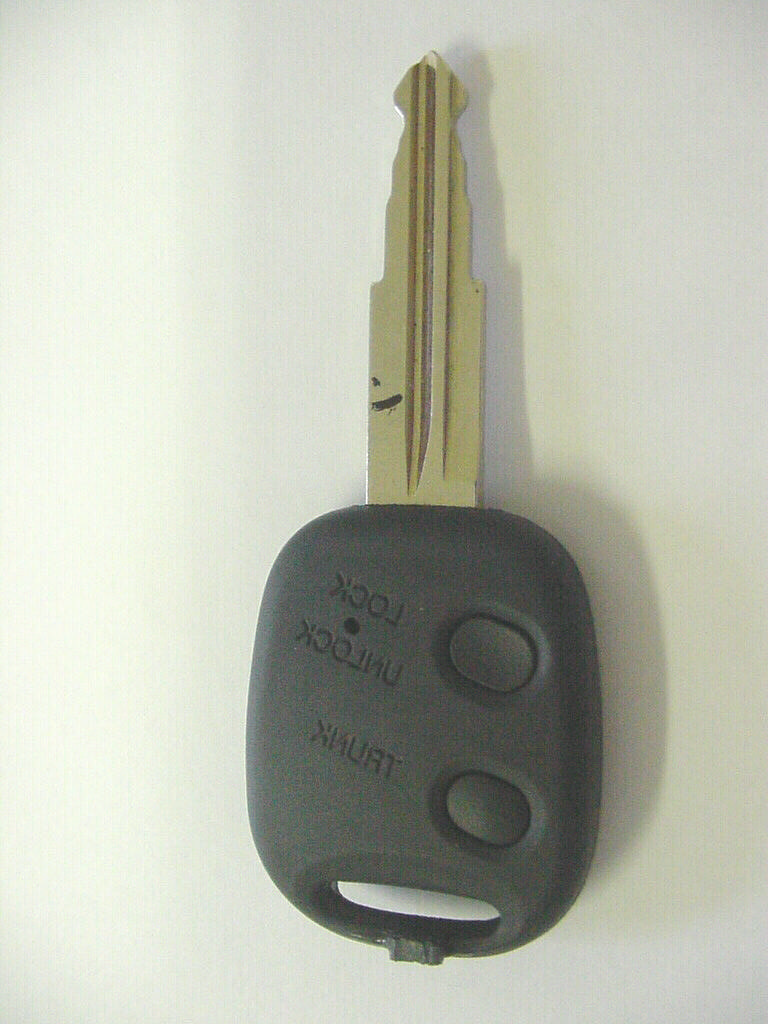

Siemens VDO Automotive AGSV C ER File: S:\Postzula\Dwmc\Func_TX_Dwmc.docPage 1 of 4 User Manual / Functional Description of the Siemens VDO TX Transmitter type 5WY 8201-2-3-4-5-6 Siemens VDO Automotive AGSV C ER File: S:\Postzula\Dwmc\Func_TX_Dwmc.docPage 2 of 4 General description of the RF transmitter The RF remote control system consists of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. In general the following functions are provided: - Lock the car - Unlock the car - Unlock trunk Power supply The transmitter is provided with 1 Lithium battery (CR 1616) that gives a tension of feeding of +3V. The battery inversion is protected mechanically. Buttons There are two buttons which enable to lock, unlock the doors and unlock the trunk. During activation, the button is forced to the ground via a “pull-up” within the microcontroller. LED The LED is turned on between transmission blocks. Variants Siemens type designationfrequencydifference 5WY 8201315 MHzwithout transponder 5WY 8202315 MHzwith transponder-master 5WY 8203315 MHzwith transponder-non master 5WY 8204433 MHzwithout transponder 5WY 8205433 MHzwithout transponder 5WY 8206433 MHzwith transponder-non master All variants have the same schematic, pcb and layout. The only difference is the transponder usage. Siemens VDO Automotive AGSV C ER File: S:\Postzula\Dwmc\Func_TX_Dwmc.docPage 3 of 4 Typical usage pattern 30 lock / unlock operations in 24 hours with a typical transmission duration of 270 milliseconds → 1.25 lock / unlock operations / hour Transmitter ON0.3375seconds / hour Transmitter OFF3,599.6625seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.3375 / 3,600 x 100 % = 0,009 % Block diagram of the transmitter Technical Data: Carrier frequency:315 MHz ± 0.05% Carrier frequency433 MHz ± 0.05% Output power/field strength:< 10 mW Type of modulation:ASK Method of frequency generation:SAW Number of channels:1 Power supply:battery (CR 1616) Type of battery:lithium Transmission range:< 6 m LED Antenna RF stage μC/Transponder Power Buttons Siemens VDO Automotive AGSV C ER File: S:\Postzula\Dwmc\Func_TX_Dwmc.docPage 4 of 4 Label design Europe: (433.92 MHz) 5WY 8203-4-5 USA / Canada: (315 MHz) 5WY 8201-2-3 FCC ID:KR55WY8201-2-3 CAN: 267 xxx xxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

ATTESTATION STATEMENT FCC ID:KR55WY8201-2-3 RF-Transmitter for vehicular use 5WY8201-2-3 SUMMARY: All tests according to FCC Part Subpart C Paragraph 15.231 n - Performed The equipment under test n - Fulfills the general approval requirements of FCC Part Subpart C Paragraph 15.231 - MIKES BABT PRODUCT SERVICE GmbH - Responsible Engineer _____________________________ Nikolaus Fischer

Siemens VDO Automotive AGSV C ER File: S:\Postzula\Dwmc\Func_TX_Dwmc.docPage 1 of 1 Typical usage pattern 30 lock / unlock operations in 24 hours with a typical transmission duration of 270 milliseconds → 1.25 lock / unlock operations / hour Transmitter ON0.3375seconds / hour Transmitter OFF3,599.6625seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.3375 / 3,600 x 100 % = 0,009 % Block diagram of the transmitter Technical Data: Carrier frequency:315 MHz ± 0.05% Carrier frequency433 MHz ± 0.05% Output power/field strength:< 10 mW Type of modulation:ASK Method of frequency generation:SAW Number of channels:1 Power supply:battery (CR 1616) Type of battery:lithium Transmission range:< 6 m LED Antenna RF stage μC/Transponder Power Buttons

TEST TEST A w avelength ahead Telefon: +49-9424-9407-0 Telefax: +49-9424-9407-60 e-mail [email protected] Internet: http//www.babtps.com 2001-11-16 Agent Authorization Letter Dear Sir or Madam: We, MIKES BABT Product Service GmbH, Ohmstrasse 2-4, D-94342 Strasskirchen, Germany, hereby authorize BABT Product Service, 4855 Patrick Henry Drive, Building 6, Santa Clara, CA 95054 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 16 November 2002. Sincerely, Thomas Weise Dipl.Ing. (FH) Laboratory Manager Tel.: +49 9424 9407 0 Fax.: +49 9424 9407 60 TCB BABT Product Service 4855 Patrick Henry Drive, Building 6 Santa Clara, CA 95054 MIKES BABT Product Service
Postfach 28
94340 Strasskirchen

Attachment E1 FCC ID:KR55WY8201-2-3 File No. T 21502-00 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E2 FCC ID:KR55WY8201-2-3 File No. T 21502-00 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0

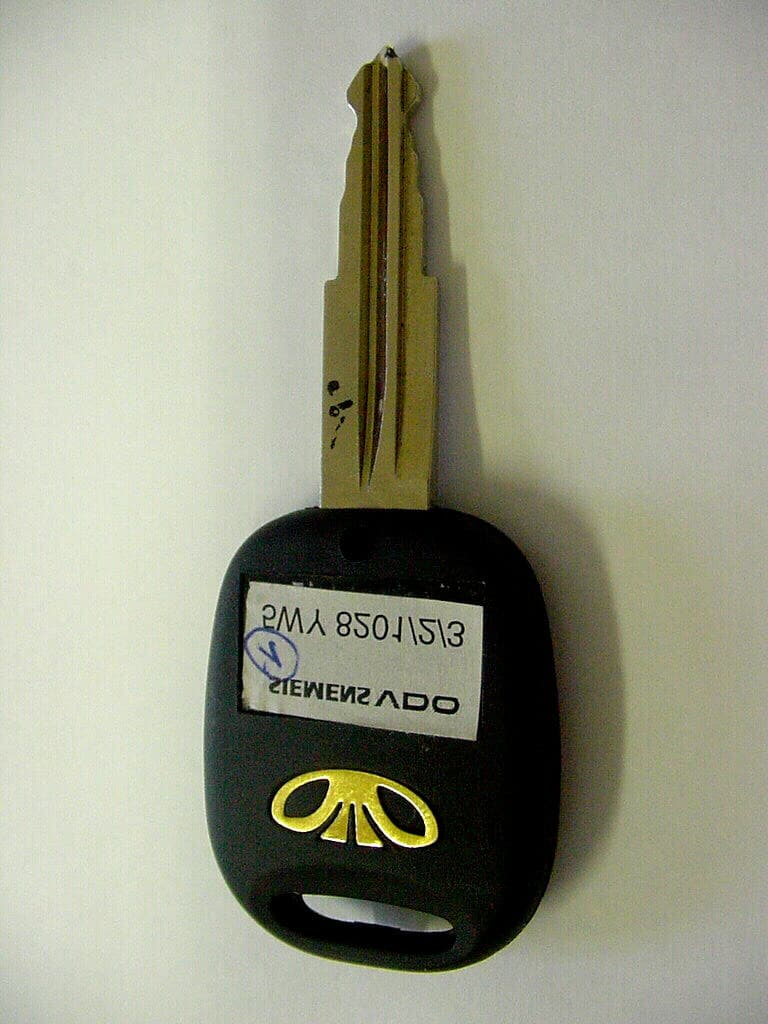

Siemens VDO Automotive AGSV C ER File: S:\Postzula\Dwmc\Func_TX_Dwmc.docPage 1 of 1 Label design Europe: (433.92 MHz) 5WY 8203-4-5 USA / Canada: (315 MHz) 5WY 8201-2-3 FCC ID:KR55WY8201-2-3 CAN: 267 xxx xxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

Attachment E3 FCC ID:KR55WY8201-2-3 File No. T 21502-00 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E4 FCC ID:KR55WY8201-2-3 File No. T 21502-00 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0

Siemens VDO Automotive AGSV C ER File: S:\Postzula\Dwmc\Func_TX_Dwmc.docPage 1 of 1 General description of the RF transmitter The RF remote control system consists of a RF transmitter and a RF receiver mounted within the control unit. The RF transmitter is mechanically integrated in the head of the key. This transmitter is used to transmit an information for locking or unlocking the vehicle by an unidirectional RF transmission line for normal remote operation by pressing a button. In general the following functions are provided: - Lock the car - Unlock the car - Unlock trunk Power supply The transmitter is provided with 1 Lithium battery (CR 1616) that gives a tension of feeding of +3V. The battery inversion is protected mechanically. Buttons There are two buttons which enable to lock, unlock the doors and unlock the trunk. During activation, the button is forced to the ground via a “pull-up” within the microcontroller. LED The LED is turned on between transmission blocks. Variants Siemens type designationfrequencydifference 5WY 8201315 MHzwithout transponder 5WY 8202315 MHzwith transponder-master 5WY 8203315 MHzwith transponder-non master 5WY 8204433 MHzwithout transponder 5WY 8205433 MHzwithout transponder 5WY 8206433 MHzwith transponder-non master All variants have the same schematic, pcb and layout. The only difference is the transponder usage.

FCC ID: KR55WY8201-2-3 TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T 21502-1-00 NF , Page 1 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 E M I S S I O N -- T E S T R E P O R T Test Report File No. : T 21502-1-00 NF ________________ Date : December 08, 2001 of issue ________________ Type Designation:5WY8201-2-3 ______________________________________________ Kind of Product:Wireless Key ______________________________________________ Applicant:Siemens VDO Automotive AG ______________________________________________ Manufacturer:Siemens VDO Automotive AG ______________________________________________ Licence holder:Siemens VDO Automotive AG ______________________________________________ Address:Wernerwerkstraße 2 ______________________________________________ 93049 Regensburg, Deutschland ______________________________________________ Test result accdg. to the regulation(s) at page 3 :Positive This test report with attachment consists of 29 pages. The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. FCC ID:KR55WY8201-2-3 File No. T 21502-1-00 NF , Page 2 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 D I R E C T O R Y Page Documentation Directory2 ________ Test regulations3 ________ General information4-5 ________ Discovery of worst case condition6 ________ Equipment under Test14 ________ Summary15 ________ Test data Conducted emissions 10/150 kHz - 30 MHz7 ________ Spurious emissions (magnetic field) 9 kHz - 30 MHz8-9 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz10 ________ Spurious emissions (electric field) 1 GHz - 18 GHz11 ________ Radiated power of the fundamental wave12 ________ Conducted power of the fundamental wave measured on13 the antenna terminals ________ Attachment A)Test dataA1-A4 ________ B)List of Test EquipmentB1 ________ C)Photos of the test setupC1-C2 ________ D)Technical description of the test sampleD1-D3 (e.g. CDF, Declaration) ________ E)Photos of the EuTE1-E4 ________ F)Measurement Protocol for FCC, VCCI and AUSTEL-- ________ FCC ID:KR55WY8201-2-3 File No. T 21502-1-00 NF , Page 3 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o- EN 50081-1/ 2.1991 o- EN 50081-2/ 7.1993 -------------------------------------------------------------------------------- o- EN 55011/ 3.1991o- Group 1o- Group 2 o- class Ao- class B o- EN 55014/ 4.1993o- Household appliances and similar o- tools o- Semiconductor devices o- EN 55014 / A2:1990 o- EN 55104/ 5.1995Category: o- EN 55015 / A1:1990 o- EN 55015 / 12.1993 o- EN 55022 / 5.1995o- class Ao- class B o- prEN 55103-1/ 3.1995 o- prEN 50121-3-2/ 3.1995 o- EN 60601-1-2/ 4.1994 o- VCCIo- class 1o- class 2 o- Part 15 Subpart C (15.209) n- Part 15 Subpart C (15.231) FCC ID:KR55WY8201-2-3 File No. T 21502-1-00 NF , Page 4 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 A D D R E S S O F T H E T E S T L A B O R A T O R Y n-MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o-______________________________________ ______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature:15-35 ° C ____________ Humidity45-60 % ____________ Atmospheric pressure 860-1060 mbar ____________ POWER SUPPLY SYSTEM UTILIZED Power supply systemo 230V/50 Hz / 1φn 3.0 V DC o 400V/50 Hz 3PEo 400V/50 Hz 3NPE STATEMENT OF MEASUREMENT UNCERTAINTY SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EuT) The EUT is a RF remote control system (wireless key) for vehicular use. The wireless key is working at a fixed frequency of 315 MHz. Number of received/tested samples:2 / 1 Serial Number:Pre-production sample DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT n The black square indicates that the listed condition, standard or equipment is applicable for this report. o Blank box indicates that the listed condition, standard or equipment was not applicable for this report. FCC ID:KR55WY8201-2-3 File No. T 21502-1-00 NF , Page 5 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-1992 procedures and using the FCC limits or the CISPR 22 Limits. Measurement Uncertainty The test system for conducted emissions is defined as the LISN, tuned receiver or spectrum analyzer, and coaxial cable. The test system for radiated emissions is defined as the antenna, the pre-amplifier, the spectrum analyzer and the coaxial cable. These test systems have a measurement uncertainty of ±4.5 dB. The equipment comprising the test systems are calibrated on an annual basis. Justification The Equipment Under Test (EuT) is configured in a typical user arrangement in accordance with t…

Text truncated - open the document above for the full version.

FCC ID:KR55WY8201-2-3 Attachment C1 of C2: Photo documentation File No.: T 21502-1-00 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.No. 9.0 Test-Setup: SPURIOUS EMISSIONS (electric field) 30 MHz – 1000 MHz FCC ID:KR55WY8201-2-3 Attachment C2 of C2: Photo documentation File No.: T 21502-1-00 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.No. 9.0 Test-Setup: SPURIOUS EMISSIONS (electric field) 1000 MHz – 10-harmonics
