KR55WY8301Imobilizer

Siemens VDO Automotive AGSV C ER File:S:\Postzula\Dwmc\Func_Immo_Dwmc.docPage 1 of 4 User Manual / Functional Description of the Siemens VDO Immobilizer type 5WY 8301 Siemens VDO Automotive AGSV C ER File:S:\Postzula\Dwmc\Func_Immo_Dwmc.docPage 2 of 4 General description of the immobilizer The described system is a transponder-based immobilizer for an automotive vehicle. The immobilizer system consists of : - up to 4 ignition keys with transponder integrated in the key head - the antenna for energizing and communication with the transponder with its integrated electronic modulator/demodulator driver - the external status indicator (LED) for displaying the immobilizer status The purpose of the immobilizer system is to provide an additional anti-theft- system which is installed in the vehicle. Checking of user authorization is done by use of an ignition key whose head integrates a crypto-transponder. In case of a blocked immobilizer system (unauthorized key), the ECM control unit locks the engine control by cutting off the ignition circuit and the injectors circuit. The antenna is a coil allowing to create the electromagnetic field ncessary for transponder operation. The antenna generates an electromagnetic field using a frequency of 134.2 kHz. This field induces energy into the transponder by way of its resonant circuit. The external status indicator (LED) displays the immobilizer status, and has an additional deterrence function. Variant: Siemens type designation frequency 5WY 8301134.2 kHzImmobilizer antenna Siemens VDO Automotive AGSV C ER File:S:\Postzula\Dwmc\Func_Immo_Dwmc.docPage 3 of 4 Block diagram Ignition Key Antenna Battery K- line ISU ECM V BD ECM ground EMS-COM Engine To others modules ISU ground TESTER Unit BAT Z Diagnostic connector To Immo Status Lamp Main Relay V BR V BC 500 Ω Modulator / demodulator GNDSUPPLY Diag K Technical Data: Carrier frequency:134.2 kHz ± 0.6 % Output power/field strength:< 42 dBμA/m @ 10 metres Type of modulation:FSK Number of channels:1 Power supply:12,8 V Type of battery:vehicle battery Transmission range:<5 centimeter Siemens VDO Automotive AGSV C ER File:S:\Postzula\Dwmc\Func_Immo_Dwmc.docPage 4 of 4 Label design: Europe: 134.2 kHz 5WY 8301 USA / CANADA 134.2 KHz FCC ID:KR55WY8301 CAN: 267 xxx xxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

ATTESTATION STATEMENT FCC ID:KR55WY8301 Immobilizer 5WY8301 SUMMARY: All tests according to FCC Part Subpart C Paragraph 15.209 n - Performed The equipment under test n - Fulfills the general approval requirements of FCC Part Subpart C Paragraph 15.209 - MIKES BABT PRODUCT SERVICE GmbH - Responsible Engineer _____________________________ Nikolaus Fischer

Siemens VDO Automotive AGSV C ER File:S:\Postzula\Dwmc\Func_Immo_Dwmc.docPage 1 of 1 Block diagram Ignition Key Antenna Battery K- line ISU ECM V BD ECM ground EMS-COM Engine To others modules ISU ground TESTER Unit BAT Z Diagnostic connector To Immo Status Lamp Main Relay V BR V BC 500 Ω Modulator / demodulator GNDSUPPLY Diag K Technical Data: Carrier frequency:134.2 kHz ± 0.6 % Output power/field strength:< 42 dBμA/m @ 10 metres Type of modulation:FSK Number of channels:1 Power supply:12,8 V Type of battery:vehicle battery Transmission range:<5 centimeter

TEST TEST A w avelength ahead Telefon: +49-9424-9407-0 Telefax: +49-9424-9407-60 e-mail [email protected] Internet: http//www.babtps.com 2001-11-16 Agent Authorization Letter Dear Sir or Madam: We, MIKES BABT Product Service GmbH, Ohmstrasse 2-4, D-94342 Strasskirchen, Germany, hereby authorize BABT Product Service, 4855 Patrick Henry Drive, Building 6, Santa Clara, CA 95054 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 16 November 2002. Sincerely, Thomas Weise Dipl.Ing. (FH) Laboratory Manager Tel.: +49 9424 9407 0 Fax.: +49 9424 9407 60 TCB BABT Product Service 4855 Patrick Henry Drive, Building 6 Santa Clara, CA 95054 MIKES BABT Product Service
Postfach 28
94340 Strasskirchen

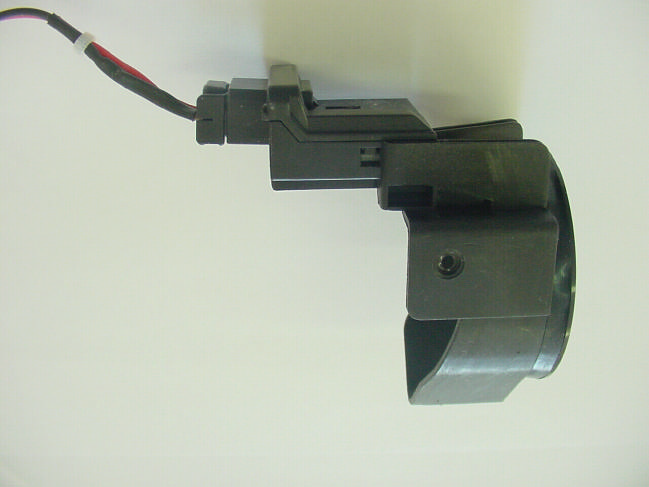

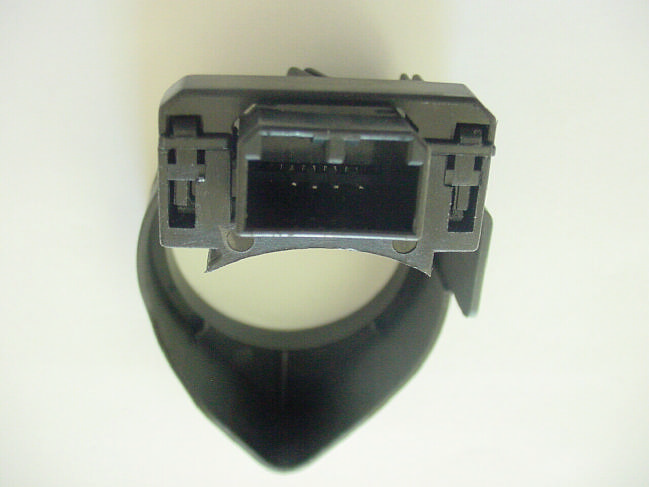

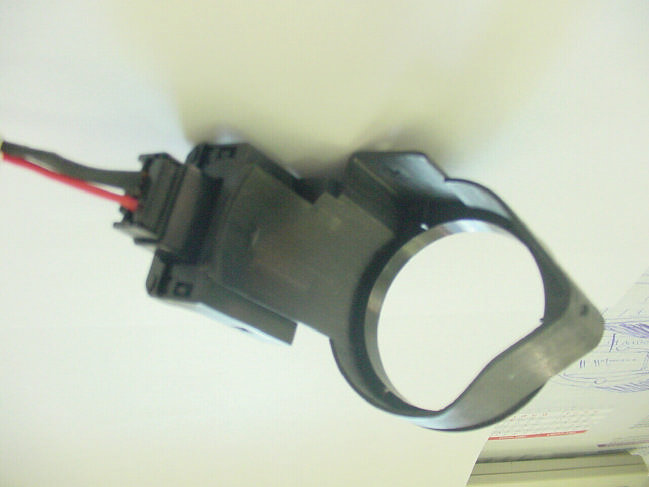

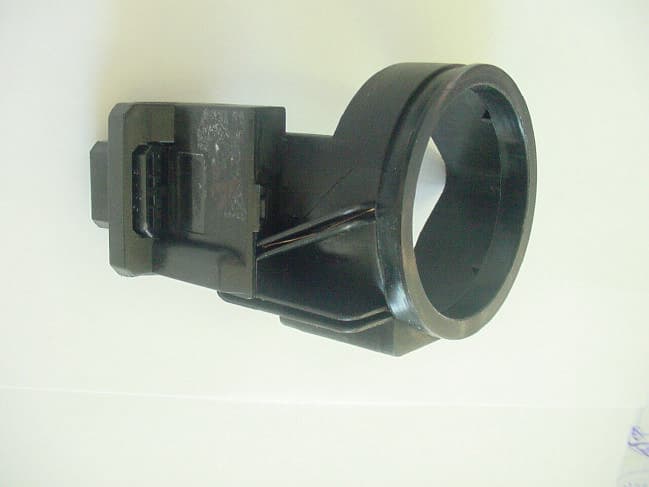

Attachment E1 FCC ID:KR55WY8301 File No. T 21502-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E2 FCC ID:KR55WY8301 File No. T 21502-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E3 FCC ID:KR55WY8301 File No. T 21502-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E4 FCC ID:KR55WY8301 File No. T 21502-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0

Siemens VDO Automotive AGSV C ER File:S:\Postzula\Dwmc\Func_Immo_Dwmc.docPage 1 of 1 Label design: Europe: 134.2 kHz 5WY 8301 USA / CANADA 134.2 KHz FCC ID:KR55WY8301 CAN: 267 xxx xxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.

Attachment E1 FCC ID:KR55WY8301 File No. T 21502-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E2 FCC ID:KR55WY8301 File No. T 21502-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0 Attachment E3 FCC ID:KR55WY8301 File No. T 21502-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.Nr. 9.0

Siemens VDO Automotive AGSV C ER File:S:\Postzula\Dwmc\Func_Immo_Dwmc.docPage 1 of 1 General description of the immobilizer The described system is a transponder-based immobilizer for an automotive vehicle. The immobilizer system consists of : - up to 4 ignition keys with transponder integrated in the key head - the antenna for energizing and communication with the transponder with its integrated electronic modulator/demodulator driver - the external status indicator (LED) for displaying the immobilizer status The purpose of the immobilizer system is to provide an additional anti-theft- system which is installed in the vehicle. Checking of user authorization is done by use of an ignition key whose head integrates a crypto-transponder. In case of a blocked immobilizer system (unauthorized key), the ECM control unit locks the engine control by cutting off the ignition circuit and the injectors circuit. The antenna is a coil allowing to create the electromagnetic field ncessary for transponder operation. The antenna generates an electromagnetic field using a frequency of 134.2 kHz. This field induces energy into the transponder by way of its resonant circuit. The external status indicator (LED) displays the immobilizer status, and has an additional deterrence function. Variant: Siemens type designation frequency 5WY 8301134.2 kHzImmobilizer antenna

FCC ID:KR55WY8301 TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T 21502-1-01 NF , Page 1 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 E M I S S I O N -- T E S T R E P O R T Test Report File No. : T 21502-1-01 NF ________________ Date : December 08, 2001 of issue ________________ Type Designation:5WY8301 ______________________________________________ Kind of Product:Immobilizer ______________________________________________ Applicant:Siemens VDO Automotive AG ______________________________________________ Manufacturer:Siemens VDO Automotive AG ______________________________________________ Licence holder:Siemens VDO Automotive AG ______________________________________________ Address:Wernerwerkstraße 2 ______________________________________________ 93049 Regensburg, Deutschland ______________________________________________ Test result accdg. to the regulation(s) at page 3 :Positive This test report with attachment consists of 15 pages. The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. FCC ID:KR55WY8301 File No. T 21502-1-01 NF , Page 2 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 D I R E C T O R Y Page Documentation Directory2 ________ Test regulations3 ________ General information4-5 ________ Discovery of worst case condition6 ________ Equipment under Test14 ________ Summary15 ________ Test data Conducted emissions 10/150 kHz - 30 MHz7 ________ Spurious emissions (magnetic field) 9 kHz - 30 MHz8-9 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz10 ________ Spurious emissions (electric field) 1 GHz - 18 GHz11 ________ Radiated power of the fundamental wave12 ________ Conducted power of the fundamental wave measured on13 the antenna terminals ________ Attachment A)Test dataA1-A4 ________ B)List of Test EquipmentB1 ________ C)Photos of the test setupC1-C2 ________ D)Technical description of the test sampleD1-D3 (e.g. CDF, Declaration) ________ E)Photos of the EuTE1-E7 ________ F)Measurement Protocol for FCC, VCCI and AUSTEL-- ________ FCC ID:KR55WY8301 File No. T 21502-1-01 NF , Page 3 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o- EN 50081-1/ 2.1991 o- EN 50081-2/ 7.1993 -------------------------------------------------------------------------------- o- EN 55011/ 3.1991o- Group 1o- Group 2 o- class Ao- class B o- EN 55014/ 4.1993o- Household appliances and similar o- tools o- Semiconductor devices o- EN 55014 / A2:1990 o- EN 55104/ 5.1995Category: o- EN 55015 / A1:1990 o- EN 55015 / 12.1993 o- EN 55022 / 5.1995o- class Ao- class B o- prEN 55103-1/ 3.1995 o- prEN 50121-3-2/ 3.1995 o- EN 60601-1-2/ 4.1994 o- VCCIo- class 1o- class 2 n- Part 15 Subpart C (15.209) o- Part 15 Subpart C (15.231) FCC ID:KR55WY8301 File No. T 21502-1-01 NF , Page 4 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 A D D R E S S O F T H E T E S T L A B O R A T O R Y n-MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o-______________________________________ ______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature:15-35 ° C ____________ Humidity45-60 % ____________ Atmospheric pressure 860-1060 mbar ____________ POWER SUPPLY SYSTEM UTILIZED Power supply systemo 230V/50 Hz / 1φn 12 V DC o 400V/50 Hz 3PEo 400V/50 Hz 3NPE STATEMENT OF MEASUREMENT UNCERTAINTY SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EuT) Number of received/tested samples:2 / 1 Serial Number:Pre-Production sample DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT n The black square indicates that the listed condition, standard or equipment is applicable for this report. o Blank box indicates that the listed condition, standard or equipment was not applicable for this report. FCC ID:KR55WY8301 File No. T 21502-1-01 NF , Page 5 of 15 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.0 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-1992 procedures and using the FCC limits or the CISPR 22 Limits. Measurement Uncertainty The test system for conducted emissions is defined as the LISN, tuned receiver or spectrum analyzer, and coaxial cable. The test system for radiated emissions is defined as the antenna, the pre-amplifier, the spectrum analyzer and the coaxial cable. These test systems have a measurement uncertainty of ±4.5 dB. The equipment comprising the test systems are calibrated on an annual basis. Justification The Equipment Under Test (EuT) is configured in a typical user arrangement in accordance with the manufacturer's instructions. A cable is connected to each available port and either terminated with a peripheral into it’s characteristic impedance or left u…

Text truncated - open the document above for the full version.

FCC ID:KR55WY8301 Attachment C1 of C2: Photo documentation File No.: T 21502-1-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.No. 9.0 Test-Setup: SPURIOUS EMISSIONS (magnetic field) 9kHz – 30MHz FCC ID:KR55WY8301 Attachment C2 of C2: Photo documentation File No.: T 21502-1-01 NF MIKES BABT PRODUCT SERVICE GmbH w Ohmstrasse 2-4 w D-94342 Strasskirchen w Tel.:+49 94 24 94 07-0 w Fax:+49 94 24 94 07-60 Rev.No. 9.0 Test-Setup: SPURIOUS EMISSIONS (electric field) 30 MHz – 1000MHz
