KR55WY8404Immobilizer System KEY 5WY8404

SIEMENS VDO Automotive AG SV C CE AIS LF S:\postzula\DASOM\USA_CAN\Func_DASOM_USA.doc Page 1 of 5 User Manual of the SIEMENS VDO Immobiliser and remote control system type HMC GH SIEMENS VDO Automotive AG SV C CE AIS LF S:\postzula\DASOM\USA_CAN\Func_DASOM_USA.doc Page 2 of 5 FUNCTIONAL DESCRIPTION 1. System Components The HMC GH System is a vehicle immobilisation and remote keyless entry (RKE) system. This system consists of a body controller module (BCM), an immobiliser antenna with corresponding transponder and a RKE transmitter. System Operation: The HMC GH System combines two sub-systems: an immobiliser system and a remote keyless entry system into one system that performs the functions of both modules. Remote keyless entry function is provided by the RF sub-system of the BCM and the RKE transmitter. On the other hand, the immobiliser function is provided by the LF sub-system of the BCM and the transponder located in the key. The operation of these functions are as follows: Immobiliser Operation The immobiliser system is a passive immobilization system. The immobiliser antenna uses a magnetic couple to read the transponder’s identification code. The communication between the immobiliser and transponder is encrypted. The BCM compares the identification code received from the transponder with the identification codes stored in its non-volatile memory. If the identification code from the transponder matches one of the identification codes stored in memory, the BCM sends a “Valid Key” message and associated “rolling code” to the Engine Management System controller. If there is no match, the module sends an “Invalid Key” message to the Engine Management System controller. This causes the Engine Management System to turn off the engine. Remote keyless Entry: The RKE transmitter transmits at 315 MHz an ASK modulated data signal to the BCM. The RF sub-system of BCM receives this encrypted RF signal. The BCM then decrypts the signal and broadcasts the requested remote commands to the appropriate control modules in the vehicle through K-line bus. In general the following functions are provided: - Lock the car - Unlock the car - Unlock the trunk of the car SIEMENS VDO Automotive AG SV C CE AIS LF S:\postzula\DASOM\USA_CAN\Func_DASOM_USA.doc Page 3 of 5 2. Variants: Type designation Difference 5WY8406 Immobiliser antenna car line DASOM 5WY8407 Immobiliser antenna car line PIC 5WY8404 RKE transmitter 315 MHz The immobiliser antenna for car line PIC (type 5WY8407) uses the same schematic and pcb, but a slightly different assembly like the immobiliser antenna for car line DASOM (type 5WY8406). The assembly differs in the value of resistor R7: 5WY8407 uses 30.1Ohm and 5WY8406 uses 26.1Ohm 3. Block diagram Immobiliser Block Diagram: 134kHz body contol module antenna with transponder processor oscillator demodulatorenergy supply K-line interface battery engine control Kl.15-switch 16 1 134kHz Block diagram RKE transmitter: Micro processor controller ASK transmitter BATTERY PWM LED key-button Antenna pattern loop Tx data RF-Tx BLOCK key-button:LOCK,UNLOCK ,TRUNK 433.9MHz 315 MHz SIEMENS VDO Automotive AG SV C CE AIS LF S:\postzula\DASOM\USA_CAN\Func_DASOM_USA.doc Page 4 of 5 4. Technical Data Immobiliser system: Carrier frequency: 134.2 kHz ± 800Hz Output power/field strength: < 42dBμA/m @ 10 metres Type of modulation: FSK Number of channels: 1 Power supply: 12.8 V DC Type of battery: vehicle battery Transmission range: 5 centimeter 5. Typical usage pattern Immobiliser system 50 immobiliser operations in 24 hours with a typical transmission duration of 0.425 seconds → 21.25 seconds transmission duration in 24 hours → 0.89 seconds transmission in 1 hour Transmitter ON 0.89 seconds / hour Transmitter OFF 3,599.11 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.89 / 3,600 x 100 % =0.025 % 6.1 Label Design Immobiliser for Europe Siemens VDO 5WY8406 5WY8407 6.2 Label Design Immobiliser for USA/CAN Siemens VDO 5WY8406 IC: 267T-5WY8406 FCC ID:KR55WY8406 5WY8407 IC:267T-5WY8407 FCC ID:KR55WY8407 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including that may cause undesired operation. SIEMENS VDO Automotive AG SV C CE AIS LF S:\postzula\DASOM\USA_CAN\Func_DASOM_USA.doc Page 5 of 5 7. Technical Data transmitter Carrier frequency: 315 MHz ± 150kHz Output power Europe: < 10mW Modulation: ASK Frequency Generation: SAW Number of channels: 1 Supply voltage: 3 V Battery type: lithium, CR 2032 Range: < 6m 8. Typical usage pattern RKE transmitter 30 lock / unlock operations in 24 hours with a typical transmission duration of 270 milliseconds → 1.25 lock / unlock operations / hour Transmitter ON 0.3375 seconds / hour Transmitter OFF 3,599.6625 seconds / hour Duty Cycle: T ON / T (ON+OFF) x 100% = 0.3375 / 3,600 x 100 % = 0,009 % 9.1 Label Design transmitter for Europe Siemens VDO 5WY8405 9.2 Label Design transmitter for USA/CAN Siemens VDO 5WY8404 IC: 267T-5WY8404 FCC ID:KR55WY8404 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including that may cause undesired operation. NOTE: Changes or modifications not expressly approved by the manufacturer could void the user ́s authority to operate the equipment.

Annex No.7 Page 1 of 1 Block Diagram : Key 5WY8404 Oscillator frequencies generated or used in the device: Ceramic Resonator : 315 MHz

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Siemens VDO Automotive AG, Siemensstraße 12, 93055 Regensburg / Germany would like the following documents regarding this submission for FCC ID: KR55WY8404 to be kept confidential. KEY 5WY 8404 1. Page 10 of 10 Annex no. 8 document “Schematics / Parts List” The above material contains trade secret or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, m. dudde hochfrequenz-technik Manfred Dudde

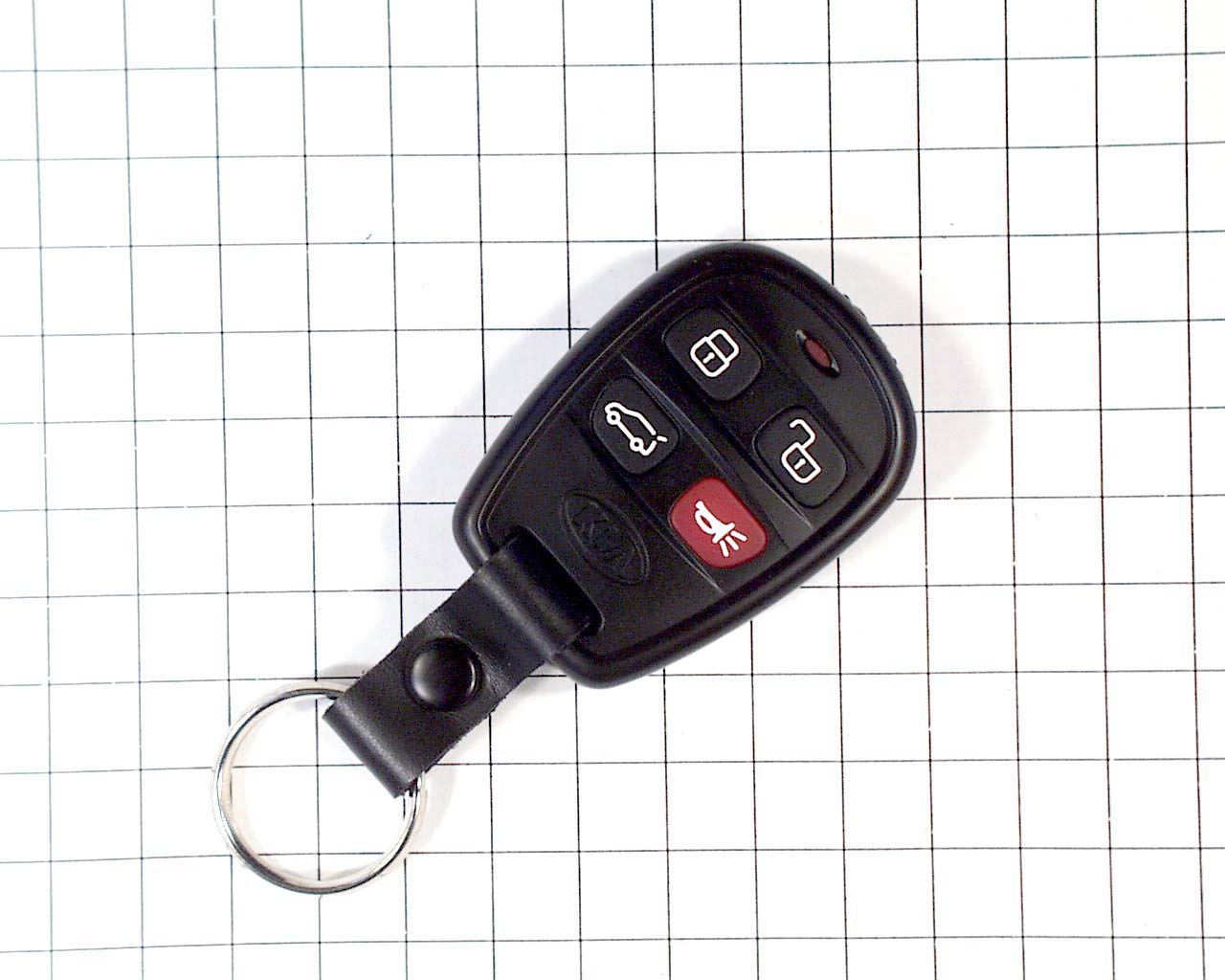

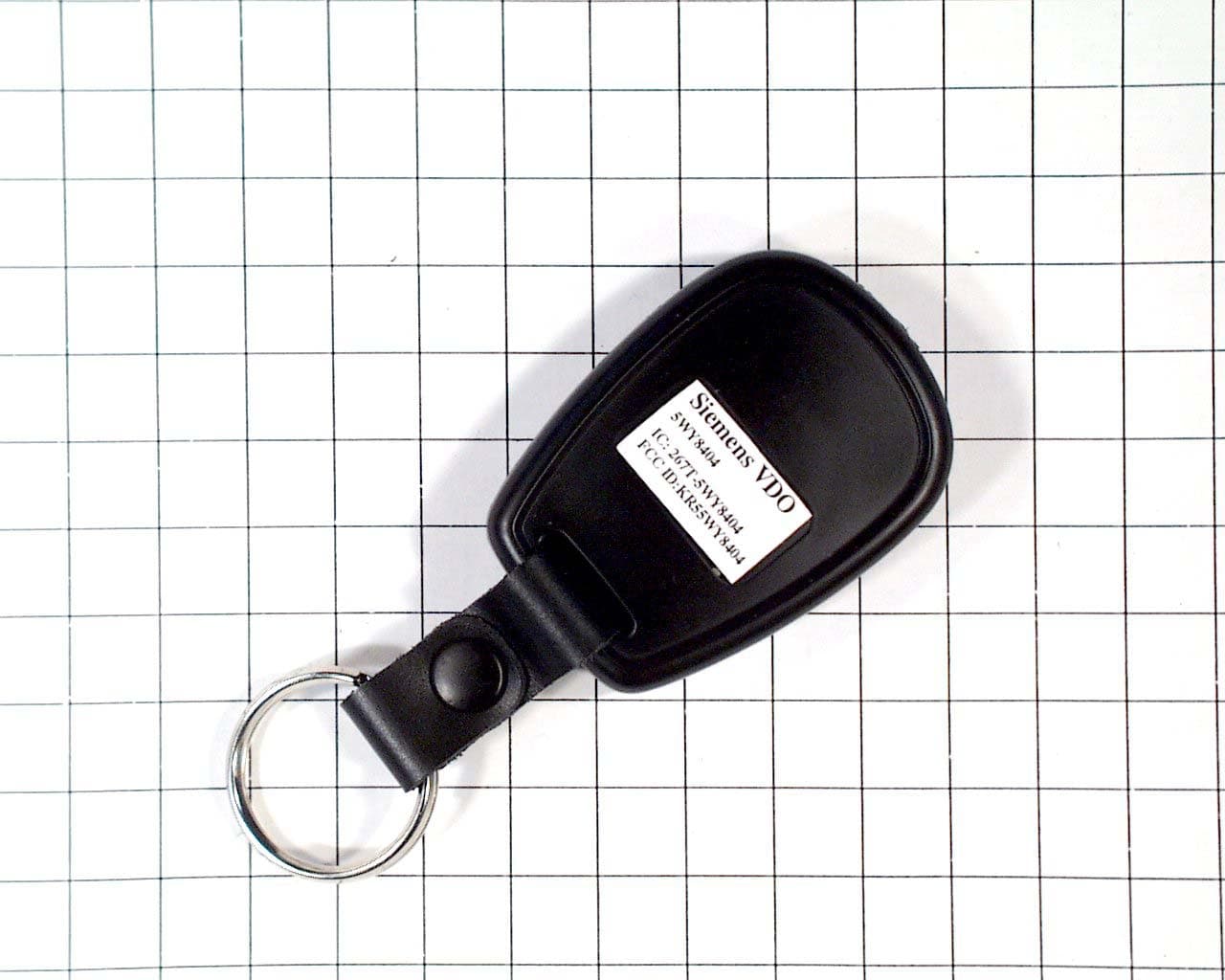

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

Annex No.4 Page 1 of 2 FCC ID LABEL SAMPLE Annex No.4 Page 2 of 2 SKETCH OF FCC ID LABLE LOCATION

Annex No.2 Page 1 of 2 Internal Photographs of the Equipment Under Test INTERNAL COMPONENT SIDE PHOTO Annex No.2 Page 2 of 2 INTERNAL SOLDER SIDE PHOTO

SIEMENS VDO Automotive AG SV C CE AIS LF S:\postzula\DASOM\USA_CAN\Func_DASOM_USA.doc Page 2 of 5 FUNCTIONAL DESCRIPTION 1. System Components The HMC GH System is a vehicle immobilisation and remote keyless entry (RKE) system. This system consists of a body controller module (BCM), an immobiliser antenna with corresponding transponder and a RKE transmitter. System Operation: The HMC GH System combines two sub-systems: an immobiliser system and a remote keyless entry system into one system that performs the functions of both modules. Remote keyless entry function is provided by the RF sub-system of the BCM and the RKE transmitter. On the other hand, the immobiliser function is provided by the LF sub-system of the BCM and the transponder located in the key. The operation of these functions are as follows: Immobiliser Operation The immobiliser system is a passive immobilization system. The immobiliser antenna uses a magnetic couple to read the transponder’s identification code. The communication between the immobiliser and transponder is encrypted. The BCM compares the identification code received from the transponder with the identification codes stored in its non-volatile memory. If the identification code from the transponder matches one of the identification codes stored in memory, the BCM sends a “Valid Key” message and associated “rolling code” to the Engine Management System controller. If there is no match, the module sends an “Invalid Key” message to the Engine Management System controller. This causes the Engine Management System to turn off the engine. Remote keyless Entry: The RKE transmitter transmits at 315 MHz an ASK modulated data signal to the BCM. The RF sub-system of BCM receives this encrypted RF signal. The BCM then decrypts the signal and broadcasts the requested remote commands to the appropriate control modules in the vehicle through K-line bus. In general the following functions are provided: - Lock the car - Unlock the car - Unlock the trunk of the car

Page 1 of 21 m. dudde hochfrequenz-technik Rottland 5a Datum: 14.02.03 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com TEST REPORT No.: 03001590 Date : 2003.05.20 EQUIPMENT UNDER TEST: Trade Name: Siemens VDO Model: Key 5WY 8404 Serial No: none Prototype Equipment Category: Transmitter Manufacturer: Siemens VDO Automotive AG Address: Siemensstraße 12 D-93055 Regensburg Germany Phone: +49-941-790-3554 Fax: +49-941-790-133554 E-mail: [email protected] RELEVANT STANDARD: 47 CFR Part 15C - Intentional Radiators USED: ANSI C63.4-2002 TEST REPORT PREPARED BY: Ralf Trepper m.dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax : +49 2207 968920 E-mail: [email protected] TEST PERSONNEL: SIGNATURE OF THE COMPANY OFFICIAL: Ralf Trepper Manfried Dudde FCC ID: KR55WY8404 Test Report : 03001590 Page 2 of 21 Issue Date: 20.05.2003 EUT: Key 5WY 8404 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 email [email protected] CONTENTS 1 GENERAL INFORMATION .................................................................................................................. 4 1.1 Purpose ................................................................................................................................................................... 4 1.2 Limits and Reservations .......................................................................................................................................... 4 1.3 Test Location ........................................................................................................................................................... 4 1.4 Manufacturer ........................................................................................................................................................... 4 1.5 Dates ....................................................................................................................................................................... 4 2 PRODUCT DESCRIPTION ................................................................................................................... 5 2.1 Equipment Under Test (EUT) ............................................................................................................................. 5 2.2 EUT Peripherals ...................................................................................................................................................... 5 2.4 Modifications Required for Compliance.............................................................................................................. 5 4 ANTENNA REQUIREMENT ..................................................................................................................... 7 4.1 Regulation ............................................................................................................................................................... 7 4.2 Result ...................................................................................................................................................................... 7 5 RADIATED EMISSIONS ............................................................................................................................ 8 5.1 Regulation ............................................................................................................................................................... 8 5.2 Test Equipment ....................................................................................................................................................... 9 5.3 Test Procedures ...................................................................................................................................................... 9 5.4 Calculation of Field Strength Limits....................................................................................................................... 10 5.5 Calculation of Average Correction Factor ............................................................................................................. 10 5.6 Field Strength Calculation ..................................................................................................................................... 10 5.7 Test Results...................................................................................................................................................... 11 5.7.1 Model Key 5WY 8404................................................................................................................................ 11 6 CONDUCTED EMISSIONS TESTS ........................................................................................................ 13 6.1 Regulation ............................................................................................................................................................. 13 6.2 Test Equipment ..................................................................................................................................................... 13 6.3 Test Procedures .................................................................................................................................................... 13 6.4 Test Results........................................................................................................................................................... 13 7 PERIODIC OPERATION CHARACTERISTICS.................................................................................. 14 7.1 Periodic Operation................................................................................................................................................. 14 7.1.1 Regulation................................................................................................…

Text truncated - open the document above for the full version.

Annex No.3 Page 1 of 1 OCCUPIED BANDWITH PLOT

Annex No.6 Page 1 of 1 Test Setup Photos : Key 5WY8404
