KR580399900Remote Transceiver for Car Access

FCC ID:KR580399900 IC:7812D-80399900 I:\POSTZULA\z1_Projekte\A_Aktuell\Honda\MY14\MY14 - BIDIR KEY DSSS\Technische_Doku_doc\Label_Owner-Manual_rev2.doc Page 2 of 3 Owner Manual Canada IC:7812D-80399900 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID:KR580399900 IC:7812D-80399900 I:\POSTZULA\z1_Projekte\A_Aktuell\Honda\MY14\MY14 - BIDIR KEY DSSS\Technische_Doku_doc\Label_Owner-Manual_rev2.doc Page 3 of 3 Owner Manual USA FCC ID:KR580399900 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

1/1 Continental Automotive GmbH |Siemensstr.12, 93055 Regensburg | P.O. Box 100943, 93009 Regensburg | Germany Phone +49 941 790-0 | Fax +49 941 790-4999 | www.continental-corporation.com Chairman of the Supervisory Board: Helmut Matschi | Registered Office: Hannover | Registered Court: Amtsgericht Hannover HRB No. 59424 | VAT ID No.: DE814950663 Executive Board: Georg Sistermanns, Harald Stuhlmann To whom it may concern: We the undersigned, hereby authorize CSA Group Bayern GmbH, Mr. Thomas Ring, Ohmstrasse 1-4, 94342 Strasskirchen, Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CSA Group Bayern GmbH on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Continental Automotive GmbH. Sincerely, Dagmar Kolar Manager RF Homologation Date Your message dated Our reference Your reference December 09, 2013 Corporate Quality and Environment Continental Automotive GmbH, Siemensstr.12, D-93055 Regensburg Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dagmar Kolar RF Homologation / QL RBG 43 Phone +49 941 790-6699 Fax +49 941 790-996699 dagmar.kolar@continental- corporation.com

Continental Automotive GmbH Siemensstr. 12 93055 Regensburg Postfach 100 953 93009 Regensburg Phone +49 941 790-0 Fax +49 941 790-4999 www.continental-corporation.com Registered Office: Hanover Registered Court: Amtsgericht Hanover HRB 59424 General Managers: Gerard Cordonnier, Helmut Matschi, Harald Stuhlmann December 09, 2013 Your message dated Our Reference Your reference Confidentiality Request for: A2C80399900, A2C80400100 FCC ID:KR580399900 IC:7812D-80399900 ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Continental Automotive GmbH has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” Dagmar Kolar RF Homologation / QL RBG 43 Tel. +49 941 790-6699 Fax +49 941 790-996699 dagmar.kolar@continental- corporation.com Continental Automotive GbmH – Postfach 10 09 43 – 93009 Regensburg - 2 - the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (0) days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Dagmar Kolar Manager RF Homologation

American Certification Body, Inc. 6731 Whittier Ave. Suite C110 McLean, VA 22101 FCC ID: KR580399900 IC: 7812D-80399900 Model Variants for Family Certification There are two identical model variants, the only difference are differing software drivers: Model name: A2C80399900 Model name: A2C80400100 Dated this 10.12.2013 By: __________________________ Thomas Ring (Signature) (Print name) Title: Manager Certification email: [email protected] On behalf of: CSA Group Bayern GmbH Telephone: +49 9421 9481-250

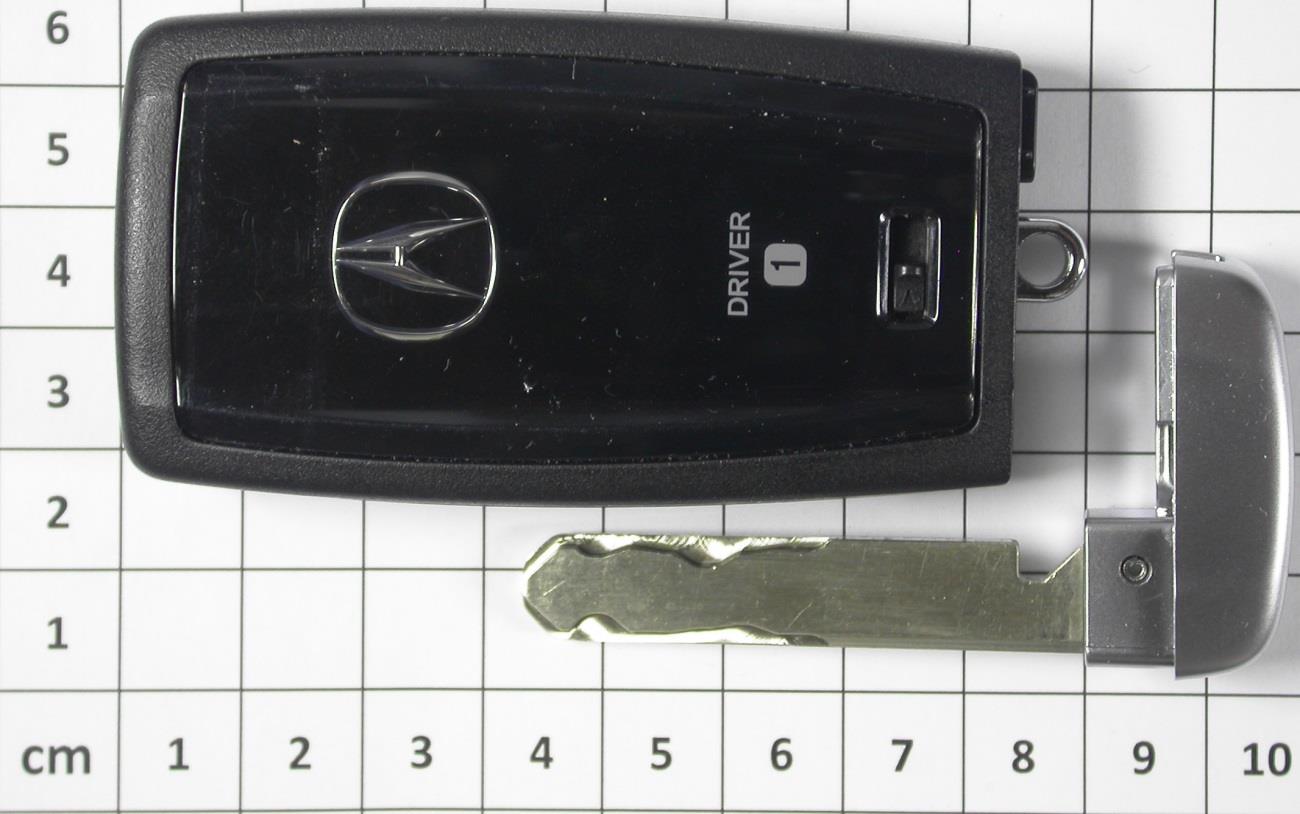

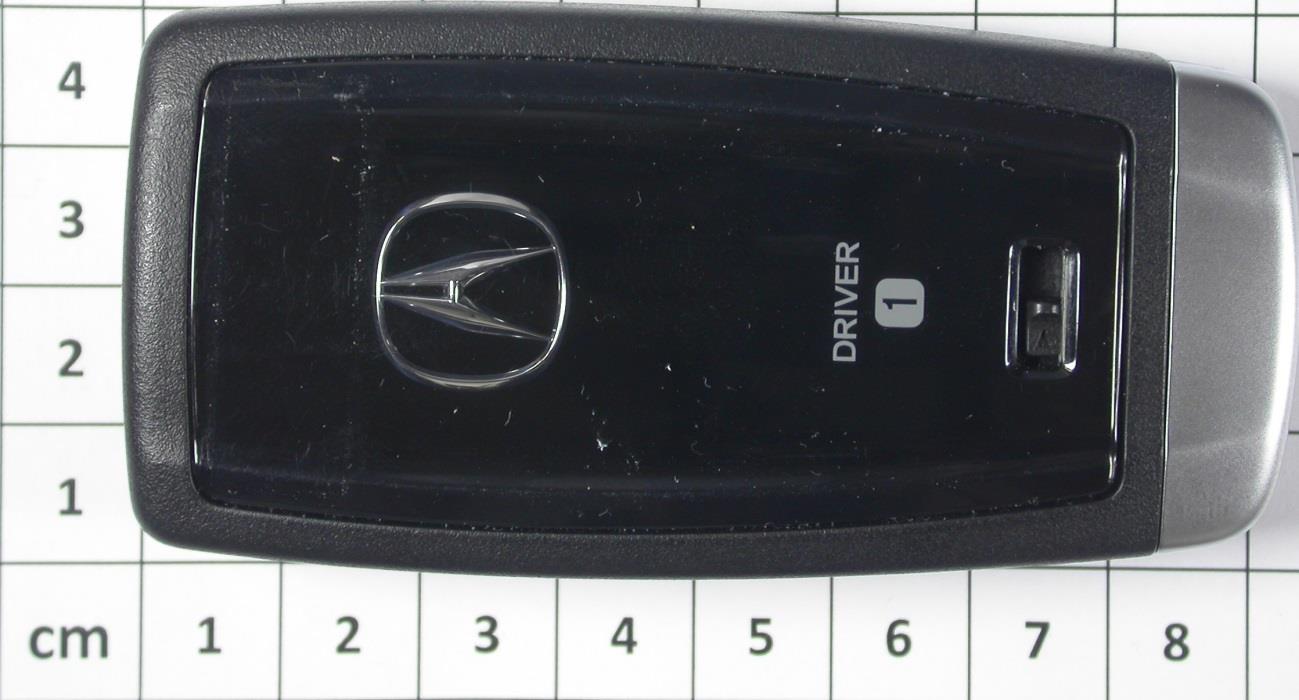

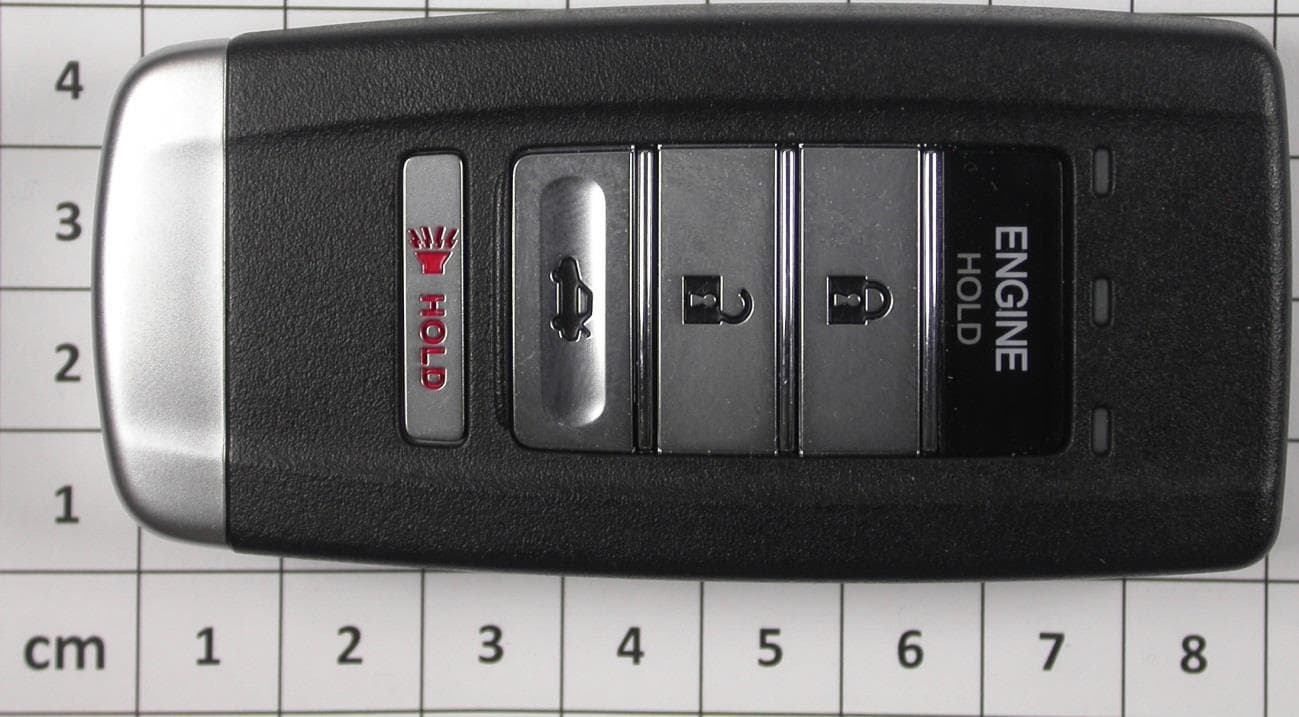

Attachment A to File No.: T36340-02 1 P h o t o d o c u m e n t a t i o n o f t h e E U T 1.1 External views:

American Certification Body Inc. 6731 Whittier Ave, Suite C110 McLean, VA22101 Date: 05.12.2013 FCC ID: KR580399900 IC: 7812D-80399900 Model Number: A2C80399900 / A2C80400100 Label Placement We confirm, that we already informed our client about the labelling rules of the FCC KDB 784748 and about the fact that the device must arrive “open” to the user, so the regulatory marks are visible during shipment and upon arrival. Thomas Ring Manager Certification CSA Group Bayern GmbH Ohmstr. 1-4 94342 Strasskirchen Germany

FCC ID:KR580399900 IC:7812D-80399900 I:\POSTZULA\z1_Projekte\A_Aktuell\Honda\MY14\MY14 - BIDIR KEY DSSS\Technische_Doku_doc\Label_Owner-Manual_rev2.doc Page 1 of 3 Continental Radio Transmitters A2C80399900, A2C80400100 Label Information A2C80399900: Continental Model: A2C80399900 FCC ID:KR580399900 IC:7812D-80399900 Label Information A2C80400100: Continental Model: A2C80400100 FCC ID:KR580399900 IC:7812D-80399900

1.2 Internal views:

FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 1 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 EMI − T E S T R E P O R T - FCC Part 15.249, RSS210 - Test Report No. : T36340-02-01HU 21. January 2014 ______________________________________________________________________________________________ Date of issue Type / Model Name : A2C80399900 / A2C80400100 Product Description : Remote Transceiver for Car access Applicant : Continental Automotive GmbH Address : Siemensstr. 12 93055 Regensburg, Germany Manufacturer : Continental Guadalajara México, S.A. de C.V. Address : Camino a la Tijera No.3 45640 Tlajomulco de Zuῇiga, Jalisco, Mexico Licence holder : Continental Automotive GmbH Address : Siemensstr. 12 93055 Regensburg, Germany Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 2 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 2.1 Test result summery 4 2.2 GENERAL REMARKS: 5 2.3 FINAL ASSESSMENT: 6 3 E Q U I P M E N T U N D E R T E S T 7 3.1 Photo documentation of the EUT – Please see attachment A 7 3.2 Power supply system utilised 7 3.3 Short description of the equipment under test (EUT) 7 4 T E S T E N V I R O N M E N T 9 4.1 Address of the test laboratory 9 4.2 Environmental conditions 9 4.3 Statement of the measurement uncertainty 9 4.4 Measurement protocol for FCC and IC 10 5 T E S T C O N D I T I O N S A N D R E S U L T S 12 5.1 Conducted emissions 12 5.2 Radiated emission of the fundamental wave 13 5.3 Spurious emissions radiated 15 5.4 20 dB bandwidth 20 5.5 Bandwidth of momentary signals 24 5.6 Antenna application 27 5.7 Receiver radiated emissions 28 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 31 FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 3 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2013) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2013) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.249 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz ANSI C63.4: 2009 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 4 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 2 S U M M A R Y 2.1 Test result summery Operating in the 902 MHz – 928 MHz band: FCC Rule Part RSS Rule Part Description Result 15.207(a) RSS Gen, 7.2.4 AC power line conducted emissions not applicable 15.215(c) RSS Gen, 4.6.3 -20 dBc EBW not applicable 15.249(a) RSS-210, A8.4(4) Field strength of fundamental passed 15.249(d) RSS-210, A8.5 Out-of-band emission, radiated passed 15.205(a) RSS-Gen, 7.2.2 Emissions in restricted bands passed 15.35(c) RSS-Gen, 4.5 Pulsed operation not applicable 15.107 RSS Gen, 7.2.4. AC power line conducted emissions not applicable RSS-Gen, 7.2.6 Transmitter frequency stability not applicable RSS-Gen, 4.6.1 99 % Bandwidth passed OET Bulletin 65 RSS102, 3.2 Co-location, Co-transmission not applicable The mentioned RSS Rule Parts in the above table are related to: RSS Gen, Issue 3, December 2010 RSS 210, Issue 8, December 2010 RSS 102, Issue 4, March 2010 FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 5 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 2.2 GENERAL REMARKS: All radiated tests have been performed on samples which are in original state in a test mode function. The testmode function is only available by EEPROM settings, which could provided only in specially programmed samples for measuring purpose. Button functions Button description red LED green LED amber LED Engine S1 no function LOCK S2 no function UNLOCK S3 TX Modulated Modes X TRUNK S4 RX Modes X X PANIC S5 TX CW Modes X By pressing the specified button, the previously defined channels are revolving. The EuT has an incorporated antenna and is powered by a primary battery. All radiated measurements were made with the device in all three orthogonal axis (X, Y, Z). The test report covers the worst case values which were measured. Declaration of manufacturer: - Operation modes: - DSSS transmissions shall comply with the US regulation as defined in FCC part 15.247 o LR CH1: 923.99955 MHz o LR CH2: 924.00045 MHz  Rx mode:  926.000 MHz - FSK transmissions shall comply with the US regulation as…

Text truncated - open the document above for the full version.

FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 13 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 5.2 Radiated emission of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS 1 Test distance: 3 m 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.249(a): The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the effective limits. 5.2.2 Description of Measurement The radiated power of the fundamental wave from the EUT is measured in the frequency range of 30 to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 meter non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. The set up of the Equipment under test will be in accordance to ANSI C63.4- 2003. The Interface cables that are closer than 40 centimetres to the ground plane are bundled in the center in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the center of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 meters, measurement scans are made with both horizontal and vertical antenna polarization`s and the EuT are rotated 360 degrees. FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 15 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 5.3 Spurious emissions radiated For test instruments and accessories used see section 6 Part SER1, SER 2, SER 3. 5.3.1 Description of the test location Test location: OATS 1 Test location: Anechoic chamber 2 Test distance: 3 m 5.3.2 Photo documentation of the test set-up FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 16 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 5.3.3 Applicable standard According to FCC Part 15C, Section 15.249 (d): Emission radiated outside of the specified frequency bands, except harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated limit in FCC Part 15C, Section 15.209, whichever is the lesser attenuation. 5.3.4 Description of Measurement The radiated emissions from the EUT are measured in the frequency range of 9 kHz to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. The set up of the EUT will be in accordance to ANSI C63.4. In the frequency range above 1 GHz a spectrum analyser is used with appropriate linear polarized antennas. If the emission level in peak mode complies with the average limit then testing will be stopped and peak values of the EUT will be reported, otherwise, the emission will be measured in average mode again and reported. During the test, the EUT was set into continuous transmitting mode modulated. Instrument settings: 9 kHz – 150 kHz RBW: 200 Hz 150 kHz - 30 MHz RBW: 9 kHz 30 MHz – 1000 MHz: RBW: 120 kHz 1000 MHz – 40 GHz RBW: 1 MHz FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 20 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 5.4 20 dB bandwidth For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: Shielded Room S4 5.4.2 Photo documentation of the test set-up 5.4.3 Applicable standard According to FCC Part 15, Section 15.215(c): Intentional radiators operating under the alternative provisions to the general emission limits, as contained in Section 15.217 through Section 15.257, must be designed to ensure that the 20 dB bandwidth of the emission is contained within the frequency band designated in the rule section under which the equipment is operated. 5.4.4 Description of Measurement The bandwidth is measured at an amplitude level reduced from the reference level by a specified ratio of -20 dB. The reference level is the level of the highest signal amplitude observed from the transmitter at the fundamental frequency. Alternative is the x-dB-down function of the analyser used. The EBW is than directly shown in the marker display. The measurement is performed with normal modulation and a transfer rate means the worst case. FCC ID: KR580399900 IC ID: 7812D-80399900 CSA Group Bayern GmbH File No. T36340-02-01HU, page 24 of 31 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2013-10-01 5.5 Bandwidth of momentary signals For test instruments and accessories used see section 6 Part MB. 5.5.1 Description of the test location Test location: Shielded Room S4 5.5.2 Photo documentation of the test set-up 5.5.3 Test result Fundamental frequency (MHz) 99% bandwidth f1 (MHz) 99% bandwidth f2 (MHz) Measured bandwidth (MHz) Limit (MHz) 924.60 924.5584 924.6320 0.0736 4.63 923.625 923.5842 923.6562 0.0720 4.62 Limit according to RSS 210, Annex 1, section A1.1.3: The 99% bandwidth shall be no wider than 0.50% of the center frequency for devices operating above 900 MHz. The requirements are FULFILLED. Remarks: For detailed results, please see the test protocol below. The Rhode & Schwarz analyzer which we used for this measure…
