KR5FBS2BHASHVehicle Immobilizer

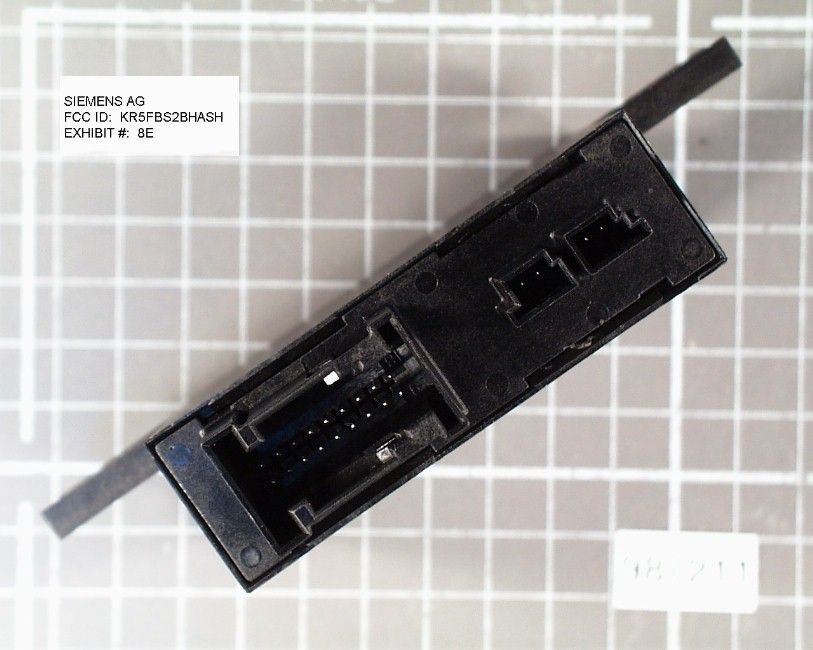

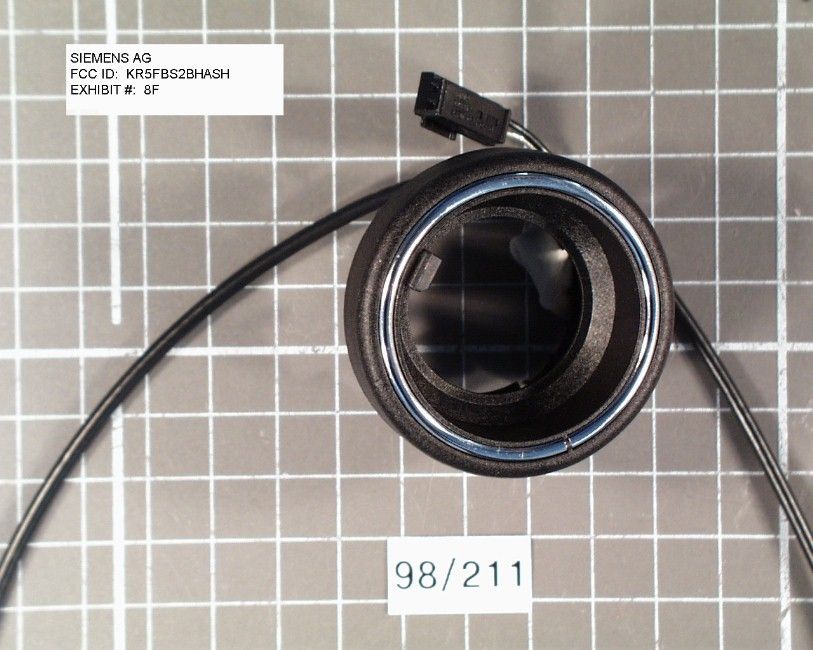

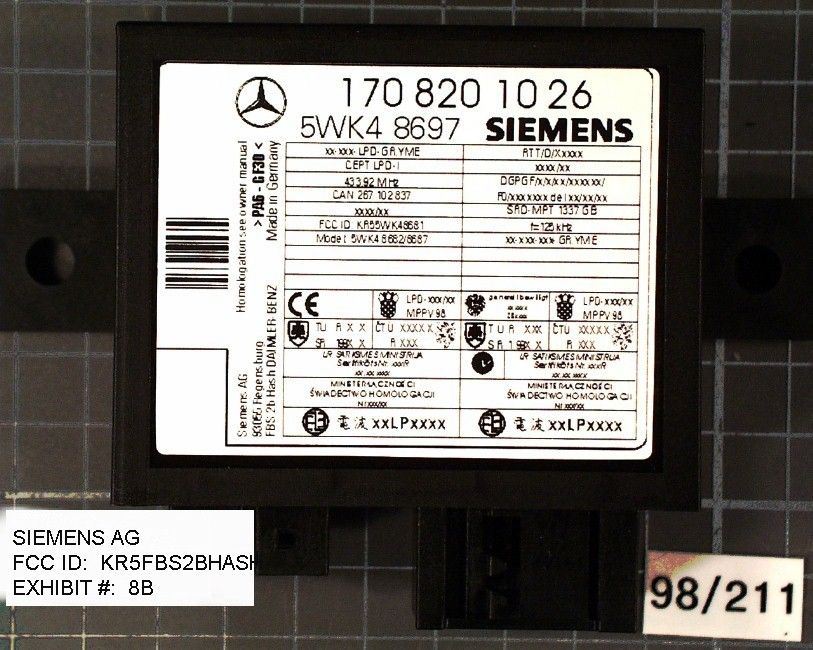

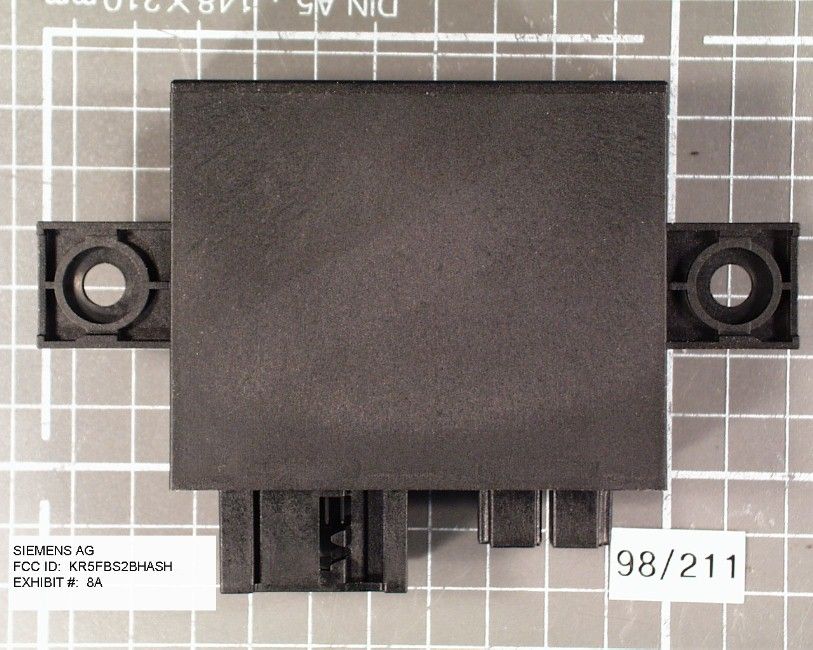

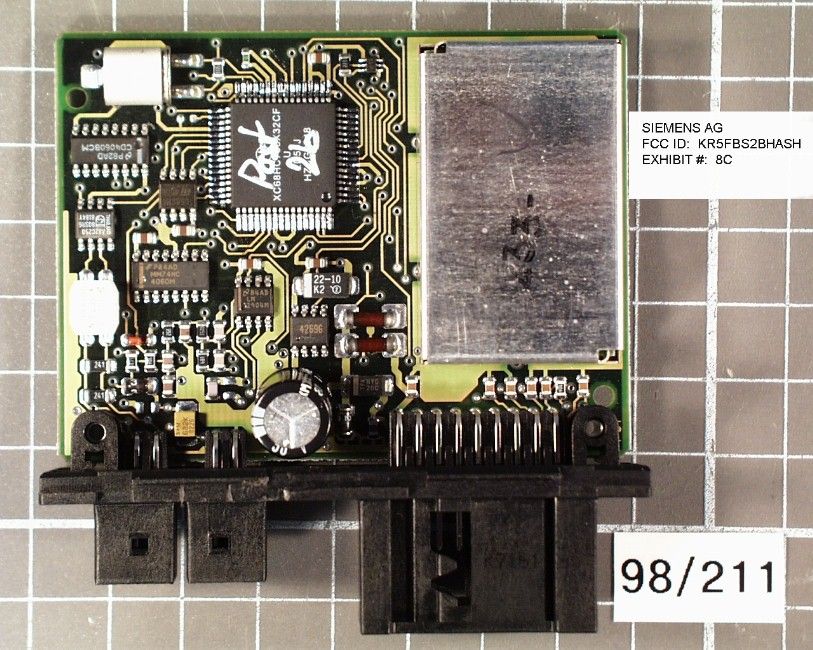

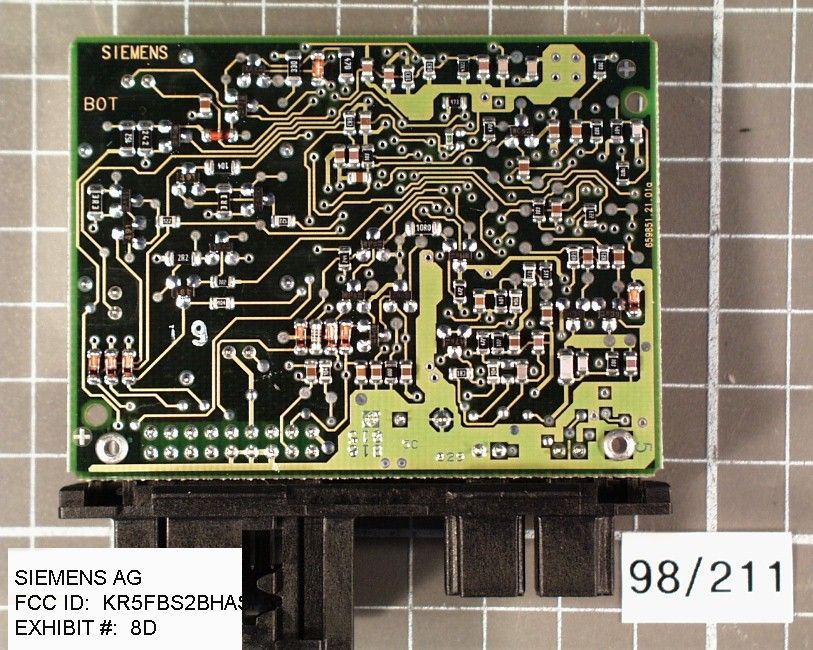

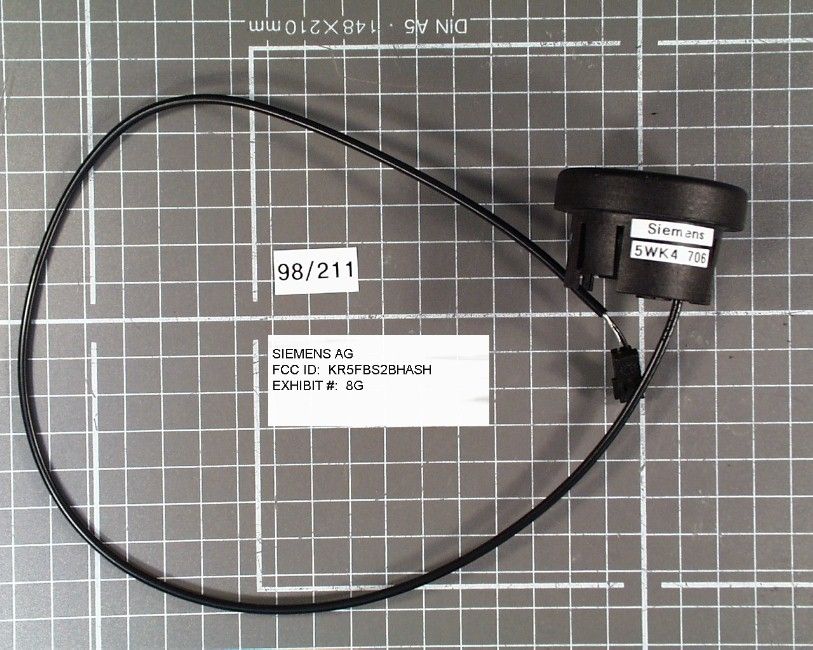

TABLE OF CONTENTS APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH REPORT CONTAINING: PAGE 1.............TEST PROCEDURE PAGE 2.............CIRCUIT DESCRIPTION PAGE 3-4...........125KHz Tx RADIATION INTERFERENCE TEST DATA PAGE 5.............OCCUPIED BANDWIDTH EXHIBITS CONTAINING: EXHIBIT 1...........POWER OF ATTORNEY LETTER EXHIBIT 2...........FCC ID LABEL SAMPLE EXHIBIT 3...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4...........BLOCK DIAGRAM EXHIBIT 5...........SCHEMATIC EXHIBIT 6A-6C.......PARTS LIST EXHIBIT 7A-7B.......INSTRUCTION MANUAL EXHIBIT 8A..........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 8B..........EXTERNAL REAR VIEW PHOTOGPRAH EXHIBIT 8C..........INTERNAL COMPONENT VIEW PHOTOGRAPH EXHIBIT 8D..........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 8E..........CONNECTOR PHOTOGRAPH EXHIBIT 8F-8G.......PHOTOGRAPH EXHIBIT 9...........OCCUPIED BANDWIDTH PLOT APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH REPORT #: F:\CUS\S\SIEMENS\SIE112A9.RPT TABLE OF CONTENTS LIST APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 6/26/98 2. Signal Generator, Hewlett Packard 8640B, cal. 10/1/98 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 5/15/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/15/98 5. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 8/15/98 6. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 8. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 9. Special low loss cable was used above 1 GHz 10. Tenney Temperature Chamber TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. In the frequency range 10KHz to 30MHz the RBW was 10KHz and from 30-1000MHz the RBW of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was &tempr& with a humidity of &humr&. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH REPORT #: F:\CUS\S\SIEMENS\SIE112A9.RPT PAGE #: 1 APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH CIRCUIT DESCRIPTION: The sensor detects the transponder which causes the frequency to vaary. This device will detect its own transponder. ANTENNA_AND_GROUND_CIRCUITRY This unit makes use of a short, helical antenna. The antenna is inductively coupled to the wiring on the automobile. The antenna is self contained, no provision is made for an external antenna. This unit is powered from a 12.0V battery. No ground connection is provided. The unit relies on the ground track of the printed circuit board. APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH REPORT #: F:\CUS\S\SIEMENS\SIE112A9.RPT PAGE #: 2 APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.15.109(a) and 15.209 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 2400/F(kHz) AT 300 Meters. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED THE LEVEL OF THE FUNDAMENTAL. 9 to 490 KHz: 2400/F(KHz) uV/m @ 300 METERS @125KHz Limit is 25.66dBuV/m @300Meters 490 to 1705 KHz: 24000/F(KHz) uV/m @ 30 METERS 1705 to 30 MHz: 29.54 dBuV/M @ 30 METERS 30 to 88 MHz: 40.00 dBuV/M @ 3 METERS 88 to 216 MHz: 43.50 dBuV/M 216 to 960 MHz: 46.02 dBuV/M ABOVE 960 MHz: 54.00 dBuV/M TEST CONFIGURATION: The INTENTIONAL RADIATOR was connected to an ignition switch and a harness simulator cable box. The device was tested in both transmitting modes. TEST DATA: EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV dB FACTOR dB dBuV/m@3m dB POL. 125.00 7.29 0.80 11.35 8.50 17.16 V 375.00 3.23 1.40 16.27 5.00 20.66 V 625.00 2.08 1.60 20.65 4.30 21.36 V SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH REPORT #: F:\CUS\S\SIEMENS\SIE112A9.RPT PAGE #: 3 APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH NAME OF TEST: RADIATION INTERFERENCE TEST PROCEDURE: ANSI C63.4-1992 Section 8.2.1. The EUT was placed on a non-conducting table 80CM above the ground plane with the EUT located in the center of the table. With the antenna vertical a preliminary scan was done at 3 meters distance, the EUT was moved to a appropriate distance and the antenna height varied and also placed in a horizontal position. The frequency was scanned from 9.0KHz to 1.0GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The EUT was measured in three(3) orthogonal planes. The unit was measured at TIMCO ENGINEERING, INC. located at 6051 N.W. 19th Lane Gainesville, Florida 32605. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY:___S. S. SANDERS_______DATE: MARCH 12, 1999 APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH REPORT #: F:\CUS\S\SIEMENS\SIE112A9.RPT PAGE #: 4 APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.209 REQUIREMENTS: The field strength of any emissions appearing between the band edges and up to 10 kHz above and below the band edges shall be attenuat…

Text truncated - open the document above for the full version.

APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.15.109(a) and 15.209 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 2400/F(kHz) AT 300 Meters. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED THE LEVEL OF THE FUNDAMENTAL. 9 to 490 KHz: 2400/F(KHz) uV/m @ 300 METERS @125KHz Limit is 25.66dBuV/m @300Meters 490 to 1705 KHz: 24000/F(KHz) uV/m @ 30 METERS 1705 to 30 MHz: 29.54 dBuV/M @ 30 METERS 30 to 88 MHz: 40.00 dBuV/M @ 3 METERS 88 to 216 MHz: 43.50 dBuV/M 216 to 960 MHz: 46.02 dBuV/M ABOVE 960 MHz: 54.00 dBuV/M TEST CONFIGURATION: The INTENTIONAL RADIATOR was connected to an ignition switch and a harness simulator cable box. The device was tested in both transmitting modes. TEST DATA: PEAK EMISSION METER READING ANTENNA FIELD FREQUENCY AT 3 METERS CORRECTION STRENGTH ANT. MHz dBuV FACTOR dB dBuV/m@3m POL. 0.125 72.85 13.00 85.00 V 0.375 45.50 4.50 50.00 V 0.50 27.00 2.00 29.00 V 0.625 43.00 0.00 43.00 V 0.875 38.00 -3.00 35.00 V 1.00 28.00 -4.00 24.00 V 1.125 35.00 -6.00 29.00 V 1.50 27.00 -7.50 20.00 V 1.625 27.00 -8.00 19.00 V 1.75 26.50 -8.50 18.00 V THE MEASUREMENTS WERE MADE AT 3.0Meters. The spectrum was scanned from 10KHz to 1000MHz. SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. APPLICANT: SIEMENS AG FCC ID: KR5FBS2BHASH REPORT #: F:\CUS\S\SIEMENS\SIE112A9 PAGE #: 3
