KR5FS14radio transmitter

Date: 2014-03-07 Page 1 of 1 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 5 Functional Description / User Manual Continental AG I BS RD CFRF WM IC:7812D-FS14 FCC ID:KR5FS14 Page 1 of 5 Functional Description of the Continental Radio Frequency Transmitter Type FS14 Continental AG I BS RD CFRF WM IC:7812D-FS14 FCC ID:KR5FS14 Page 2 of 5 1. GENERAL DESCRIPTION OF THE RF TRANSMITTER The FS14 is a transmitter designed to provide remote keyless entry, passive entry, passive engine start, and immobilization functionality. Within the housing is applied an inner container, containing an lower container and container cover which are laser welded. Within the container is placed a PCB, which is the same type for all variants and containing a different number of switches. The fobs are part of a larger system provided to VW by Continental which allows the customer to: • Remotely lock the doors. • Remotely unlock the doors. • Remotely open the trunk. • Remotely activate the alarm (panic mode). • Remotely unlock and lock doors in passive mode (PASE). • Start engine in passive mode (PASE). • Start the car via fob slot (immobilization). • Use mechanical emergency key as back-up. Continental AG I BS RD CFRF WM IC:7812D-FS14 FCC ID:KR5FS14 Page 3 of 5 2. BLOCK DIAGRAM OF THE TRANSMITTER Technical Description The components which constitute the Acura TL '09 fob are: • Power Supply • Microcontroller with PLL Transmitter • Microcontroller with 3D Frontend • User Interfaces • LF Antenna (3D-Antenna in one SMD) • RF Antennas • The PCB is 4 layer Pb-Free FR4 with double-sided component placement for the key with plastic caps • The PCB is 6 layer Pb-Free FR4 with double-sided component placement for the key with chrome caps Continental AG I BS RD CFRF WM IC:7812D-FS14 FCC ID:KR5FS14 Page 4 of 5 3. POWER SUPPLY The Power Supply consists of a CR2032 battery with filter capacitors that provide power to the microcontroller and the RF circuit. 4. VARIANT The fobs transmit one RF-channel. Variant Frequency OEM Modulation Radiated Power FS14 434,42 MHz chromated and plastic caps ASK < +10dBm NOTE: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. 6. LABEL DESIGN / Owner Manual Canada: Continental Model: FS14 IC:7812D-FS14 Owner Manual: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Continental AG I BS RD CFRF WM IC:7812D-FS14 FCC ID:KR5FS14 Page 5 of 5 Europe: Continental FS14 USA: Continental FS14 FCC ID:KR5FS14 Owner Manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 certified DAkkS accreditation number: D-PL-12053-01 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Request for Confidentiality Date: 2014-11-21 FCC ID: KR5FS14 To whom it may concern, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, our customer Continental Automotive GmbH hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Operational Description In addition they hereby request the following exhibits contained in this application to be temporarily (short-term confidentiality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. m. dudde hochfrequenz-technik Anja Hittig-Rademacher Homologation Manager

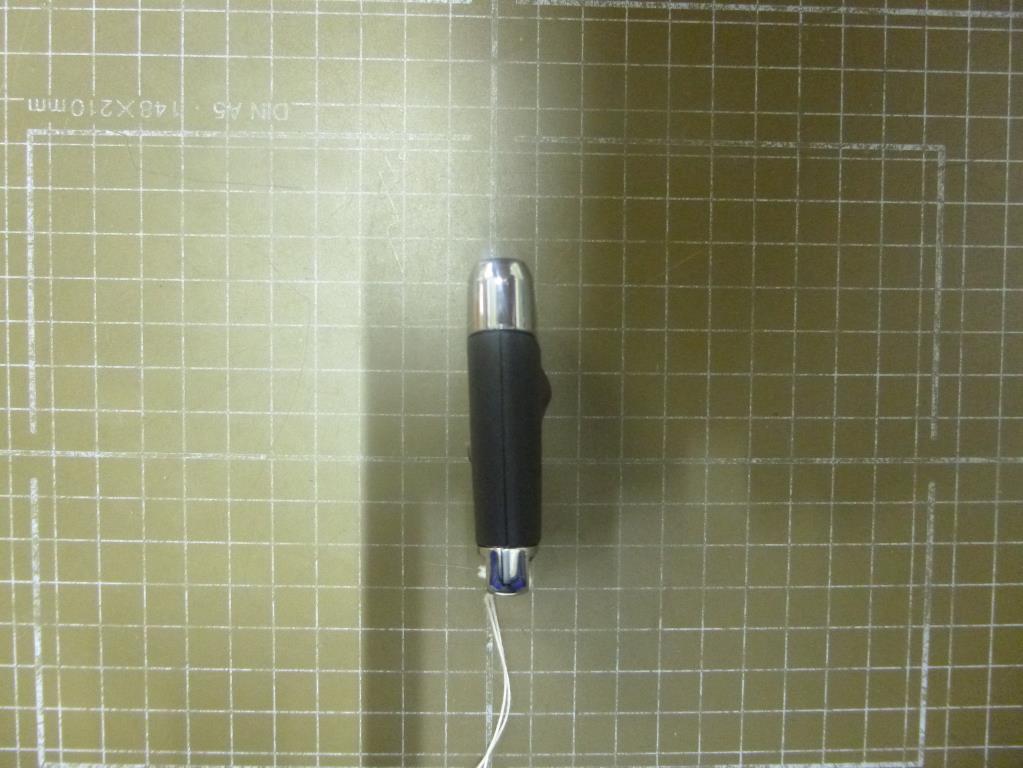

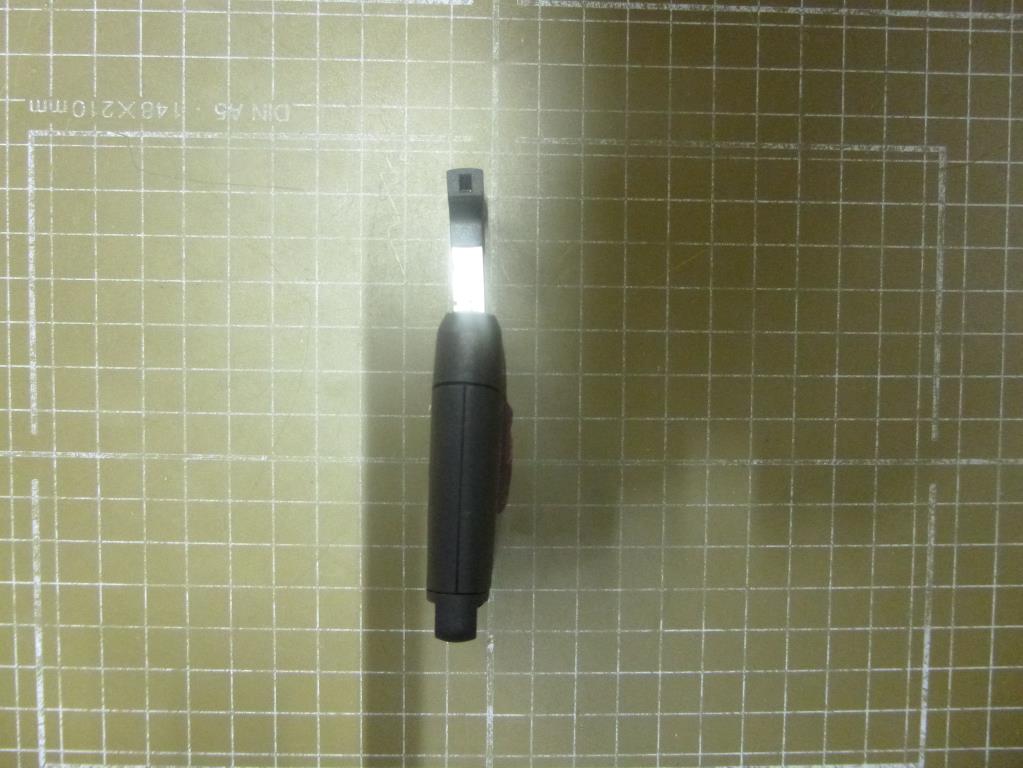

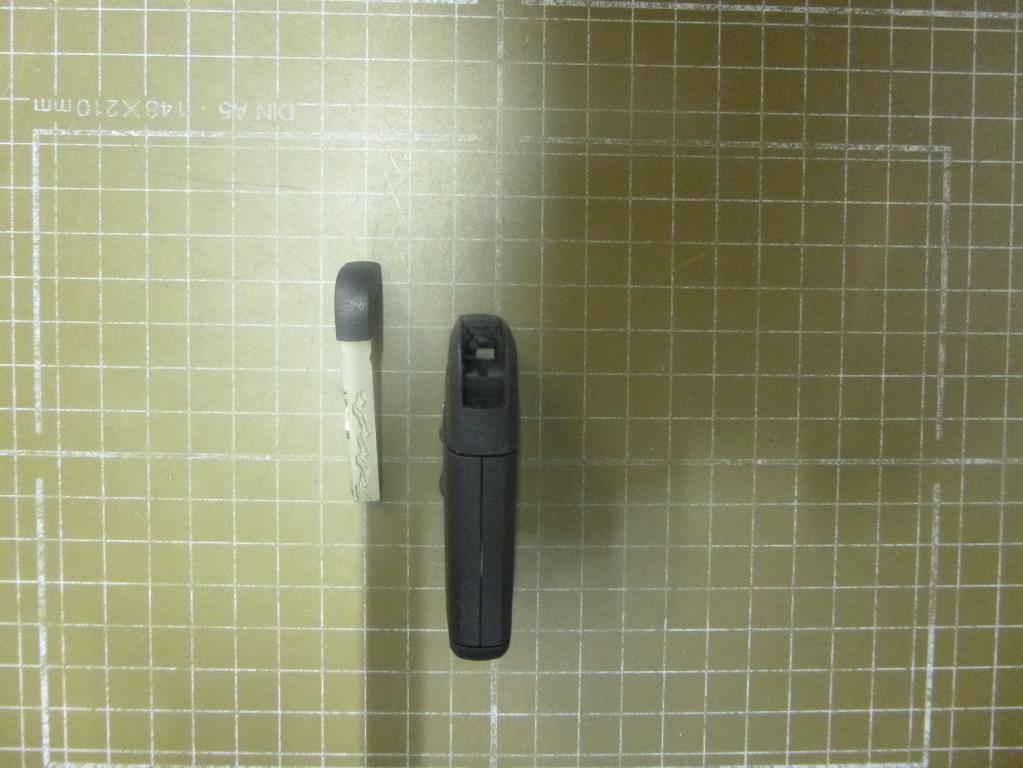

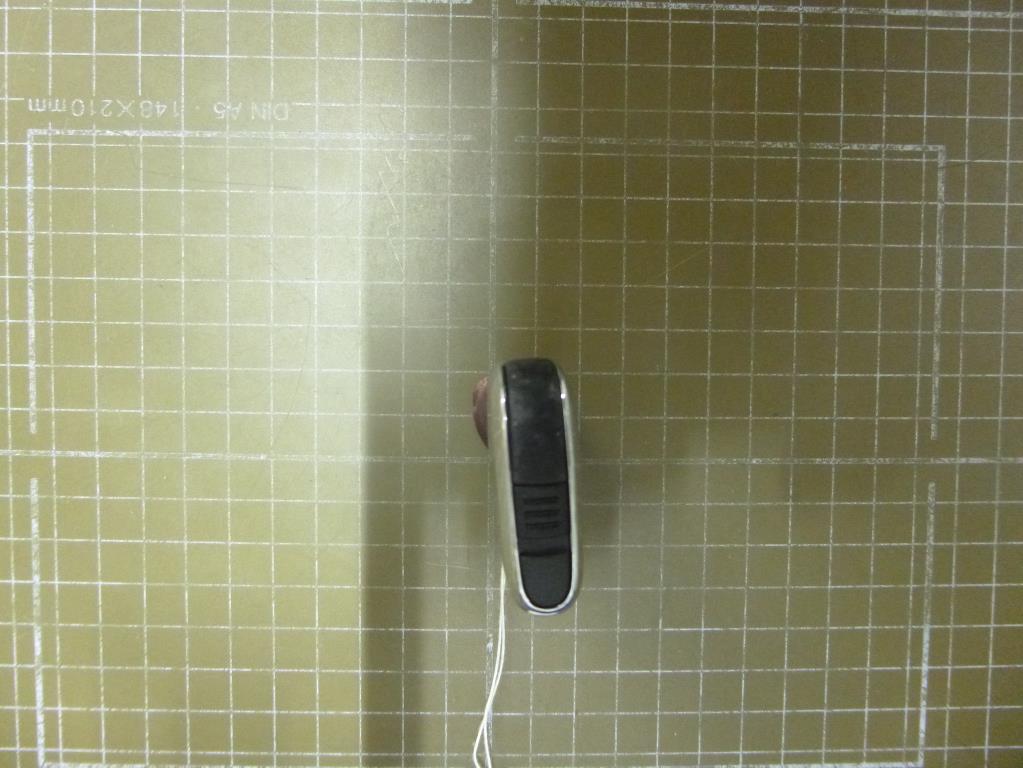

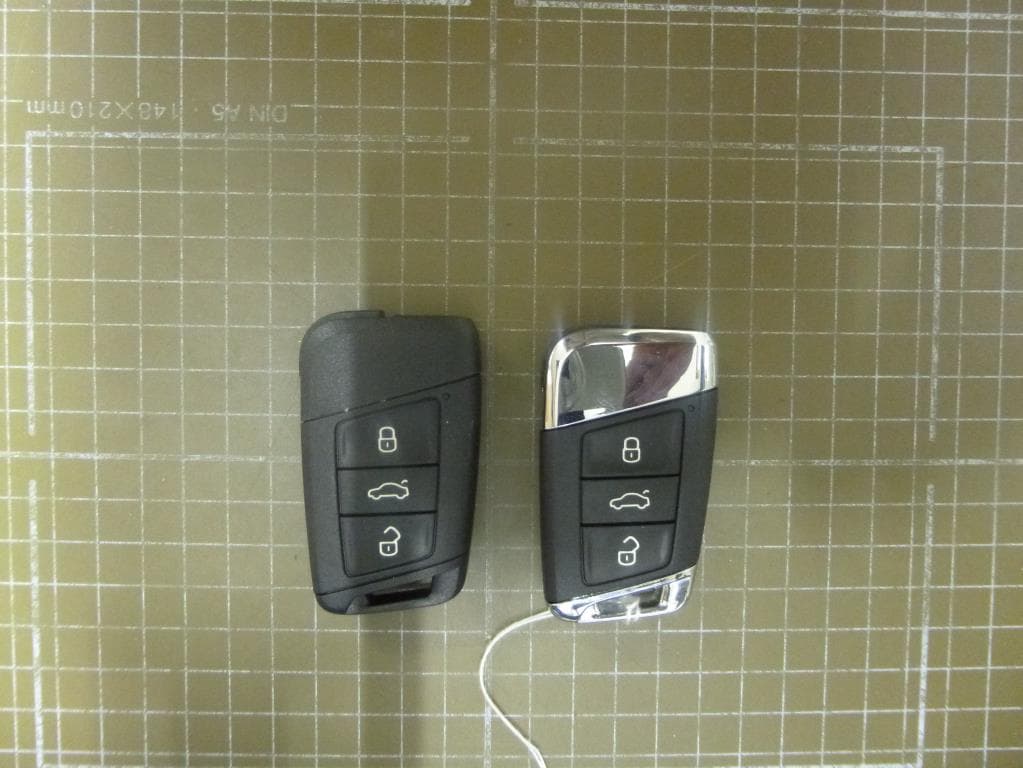

Date: 2014-03-07 Page 1 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 1 External Photographs Date: 2014-03-07 Page 2 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 3 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 4 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 5 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 6 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 7 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 8 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 9 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 10 of 10 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

Date: 2014-03-07 Page 1 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 4 Label Sample Date: 2014-03-07 Page 2 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 3 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Label location Homologation information housing bottom: Canada, USA: Continental Model: FS14 IC:7812D-FS14 FCC ID:KR5FS14 Label location (behind the battery cover)

Date: 2014-03-07 Page 1 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 2 Internal Photographs Date: 2014-03-07 Page 2 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 3 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 4 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 5 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Loop antenna crystal Date: 2014-03-07 Page 6 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

Date: 2014-03-07 Page 1 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 3 Occupied Bandwidth Plot Date: 2014-03-07 Page 2 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 20 dB bandwidth Date: 2014-03-07 Page 3 of 3 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 99 % dB bandwidth

Date: 2014-03-07 Page 1 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 11 Periodic Operation Characteristics Date: 2014-03-07 Page 2 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Release point (close button) Release point (open button) Date: 2014-03-07 Page 3 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Release point (trunk button) Date: 2014-03-07 Page 4 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Transmission time Date: 2014-03-07 Page 5 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Worst case transmission in 20 ms = 34*283.125 μs = 9.62625 ms Date: 2014-03-07 Page 6 of 6 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 The measured worst case duration for a single pulse transmission in any 100ms time window is 170*283.125 μs = 48.13125 ms. Maximum transmitting duration in every 100 ms period: 48.13125 ms Averaging factor = 20*log(48.13125/100)= -6.3 dB

Test report no. 14009629 Page 1 of 34 EUT: FS14 FCC ID: KR5FS14 Date of issue: 2014-11-20 Date: 2014-02-24 Vers. no. 2.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Test Report acc. to FCC Title 47 CFR Part 15 relating to Continental Automotive GmbH FS14 Title 47 - Telecommunication Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Measurement Procedure: ANSI C63.4-2009 Test report no. 14009629 Page 2 of 34 EUT: FS14 FCC ID: KR5FS14 Date of issue: 2014-11-20 Date: 2014-02-24 Vers. no. 2.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Manufacturer’s details Manufacturer Continental Automotive GmbH Manufacturer’s grantee code KR5 Manufacturer’s address Continental Automotive GmbH Siemensstr. 12 93055 Regensburg Germany Phone: +49 (0) 941 790 6699 Fax: +49 (0) 941 790 996699 Email: [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2009 Test Report prepared by Technical engineer Ralf Trepper m. dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Email: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name Continental Type designation FS14 Serial no. --- Variants --- Test report no. 14009629 Page 3 of 34 EUT: FS14 FCC ID: KR5FS14 Date of issue: 2014-11-20 Date: 2014-02-24 Vers. no. 2.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 1. Test result summary Clause Requirements headline Test result Report page number 8.1 Antenna requirement Pass Fail N.t.* 9 8.2 Conducted limits Pass Fail N.t.* 10 to 12 8.3 Restricted bands of operation Pass Fail N.t.* 13 to 15 8.4 Radiated emission limits, general requirements Pass Fail N.t.* 16 to 21 8.5 Periodic operation characteristics Pass Fail N.t.* 22 to 23 8.6 Fundamental frequencies / Field strength limits Pass Fail N.t.* 24 to 30 8.7 Bandwidth (20 dB) Pass Fail N.t.* 31 to 32 * Not tested The equipment passed the conducted tests Yes No Signature: ............................. Signature: ...................................... (Technician) (Laboratory-Manager) Test report no. 14009629 Page 4 of 34 EUT: FS14 FCC ID: KR5FS14 Date of issue: 2014-11-20 Date: 2014-02-24 Vers. no. 2.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Introduction ...................................................................................................................................................... 5 3. Testing laboratory ............................................................................................................................................ 5 4. Applicant .......................................................................................................................................................... 6 5. Product and product documentation ................................................................................................................ 6 6. Conclusions, observations and comments ....................................................................................................... 7 7. Operational description ..................................................................................................................................... 8 8.1 Antenna requirement ....................................................................................................................................... 9 8.1.1 Regulation ............................................................................................................................................. 9 8.1.2 Result .................................................................................................................................................... 9 8.2 Conducted limits ............................................................................................................................................ 10 8.2.1 Regulation ............................................................................................................................................. 10 8.1.2 Test equipment ..................................................................................................................................... 11 8.2.3 Test procedures ..................................................................................................................................... 11 8.2.4 Result .................................................................................................................................................... 12 8.3 Restricted bands of operation .......................................................................................................................... 13 8.3.1 Regulation ............................................................................................................................................. 13 8.3.2 Result .................................................................................................................................................... 15 8.4 Radiated emission limits, general requirements .............................................................................................. 16 8.4.1 Regulation ............................................................................................................................................. 16 8.4.2 Test equipment ..................................................................................................................................... 17 8.4.3 Test procedure…

Text truncated - open the document above for the full version.

Date: 2014-03-07 Page 1 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 6 Test Setup Photographs Date: 2014-03-07 Page 2 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 3 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 4 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 5 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 6 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 7 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 8 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2014-03-07 Page 9 of 9 Vers. no. 1.14 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920
