KR5HFM4C01Hand Free Module

User Manual Hand Free Module (HFM) HFM4C01 . Applicant:Continental Automotive Technologies GmbH P/N: Hand free module M/N: HFM4C01 Brand:Continental FCC : KR5HFM4C01 IC 7812D-HFM4C01 General Product Functional Description The HFM4C01 is a radio frequency transmitter-receiver used in vehicle access systems. The vehicle access system includes: ✓Key fob, which is a remote device ✓LF Antennae ✓Hand Free Module (HFM): It includes a 125 kHz magnetic field and transponder transmitters. The HFM drives up to 6 external dedicated antennas for the 125 kHz transmission. Two are located in the door trims, one or two in the EXT Rear / Front Bumpers depending on vehicle definition, two within the vehicle cockpit and one optional in the trunk depending on the vehicle’s applications. It also includes an integrated RF receiver for 433.92 MHz. The receiver is designed in direct placement and the HFM integrates a RF printed antenna. The main functions performed by the system are: ✓RKE functions (key less features) ✓Hand Free functions for vehicle access and engine start ✓Immobilizer ✓LF antennae management ✓Remote parking Continental Model: HFM4C01 Product: Hand Free Module FCC ID: KR5HFM4C01 IC: 7812D-HFM4C01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)1) this device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. No changes shall be made to the equipment without the manufacturer’s permission as this may void the user’s authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for portable use conditions. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:Op (1)1) this device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation of the device. This equipment complies with the safety requirements for RF exposure in accordance with RSS-102 Issue 5 2015 for portable use conditions. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil d accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement est conforme avec les exigences de sécurité pour l'exposition aux RF conformément aux RSS - 102 Issue 5 2015 pour des conditions d'utilisation portables.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Continental Automotive Technologies GmbH Address Siemensstrasse 12 93055 Regensburg Germany Grantee Code KR5 FCC ID KR5HFM4C01 Authorized Contact Name Thomas Heslberger Contact Email [email protected] Contact Phone 49-941-790-3554 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List [Continental Automotive Technologies GmbH (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Continental Automotive Technologies GmbH (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 09.02.2023 Print Name: Thomas Heselberger Title: Head of Homologation A AN EN HW COE HOM *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Internal Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-20-2022 Ref: Attestation Statements Part 2.911(d)(7) Filing Continental Automotive Technologies GmbH (“the applicant”) certifies that, as of the date of the filing of the application, Continental Automotive Systems, Inc. is our designated U.S. agent for service of process for the FCC application. Continental Automotive Technologies GmbH accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Continental Automotive Systems, Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the FCC application. Sincerely, Designated Continental USA affiliated company Information: Name: Continental Automotive Systems, Inc. FRN: 0022069249 Contact Person: Mark Kenney Address: 1 Continental Dr, Auburn Hills, Michigan, USA 48326 Tel.: (248) 393-5300 Email: [email protected] U.S. Agent Signature: Applicant: Company Name: Continental Automotive Technologies GmbH Grantee Code: KR5 Contact Name: Thomas Heselberger Address: Siemensstrasse 12 93055 Regensburg Germany Tel.: 49-941-790-3554 Email: [email protected] Applicant Signature:

Internal Date: November 18, 2022 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding FCC ID: KR5HFM4C01 To whom it may concern: We, the undersigned, hereby authorize Kevin Tsai / Deputy Manager of SGS Compliance Certification Services Inc. to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Continental Automotive Technologies GmbH. This authorization is valid until further written notice from the applicant. NAME / Title: Thomas Heselberger / Head of Homologation Continental Automotive Technologies GmbH Phone: 49-941-790-3554 E-Mail: [email protected]

Internal Date: November 18, 2022 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Continental Automotive Technologies GmbH Siemensstrasse 12 93055 Regensburg Germany Regarding: Confidentiality Request regarding application for FCC ID: KR5HFM4C01 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Name/title: Thomas Heselberger / Head of Homologation Continental Automotive Technologies GmbH Phone: 49-941-790-3554 E-Mail: [email protected]

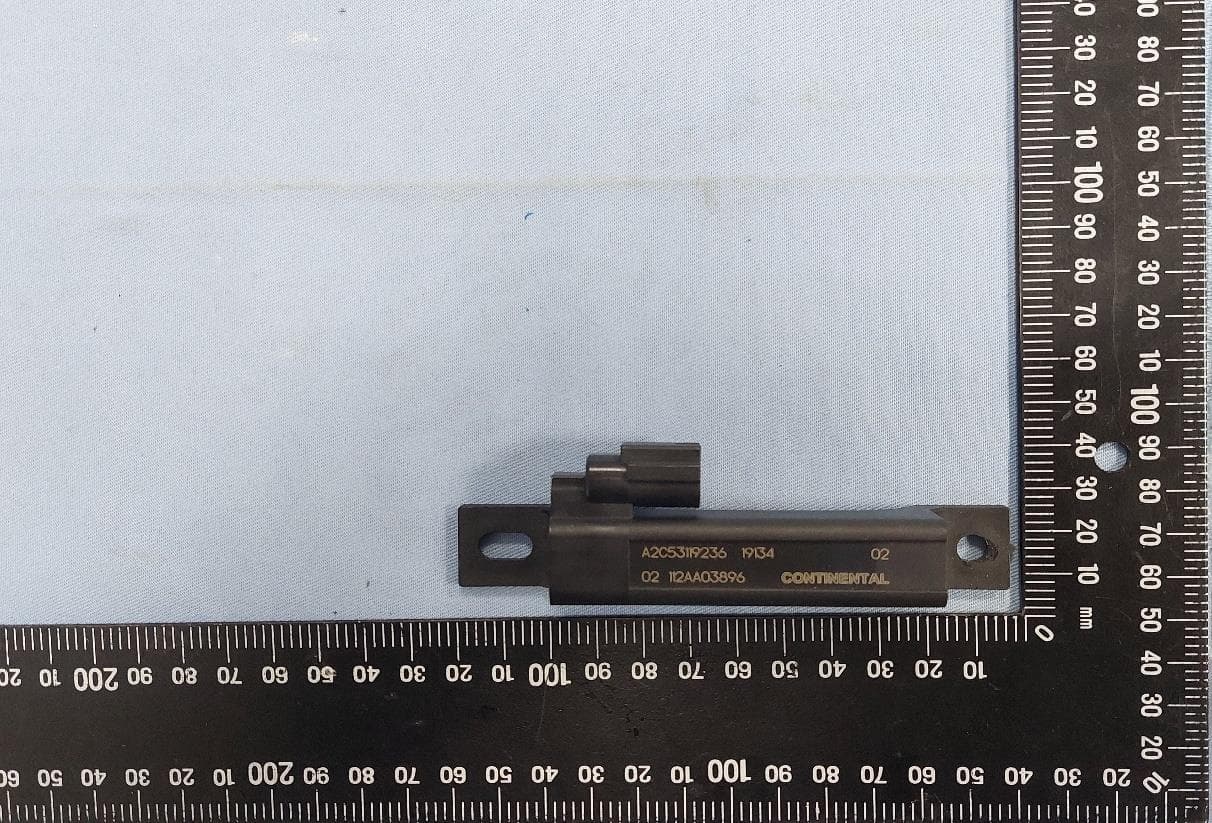

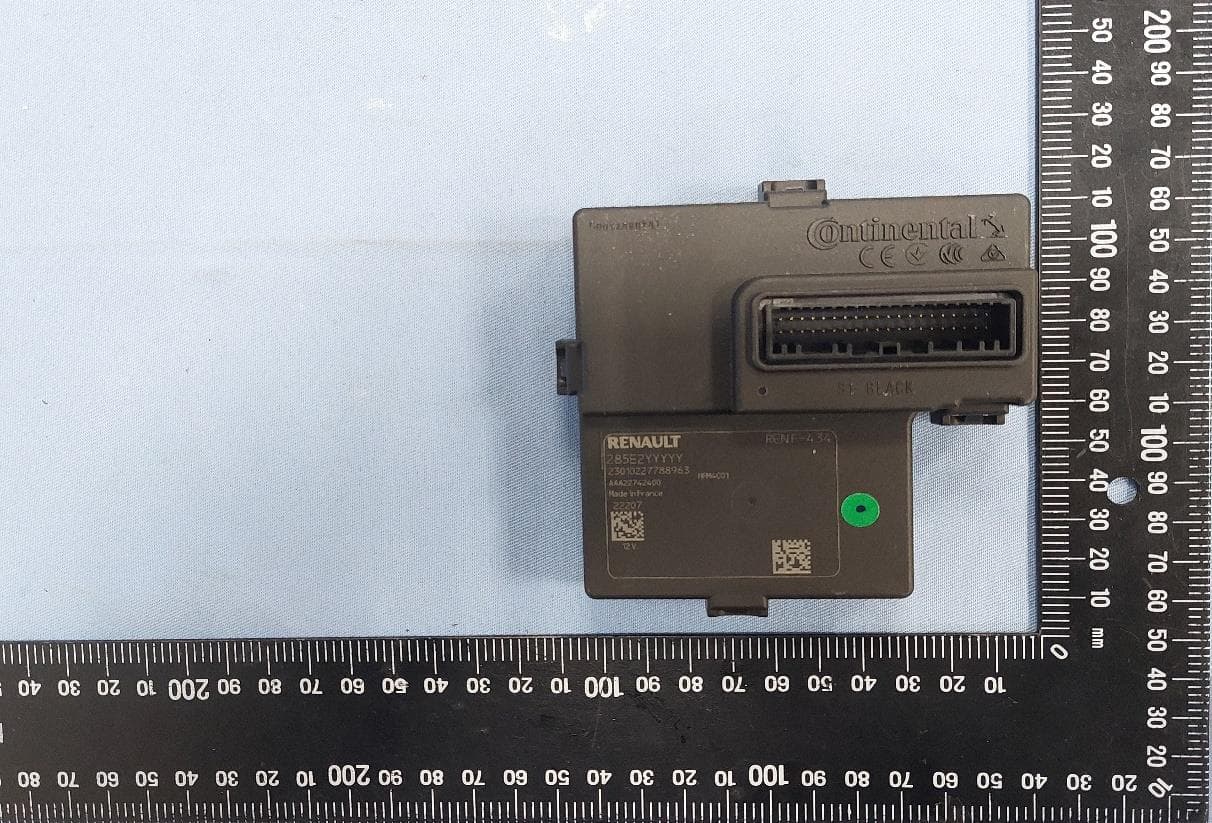

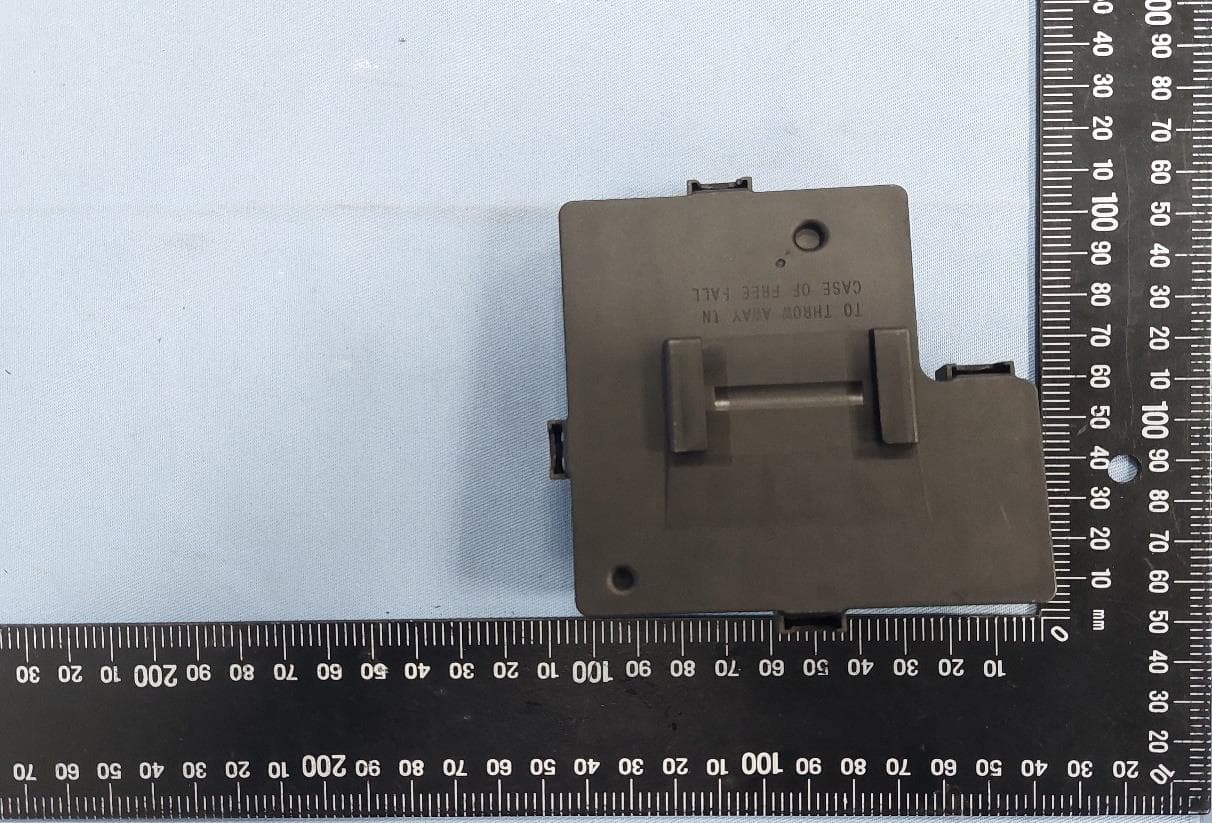

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 1 / 9 Rev. 01 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Model: HFM4C01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 2 / 9 Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 3 / 9 Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 4 / 9 Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 5 / 9 Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 6 / 9 Rev. 01 External Antenna Internal Antenna

HFM4C01 Label Information: Continental HFM4C01 FCC ID: KR5HFM4C01 IC: 7812D- HFM4C01 Applicant:Continental Automotive Technologies GmbH P/N: Hand free module M /N: HFM4C01 Brand:Continental FCC: KR5HFM4C01 IC :7812D-HFM4C01

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 7 / 9 Rev. 01 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 8 / 9 Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2209000257P-1 Page 9 / 9 Rev. 01 RF IC & Crystal

Model HFM4C01 Antenna information: LF Tx Antenna parameters Rated operating frequency: Operating Temperature range: Antenna type: Antenna Brand: Antenna Model: Antenna gain: 125 kHz - 40°C to 85°C Winded wire coil (ferrite or air core) Continental A2C 388 59 000 / A2C 531 19 236 1.76 dBi (all models) RF Rx Antenna parameters Antenna Model: Rated operating frequency: Operating Temperature range: Antenna type: Antenna Brand: Antenna gain: HFM4C01_433M92 433.92 MHz - 40°C to 85°C Printed circuit board antenna trace structure (electrical field antenna) Continental max.: - 2 dBi Applicant:Continental Automotive Technologies GmbH P/N: Hand free module M/N: HFM4C01 Brand:Continental FCC: KR5HFM4C01 IC :7812D-HFM4C01
