KR5HFMCMFB01Transponder authentication transceiver

Document: User Manual Model: HFM_CMFB_01 Date: November 20, 2015 Number of pages: 8 Name: Department: Phone: Date: Sign: Author: Jérôme Lee I B&S RD RF +33561196241 29/07/2015 1. Check: Sven Kubeil I B&S RD RF +49941790292 29/07/2015 Responsible: Patrick Mazo I B&S S2 +33561198592 29/07/2015 .Proprietary data, company confidential. Al l r ights reserved. Confié à titre de secret d'entrepr ise. Tou s droits réservés. Comunicado como segr edo empr esarial. Reservados tod os os direitos. Confidado como secreto industrial. Nos reservamos t odos los derechos. . Author: JEROME LEE User Manual Version: 1.0 HFM_CMFB_01 Chap. 0 File: HFM_CMFB_01_User_Manual_v1.0 Fehler! Verweisquelle konnte nicht gefunden werden. Page 2 / 8 VERSIONS LIST Version Date Author Comment, Description V1 28/07/2015 Jérôme Lee Creation RELATED DOCUMENTS Document Version Date Author Comment, Description ABBREVIATION REGISTER Abbreviation Description As Assistant ASK Amplitude Shift Keying BCM Body Control Module HFM Hand Free Module CW Continuous Wave DR Driver FCC Federal Communication Commission FSK Frequency Shift Keying LF Low Frequency RF Radio Frequency RKE Remote Keyless Entry Author: JEROME LEE User Manual Version: 1.0 HFM_CMFB_01 Chap. 0 File: HFM_CMFB_01_User_Manual_v1.0 Fehler! Verweisquelle konnte nicht gefunden werden. Page 3 / 8 VERSIONS LIST ............................................................................................................................................................ 2 RELATED DOCUMENTS ................................................................................................................................................ 2 ABBREVIATION REGISTER ........................................................................................................................................... 2 1 SYSTEM OVERVIEW .......................................................................................................................................... 4 1.1 SCOPE OF DOCUMENT ................................................................................................................................... 4 1.2 SHORT DESCRIPTION OF THE COMPLETE SYSTEM INCLUDING HFM_CMFB_01 ........................................ 4 2 CAR ACCESS ...................................................................................................................................................... 5 3 ENGINE START ................................................................................................................................................... 5 4 PICTURE ............................................................................................................................................................... 6 5 LABEL INFORMATION ..................................................................................................................................... 7 5.1 EC ................................................................................................................................................................... 7 5.2 USA/CANADA ................................................................................................................................................. 7 6 OWNER MANUAL STATEMENTS ................................................................................................................. 7 6.1 OWNER MANUAL CANADA .............................................................................................................................. 7 6.2 OWNER MANUAL USA .................................................................................................................................... 8 Author: JEROME LEE User Manual Version: 1.0 HFM_CMFB_01 Chap. 0 File: HFM_CMFB_01_User_Manual_v1.0 Fehler! Verweisquelle konnte nicht gefunden werden. Page 4 / 8 1 SYSTEM OVERVIEW 1.1 Scope of Document The aim of this document is to provide a short overview on the HFM_CMFB_01 Hand free system. 1.2 Short Description of the complete System including HFM_CMFB_01 The HFM_CMFB_01 is a radio frequency transmitter-receiver used in vehicle access systems. The vehicle access system includes:
Key fob, which is a remote device It includes a 315 MHz or 433.92 MHz transmitter, a 125 kHz LF receiver and a 125 kHz transponder
LF Antennae
Kazashi includes a coil antenna for 125 kHz transponder communication
HFM (Hand Free Module) of model HFM_CMFB_01: It includes a 125 kHz LF long range and transponder transmitters and a 315 MHz or 433.92 MHz receiver. The HFM_CMFB_01 drives 5 external dedicated antennae for the 125 kHz transmission. Two are located in the doors trims, one in the Bumper and two within the vehicle cockpit. It includes also an integrated RF receiver for 315 MHz or 433.92 MHz, the receiver is designed in direct placement. The system interacts with other modules such as:
Push Engine Start
Body Control Module
ESCL (Electronic Steering Lock Control)
USM The main functions performed by the system are:
RKE functions (Remote keyless features)
Hand Free functions for vehicle access and engine start
Immobilizer
LF antennae management Author: JEROME LEE User Manual Version: 1.0 HFM_CMFB_01 Chap. 0 File: HFM_CMFB_01_User_Manual_v1.0 Fehler! Verweisquelle konnte nicht gefunden werden. Page 5 / 8 2 Car Access There are two ways to Lock or Unlock the doors of the vehicle: 1. The first way is to use the remote key functionality (RKE) by pressing one of the “Lock” or “Unlock” buttons on the key fob. Data frames are then transmitted at 315 MHz or 433.92 MHz from the key fob of the car. The HFM_CMFB_01 processes the frames received and when the security code is correct, the doors are locked or unlocked automatically. 2. The second way is to use the hand free mode
Unlocking the vehicle : If the car is locked, when the door request switch located in the door is pressed by the car user which has a car key fob, the HFM_CMFB_01 transmits data frames at 12…

Text truncated - open the document above for the full version.

1/1 Continental Automotive GmbH | Siemensstraße 12, 93055 Regensburg | P.O. Box: 10 09 43 | 93009 Regensburg www.continental-corporation.com TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: 12/01/2015 Ref: Short term Confidentiality request for FCC ID: KR5HFMCMFB01 FCC ID: KR5HFMCMFB01 Model: HFM_CMFB_01 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Continental Automotive GmbH. hereby request short-term confidentiality to avoid premature release of sensitive information prior to marketing or release of the product to the public. For the product stated above, we request that the following information be temporarily withheld from public disclose for an initial period of 180 days: - External pictures - Internal photographs - Test setup photographs - User’s guide It is understood that no extensions of the short-term confidentiality may be requested. Sincerely, __________________________ By: Dagmar Kolar Title: Manager RF Homologation Company: Continental Automotive GmbH. Telephone / Fax: +49 941 790 6699 / +49 941 790 996699 e-mail: [email protected]

1/1 Continental Automotive GmbH | Siemensstraße 12, 93055 Regensburg | P.O. Box: 10 09 43 | 93009 Regensburg www.continental-corporation.com Authorisation letter We, Continental Automotive GmbH Siemensstr. 12, 93055 Regensburg, Germany , hereby authorize AT4 wireless, S.A. Parque Tecnológico de Andalucía C/ Severo Ochoa nº 2 - 29590 Campanillas – Malaga, Spain María Nicolau e-mail: [email protected] ; Ricardo Orejas e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. We also hereby certify that neither we nor any party to this application are subject to a denial of U.S. Federal benefits, which include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorisation is applicable to the product: Type of product: Radio frequency transmitter-receiver used in vehicle access systems Brand: Continental Model: HFM_CMFB_01 FCC ID: KR5HFMCMFB01 IC ID: 7812D-HFMCMFB01 Sincerely, __________________________ By: Dagmar Kolar Title: Manager RF Homologation Company: Continental Automotive GmbH Telephone / Fax: +49 941 790 6699 / +49 941 790 996699 e-mail: [email protected]

1/1 Continental Automotive GmbH | Siemensstraße 12, 93055 Regensburg | P.O. Box: 10 09 43 | 93009 Regensburg www.continental-corporation.com TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: 12/01/2015 Ref: Permanent Confidentiality request for FCC ID: KR5HFMCMFB01 FCC ID: KR5HFMCMFB01 Model: HFM_CMFB_01 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission’s Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Continental Automotive GmbH. hereby request permanent confidentiality to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: - Schematics - Operational description - Block diagrams - Part list - Antenna information The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Continental Automotive GmbH. and provide unjustified benefits to our competitors. Continental Automotive GmbH. understand that pursuant to §0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, __________________________ By: Dagmar Kolar Title: Manager RF Homologation Company: Continental Automotive GmbH. Telephone / Fax: +49 941 790 6699 / +49 941 790 996699 e-mail: [email protected]

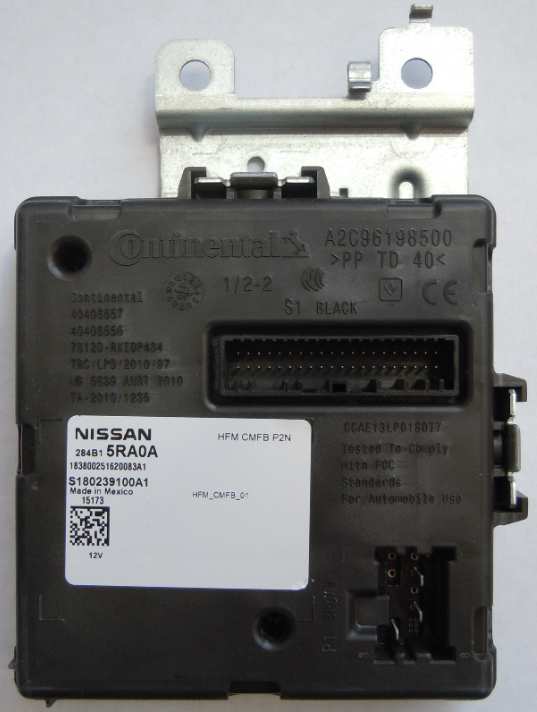

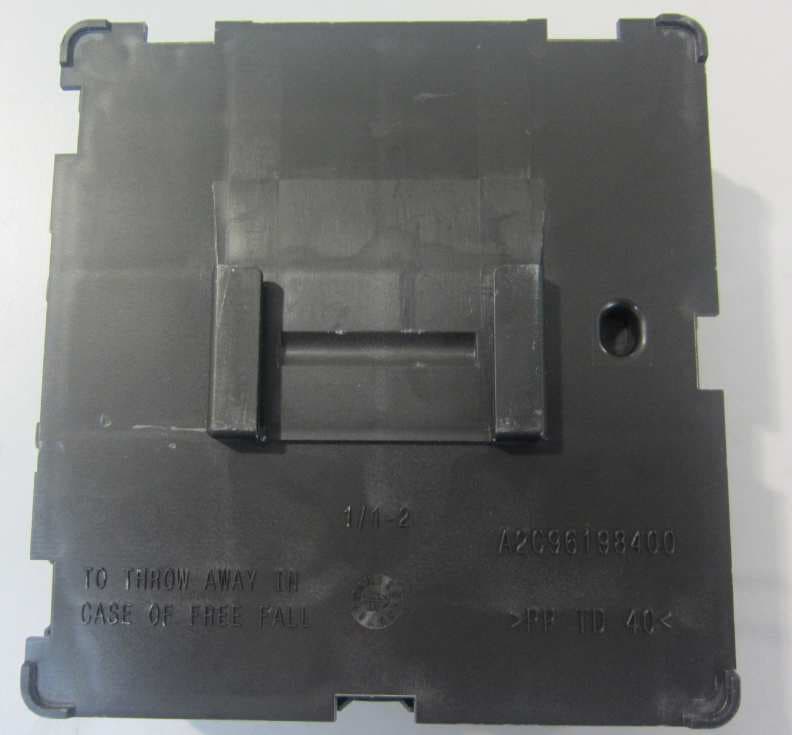

FCC ID: KR5HFMCMFB01 IC: 7812D-HFMCMFB01 EXTERNAL PICTURES FCC ID: KR5HFMCMFB01 IC: 7812D-HFMCMFB01 EXTERNAL PICTURES

Model: HFM_CMFB_01 - Label Specification Page 1 of 9 Content 1 Material definition........................................................................................................................... 2 2 Label definition ................................................................................................................................ 2 2.1 Areas definition ....................................................................................................................... 2 2.2 Common sample with place holders ....................................................................................... 3 2.3 Zone Definition and content ................................................................................................... 3 3 Areas details .................................................................................................................................... 5 3.1 Continental datamatrix ........................................................................................................... 5 3.2 Continental serial number ....................................................................................................... 5 3.3 Reality view ............................................................................................................................. 6 3.4 Homologation marking ............................................................................................................ 8 3.4.1 FCC and IC marking view HFM_CMFB_01 ....................................................................... 8 3.4.2 FCC and IC Marking label view ........................................................................................ 9 Model: HFM_CMFB_01 - Label Specification Page 2 of 9 1 Material definition Label dimensions (in mm) : 35 x 50. Material : polyester white. Reference of the white label : A2C53299582. Reference of the white label specification : 10117745. 2 Label definition 2.1 Areas definition 31 3 5 , 0 0 50,00 2 6 4 7 8 9 10 13 11 12 14 23 16 17 15 1 3 24 25 28 27 29 30 18 26 22 5 19 20 21 Model: HFM_CMFB_01 - Label Specification Page 3 of 9 2.2 Common sample with place holders 2.3 Zone Definition and content Zone num. Comments Zone size (Lxh in mm) 1 Customer mark 16 X 3.5 2 Customer part number 19 X 4 3 Visual help for customer 12 X 7 4 Product Name 18 X 3 5 Customer data matrix (option) 7 X 7 6 CONTINENTAL serial number (14 digits) 19 X 2.5 7 CONTINENTAL part number (S + 9 digits + 1 digit for major index) 15 X 2.5 8 “Made in Mexico” or “Made in France” or “Made in China”: Manufacturing country 11.5 X 2.5 9 Manufacturing date code (YYDDD) 10 X 2.5 Model: HFM_CMFB_01 - Label Specification Page 4 of 9 Zone num. Comments Zone size (Lxh in mm) 10 CONTINENTAL data matrix 7 X 7 11 12 V 4.5 X 2.5 12 Zone homologation marks: Australia mark 4 X 4 13 Zone homologation marks: Taiwan mark 5 X 5 14 Zone homologation marks: Korea mark 7.5 X 5 15 Zone homologation marks: Singapoure mark and ID 10,5 X 5 16 Homologation/Model Number: Model: HFM_CMFB_01 15 X 2.5 17 Zone homologation marks: Korea ID 19.5 X 2.5 18 Zone homologation marks: Malaysia ID 18 X 2.5 19 Zone homologation marks: China ID 15 X 2.5 20 Zone homologation marks: Taiwan ID 15 X 2.5 21 Zone homologation marks: Indonesia ID 18 X 3 22 Zone homologation marks: Brazil ID 17.5 X 2.5 23 Zone homologation marks: Mexico ID 17.5 X 2.5 24 Zone homologation marks: USA ID: FCC ID:KR5HFMCMFB01 17.5 X 2.5 25 Zone homologation marks: Canada ID: IC:7812D-HFMCMFB01 17.5 X 2.5 26 Zone homologation marks: Argentina ID 17.5 X 2.5 27 Zone homologation marks: OMAN ID 17.5 X 2.5 28 Zone homologation marks: Jordania ID 17.5 X 2.5 29 Zone homologation marks: Morocco ID 17.5 X 2.5 30 Zone homologation marks: SOUTH AFRICA ID 17.5 X 2.5 31a R116 mark 23.5 X 16.5 31b R116 mark 23.5 X 16.5 Model: HFM_CMFB_01 - Label Specification Page 5 of 9 3 Areas details 3.1 Continental datamatrix Coding : type ECC200 upon ISO/IEC 16022 norm Content : Serial Number 3.2 Continental serial number Guadalajara production structure Serial Number content details : 8 41 1 D 7 8 25 6 15 2 9 D 7 PPPPIIYXXXSSSSII Year Julian date# Serial Number Manufacturing Index Sub-assy Hardware Index Sub-assy Continental sub-assy number (specific for each variant, last 4 digits of A2C). Maufacturing index Continental manufacturing index (change only when sub-assy = hardware is modified). 260 records are allowed. Year Last digit of the year (ex : 8 for 2008). Julian date Day in the julian date format (ex : 256 for September 12 th ). Serial number Consecutive serial number (0001, 0002...9999). It means no more than 9999 parts / day. Hardware index Continental hardware index (change every engineering changes : software or hardware). Model: HFM_CMFB_01 - Label Specification Page 6 of 9 3.3 Reality view Model: HFM_CMFB_01 - Label Specification Page 7 of 9 Model: HFM_CMFB_01 - Label Specification Page 8 of 9 3.4 Homologation marking 3.4.1 FCC and IC marking view HFM_CMFB_01 Model:HFM_CMFB_01 FCC ID: KR5HFMCMFB01 IC:7812D-HFMCMFB01 Model: HFM_CMFB_01 - Label Specification Page 9 of 9 3.4.2 FCC and IC Marking label view Model:HFM_CMFB_01 FCC ID: KR5HFMCMFB01 IC:7812D-HFMCMFB01

FCC ID: KR5HFMCMFB01 IC: 7812D-HFMCMFB01 INTERNAL PICTURES FCC ID: KR5HFMCMFB01 IC: 7812D-HFMCMFB01 INTERNAL PICTURES

TUV SUD BABT FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: December 10, 2015 RF exposure analysis for the equipment HFM_CMFB_01 (FCC ID: KR5HFMCMFB01; IC: 7812D-HFMCMFB01) 1. Introduction The device HFM_CMFB_01 (FCC ID: KR5HFMCMFB01; IC: 7812D-HFMCMFB01) is a radio frequency transmitter- receiver used in vehicle access systems. It contains a 125 KHz transmitter and a 433.92 MHz receiver and is designed to be installed in and used in portable exposure conditions. 2. FCC SAR limits According to § 2.1093 (d) (2) the limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and peak spatial-average SAR limit is 1.6 W/kg, averaged over any 1 gram of tissue over the whole body. 3. IC SAR limits Industry Canada has adopted the SAR and RF field strength limits established in Health Canada’s RF exposure guideline, Safety Code 6: Limits of Human Exposure to Radiofrequency Electromagnetic Energy in the Frequency Range from 3 kHz to 300 GHz. 4. Compliance criteria : For FCC, individual transmitters are deeded to comply with § 2.1093 requirements if the output power of the transmitter meets the conditions specified in section 4.3.1 (Standalone SAR test exclusion) considerations of the document “KDB 447498 D01 Clause 4.3.1 General RF Exposure Guidance v05r02”. For IC, limits specified in section 2.5 of RSS 102, Issue 5 for exemption from Routine Evaluation Limits for devices to be used at less than or equal to 20 cm from the user: 5. Compliance calculations : Sincerely, P.A. By: Dagmar Kolar Title: Manager RF Homologation Company: Continental Automotive GmbH. Telephone / Fax: +49 941 790 6699 / +49 941 790 996699 e-mail: [email protected]

Report No: (NIE) 46347RRF.002 2015-11-16 FCC LISTED, REGISTRATION NUMBER: 720267 IC LISTED REGISTRATION NUMBER IC 4621A-1 Test report No: NIE: 46347RRF.002 Test report USA FCC Part 15.209 CANADA RSS-Gen Identificación del objeto ensayado ...................... Identification of item tested Radio frequency transmitter-receiver user in vehicle car access systems Marca ................................................................ Trademark Continental Modelo y/o referencia tipo ................................ Model and /or type reference HFM_CMFB_01 Other identification of the product .................... FCC ID: KR5HFMCMFB01 IC: 7812D-HFMCMFB01 Final HW version ................................................ --- Final SW version ................................................. --- Características ..................................................... Features Remote functions for vehicle access. Hand free functions for vehicle access and engine start, Immobilizer, LF (125 kHz) Antennae management Fabricante ........................................................... Manufacturer Continental Automotive GmbH Siemensstraße 12, 93055 Regensburg, Germany. Método de ensayo solicitado, norma ................... Test method requested, standard USA FCC Part 15.209 (10–1–14 Edition).: Radiated emission limits, general requirements. CANADA RSS-Gen Issue 4 (November 2014). Transmitter Emission Limits for Licence-Exempt Radio Apparatus. Resultado .............................................................. Summary IN COMPLIANCE Aprobado por (nombre / cargo y firma) ........... Approved by (name / position & signature) A. Llamas RF Lab. Manager Fecha de realización ........................................... Date of issue 2015-11-16 Formato de informe No. ................................ Report template No FDT08_17 AT4 wireless, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 46347RRF.002 Page 2 of 12 2015-11-16 Index Competences and guarantees ......................................................................................................................... 3 General conditions ......................................................................................................................................... 3 Uncertainty .................................................................................................................................................... 3 Usage of samples ........................................................................................................................................... 3 Test sample description ................................................................................................................................. 4 Identification of the client ............................................................................................................................. 4 Testing period ................................................................................................................................................ 4 Environmental conditions .............................................................................................................................. 4 Remarks and comments ................................................................................................................................. 5 Testing verdicts ............................................................................................................................................. 5 Appendix A – Test result ............................................................................................................................... 6 AT4 wireless, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 46347RRF.002 Page 3 of 12 2015-11-16 Competences and guarantees AT4 wireless is a testing laboratory accredited by the National Accreditation Body (ENAC -Entidad Nacional de Acreditación), to perform the tests indicated in the Certificate No. 51/LE 147. AT4 wireless is a laboratory with a measurement facility in compliance with the requirements of Section 2.948 of the FCC rules and has been added to the list of facilities whose measurements data will be accepted in conjuction with applications for Certification under Parts 15 or 18 of the Commission's Rules. Registration Number: 720267. AT4 wireless is a laboratory with a measurement site in compliance with the requirements of RSS 212, Issue 1 (Provisional) and has been added to the list of filed sites of the Canadian Certification and Engineering Bureau. Reference File Number: IC 4621A-1. In order to assure the traceability to other national and international laboratories, AT4 wireless has a calibration and maintenance program for its measurement equipment. AT4 wireless guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at AT4 wireless at the time of performance of the test. AT4 wireless is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of AT4 wireless. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Aut…

Text truncated - open the document above for the full version.

AT4 wireless, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 46347RRF.002 Page 1 of 3 2015-11-16 Appendix B - Photographs AT4 wireless, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 46347RRF.002 Page 2 of 3 2015-11-16 EQUIPMENT UNDER TEST VIEW AT4 wireless, S.A.U. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 46347RRF.002 Page 3 of 3 2015-11-16 TEST SET-UP FOR RADIATED MEASUREMENTS 9KHz-30MHz
