FCC ID: KR5KESSY File: S\Postzula\VW\Kessy\Usa_Canada\funktionsbeschreibung_ePage 1 Functional Description / User Manual for SIEMENS Keyless access control system and immobilizer Type KESSY FCC ID: KR5KESSY File: S\Postzula\VW\Kessy\Usa_Canada\funktionsbeschreibung_ePage 2 1. Functional Description - Keyless access control system and immobilizer, type KESSY 1.1. General functional description The keyless access control system, type Kessy, enables convenient utilization of the vehicle. To use the vehicle, the driver only needs to take the key along with him/her. The vehicle communicates with the system inductively via antennas. These antennas are located in the outside door handles, in the rear bumper, in the gearshift - lever housing , in the center console, in the central rear arm rest and in the backlite shelf. These antennas are driven inductively with a frequency of 125 kHz. The system's range is limited in a defined fashion by damping the body sheet metal. In the vehicle interior, the ranges of the various antennas overlap, which enables location of the key. 1.2. Keyless access control (maximum assembly variant M-Option) The handle of the driver's door and the boot lid are equipped with contacts to ensure the locking and unlocking functions. If the door handle of a locked vehicle is pulled, the control unit activates the antennas on the vehicle's side where the handle has been pulled. These antennas generate an inductive field of 125 kHz which enable identification of the transponder located in the key. In case of successful evaluation by the KESSY control unit and with the outside door handle actuated, the command "Open door" is issued, i.e. the door opening assistant and the central locking system are activated. If the "locking button" is pushed while the vehicle is unlocked, the identification proc- ess is started, i.e. the KESSY control unit starts a request for a valid key. The key returns a corresponding response to the KESSY control unit. If the key has been ac- tivated successfully by the KESSY control unit, the central locking system is activated and the vehicle is locked. FCC ID: KR5KESSY File: S\Postzula\VW\Kessy\Usa_Canada\funktionsbeschreibung_ePage 3 1.3. Keyless start/stop (maximum assembly variant M-Option) The system provides the function which enables starting/stopping the engine without key actuation. The prerequisite for starting the vehicle is a key allocated to the vehicle, which is taken along by the user and is clearly inside the vehicle. By actuating the starting de- vice, the driver starts the identification process, i.e. the KESSY control unit issues a request for a valid key inside the vehicle. The key returns an appropriate response to the KESSY control unit. In case of successful identification of the key, the vehicle is started and the immobilizer is deactivated. Prinzipdarstellung Fig. 1 indukt. Wirkungsbereich Türgriffantennen indukt. Wirkungsbereich Innenraumantennen indukt. Wirkungsbereich Hutablageantennne indukt. Wirkungsbereich Stoßfängerantenne induktive Antennen Funksender Funkempfänger im Steuergerät Funk Wirkungsbereich Block diagram Fig. 1 - inductive range of action of outside door handle antennas - range of action of center console / rear arm rest antennas - inductive range of action of an- tenna in backlite shelf - inductive range of action of bumper antenna - inductive antennas - key - radio receiver in control unit - range of radio action FCC ID: KR5KESSY File: S\Postzula\VW\Kessy\Usa_Canada\funktionsbeschreibung_ePage 4 1.3. Immobilizer (reduced assembly variant Basic-Option) The immobilizer is deactivated on vehicle start: the key is identified by the integrated transponder which communicates via inductive transmission with the electronic igni- tion lock (EZS). The EZS supplies the transponder with inductive energy. The magnetic field is modulated with data which are sent to the electronic ignition lock by the control unit. This data transfer operates at an operating frequency of 125 kHz. The response returned by the key is demodulated in the electronic ignition lock, and sent back to the control unit. If identification was successful, the immobilizer is dis- abled . EZS WFS- Controller PCF7991AT WFS-Antenne SCLKDOUTDIN Transp. 2. List of variants 5WK4 7026Control unit – maximum assembly (M-Option) 5WK4 7025Control unit – reduced assembly (Basic-Option) only immobiliser function 5WK4 5014Center console antenna / rear arm rest antenna 5WK4 5015Gearshift-lever housing antenna 5WK4 5016Bumper antenna 5WK4 5017Backlite shelf antenna 3D0 905 865Electronic ignition lock (EZS) antenna 3D0 837 205/206Outside door handle antenna WFS-Antenne - immobilizer antenna FCC ID: KR5KESSY File: S\Postzula\VW\Kessy\Usa_Canada\funktionsbeschreibung_ePage 5 Control unit -WFS -KESSY 3. Block diagram 4. Technical Description Carrier frequency:125 kHz Field strength:< 42 dBμA/m in 10 m Modulation:ASK Band width:123,13 kHz – 126,88 kHz Baud rate:4 kBd Supply voltage:13,5 V Battery typeCar battery Range:1,5 m – 2,0 m Duty Cycle: 27 actuations of immobilizer/access control system within 24 hours with a typical transmission time of 1.5 seconds Transmission time T ON 40,5seconds / 24 hours Off time T OFF 86.359,5seconds / 24 hours Duty Cycle: T ON / T (ON+OFF) x 100% = 40,5 / 86.400 x 100 % = 0,05 % Gearshift- lever housing antenna Bumper antenna Electronic ingnition lock (EZS) Start/Stop button Center console antennas Outside door handle antenna FCC ID: KR5KESSY File: S\Postzula\VW\Kessy\Usa_Canada\funktionsbeschreibung_ePage 6 FCC ID: KR5KESSY File: S\Postzula\VW\Kessy\Usa_Canada\funktionsbeschreibung_ePage 7 5. Label Design FCC Declaration: FCC ID: KR5KESSY This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. FCC ID: KR5KESSY File: S\Postzula\…

Text truncated - open the document above for the full version.

ATTESTATION STATEMENT FCC ID: KR5KESSY Keyless access control system and immobilizer Type KESSY SUMMARY: All tests according to FCC Part Subpart C Paragraph 15.209 ! - Performed The equipment under test ! - Fulfills the general approval requirements of FCC Part Subpart C Paragraph 15.209 - MIKES BABT PRODUCT SERVICE GmbH - Responsible Engineer _____________________________ Josef Knab

FCC ID: KR5KESSY Control unit -WFS -KESSY Block diagram Gearshift- lever housing antenna Bumper antenna Electronic ingnition lock (EZS) Start/Stop button Center console antennas Outside door handle antenna

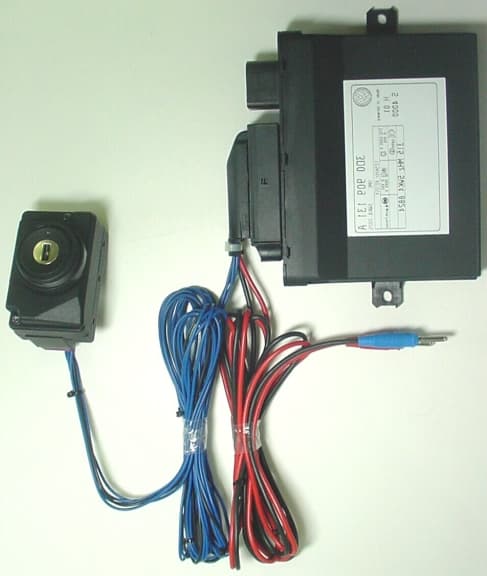

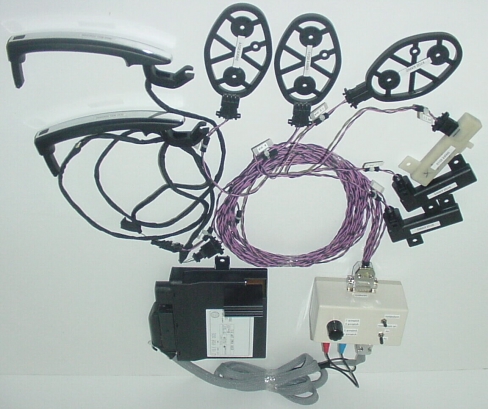

FCC ID: KR5KESSY Attachment E 1 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 2 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 3 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 5WK4 7026 Control unit – maximum assembly (M-Option) FCC ID: KR5KESSY Attachment E 7 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 5WK4 7025 Control unit – reduced assembly (Basic-Option) only immobiliser function FCC ID: KR5KESSY Attachment E 11 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 5WK4 5014 Center console antenna / rear arm rest antenna FCC ID: KR5KESSY Attachment E 12 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 5WK4 5015 Gearshift-lever housing antenna FCC ID: KR5KESSY Attachment E 13 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 5WK4 5016 Bumper antenna FCC ID: KR5KESSY Attachment E 14 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 5WK4 5017 Backlite shelf antenna FCC ID: KR5KESSY Attachment E 15 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 3D0 905 865 Electronic ignition lock (EZS) antenna FCC ID: KR5KESSY Attachment E 18 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 3D0 837 205/206 Outside door handle antenna

FCC ID: KR5KESSY Label Design

FCC ID: KR5KESSY Attachment E 4 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrass e 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 5 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 6 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 8 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 9 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 10 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 16 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 17 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 FCC ID: KR5KESSY Attachment E 18 Keyless access control system and immobilizer KESSY File-No. T 19905-02 KJ MIKES BABT Product Service GmbH ! Ohmstrasse 2-4 ! 94342 Strasskirchen ! Tel.: +49 9424-94070 ! Fax: +49 9424-940760 3D0 837 205/206 Outside door handle antenna

FCC ID: KR5KESSY Duty Cycle 27 actuations of immobilizer/access control system within 24 hours with a typical transmission time of 1.5 seconds Transmission time T ON 40,5seconds / 24 hours Off time T OFF 86.359,5seconds / 24 hours Duty Cycle: T ON / T (ON+OFF) x 100% = 40,5 / 86.400 x 100 % = 0,05 %

FCC ID: KR55WK45032 General functional description The keyless access control system, type Kessy, enables convenient utilization of the vehicle. To use the vehicle, the driver only needs to take the key along with him/her. The vehicle communicates with the system inductively via antennas. These antennas are located in the outside door handles, in the rear bumper, in the gearshift - lever housing , in the center console, in the central rear arm rest and in the backlite shelf. These antennas are driven inductively with a frequency of 125 kHz. The system's range is limited in a defined fashion by damping the body sheet metal. In the vehicle interior, the ranges of the various antennas overlap, which enables location of the key. Keyless access control (maximum assembly variant M-Option) The handle of the driver's door and the boot lid are equipped with contacts to ensure the locking and unlocking functions. If the door handle of a locked vehicle is pulled, the control unit activates the antennas on the vehicle's side where the handle has been pulled. These antennas generate an inductive field of 125 kHz which enable identification of the transponder located in the key. In case of successful evaluation by the KESSY control unit and with the outside door handle actuated, the command "Open door" is issued, i.e. the door opening assistant and the central locking system are activated. If the "locking button" is pushed while the vehicle is unlocked, the identification proc- ess is started, i.e. the KESSY control unit starts a request for a valid key. The key returns a corresponding response to the KESSY control unit. If the key has been ac- tivated successfully by the KESSY control unit, the central locking system is activated and the vehicle is locked. FCC ID: KR55WK45032 Keyless start/stop (maximum assembly variant M-Option) The system provides the function which enables starting/stopping the engine without key actuation. The prerequisite for starting the vehicle is a key allocated to the vehicle, which is taken along by the user and is clearly inside the vehicle. By actuating the starting de- vice, the driver starts the identification process, i.e. the KESSY control unit issues a request for a valid key inside the vehicle. The key returns an appropriate response to the KESSY control unit. In case of successful identification of the key, the vehicle is started and the immobilizer is deactivated. Prinzipdarstellung Fig. 1 indukt. Wirkungsbereich Türgriffantennen indukt. Wirkungsbereich Innenraumantennen indukt. Wirkungsbereich Hutablageantennne indukt. Wirkungsbereich Stoßfängerantenne induktive Antennen Funksender Funkempfänger im Steuergerät Funk Wirkungsbereich Block diagram Fig. 1 - inductive range of action of outside door handle antennas - range of action of center console / rear arm rest antennas - inductive range of action of an- tenna in backlite shelf - inductive range of action of bumper antenna - inductive antennas - key - radio receiver in control unit - range of radio action FCC ID: KR55WK45032 Immobilizer (reduced assembly variant Basic-Option) The immobilizer is deactivated on vehicle start: the key is identified by the integrated transponder which communicates via inductive transmission with the electronic igni- tion lock (EZS). The EZS supplies the transponder with inductive energy. The magnetic field is modulated with data which are sent to the electronic ignition lock by the control unit. This data transfer operates at an operating frequency of 125 kHz. The response returned by the key is demodulated in the electronic ignition lock, and sent back to the control unit. If identification was successful, the immobilizer is dis- abled . EZS WFS- Controller PCF7991AT WFS-Antenne SCLKDOUTDIN Transp. List of variants 5WK4 7026Control unit – maximum assembly (M-Option) 5WK4 7025Control unit – reduced assembly (Basic-Option) only immobiliser function 5WK4 5014Center console antenna / rear arm rest antenna 5WK4 5015Gearshift-lever housing antenna 5WK4 5016Bumper antenna 5WK4 5017Backlite shelf antenna 3D0 905 865Electronic ignition lock (EZS) antenna 3D0 837 205/206Outside door handle antenna WFS-Antenne - immobilizer antenna FCC ID: KR55WK45032 Technical Description Carrier frequency:125 kHz Field strength:< 42 dB μ A/m in 10 m Modulation:ASK Band width:123,13 kHz – 126,88 kHz Baud rate:4 kBd Supply voltage:13,5 V Battery typeCar battery Range:1,5 m – 2,0 m

FCC ID: KR5KESSY TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T 19905-1-02 KJ , Page 1 of 27 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 E M I S S I O N -- T E S T R E P O R T Testreport file no. : T 19905-1-02 KJ ______________ Date : December 13, 2000 of issue __________________ Model / Type No. : Keyless access control system and immobilizer ______________________________________________ Type : KESSY ______________________________________________ Applicant : SIEMENS Automotive AG ______________________________________________ Manufacturer : SIEMENS Automotive AG ______________________________________________ Licence holder : SIEMENS Automotive AG ______________________________________________ Address : Wernerwerkstrasse 2 ______________________________________________ D-93049 Regensburg ______________________________________________ Test result accrdg. to the regulation(s) at page 3 : POSITIVE This testreport with appendix consists of 67 pages. The testresult only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the testlaboratory. FCC ID: KR5KESSY File No. T 19905-1-02 KJ , Page 2 of 27 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 D I R E C T O R Y Page A) Documentation Directory2 ________ Testregulations3 ________ General information4-5 ________ Discovery of worst case condition 6 ________ Equipment under Test25 ________ Summary26-27 ________ B) Testdata Conducted emissions 10/150 kHz - 30 MHz 7 ________ Spurious emissions (magnetic field) 10 kHz - 30 MHz 8-13 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz 14-15 ________ Spurious emissions (electric field) 1 GHz - 18 GHz 16-17 ________ Raiated power of the fundamental wave 18-23 ________ Conducted power of the fundamental wave measured on 24 the antenna terminals ________ Attachment A) Testdata / Bandwith plots A1-A12 ________ B) List of Test Equipment B1 ________ C) Photos of the test setup C1-C5 ________ D) Technical description of the test sample D1-D4 (e.g.CDF, Declaration) ________ E) Photos of the EuTE1-E18 ________ F) Measurement Protocol for FCC, VCCI and AUSTEL -- ________ FCC ID: KR5KESSY File No. T 19905-1-02 KJ , Page 3 of 27 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o - EN 50081-1 / 2.1991 o - EN 50081-2 / 7.1993 -------------------------------------------------------------------------------- o - EN 55011 / 3.1991 o - Group 1 o - Group 2 o - class A o - class B o - EN 55014 / 4.1993 o - Household appliances and similar o - tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55104 / 5.1995 Category: o - EN 55015 / A1:1990 o - EN 55015 / 12.1993 o - EN 55022 / 5.1995 o - class A o - class B o - prEN 55103-1/ 3.1995 o - prEN 50121-3-2 / 3.1995 o - EN 60601-1-2 / 4.1994 o - VCCI o - class 1 o - class 2 ! - Part 15 Subpart C (15.209) o - Part 15 Subpart C (15.231) FCC ID: KR5KESSY File No. T 19905-1-02 KJ , Page 4 of 27 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 A D D R E S S O F T H E T E S T L A B O R A T O R Y ! - MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o - ______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature: 15-35 ° C ______ Humidity 45-60 % ______ Atmospheric pressure 860-1060 mbar _________ POWER SUPPLY SYSTEM UTILIZED Power supply system : Car Battery 13.5 V DC STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error of ± 4dB. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) The keyless access control system, type Kessy, enables convenient utilization of the vehicle. To use the vehicle, the driver only needs to take the key along with him/her. The vehicle communicates with the system inductively via antennas. These antennas are located in the outside door handles, in the rear bumper, in the gearshift – lever housing, in the center console, in the central rear arm rest and in the backlite shelf. These antennas are driven inductively with a frequency of 125 kHz. The system ́s range is limited in a defined fashion by damping the body sheet metal. In the vehicle interior, the ranges of the various antennas overlap, which enables location of the key. Number of received/tested samples: 1 / 1 Serial Number: Prototype DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT ! - Black box indicates that the listed condition, standard or equipment is applicable for this Report. o - Blank box indicates that the listed condition, standard or equipment was not applicable for this Report. FCC ID: KR5KESSY File No. T 19905-1-02 KJ , Page 5 of 27 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.6 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Offic…
