KR5MIS

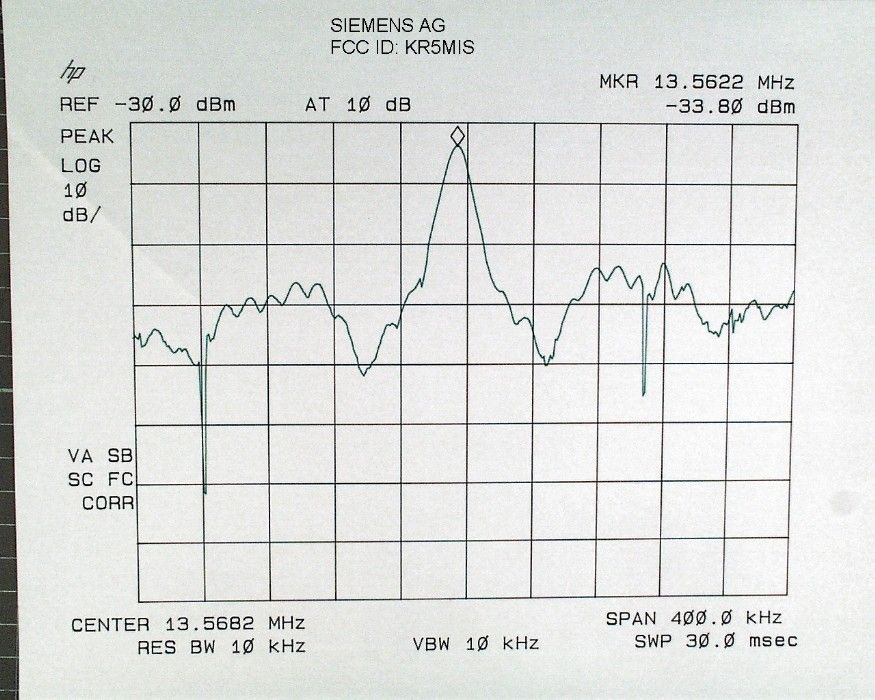

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] February 11, 2000 Mr. Joe Dichoso Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 REF: Siemens AG’s FCC ID: KR5MIS Correspondence ID # 11515 Dear Joe: Per your request of 1/14/00, the responses are as follows: 1. I have sent a new CW plot. 2. The receiver input frequency is +-1%. 3. There is no modulation. The data rate is maximum 9600 Baud. Should you have any questions or require any further information, please advise. Regards, Sharon Hoffman/TIMCO ENGINEERING, INC.

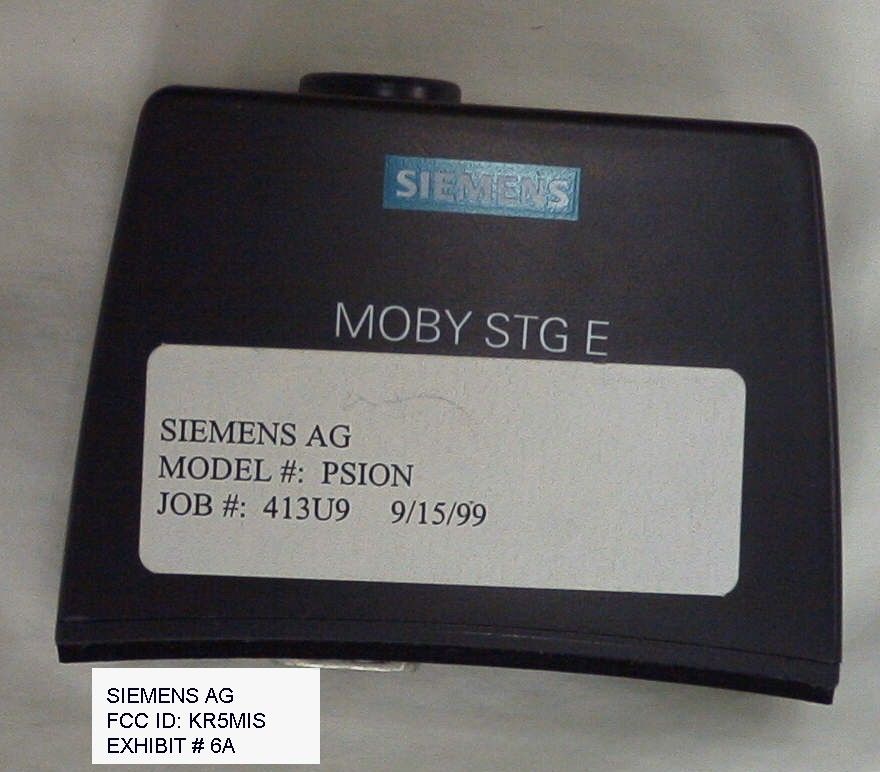

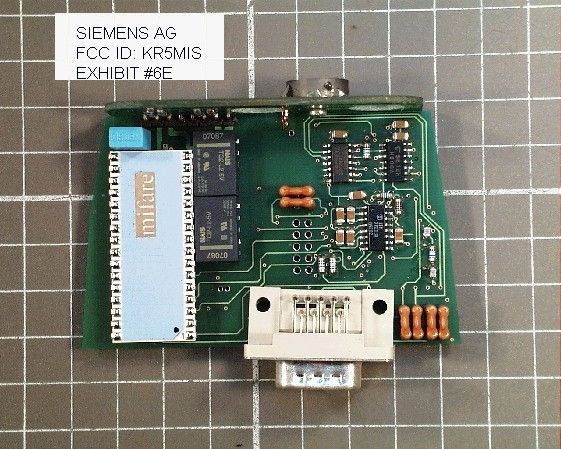

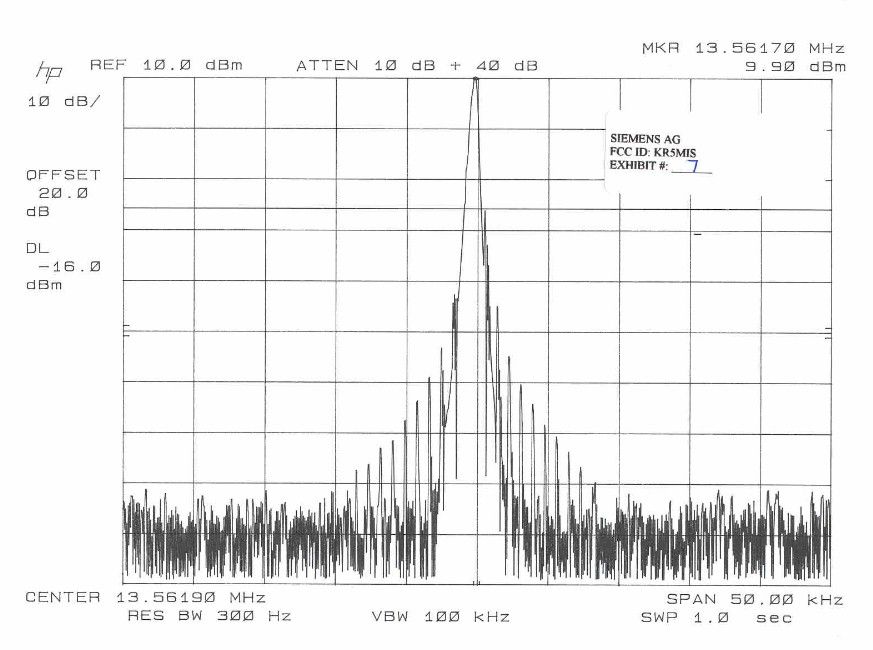

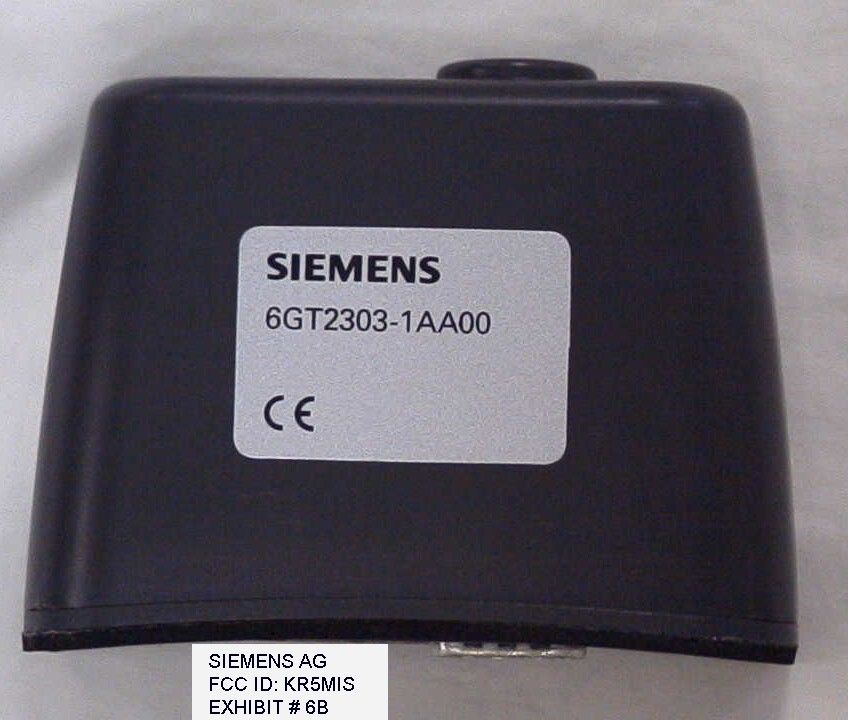

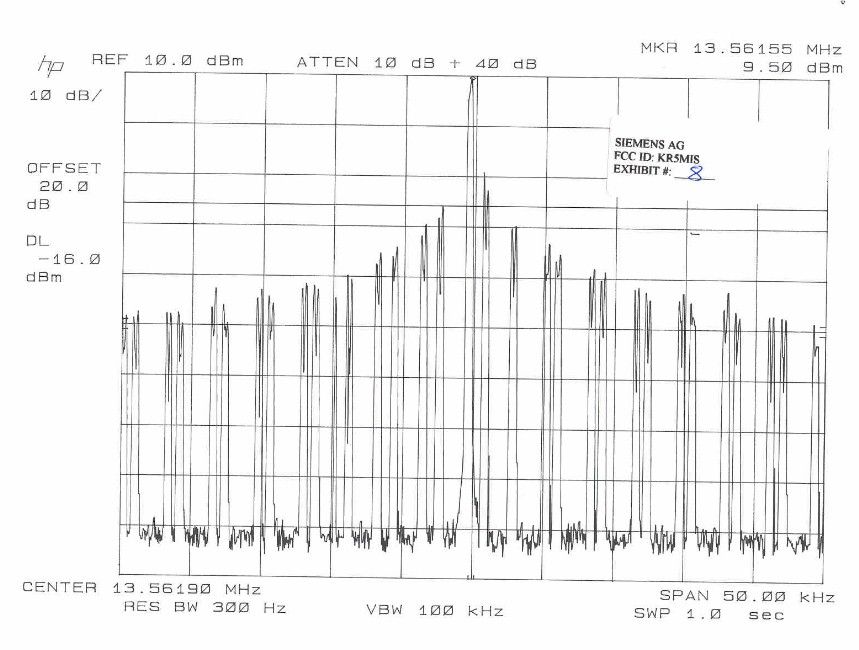

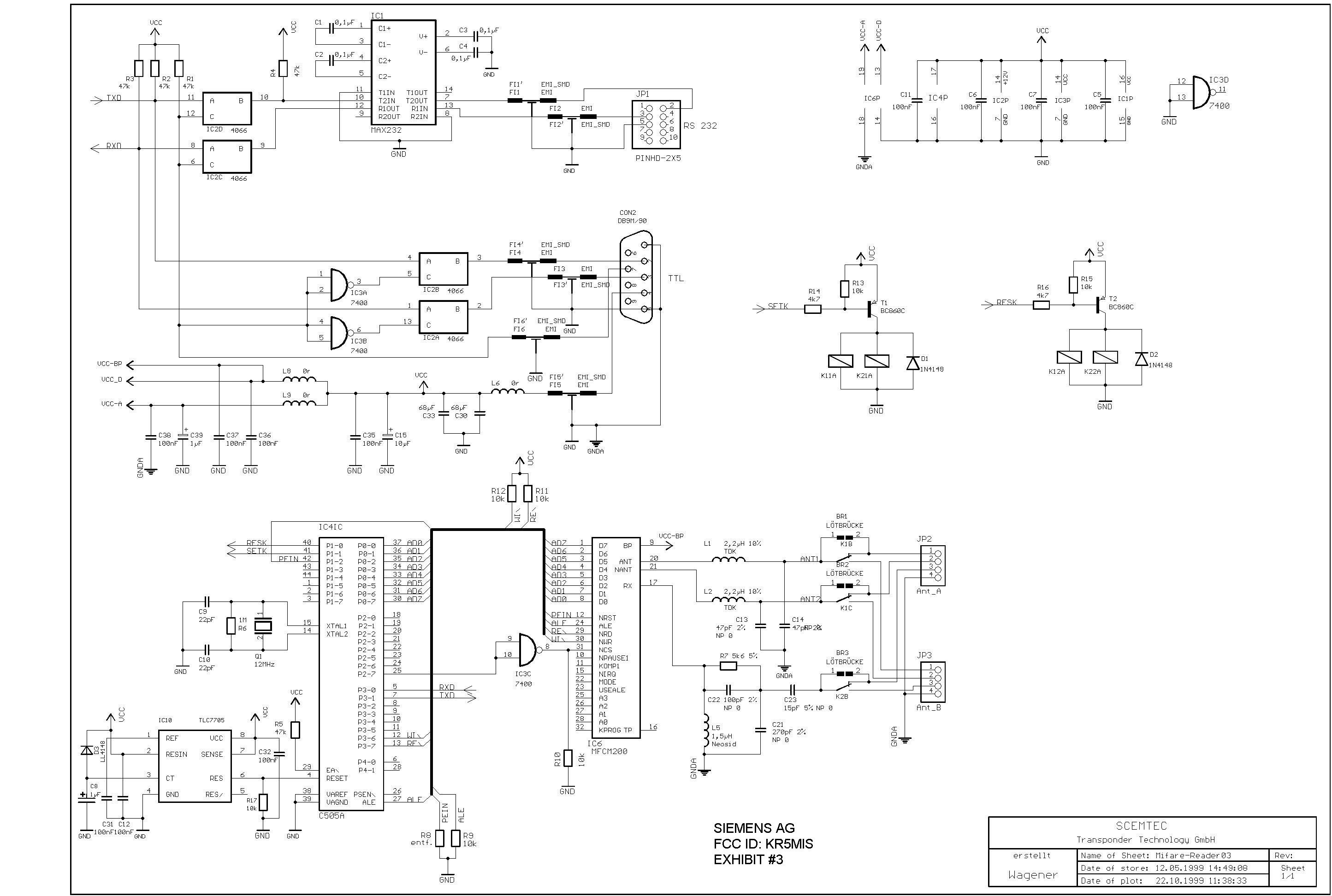

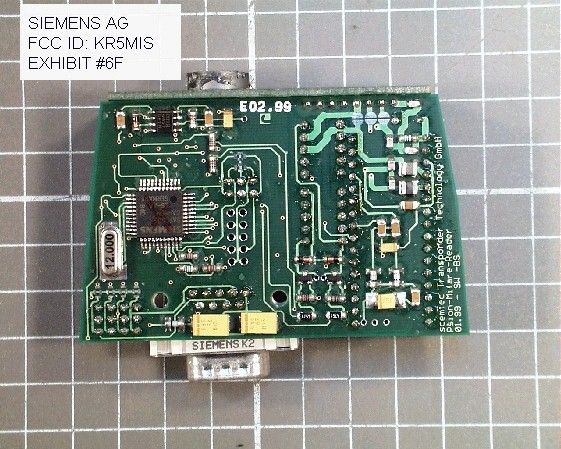

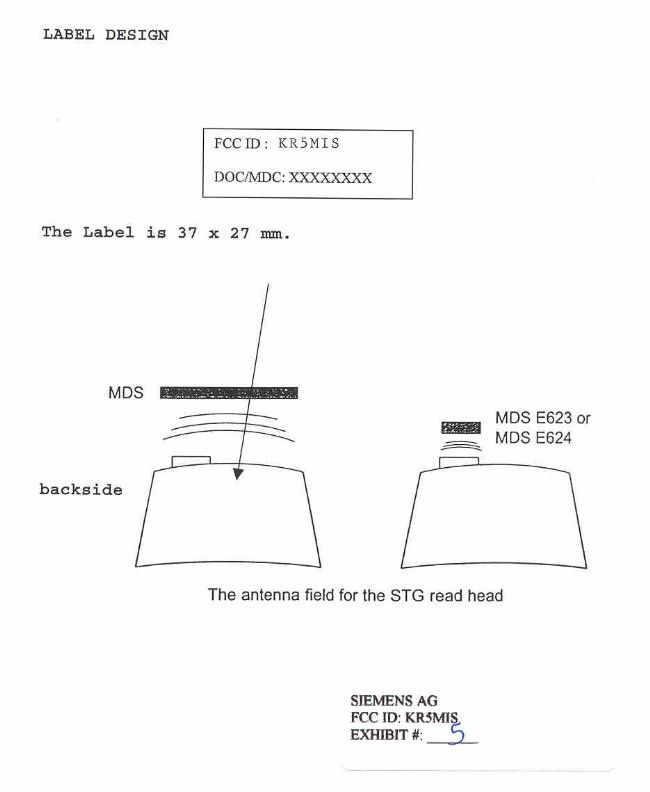

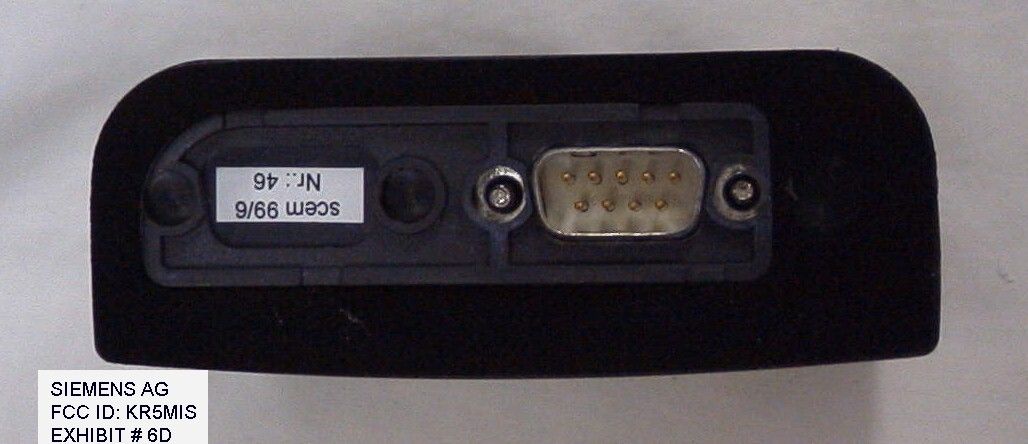

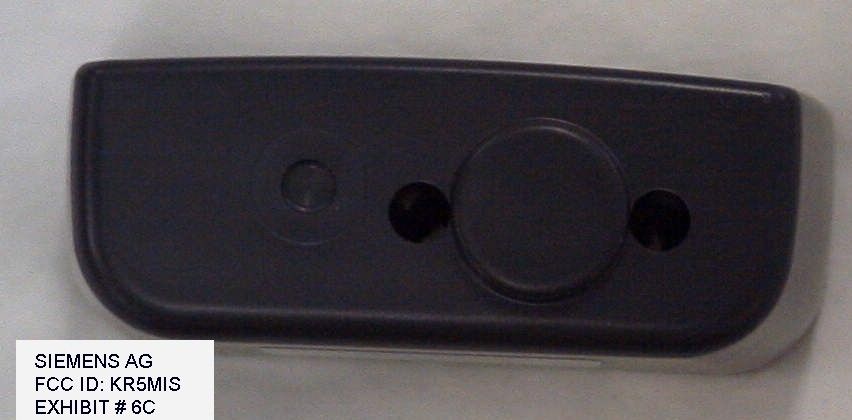

TABLE OF CONTENTS APPLICANT: SIEMENS AG FCC ID: KR5MIS TEST REPORT CONTAINING: PAGE 1......TEST PROCEDURE PAGE 2......TEST PROCEDURE AND CIRCUIT DESCRIPTION PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA PAGE 5......FREQUENCY TOLERANCE TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............POWER OF ATTORNEY LETTER EXHIBIT 2............BLOCK DIAGRAM EXHIBIT 3............SCHEMATIC EXHIBIT 4............INSTRUCTION MANUAL EXHIBIT 5............LABEL SAMPLE & SKETCH OF LOCATION EXHIBIT 6A...........EXTERNAL PHOTO - FRONT VIEW EXHIBIT 6B...........EXTERNAL PHOTO - REAR VIEW EXHIBIT 6C...........EXTERNAL PHOTO - TOP VIEW EXHIBIT 6D...........EXTERNAL PHOTO - BOTTOM VIEW EXHIBIT 6E...........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 6F...........INTERNAL PHOTO - COPPER SIDE EXHIBIT 7............OCCUPIED BANDWIDTH PLOT - CW EXHIBIT 8............OCCUPIED BANDWIDTH PLOT APPLICANT: SIEMENS AG FCC ID: KR5MIS REPORT #: T:\CUS\S\SIEMENS\SIE413Z9\SIE413Z9.RPT PAGE: TABLE OF CONTENTS LIST APPLICANT: SIEMENS AG FCC ID: KR5MIS TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 7/6/99 2. Signal Generator, Hewlett Packard 8640B, cal. 9/23/99 3. Signal Generator, HP 8614A Serial No.2015A07428 cal. 5/27/99 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 10/30/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/31/98 5. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 4/27/99 6. Electro-Metric Antennas Model TDA-30/1-4,Cal. 10/15/98 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. Cal.11/19/98 8. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. Cal. 11/19/98 9. Special low loss cable was used above 1 GHz 10. Tenney Temperature Chamber 11. AC Voltmeter, HP 400FL, Serial No 2213A14499. Cal. 9/21/99 12. Digital Multimeter, Fluke 8010A/12A, Serial No. 4810047. Cal 9/21/99 13. Digital Multimeter, Fluke 77, Serial No. 43850817. Cal 9/21/99 14. Oscilloscope, Tektronix 2230, Serial No. 300572. Cal 9/23/99 15. Frequency Counter, HP 5385A, Serial No. 3242A07460. Cal 10/6/99 16. EMCO Passive Loop Model No. 6512 10kHz-30MHz TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was with a humidity of . FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: SIEMENS AG FCC ID: KR5MIS REPORT #: T:\CUS\S\SIEMENS\SIE413Z9\SIE413Z9.RPT PAGE #: 1 TEST PROCEDURES CONTINUED APPLICANT: SIEMENS AG FCC ID: KR5MIS POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was with a humidity of . ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. CIRCUIT_DESCRIPTION: In the transmit mode the UUT transmitts on 13.56MHz. This device is a bar code reader that transmitts the data that is read by the optical scanner. ANTENNA_AND_GROUND_CIRCUITRY This unit makes use of a short, antenna. The antenna is induc- tively coupled. The antenna is self contained, no provision is made for an external antenna. This unit is powered from a 2.4V battery. No ground connection is provided. The unit relies on the ground tract of the printed circuit board. APPLICANT: SIEMENS AG FCC ID: KR5MIS REPORT #: T:\CUS\S\SIEMENS\SIE413Z9\SIE413Z9.RPT PAGE #: 2 APPLICANT: SIEMENS AG FCC ID: KR5MIS NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.225 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 30M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: PEAK EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV dB FACTOR dB dBuV/m@3m dB POL. 13.56 30.10 1.00 35.50 66.60 13.04 V 27.12 5.80 0.2 11.76 17.76 22.24 V 40.68 3.6 0.30 10.65 14.50 25.50 V SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 13 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 ortho-…
