KR5MIS-IIdentification System

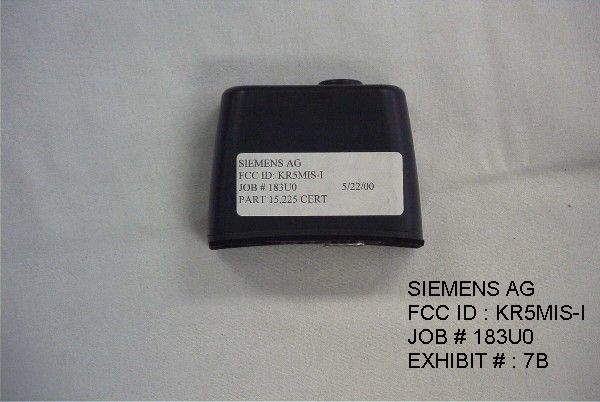

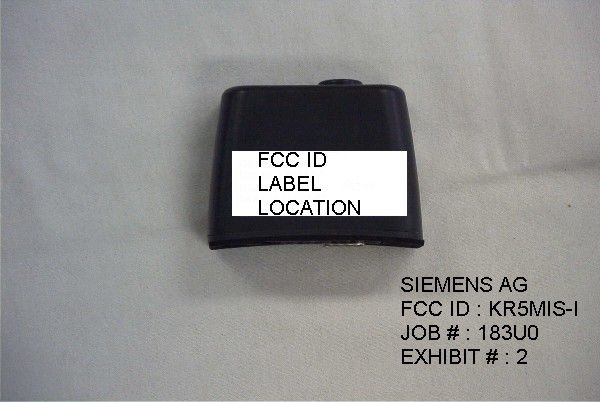

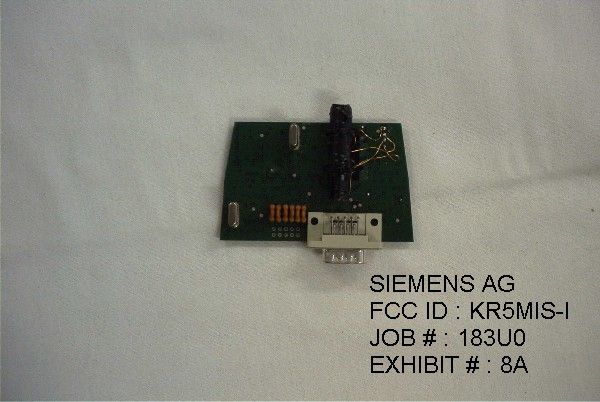

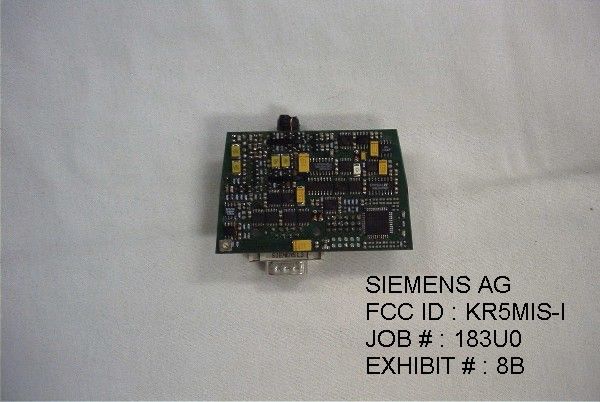

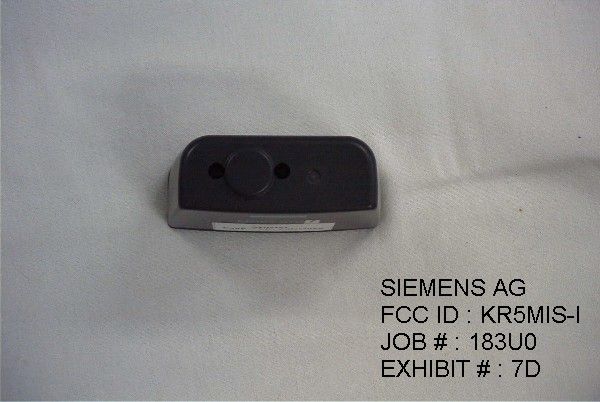

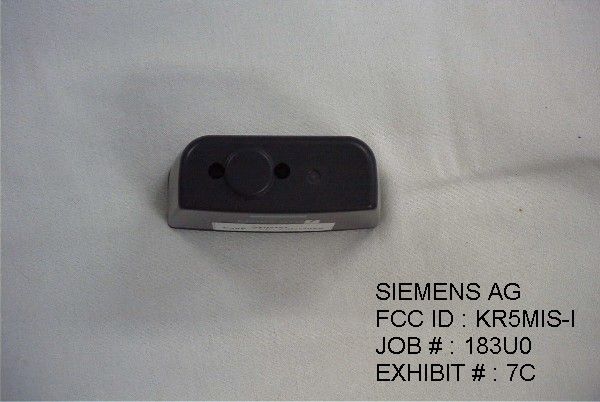

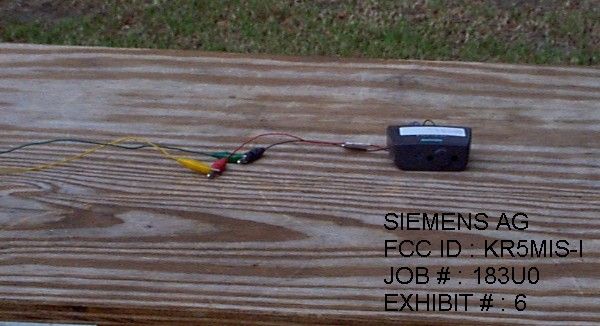

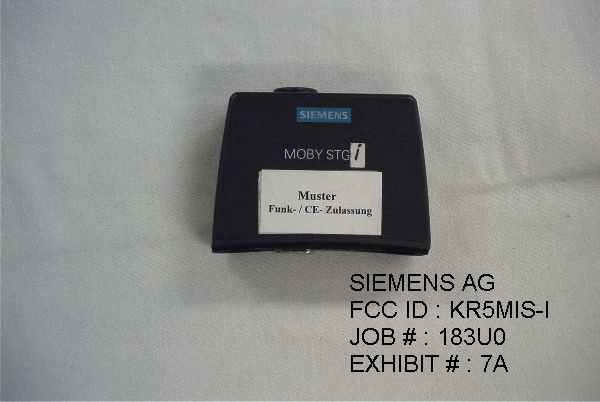

TABLE OF CONTENTS APPLICANT: SIEMENS AG FCC ID: KR5MIS-I REPORT CONTAINING: PAGE 1-2...........TEST EQUIPMENT LIST & TEST PROCEDURES PAGE 3-4...........RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: EXHIBIT 1...........FCC ID LABEL SAMPLE EXHIBIT 2...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3...........BLOCK DIAGRAM EXHIBIT 4...........SCHEMATIC EXHIBIT 5A/5B/5C....INSTRUCTION MANUAL EXHIBIT 6...........TEST SET UP PHOTO EXHIBIT 7A..........EXTERNAL PHOTO - TOP VIEW EXHIBIT 7B..........EXTERNAL PHOTO - BOTTOM VIEW EXHIBIT 7C..........EXTERNAL PHOTO - FRONT VIEW EXHIBIT 7D..........EXTERNAL PHOTO - REAR VIEW EXHIBIT 8A..........INTERNAL PHOTO - SOLDER SIDE EXHIBIT 8B..........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9A-9B.....CIRCUIT DESCRIPTION APPLICANT: SIEMENS AG FCC ID: KR5MIS-I REPORT #: T:\CUS\S\SIEMENS\SIE183U0\183U0.RPT TABLE OF CONTENTS LIST APPLICANT: SIEMENS AG FCC ID: KR5MIS-I TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3.___Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 5.___Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 6.___Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7.___Horn 40-60GHz: ATM Part #19-443-6R 8.___Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 9.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 10.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 11.___Peak Power Meter: HP Model 8900C, S/N 2131A00545 12._X_Open Area Test Site #1-3meters Cal. 12/22/99 13.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 14.___Signal Generator: HP 8614A, S/N 2015A07428 15._X_Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/10/00 16.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 17.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 18.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 19.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 20.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. In the frequency range 10KHz to 30MHz the RBW was 10KHz and from 30-1000MHz the RBW of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 80oF with a humidity of 51%. APPLICANT: SIEMENS AG FCC ID: KR5MIS-I REPORT #: T:\CUS\S\SIEMENS\SIE183U0\183U0.RPT PAGE #: 1 APPLICANT: SIEMENS AG FCC ID: KR5MIS-I TEST PROCEDURE CONTINUED FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: SIEMENS AG FCC ID: KR5MIS-I REPORT #: T:\CUS\S\SIEMENS\SIE183U0\183U0.RPT PAGE #: 2 APPLICANT: SIEMENS AG FCC ID: KR5MIS-I NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.15.109(a) and 15.209 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 2400/F(kHz) AT 300 Meters. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED THE LEVEL OF THE FUNDAMENTAL. 9 to 490 KHz: 2400/F(KHz) uV/m @ 300 METERS 490 to 1705 KHz: 24000/F(KHz) uV/m @ 30 METERS 1705 to 30 MHz: 29.54 dBuV/M @ 30 METERS 30 to 88 MHz: 40.00 dBuV/M @ 3 METERS 88 to 216 MHz: 43.50 dBuV/M 216 to 960 MHz: 46.02 dBuV/M ABOVE 960 MHz: 54.00 dBuV/M TEST CONFIGURATION: The INTENTIONAL RADIATOR was connected to an power source and a harness simulator cable box. The device was tested in transmitting modes. TEST DATA: EMISSION METER READING ANTENNA FIELD FREQUENCY AT 3 METERS CORRECTION STRENGTH ANT. MHz dBuV FACTOR dB dBuV/m@3m POL. 0.136 20.80 13.00 41.80 V 1.80 15.70 -11.00 4.70 V THE MEASUREMENTS WERE MADE AT 3.0Meters. The spectrum was scanned from 10KHz to 1000MHz. SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. APPLICANT: SIEMENS AG FCC ID: KR5MIS-I REPORT #: T:\CUS\S\SIEMENS\SIE183U0\183U0.RPT PAGE #: 3 APPLICANT: SIEMENS AG FCC ID: KR5MIS-I NAME OF TEST: RADIATION INTERFERENCE TEST PROCEDURE: ANSI C63.4-1992 Section 8.2.1. The EUT was placed on a non-conducting table 80CM above the ground plane with the EUT locat- ed in the center of the table. With the antenna vertical a preliminary scan was done at 1 meters distance, the EUT was moved to a 3.0 meter distance and the antenna height varied and also placed in a horizontal position. The frequency was scanned from 9.0KHz to 1.0GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The EUT was measured in three(3) orthogonal planes. The unit was measured at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45 Newberry, Florida 32669. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY:____________________________DATE: 3 JULY 2000 APPLICANT: SIEMENS AG FCC ID: KR5MIS-I REPORT #: T:\CUS\S\SIEMENS\SIE183U0\183U0.RPT PAGE #: 4
