KR5MTXN1Radio Frequency Transmitter

-1- User Manual Model: MTXN1 Radio Frequency Transmitter FCC ID: KR5MTXN1 IC:7812D-MTXN1 -2- 1 General Product Information This document gives an overview of the device operation modes and of the key model MTXN1. In this document the device is referenced as "key", even if the mechanical backup key might be separated from it. 1.1 Trade mark Continental 1.2 Brand Continental 1.3 Manufacturer/Applicant Continental Automotive GmbH Siemensstr. 12 93055 Regensburg Germany The key has three main operating modes which differ regarding of the signal transmitting with the RF: •Immo •RKE •PASE Immobilizer transponder mode Remote keyless functionality Passive key functionality -3- Owner Manual Canada IC:7812D–MTXN1 This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject t o the following two conditions: (1) thi s device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This equipment complies with the safety requirements f or RF exposure in accordance with RSS-102 Issue 5 2015 for portable use conditions. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et ( 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement est conforme avec les exigences de sécurité pour l'exposition aux RF conformément aux RSS - 102 Issue 5 2015 pour des conditions d'utilisation portables. Owner Manual USA FCC ID: KR5MTXN1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for portable use conditions.

GntinentalS Gontinental Automotive GmbH DATE: November4,2019 FCC lD:KRSMTXN1 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification Company name: Compliance Certification Services lnc. Address: No.11 Wugong 6th Road NewTaipei lndustrial Part Name: Kevin Tsai For instances where our authorized agent signs the application for certifica.tion on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified'by Nemko North America, lnc, still resides with us. lil ctl FCC grantee contact person information. Name/Title: Dagmar Kolar / Type approval employee Company Name: Continental Automotive GmbH Address: Siemensstrasse 12 SV C TS RBG EMC-Laboratory Regensburg, Germany 93055 TEL: 49-941-790-6699 FAX: 49-9 41 -790-136699 E mai I : d a g ma r. ko I a r@co nti ne nta l-co rpo ratio n. co m

@ntinentals Continental Automotive GmbH DATE: November 4,2019 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Co-lumbia, MD 21046 FCC lD:KRSMTXN1 Request for Gonfidentialitv Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality - for example .:.) r Schematics o Block diagram . Operationdescription These materials contain trade secrets and propr:ietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. ár^u"þ, FCC grantee contact peíson information Itlame/Title: Dagmar Kolar / Tvoe aoproval emplovee ( Company Name: Continental Automotive GmbH Address: Siemensstrasse 12 SV C TS RBG EMC-Laboratory, Regensburg, Germany 93055 TEL: 49-941-790-6699 FAX: 49-9 41 -790-136699 Email : [email protected]

@ntinentals Continental Automotive GmbH DATE: November 4,2019 Equipment Autorisation Division Federal Communications Commission 7435 Qakland Mills Road Columbia, MD 21046 FCC lD: KRSMTXNl Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 1 5, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: o Test Setup Photos o External Photos o lnternal Photos o User Manual These documents contain detailed system and equipment description and related information about the product which Gontinental Automotive GmbH considers to be proprietary, confidential, and a custom design and, othenrisê would not release to the general public. Since this design is a basis from which future technological products will evolve, ContinentalAutomotive GmbH considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over slte on our part. We understand that the information has been publicly available 180 days after date of grant. :{=--- / oZ)o7u.' þry FCC grantee contact person information. Name/Title: Daqmar Kolar / Tvpe approval emplovee Company Name: Continental Automotive GmbH, Address: Siemensstrasse 12 SV C TS RBG EMC-Laboratory, Regensburg, Germany g30S5 TEL: 49-941-790-6699 FAX: 49-9 41 -790-136699 Email : dagmar. kolar@continental-corporation,com

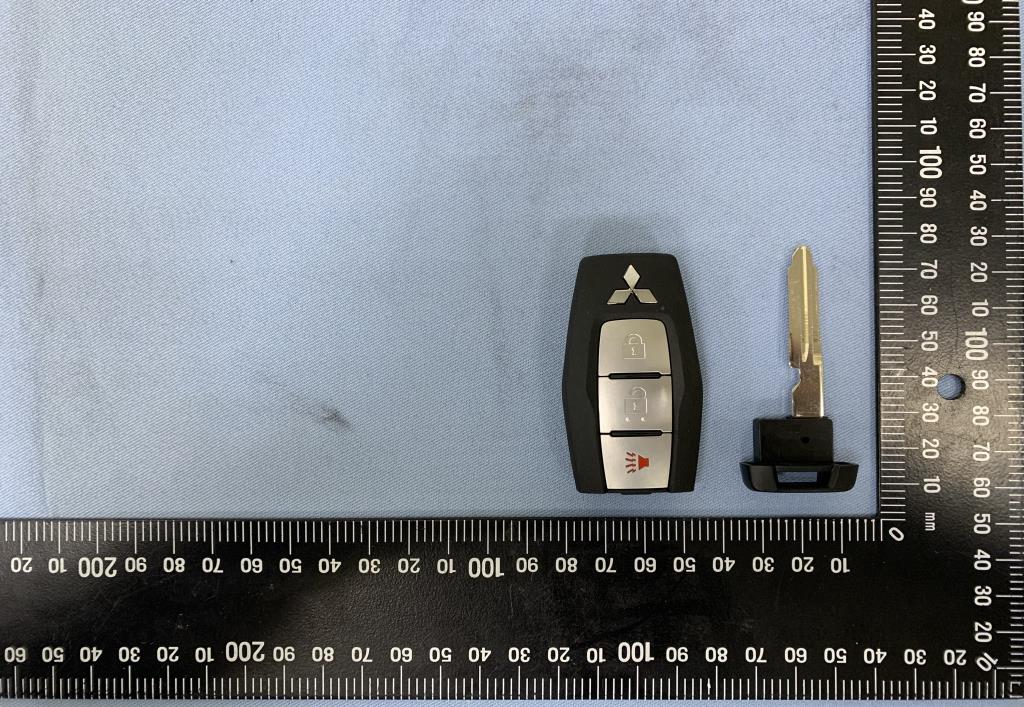

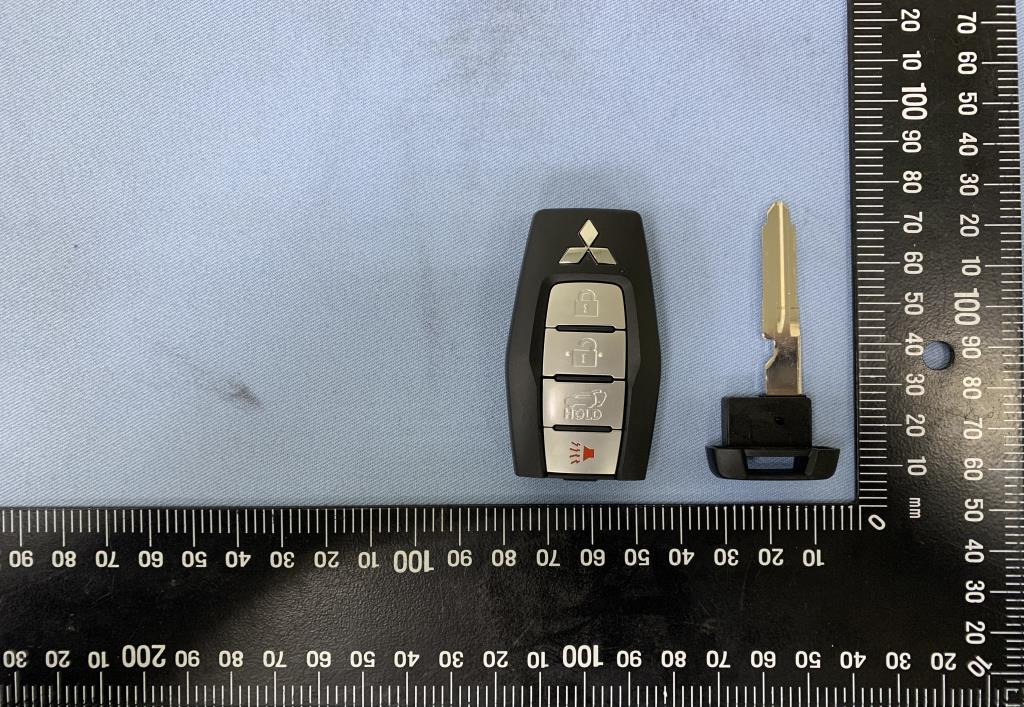

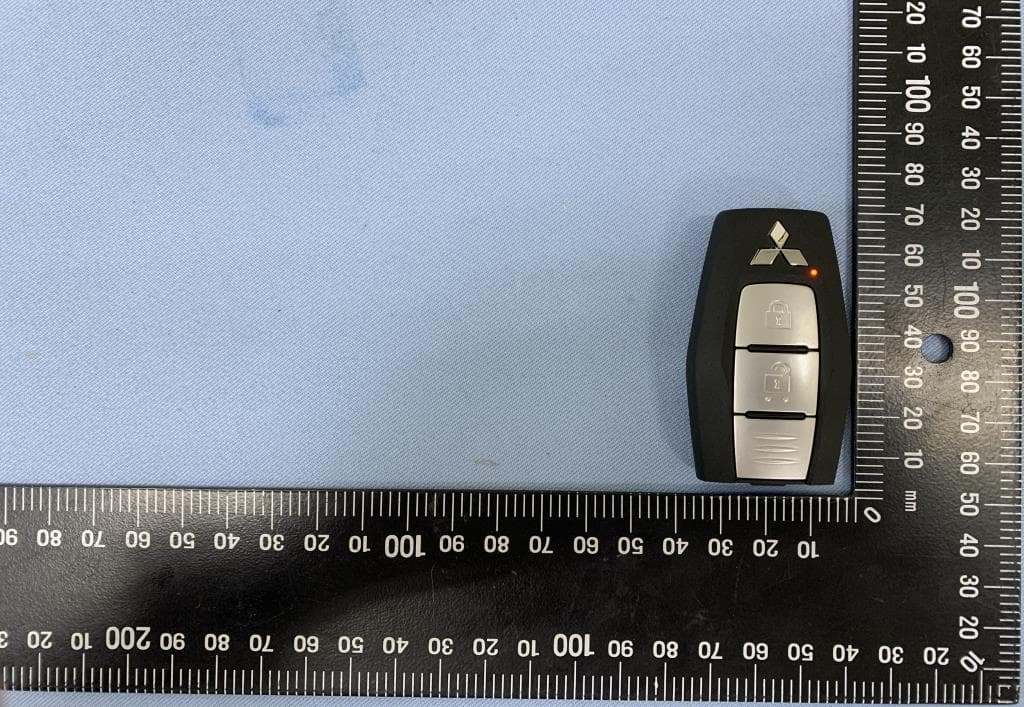

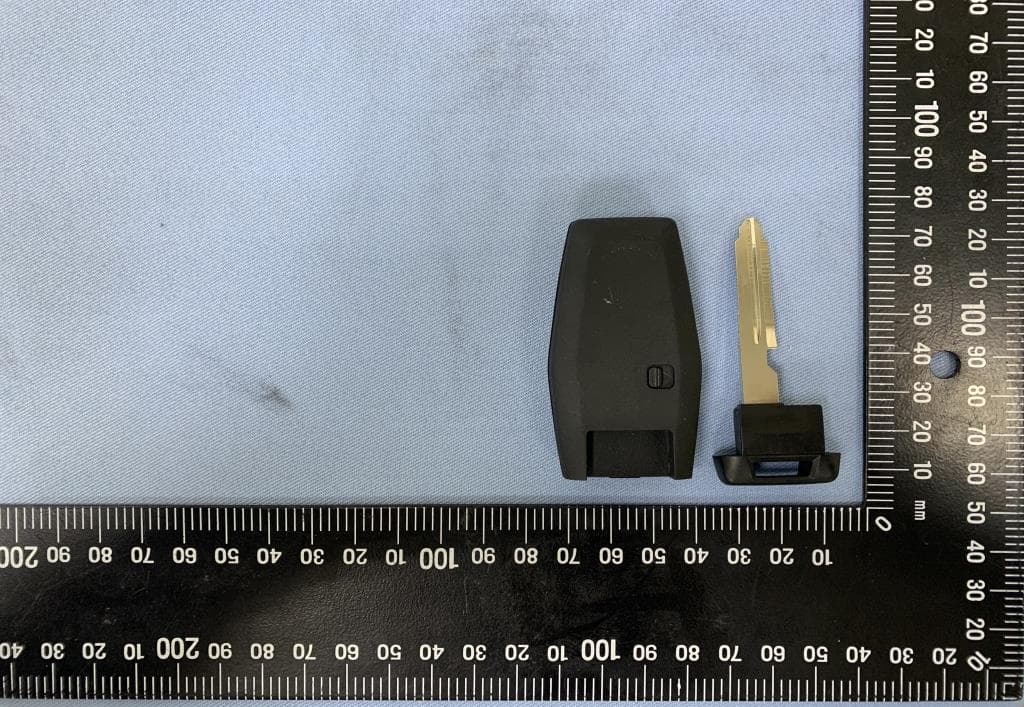

Page: 1 / 20 Report No.: T191014W01 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Product reference: S180145200 Continental / MTXN1 Continental / MTXN1 Page: 2 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Label Location Page: 3 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 4 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Page: 5 / 20 Report No.: T191014W01 Rev.: 00 Product reference: S180145300 Continental / MTXN1 Continental / MTXN1 Label Location Page: 6 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 7 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 8 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 9 / 20 Report No.: T191014W01 Rev.: 00 Product reference: S180145400 Continental / MTXN1 Continental / MTXN1 Label Location Page: 10 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 11 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 12 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 13 / 20 Report No.: T191014W01 Rev.: 00 Product reference: S180145500 Continental / MTXN1 Continental / MTXN1 Label Location Page: 14 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 15 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 16 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1

MTXN1 Label Location: FCC ID: KR5MTXN1 IC:7812D-MTXN1 HVIN: MTXN1 FCC ID: KR5MTXN1 IC:7812D-MTXN1 HVIN: MTXN1

Page: 17 / 20 Report No.: T191014W01 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT Continental / MTXN1 Page: 18 / 20 Report No.: T191014W01 Rev.: 00 Continental / MTXN1 Continental / MTXN1 Page: 19 / 20 Report No.: T191014W01 Rev.: 00 Module Crystal Continental / MTXN1 Continental / MTXN1 Page: 20 / 20 Report No.: T191014W01 Rev.: 00 Antenna Continental / MTXN1

FCC ID: KR5MTXN1 Page: 1 / 31 Report No.: T191014W01-RP Rev.: 02 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan / 新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2298-1882 www.sgs.tw www.ccsrf.com FCC RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.231 Trade name Continental Product name Radio Frequency Transmitter Model No. MTXN1 Operation Freq. TX: 433.92MHz, RX: 125kHz Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of SGS Compliance Certification Services Inc. (Wugu Laboratory) Approved by: Kevin Tsai Deputy Manager Page: 2 / 31 Report No.: T191014W01-RP Rev.: 02 Revision History Rev. Issue Date Revisions Effect page Revised By 00 January 17, 2020 Initial Issue ALL May Lin 01 January 21, 2020 See the following Note Rev. (01) P.5-6 May Lin 02 January 21, 2020 See the following Note Rev. (02) P.5 May Lin Rev (01): 1. Revised the section 1.1. Rev (02): 1. Revised the section 1.1. Page: 3 / 31 Report No.: T191014W01-RP Rev.: 02 Table of contents 1. GENERAL INFORMATION .................................................................................................. 4 1.1 EUT INFORMATION ............................................................................................................ 4 1.2 EUT CHANNEL INFORMATION .......................................................................................... 6 1.3 ANTENNA INFORMATION .................................................................................................. 6 1.4 MEASUREMENT UNCERTAINTY ....................................................................................... 7 1.5 FACILITIES AND TEST LOCATION .................................................................................... 8 1.6 INSTRUMENT CALIBRATION ............................................................................................. 8 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ........................................................... 9 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ....................................................... 9 2. TEST SUMMERY ............................................................................................................... 10 3. DESCRIPTION OF TEST MODES ..................................................................................... 11 3.1 THE WORST MODE OF OPERATING CONDITION .......................................................... 11 3.2 THE WORST MODE OF MEASUREMENT ........................................................................ 11 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 12 3.4 EUT DUTY CYCLE ............................................................................................................ 14 4. TEST RESULT ................................................................................................................... 15 4.1 AC POWER LINE CONDUCTED EMISSION ..................................................................... 15 4.2 EMISSION BANDWIDTH ................................................................................................... 16 4.3 FIELD STRENGTH OF FUNDAMENTAL ........................................................................... 18 4.4 RADIATION UNWANTED EMISSION ................................................................................ 22 4.5 OPERATION RESTRICTION ............................................................................................. 30 APPENDIX 1 – PHOTOGRAPHS OF EUT Page: 4 / 31 Report No.: T191014W01-RP Rev.: 02 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant Continental Automotive GmbH Siemensstrasse 12 SV C TS RBG EMC-Laboratory Regensburg, 93055 Germany Manufacturer Continental Automotive GmbH Siemensstrasse 12 SV C TS RBG EMC-Laboratory Regensburg, 93055 Germany Factory Continental Automotive Changchun Co., Ltd.Jingyue Branch No. 5800 Shengtai StreetJingyue Zone, Changchun City, Jilin Province, P. R. China 130000 Equipment Radio Frequency Transmitter Model Name MTXN1 Model Discrepancy Please see the note Received Date October 14, 2019 Date of Test October 16 ~ 21, 2019 Periodic operation (1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. (2) A transmitter activated automatically shall cease transmission within 5 seconds after activation (3) Periodic transmissions at regular predetermined intervals are not permitted. (4) Periodic transmissions (lower field strength): each transmission is not greater than 1 sec and the silent period between transmissions is at least 30 times the duration of the transmission but in no case less than 10 sec. Power Operation Power from Battery: CR2025 x1 (Lithium: 3V) Operation Frequency TX: 433.92MHz, RX: 125kHz S/W Version MTXN1 H/W Version MTXN1 Page: 5 / 31 Report No.: T191014W01-RP Rev.: 02 Note: 1. All the specification and layout are identical except they come with different external appearance, as shown below: Product reference Product variant S/N S180145200 Lock/Unlock T20891 S180145300 Lock/Unlock/PBD T3000 S180145400 Lock/Unlock/Panic T30438 S180145500 Lock/Unlock/PBD/Panic T40742 Page: 6 / 31 Report No.: T191014W01-RP Rev.: 02 1.2 EUT CHANNEL INFORMATION Frequency Range TX: 433.92MHz, RX: 125kHz Modulation Type FSK Remark: Refer as ANSI 63.10:2013 clause 5.6.1 Table 4 for test channels Number of frequencies to be tested…

Text truncated - open the document above for the full version.

Page: A-1 / A-2 Report No.: T190422W04-A-RP Rev.: 00 APPENDIX-A Test Photo Radiation (Below 1GHz) Radiation (Above 1GHz) Page: A-2 / A-2 Report No.: T190422W04-A-RP Rev.: 00 Conducted Emission
