KR5PAG434190401Radio Frequency Transmitter

Owner Manual Radio frequency transmitter Type PAG-RKE-434-190401 USA: Continental PAG-RKE-434-190401 FCC ID:KR5PAG434190401 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

053019 – 12 CSA Internal | 3rd Party Authority to Act as Agent Date: November 2, 2020 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CSA Group Bayern GmbH, Ms. Christa Jaeger is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, This authorization is valid until further written notice from Continental Automotive GmbH.

CSA Internal | 3rd Party Request for Confidentiality Date: Mai 25, 2020 Subject: Confidentiality Request for FCC ID: KR5PAG434190401 Pursuant to FCC 47 CRF 0.457(d) and 0.459 the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual Continental Automotive GmbH has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ Dagmar Kolar (Signature/Title 3 ) Type Approval Manager 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

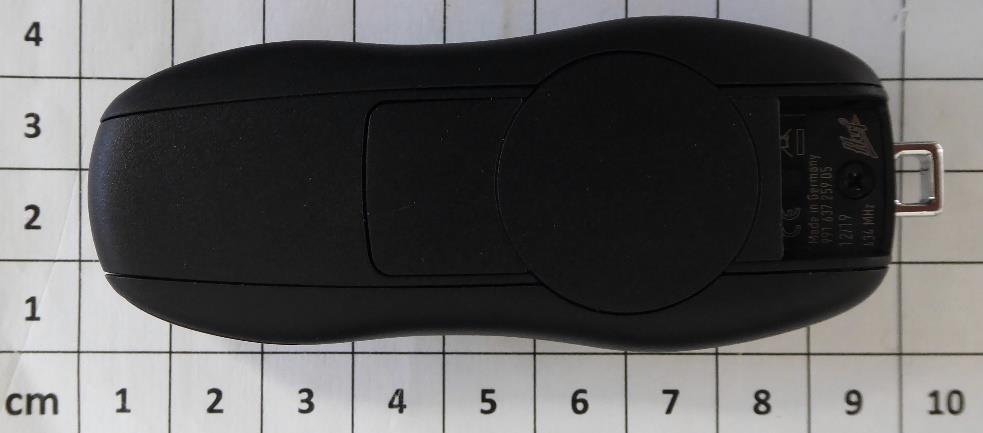

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. T46030-01HU, page 1 of 7 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.0 2019-12-04 Attachment A (Photo documentation of the EuT) Type / Model Name : PAG-RKE-434-190401 Product Description : Radio frequency transmitter Applicant : Continental Automotive GmbH Address : Siemensstrasse 12 93055 Regensburg, Germany Manufacturer : Continental Automotive GmbH Address : Siemensstrasse 12 93055 Regensburg, Germany according to Test Report No. : T46030-01HU 09. April 2020 ______________________________________________________________________________________________ Date of issue The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. T46030-01HU, page 2 of 7 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.0 2019-12-04 Contents 1 E Q U I P M E N T U N D E R T E S T 3 1.1 INFORMATION PROVIDED BY THE CLIENT 3 1.2 SAMPLING 3 1.3 PHOTO DOCUMENTATION OF THE EUT 3 1.4 EXTERNAL VIEWS – SCALE 1 CM PER SQUARE: 3 1.5 INTERNAL VIEWS – SCALE 1 CM PER SQUARE: 5 The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. T46030-01HU, page 3 of 7 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.0 2019-12-04 1 E Q U I P M E N T U N D E R T E S T 1.1 Information provided by the Client Please note, we do not take any responsibility for information provided by the client or his representative which may have an influence on the validity of the test results. 1.2 Sampling The customer is responsible for the choice of sample. Sample configuration, start-up and operation is carried out by the customer or according his/her instructions. 1.3 Photo documentation of the EuT 1.4 External views – Scale 1 cm per square: Top view Side view - left Side view - right The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. T46030-01HU, page 4 of 7 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.0 2019-12-04 Bottom view Upper view Ground view:

Draft Drawing Label – USA Model: PAG-RKE-434-190401 PAG-RKE-434-190401 FCCID:KR5PAG434190401 FCC ID

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. T46030-01HU, page 1 of 7 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.0 2019-12-04 Attachment A (Photo documentation of the EuT) Type / Model Name : PAG-RKE-434-190401 Product Description : Radio frequency transmitter Applicant : Continental Automotive GmbH Address : Siemensstrasse 12 93055 Regensburg, Germany Manufacturer : Continental Automotive GmbH Address : Siemensstrasse 12 93055 Regensburg, Germany according to Test Report No. : T46030-01HU 09. April 2020 ______________________________________________________________________________________________ Date of issue The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. T46030-01HU, page 5 of 7 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.0 2019-12-04 1.5 Internal views – Scale 1 cm per square: PCB bottom The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. T46030-01HU, page 6 of 7 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.0 2019-12-04 PCB front The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. T46030-01HU, page 7 of 7 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.0 2019-12-04

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAG434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 1 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 EMI − T E S T R E P O R T - FCC Part 15.231 - Type / Model Name : PAG-RKE-434-190401 Product Description : Radio frequency transmitter Applicant : Continental Automotive GmbH Address : Siemensstrasse 12 93055 Regensburg, Germany Manufacturer : Continental Automotive GmbH Address : Siemensstrasse 12 93055 Regensburg, Germany Test Result according to the standards listed in clause 1 test standards: POSITIVE Test Report No. : T46030-01-00HU 16. November 2020 ______________________________________________________________________________________________ Date of issue The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAG434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 2 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 2.1 GENERAL REMARKS 4 3 E Q U I P M E N T U N D E R T E S T 5 3.1 INFORMATION PROVIDED BY THE CLIENT 5 3.2 SAMPLING 5 3.3 PHOTO DOCUMENTATION OF THE EUT – SEE ATTACHMENT A 5 3.4 POWER SUPPLY SYSTEM UTILISED 6 3.5 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 6 3.6 EUT OPERATION MODE: 6 3.7 EUT CONFIGURATION: 6 4 T E S T E N V I R O N M E N T 7 4.1 ADDRESS OF THE TEST LABORATORY 7 4.2 STATEMENT REGARDING THE USAGE OF LOGOS IN TEST REPORTS 7 4.3 ENVIRONMENTAL CONDITIONS 7 4.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY 7 4.5 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 8 4.6 DEVIATIONS OR EXCLUSIONS FROM THE REQUIREMENTS AND STANDARDS 8 5 T E S T C O N D I T I O N S A N D R E S U L T S 9 5.1 CONDUCTED EMISSIONS 9 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 10 5.3 SPURIOUS EMISSIONS (MAGNETIC FIELD) 9 KHZ – 30 MHZ 12 5.4 SPURIOUS EMISSIONS RADIATED (ELECTRIC FIELD) 14 5.5 CORRECTION FOR PULSE OPERATION (DUTY CYCLE) 18 5.6 EMISSION BANDWIDTH 20 5.7 SIGNAL DEACTIVATION 23 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 26 The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAG434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 3 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C - Intentional Radiators (January 13, 2020) Part 15, Subpart C, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz §15.231(a) Signal deactivation §15.231(b) Radiated emissions, Fundamental & Harmonics §15.231(c) Emission Bandwidth Part 15, Subpart C, Section 15.35(c) Correction for Pulse Operation (Duty Cycle) Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements ANSI C63.10: 2013 Testing Unlicensed Wireless Devices ANSI C95.1:2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAG434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 4 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 2 S U M M A R Y 2.1 General remarks All radiated tests have been performed on a modified sample which are in continuous transmitting mode (modulated and unmodulated). All radiated measurements were made with the device positioned in three orientations. Such as orientations X, Y and Z (Lying flat, lying on its end and lying on its side). The values in the test report shows only the maximum measured value. The other measurements have been performed on a sample which is in original state. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 30. March 2020 Testing concluded on : 08. April 2020 Checked by: Tested by: Jürgen Pessinger Markus Huber The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAG434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 5 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 3 E Q U I P M E N T U N D E R T E S T 3.1 Information provided by the Client Please note, we do not take any responsibility for information provided by the client or his representative which may have an influence on the validity of the test results. 3.2 Sampling The customer is responsible for the choice of sample. Sample configuration, start-up and operation is carried out by the customer or according his/her instructions. 3.3 Photo documentation of the EuT – See Attachment A The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAG434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 6 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49…

Text truncated - open the document above for the full version.

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAGRKE434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 10 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.3 Applicable standard According to FCC Part 15C, Section 15.231(b): The field strength of emissions from intentional radiators shall not exceed the effective field strength limits. 5.2.4 Description of Measurement The radiated power of the fundamental wave from the EUT is measured in the frequency range of 30 to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 metres non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. The setup of the EUT will be in accordance to ANSI C63.10. The Interface cables that are closer than 40 centimetres to the ground plane are bundled in the centre in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the centre of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 metres horizontally from the EUT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 metres, measurement scans are made in horizontal and vertical antenna polarization’s and the EUT is rotated 360 degrees. The resolution bandwidth during the measurement is as follows: 30 MHz – 1000 MHz: RBW: 120 kHz Example: Frequency Level + Factor = Level - Limit = Delta (MHz) (dBμV) (dB) dB(μV/m) dB(μV/m) (dB) 170.5 5 + 20 = 25 - 30 = -5 The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAGRKE434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 12 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Applicable standard According to FCC Part 15C, Section 15.209: The emissions from intentional radiators shall not exceed the effective field strength limits. 5.3.4 Description of Measurement The magnetic field strength from the EUT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The setup of the Equipment under test will be in accordance to ANSI C63.10. The antenna was positioned 3, 10 or 30 meters horizontally from the EUT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31(f)(2)(2). The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209(d)(2). The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAGRKE434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 14 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 5.4 Spurious emissions radiated (electric field) For test instruments and accessories used see section 6 Part SER 2, SER 3. 5.4.1 Description of the test location Test location: OATS1 Anechoic Chamber A1 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . FCC ID: KR5PAGRKE434190401 CSA Group Bayern GmbH File No. T46030-01-00HU, page 18 of 26 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 5.0 2019-12-04 5.5 Correction for pulse operation (duty cycle) For test instruments and accessories used see section 6 Part DC. 5.5.1 Description of the test location Test location: Shielded room S4 5.5.2 Photo documentation of the test set-up 5.5.3 Applicable standard According to FCC Part 15C, Section 15.35(c): The emissions from intentional radiators shall not exceed the effective field strength limits. 5.5.4 Test result The Duty cycle factor (dB) is calculated applying the following formula: KE= 20 log ((tiB)/100) KE: pulse operation correction factor (dB) tiB pulse duration for one pulse (ms) Maximum transmitting duration in every 100ms period: KE= 20 log ((100.0*)/100) = 0.0 dB Remarks: The pulse train (Tw) exceeds 100 ms, therefore the duty cycle have been calculated by averaging the sum of the pulse widths over the 100 ms width with the highest average value. For detailed results, please see the test protocol below. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written perm…
