KR5S122228001Tire pressure unit

SIEMENS VDO Automotive SV C BC P2 RF BLOCK DIAGRAM The block diagram below shows the main electronic units of the wheel unit: VARIANTS Siemens type designation Remarks S 122 228 001 Transmitter 315 MHz S 122 228 002 Transmitter 433,92 MHz 3V LITHIUM BATTERY Learning coil RF CIRCUIT ANTENNA Pressure, temperature, acceleration sensor and μcontroller

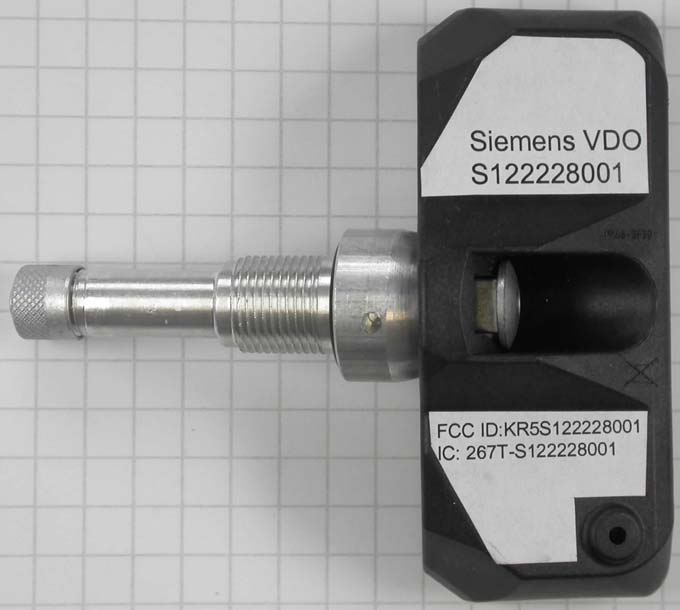

FCC ID: KR5S122228001 File No. E-0115-1706-00 KJ, page 20 of 23 emitel AG x Landshuter Strasse 211 a x 94315 Straubing x Tel.:09421-9746-0 x Fax:09421-9746-70 Rev. Nr. 1.0 7 External photos of the EuT FCC ID: KR5S122228001 File No. E-0115-1706-00 KJ, page 21 of 23 emitel AG x Landshuter Strasse 211 a x 94315 Straubing x Tel.:09421-9746-0 x Fax:09421-9746-70 Rev. Nr. 1.0

SIEMENS VDO Automotive SV C BC P2 RF User Manual / Functional Description of the Siemens VDO Tire Pressure Generation 1B-ND wheel unit Type S122228001 S122228002 File: K:\POSTZULA\Tpms_TG\TG1B_ND_12\S122228001_S122228002\Technische_Dokumente\FunctionalDescriptio n-TG1B-ND.doc 1 of 5 SIEMENS VDO Automotive SV C BC P2 RF 1. System OVERVIEW The tire pressure monitoring system (referred as TG for Tire Guard) consists of the following units: - Tire guard transmitter type S122228001 or S122228002 which includes an integrated pressure, temperature and acceleration sensor and a RF transmitter. - RF receiver unit which includes a receiver (not described in this document) The Tire Guard system monitors a vehicle's tire pressure whilst driving or stationary. An electronic unit (wheel unit) inside each tire, mounted to the valve stem, periodically measures the actual tire pressure. By means of RF communication, this pressure information is transmitted to the RF receiver/decoder. In stationary mode, the pressure, temperature and acceleration are measured about every minute and emission of RF frames occurs only if pressure variation, higher than a threshold, is detected (leakage detection). When the vehicle starts moving, the Tire Guard transmitter enters the driving mode. It measures and transmits RF burst 12 times per minute (every 5s) up to 30 bursts. After this period the wheel unit measures and transmits data every minute. The wheel unit will remain in driving mode for a period of 15 minutes after the vehicle is stopped. After this period has elapsed, the wheel unit returns to stationary mode. If, during any measurement period in driving mode, the pressure leakage is detected (difference compared to the last transmitted pressure value), a re- measure will occur after 5s taking in account the latest pressure value emitted as reference value. If the pressure continues changing, an additional transmission will be sent. The circuit within the wheel unit monitors the battery every time a pressure measurement is taken. A “Low Battery” function code will be sent when the battery voltage within the wheel unit is below a pre-selected level. File: K:\POSTZULA\Tpms_TG\TG1B_ND_12\S122228001_S122228002\Technische_Dokumente\FunctionalDescriptio n-TG1B-ND.doc 2 of 5 SIEMENS VDO Automotive SV C BC P2 RF File: K:\POSTZULA\Tpms_TG\TG1B_ND_12\S122228001_S122228002\Technische_Dokumente\FunctionalDescriptio n-TG1B-ND.doc 3 of 5 2. BLOCK DIAGRAM The block diagram below shows the main electronic units of the wheel unit: 3V LITHIUM BATTERY Learning coil RF CIRCUIT ANTENNA Pressure, temperature, acceleration sensor and μcontroller 3. VARIANTS Siemens type designation Remarks S 122 228 001 Transmitter 315 MHz S 122 228 002 Transmitter 433,92 MHz 4. TYPICAL USAGE PATTERN 240 burst in 24 hours 0.01 seconds per frame and 3 frame per burst → total transmission duration of 7.2 seconds within 24 hours Transmitter ON 0.3 seconds / hour Transmitter OFF 3599.7 seconds / hour Duty Cycle: TON / T (ON+OFF) x 100% = 0.3 / 3,600 x 100 % = 0.008 % SIEMENS VDO Automotive SV C BC P2 RF 5.1 TECHNICAL DESCRIPTION VARIANT S122 228 001 Carrier frequency: 315 MHz Frequency shift: +/- 40kHz max Number of channels: 1 Method of frequency generation: PLL Type of modulation: FSK Rated Output Power: < 10 mW Antenna: Integral Voltage supply: 1 Lithium battery 3V (CR2450) Voltage supply range : 2,1 up to 3,2V 5.2 TECHNICAL DESCRIPTION VARIANT S122 228 002 Carrier frequency: 433.92 MHz Frequency shift: +/- 40kHz max Number of channels: 1 Method of frequency generation: PLL Type of modulation: FSK Rated Output Power: < 10 mW Antenna: Integral Voltage supply: 1 Lithium battery 3V (CR2450) Voltage supply range : 2,1 up to 3,2V File: K:\POSTZULA\Tpms_TG\TG1B_ND_12\S122228001_S122228002\Technische_Dokumente\FunctionalDescriptio n-TG1B-ND.doc 4 of 5 SIEMENS VDO Automotive SV C BC P2 RF 6.1 LABEL DESIGN Variant S122 228 001, Canada, USA Siemens VDO S122 228 001 IC: 267T-228001 FCC ID:KR5S122228001 Entry Owners Manual, Canada, USA: NOTE This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. COUTION Changes or modifications not expressly approved by the manufacturer could avoid the user's authority to operate the equipment. 6.2 LABEL DESIGN Variant S122 228 002, Canada, Europe, USA Siemens VDO S 122 228 002 IC: 267T-228002 FCC ID:KR5S122228002 Entry Owners Manual, Canada, USA: NOTE This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. COUTION Changes or modifications not expressly approved by the manufacturer could avoid the user's authority to operate the equipment. File: K:\POSTZULA\Tpms_TG\TG1B_ND_12\S122228001_S122228002\Technische_Dokumente\FunctionalDescriptio n-TG1B-ND.doc 5 of 5

FCC ID: KR5S122228001 File No. E-0115-1706-00 KJ, page 1 of 23 emitel AG x Landshuter Strasse 211 a x 94315 Straubing x Tel.:09421-9746-0 x Fax:09421-9746-70 Rev. Nr. 1.0 DAT-P-121/02-00 KBA-P 00057-01 EMI -- T E S T R E P O R T Test Report No. : E-0115-1706-00 KJ 21. June 2005 ______________________________________________________________________________________________ Date of issue Type / Model Name : S122228001 Product Description : Tire Pressure unit Applicant : Siemens VDO Automotive AG Address : Siemensstrasse 12 93055 Regensburg, Germany Manufacturer : Siemens VDO Automotive AG Address : Siemensstrasse 12 93055 Regensburg, Germany Licence holder : Siemens VDO Automotive AG Address : Siemensstrasse 12 93055 Regensburg, Germany Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: KR5S122228001 File No. E-0115-1706-00 KJ, page 2 of 23 emitel AG x Landshuter Strasse 211 a x 94315 Straubing x Tel.:09421-9746-0 x Fax:09421-9746-70 Rev. Nr. 1.0 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 POWER SUPPLY SYSTEM UTILISED 5 3.2 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 5 4 TEST ENVIRONMENT 6 4.1 ADDRESS OF THE TEST LABORATORY 6 4.2 ENVIRONMENTAL CONDITIONS 6 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 6 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 6 5 TEST CONDITIONS AND RESULTS 8 5.1 RADIATED POWER OF THE FUNDAMENTAL WAVE 8 5.2 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 18 GHZ 10 5.3 CORRECTION FOR PULSE OPERATION (DUTY CYCLE) 14 5.4 EMISSION BANDWIDTH 16 5.5 SIGNAL DEACTIVATION 18 6 USED TEST EQUIPMENT AND ACCESSORIES 19 7 EXTERNAL PHOTOS OF THE EUT 20 8 INTERNAL PHOTOS OF THE EUT 22 FCC ID: KR5S122228001 File No. E-0115-1706-00 KJ, page 3 of 23 emitel AG x Landshuter Strasse 211 a x 94315 Straubing x Tel.:09421-9746-0 x Fax:09421-9746-70 Rev. Nr. 1.0 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C - Intentional Radiators (October 01, 2003) Part 15, Subpart C, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz §15.231(a) Signal deactivation §15.231(c) Emission Bandwidth §15.231(e) Reduced Field Strenth Limits Part 15, Subpart C, Section 15.35(c) Correction for Pulse Operation (Duty Cycle) Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements FCC ID: KR5S122228001 File No. E-0115-1706-00 KJ, page 4 of 23 emitel AG x Landshuter Strasse 211 a x 94315 Straubing x Tel.:09421-9746-0 x Fax:09421-9746-70 Rev. Nr. 1.0 2 SUMMARY GENERAL REMARKS: The tests according to §15.207 (conducted emissions) are not applicable, because the EuT is battery powered. FINAL ASSESSMENT: The equipment under test fulfills the EMC requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 14. June 2005 Testing concluded on : 15. June 2005 Checked by: Tested by: _______________________________ _____________________________ Dieter Fröhlich Josef Knab Dipl. Ing.(FH) FCC ID: KR5S122228001 File No. E-0115-1706-00 KJ, page 5 of 23 emitel AG x Landshuter Strasse 211 a x 94315 Straubing x Tel.:09421-9746-0 x Fax:09421-9746-70 Rev. Nr. 1.0 3 EQUIPMENT UNDER TEST 3.1 Power supply system utilised Power supply voltage : 3 V / DC lithium battery 3.2 Short description of the Equipment under Test (EuT) The EuT is a tire guard transmitter type S122228001 wich includes an integrated pressure, temperature and acceleration sensor and a RF transmitter (315 MHz). The tire guard system monitors a vehicle ́s tire pressure whilst driving or stationary. An electronic unit (wheel unit) inside each tire, mounted to the valve stem, periodically measures the actual tire pressure. By means of RF communication, the pressure information is transmitted to the RF receiver/decoder. Number of tested samples: 1 Serial number: Prototype EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - continuous transmission at 315 MHz - - EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Model : - Model : - Model : - Model : - Model : - Model : FCC ID: KR5S122228001 File No. E-0115-1706-00 KJ, page 6 of 23 emitel AG x Landshuter Strasse 211 a x 94315 Straubing x Tel.:09421-9746-0 x Fax:09421-9746-70 Rev. Nr. 1.0 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel AG Landshuter Strasse 211a 94315 Straubing Deutschland 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the emitel AG quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 4.4.1 GENERAL INFORMATION 4.4.1.1 Test Methodology Conducted and radiated disturbance testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1997), European Standard EN 55022 and Australian Standard AS 3548 (which…
