KR5S180052032Tire Pressure Monitoring System

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 5 Functional Description / User Manual Continental 1 of 4 User Manual / Functional Description of the Continental Tire Pressure Generation 1C wheel unit Type ASK 433.92MHz S180052032 Continental 4 of 4 5. PICTURE 6. LABEL DESIGN USA (433,92 MHz) Continental S180052032 FCC ID:KR5S180052032 Entry Owners Manual USA: NOTE This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. CAUTION Changes or modifications not expressly approved by the manufacturer could avoid the user's authority to operate the equipment. 6.1 Europe: Continental S180052032

@nlinenlalffi C.nlln€nlal Automolrve OnbH - Pos$äch 100 953 - 93009 R€gensbug Phoenix Testlab GmbH Dagmar Kolar AQL RBG 42 Phone +49 (941) 7SG6699 Fax +49 (941) 790-996699 dagmar.kolar@conlinental-corporation,com Dal€ November 19, 2009 Attorney's Company name: Attorney's Company address: Attorney's Name: Applicant s company narhe: Applicant's company address: Applicanfs name: Date and Applicant's Signature: Job Title and Departmeht: It ts neeessaty,that tho peßon togistered witht FCC, signs thi form I hereby authorize the following person as a representätive and all rights regarding the application to obtain Type Certiflcation for the Specifled Radio Equipment (mentioned above) are delegated. Power of Attorney Continenlal Automotive GmbH Siemenstlasse 12 93055 Regensburg Geimany Mrs. Dagmar Kolai 2009t11t19 m. dudde hochfreouenz-technik Rottland 5 a 51429 Bergisch Gladbach Mr. Andreas Morsbach Mrs. Anja Hittig-Rademacher Date and Attorney's Signaturg: Job Title and Department: Conlinot€l Aut'rnolivs GmbH 93055 R€gembüB Pocfäch lO0 953 93009 Regensburs Pnone +49 941 ?904 F.,( +4, 941 7904999 \^,w,continentaldlp@lionxorn Harald Sluhlm€nn HRB 59424

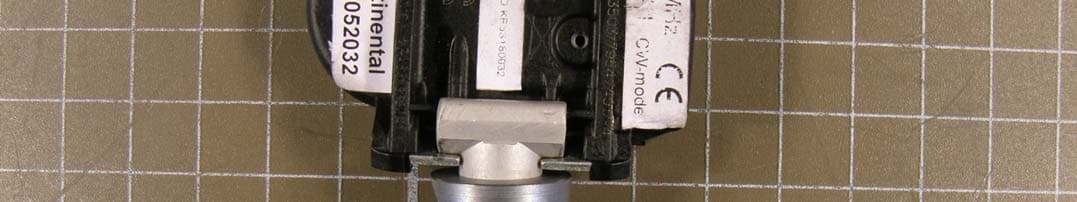

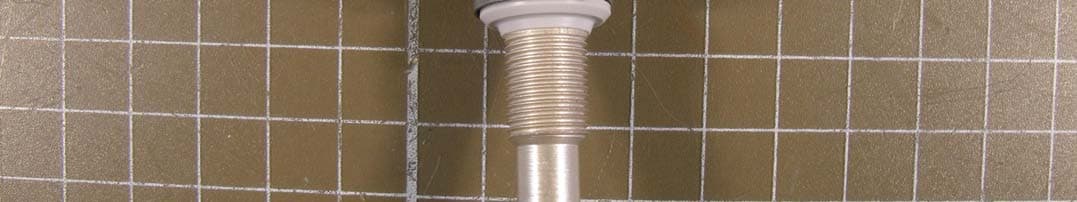

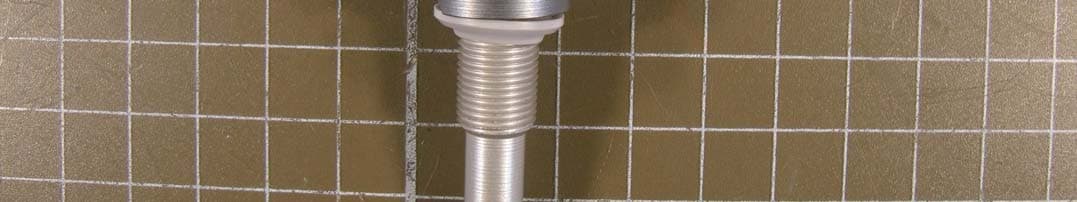

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 1 External Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 4 Label Sample State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Label sample and Label location

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 2 Internal Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920

Test report no. 10006090 Page 1 of 30 EUT: S180052032 FCC ID: KR5S180052032 Date of issue: 2010-05-11 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 DAT-P-225/96 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4-2003 relating to Continental Automotive GmbH S180052032 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range 9 kHz to 40 GHz DAT-P-225/96 Test report no. 10006090 Page 2 of 30 EUT: S180052032 FCC ID: KR5S180052032 Date of issue: 2010-05-11 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Manufacturer’s details Manufacturer Continental Automotive GmbH Manufacturer‟s grantee code KR5 Manufacturer‟s address Continental Automotive GmbH Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Fax: +49 0941 790 136699 [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2003 Test report prepared by Technical engineer Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 (0) 2207 96 89-0 Fax: +49 (0) 2207 96 89-20 E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name Continental Type designation S180052032 Serial no. --- Variants none Test report no. 10006090 Page 3 of 30 EUT: S180052032 FCC ID: KR5S180052032 Date of issue: 2010-05-11 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 1. Test result summary CFR Section Report Chapter Requirements Headline Test result 15.203 11.1 Antenna requirement Pass Fail N.t. 15.205 11.2 Restricted bands of operation Pass Fail N.t. 15.209 11.3 Radiated emission limits, general requirements Pass Fail N.t. 15.231(a) 11.4 Periodic operation characteristics Pass Fail N.t. 15.231(b) 11.5 Fundamental frequencies / Field strength limits Pass Fail N.t. 15.231(c) 11.6 Bandwidth (20 dB) Pass Fail N.t. 15.201 (a) 15.209 11.7 Equipment authorization requirement Pass Fail N.t. The equipment meets the requirements Yes No Signature Technician Ralf Trepper Signature Manager Manfried Dudde Test report no. 10006090 Page 4 of 30 EUT: S180052032 FCC ID: KR5S180052032 Date of issue: 2010-05-11 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Test laboratory .................................................................................................................................................. 5 3. Introduction ...................................................................................................................................................... 5 4. Product ............................................................................................................................................................. 6 5. Test schedule .................................................................................................................................................... 6 6. Product and measurement documentation ......................................................................................................... 7 7. Observations and comments ............................................................................................................................. 7 8. Summary........................................................................................................................................................... 7 9. Conclusions ...................................................................................................................................................... 8 10. Operational description .................................................................................................................................. 9 11.1 Antenna requirement .................................................................................................................................... 10 11.1.1 Regulation ........................................................................................................................................... 10 11.1.2 Result .................................................................................................................................................. 10 11.2 Restricted bands of operation ...................................................................................................................... 11 11.2.1 Regulation ........................................................................................................................................... 11 11.2.2 Result .................................................................................................................................................. 13 11.3 Radiated emission limits, general requirements .......................................................................................... 14 11.3.1 Regulation ........................................................................................................................................... 14 11.3.2 Test equipment ................................................................................................................................... 15 11.3.3 Test procedure .................................................................................................................................... 16 11.3.4 Calculation of the field strength ........................…

Text truncated - open the document above for the full version.

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 3 Occupied Bandwidth Plot State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 20 dB bandwidth

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 11 Periodic Operation Characteristics State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 The device sends every 78.5 seconds a data package State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 One data package is 4.3306 seconds long State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 One data package consists 40 single pulses State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 The duration of one worst case single pulse is 13.333 ms Maximum transmitting duration in every 100ms period: 13.33 ms Averaging factor = 20xlog(13,33/100)= -17,5dB

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 6 Test Setup Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920
