KR5S180052033Tire Pressure Monitoring System

Date: 2010-06-11 FCC ID: KR5S180052033 Subject: Compliance Statement in Car Manual Dear Sirs, Our products with the above FCC ID are marketed together with cars, where it’s operation is included in the individual owner’s manual of the car. We hereby assure that the following caution statement as per CFR 47, §15.21 is included in a prominent location of the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC WARNING”: “NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition, we also assure that the following statement is also included in a prominent location in the manual as per CFR 47, §15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Name Anja Hittig-Rademacher Position Homologation Manager CompanyAdress m. dudde hochfrequenz-technik, Rottland 5 a, 51429 Bergisch Gladbach Tel/Fax +49 2207 96890/+49 2207 968920 E-Mail [email protected] m. dudde hochfrequenz- technik DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg. Nr.: DAT-P-225/96-02 m. dudde hochfrequentechnik ▪ Rottland 5a ▪ D-51429 Berg. Gladbach PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Telefon: +49 22 07 - 96 89-0 Telefax: +49 22 07 - 96 89-20 email : manfred.dudde@t-online www.dudde.com Bankverbindung / Bank Connection: Raiffeisenbank Kürten-Odenthal eG (BLZ 370691 25) Konto: 0100 367 050 SWIFT: GENO DE DD //BL37069125 BIC:GENODED1BDK UST-Id-Nr.: DE 122019786

@nlinenlalffi C.nlln€nlal Automolrve OnbH - Pos$äch 100 953 - 93009 R€gensbug Phoenix Testlab GmbH Dagmar Kolar AQL RBG 42 Phone +49 (941) 7SG6699 Fax +49 (941) 790-996699 dagmar.kolar@conlinental-corporation,com Dal€ November 19, 2009 Attorney's Company name: Attorney's Company address: Attorney's Name: Applicant s company narhe: Applicant's company address: Applicanfs name: Date and Applicant's Signature: Job Title and Departmeht: It ts neeessaty,that tho peßon togistered witht FCC, signs thi form I hereby authorize the following person as a representätive and all rights regarding the application to obtain Type Certiflcation for the Specifled Radio Equipment (mentioned above) are delegated. Power of Attorney Continenlal Automotive GmbH Siemenstlasse 12 93055 Regensburg Geimany Mrs. Dagmar Kolai 2009t11t19 m. dudde hochfreouenz-technik Rottland 5 a 51429 Bergisch Gladbach Mr. Andreas Morsbach Mrs. Anja Hittig-Rademacher Date and Attorney's Signaturg: Job Title and Department: Conlinot€l Aut'rnolivs GmbH 93055 R€gembüB Pocfäch lO0 953 93009 Regensburs Pnone +49 941 ?904 F.,( +4, 941 7904999 \^,w,continentaldlp@lionxorn Harald Sluhlm€nn HRB 59424

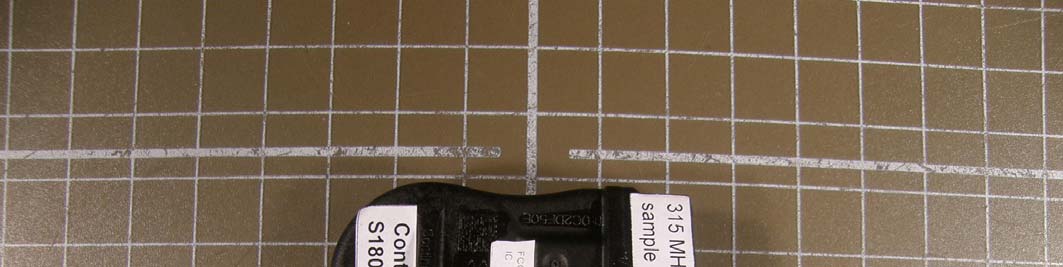

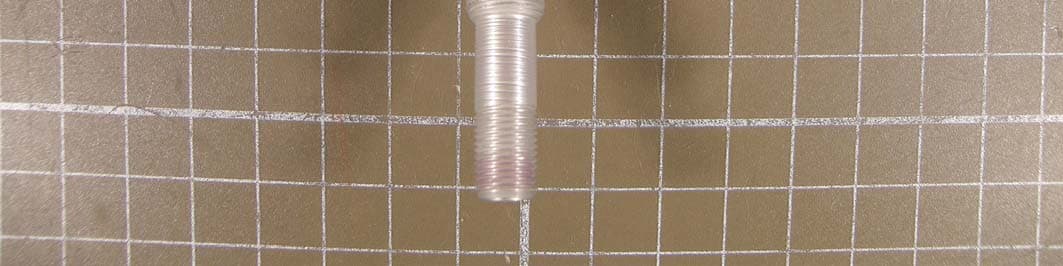

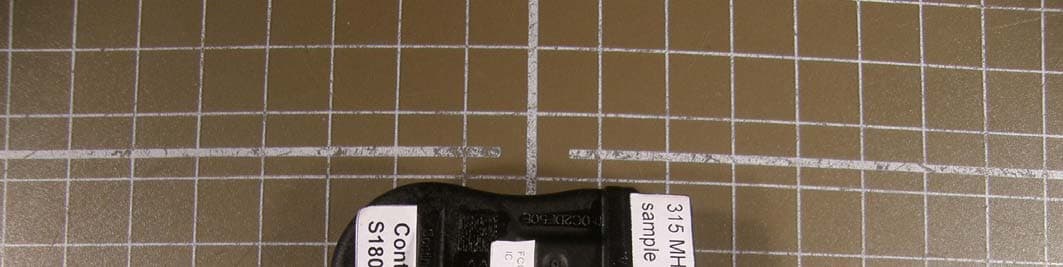

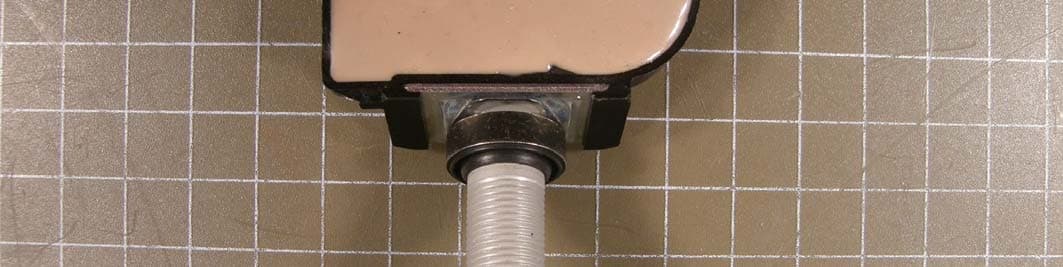

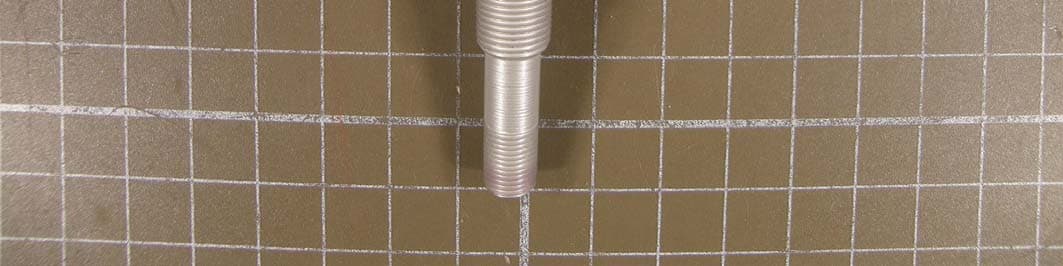

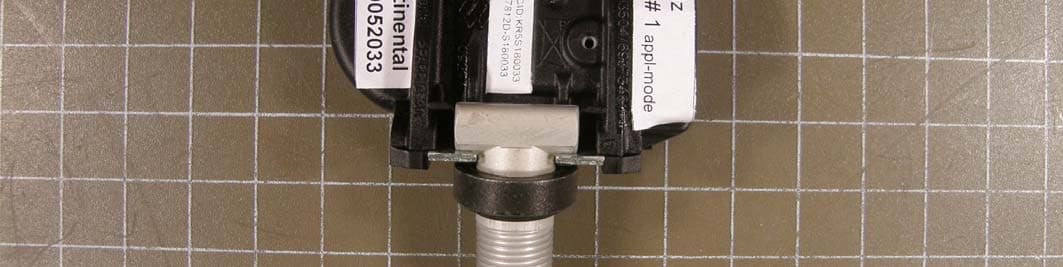

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 1 External Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 4 Label Sample State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Label sample and Label location

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 2 Internal Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 3 Occupied Bandwidth Plot State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 20 dB bandwidth State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 99 % bandwidth

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 11 Periodic Operation Characteristics State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 The device sends every 64.9 seconds a data package State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 One data package is 4.2449 seconds long State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 One data package consists 40 single pulses State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 The duration of one worst case single pulse is 13.333 ms Maximum transmitting duration in every 100ms period: 13.33 ms Averaging factor = 20xlog(13,33/100)= -17,5dB

Test report no. 10006117 Page 1 of 30 EUT: S180052033 FCC ID: KR5S180052033 Date of issue: 2010-05-11 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 DAT-P-225/96 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4-2003 relating to Continental Automotive GmbH S180052033 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range 9 kHz to 40 GHz DAT-P-225/96 Test report no. 10006117 Page 2 of 30 EUT: S180052033 FCC ID: KR5S180052033 Date of issue: 2010-05-11 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Manufacturer’s details Manufacturer Continental Automotive GmbH Manufacturer‟s grantee code KR5 Manufacturer‟s address Continental Automotive GmbH Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Fax: +49 0941 790 136699 [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2003 Test report prepared by Technical engineer Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 (0) 2207 96 89-0 Fax: +49 (0) 2207 96 89-20 E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name Continental Type designation S180052033 Serial no. --- Variants none Test report no. 10006117 Page 3 of 30 EUT: S180052033 FCC ID: KR5S180052033 Date of issue: 2010-05-11 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 1. Test result summary CFR Section Report Chapter Requirements Headline Test result 15.203 11.1 Antenna requirement Pass Fail N.t. 15.205 11.2 Restricted bands of operation Pass Fail N.t. 15.209 11.3 Radiated emission limits, general requirements Pass Fail N.t. 15.231(a) 11.4 Periodic operation characteristics Pass Fail N.t. 15.231(b) 11.5 Fundamental frequencies / Field strength limits Pass Fail N.t. 15.231(c) 11.6 Bandwidth (20 dB) Pass Fail N.t. 15.201 (a) 15.209 11.7 Equipment authorization requirement Pass Fail N.t. The equipment meets the requirements Yes No Signature Technician Ralf Trepper Signature Manager Manfried Dudde Test report no. 10006117 Page 4 of 30 EUT: S180052033 FCC ID: KR5S180052033 Date of issue: 2010-05-11 State: 2008-04-21 Vers. no.: 1. 08 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Test laboratory .................................................................................................................................................. 5 3. Introduction ...................................................................................................................................................... 5 4. Product ............................................................................................................................................................. 6 5. Test schedule .................................................................................................................................................... 6 6. Product and measurement documentation ......................................................................................................... 7 7. Observations and comments ............................................................................................................................. 7 8. Summary........................................................................................................................................................... 7 9. Conclusions ...................................................................................................................................................... 8 10. Operational description .................................................................................................................................. 9 11.1 Antenna requirement .................................................................................................................................... 10 11.1.1 Regulation ........................................................................................................................................... 10 11.1.2 Result .................................................................................................................................................. 10 11.2 Restricted bands of operation ...................................................................................................................... 11 11.2.1 Regulation ........................................................................................................................................... 11 11.2.2 Result .................................................................................................................................................. 13 11.3 Radiated emission limits, general requirements .......................................................................................... 14 11.3.1 Regulation ........................................................................................................................................... 14 11.3.2 Test equipment ................................................................................................................................... 15 11.3.3 Test procedure .................................................................................................................................... 16 11.3.4 Calculation of the field strength ........................…
