KR5S180144014Keyless Entry System

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 5 Functional Description / User Manual Continental Automotive GmbH B&S S2 Thierry RASPAUD Josef Lohr -1- 2011-06-20 User Manual / Functional Description of the Continental Radio Frequency Transmitter Type S180144011 S180144014 S180144015 Functional description of Nissan DPF I – key 3 rd Bundle This document gives an overview of the different device operation modes and the RF transmissions performance of the key. In this document the device is referenced as "key", even if the mechanical backup key might be separated from it. Continental Automotive GmbH B&S S2 Thierry RASPAUD Josef Lohr -2- 2011-06-20 1. Operating modes The key has three main operating modes which differ regarding of the signal transmitting with the RF:  · Immo Immobilizer transponder mode  · RKE Remote key functionality  · PASE Passive key functionality  · RES Remote engine start functionality Immobilizer Transponder mode When the key is operating as an immobilizer transponder, the communication is done via a "contact less interface" depending on a magnetic coupling. The transponder is the passive side of the link and there is no RF transmission from it involved in any aspect. Remote key functionality This mode refers to use the key as a remote control unit to initiate actions on the vehicle such as open or close door latches. RF transmission depends on a user activating (a button pressing) on the key. During the button pressing the amount of telegrams are sent on the RF channel. Short button press: A short valid button pressing results a sending of the minimum number of the RF telegrams, as showed on the diagram. Continental Automotive GmbH B&S S2 Thierry RASPAUD Josef Lohr -3- 2011-06-20 Long button press: If the duration of the button pressing extents the time required for transmitting the minimum amount of RF telegrams, additional telegrams will be sent until the button is released or a timeout of 10s is reached. This timeout function prevents the unintended transmission over the extended time periods in case of a button was fixed. Passive key functionality For passive key operation no user action on the key side is required. The trigger is delivered by the vehicle via an LF data telegram. When the key receive a valid LF message, it responds with two RF telegrams and the inter telegram timing in this mode depends on the key configuration data (sort of time slot concept). Remote engine start functionality This mode refers to use the key as a remote control unit to initiate actions on the vehicle such as start and stop engine. RF transmission depends on a user activating (a button pressing) on the key. During the button pressing the amount of telegrams are sent on the RF channel. In this mode, RF output power is higher than RKE mode. 2. Block diagram Continental Automotive GmbH B&S S2 Thierry RASPAUD Josef Lohr -4- 2011-06-20 3. RF parameters For all RF transmission the following parameters apply: JP variant US/EUR variant Center frequency 315 MHz 433.92 MHz Frequency accurracy ± 15 kHz ± 22 kHz Frequency deviation ± 35 kHz nominal ± 35 kHz nominal RF modulation FSK FSK RF frame data rate 4.096 kBps 4.096 kBps Data coding Manchester Manchester RKE RF power (max) -16dBm -13dBm RES RF power (max) -10dBm Button functions The validation of the accurate frequency deviation and the measurement of the transmission function of the key are implemented basing on RF test software. The graphic below shows the functionality of the buttons. First Button press Second Button press Third Button press Fourth Button press CW; center frequency F up F low With every additional button press switch between F up and F low CW; center frequency F mod Sweep 13,08 MHz to RF frequency F 0 = 433.92 MHz 18,37 MHz to RF frequency F 0 = 315 MHz Atic37full PCF7952XTT Frantic PCF7900 SPI Lock Panic Unlock Trunk XCLK Battery CR2032 Transponder Receiver 125 KHz Immobilizer + PASE frontend RF antenna button frontend RES Button Lock Button Unlock Button RES Continental Automotive GmbH B&S S2 Thierry RASPAUD Josef Lohr -5- 2011-06-20 CW; center frequency CW; center frequency RESET: if "Lock"- and "Unlock"- button is pressed at the same time Variant S180144011 I_4_L/UL/PBD/P 433,92MHz S180144014 I_5_RES/L/UL/PBD/P 433,92MHz S180144015 N_4_L/UL/TR/P 315MHz Label Europe S180144014 USA Button Trunk Button Panic Continental Automotive GmbH B&S S2 Thierry RASPAUD Josef Lohr -6- 2011-06-20 Continental S180144014 FCC ID: KR5S180144014 Warning Statement: NOTE This device complies with part 15 of the FCC Rules and RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. CAUTION Changes or modifications not expressly approved by the manufacturer could avoid the user's authority to operate the equipment. Canada Continental S180144014 IC: 7812D-S180014 Korea Continental S180144014 Taiwan Continental S180144014 ETCXXXLPDXXXX Brazil Continental S180144014 Continental Automotive GmbH B&S S2 Thierry RASPAUD Josef Lohr -7- 2011-06-20 Japan Continental S180144015 [identification code]

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 certified DAkkS accreditation number: D-PL-12053-01 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 2011-07-20 Brand/Trade name: Continental Model name: S180144014 FCC Certification Number: KR5S180144014 Subject: Compliance Statement in the Users Manual Dear Sirs, On behalf of our customer Continental Automotive GmbH, assures that the following will be included in a prominent location of the owner’s manual of the car: The title “CAUTION TO USERS” or “FCC WARNING”: “NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Yours sincerely, m. dudde hochfrequenz-technik Andreas Morsbach Management Assistant

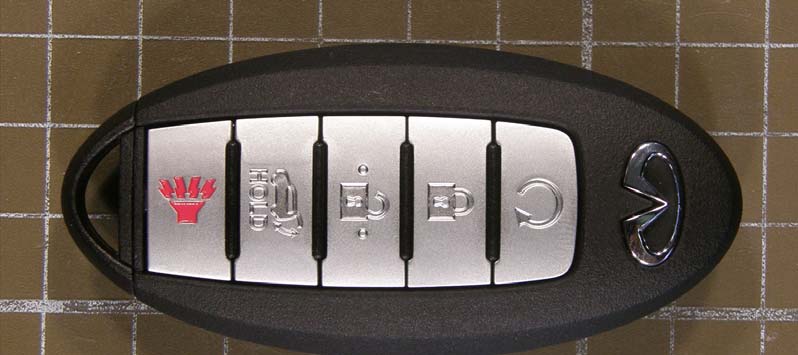

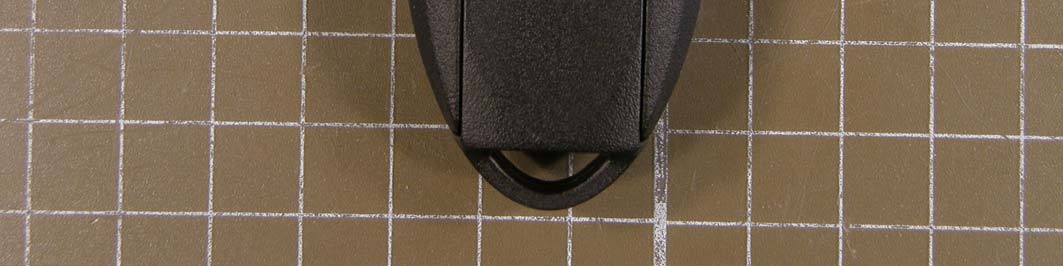

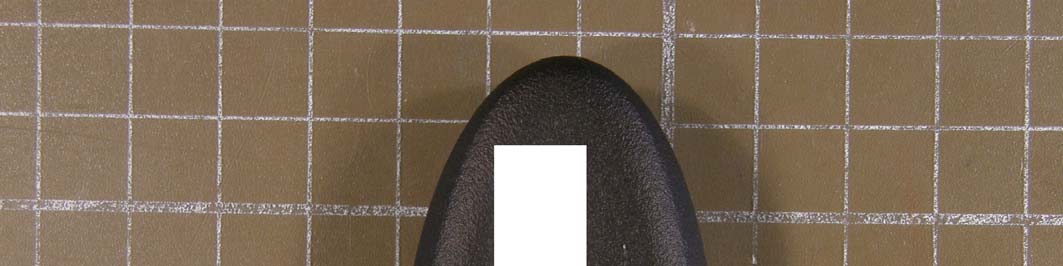

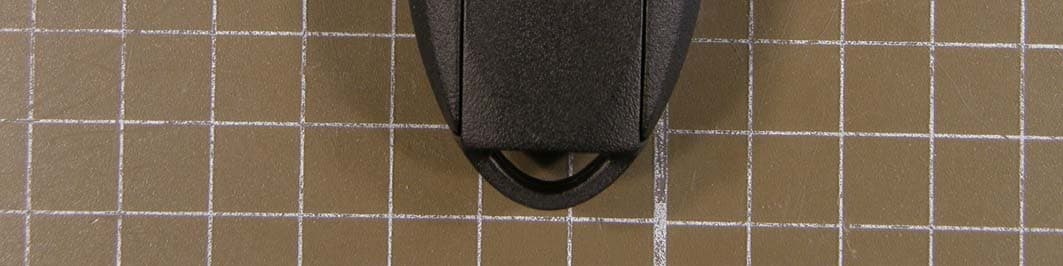

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 1 External Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Continental Model S180144014 FCC ID: KRS180144014 IC: 7812D-S180014

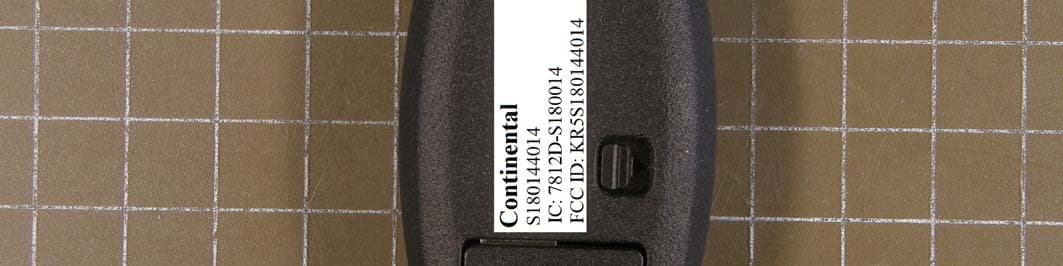

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 4 Label Sample State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Continental Model S180144014 FCC ID: KR5180144014 IC: 7812D-S180014 Label sample State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Label location Continental Model S180144014 FCC ID: KR5180144014 IC: 7812D-S180014

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 2 Internal Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 3 Occupied Bandwidth Plot State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 20 dB Bandwidth State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 99 % Bandwidth

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 11 Periodic Operation Characteristics State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. For all buttons the same! Release point State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Worst case transmission time during a 100ms period State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 The duration of one worst case single pulse is 31.5 ms Maximum transmitting duration in every 100ms period: 31.5 ms Averaging factor = 20xlog(31.5/100)= -10,0 dB

Test report no. 11007057 Page 1 of 34 EUT: S180144014 FCC ID: KR5S180144014 Date of issue: 2011-06-28 State: 2011-02-10 Vers. no.: 1. 11 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Test Report acc. to FCC Title 47 CFR Part 15 relating to Continental Automotive GmbH S180144014 Title 47 - Telecommunication Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Measurement Procedure: ANSI C63.4-2009 Test report no. 11007057 Page 2 of 34 EUT: S180144014 FCC ID: KR5S180144014 Date of issue: 2011-06-28 State: 2011-02-10 Vers. no.: 1. 11 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Manufacturer’s details Manufacturer Continental Automotive GmbH Manufacturer’s grantee code KR5 Manufacturer’s address Continental Automotive GmbH Siemensstrasse 12 D-93005 Regensburg Germany Phone: +49 0941 790 6699 Fax: +49 0941 790 136699 Email: [email protected] Relevant standard used 47 CFR Part 15B - Unintentional Radiators ANSI C63.4-2009 Test Report prepared by Technical engineer Ralf Trepper m. dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Email: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name Continental Type designation S180144014 Serial no. --- Variants --- Test report no. 11007057 Page 3 of 34 EUT: S180144014 FCC ID: KR5S180144014 Date of issue: 2011-06-28 State: 2011-02-10 Vers. no.: 1. 11 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 1. Test result summary Clause Requirements headline Test result Report page number 8.1 Antenna requirement Pass Fail N.t.* 9 8.2 Conducted limits Pass Fail N.t.* 10 to 13 8.3 Restricted bands of operation Pass Fail N.t.* 14 to 16 8.4 Radiated emission limits, general requirements Pass Fail N.t.* 17 to 22 8.5 Periodic operation characteristics Pass Fail N.t.* 23 to 24 8.6 Fundamental frequencies / Field strength limits Pass Fail N.t.* 25 to 30 8.7 Bandwidth (20 dB) Pass Fail N.t.* 31 to 32 * Not tested The equipment meets the requirements Yes No Signature: ............................. Signature: ............................. (Technician) (Manager) Test report no. 11007057 Page 4 of 34 EUT: S180144014 FCC ID: KR5S180144014 Date of issue: 2011-06-28 State: 2011-02-10 Vers. no.: 1. 11 m. dudde hochfrequenz - technik Rottland 5a D-51429 Bergisch Gladbach Tel. +49 2207-96890 Fax +49 2207 968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Introduction ...................................................................................................................................................... 5 3. Testing laboratory ............................................................................................................................................ 5 4. Applicant .......................................................................................................................................................... 6 5. Product and product documentation ................................................................................................................ 6 6. Conclusions, observations and comments ........................................................................................................ 7 7. Operational description ...................................................................................................................................... 8 8.1 Antenna requirement ....................................................................................................................................... 9 8.1.1 Regulation ............................................................................................................................................. 9 8.1.2 Result .................................................................................................................................................... 9 8.2 Conducted limits ............................................................................................................................................ 10 8.2.1 Regulation ............................................................................................................................................. 10 8.1.2 Test equipment ...................................................................................................................................... 11 8.2.3 Test procedures ..................................................................................................................................... 11 8.2.4 Result .................................................................................................................................................... 12 8.3 Restricted bands of operation ........................................................................................................................... 14 8.3.1 Regulation ............................................................................................................................................. 14 8.3.2 Result .................................................................................................................................................... 16 8.4 Radiated emission limits, general requirements ................................................................................................ 17 8.4.1 Regulation ............................................................................................................................................. 17 8.4.2 Test equipment ..................................................................................................................................…

Text truncated - open the document above for the full version.

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 6 Test Setup Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920
