KT2V530GNA-001GSM 850/1900 Mobile Data Terminal

Vector530UserManualVer122.doc - 1 - June 14, 2005 USER MANUAL VECTOR 530 GPRS Version 1.2 Vector530UserManualVer122.doc - 2 - June 14, 2005 TABLE OF CONTENTS REVISION HISTORY ..................................................................................................................3 1 Introduction .............................................................................................................................4 2 Product Features .....................................................................................................................4 2.1 Technical Specifications ................................................................................................................................4 2.2 Device Layout................................................................................................................................................6 2.3 Power Supply.................................................................................................................................................8 2.4 Chassis Ground..............................................................................................................................................8 3 GPRS/GSM Modem Features ................................................................................................9 3.1 RF Functionality ..........................................................................................................................................10 3.2 SIM Interface ...............................................................................................................................................10 3.3 RF Interface .................................................................................................................................................11 3.4 RF Connections ...........................................................................................................................................11 3.5 RF Performance ...........................................................................................................................................11 3.6 Antenna Specifications ................................................................................................................................12 APPENDIX A: SAFETY RECOMMENDATIONS (for information only) .....................13 APPENDIX B: INSTALLATION GUIDE ............................................................................15 APPENDIX C: TESTING THE GPRS MODEM ..................................................................17 Appendix D: FCC Part 15 Compliance Statement..........................................................19 FCC Part 15.19 Compliance ....................................................................................................................................19 FCC Part 15.21 Compliance ....................................................................................................................................19 FCC Part 15.105 Compliance ..................................................................................................................................19 FCC RF Exposure Information................................................................................................................................19 Vector530UserManualVer122.doc - 3 - June 14, 2005 REVISION HISTORY Version Date By Page No. Description 1 Dec 17, 2004 NG Initial release. 1.1 Mar 3, 2005 SD 11 Removed 5V SIM Card reference from Section 3.2. 1.21 June 8, 2005 SD 12 19 Added to the antenna requirements. Added Appendix D 1.22 June 13,2005 SD 12 Added to the antenna requirements Vector530UserManualVer122.doc - 4 - June 14, 2005 1 Introduction This manual provides important operational and safety information for Vector 530 Mobile Data Terminal(MDT) equipped with the North American GSM / GPRS 850/1900 MHz WaveCOM Q2426B GPRS modem. The Vector 530 is an affordable and easy to use Mobile Data Terminal (MDT) designed to meet the needs of today’s dispatching and transport businesses using GPRS Public Data Networks as its communications medium. 2 Product Features 2.1 Technical Specifications • Dimensions : 200mm (L) x 125mm (H) x 40mm (D) • Weight : 700g approx • Enclosure : Lightweight Injection molded plastic • Processor : Intel 80C186, 20Mhz • Memory : 512KB SDRAM, 512 KB Flash memory, 2KB EEPROM optional 32MB Flash disk for data storage. • Display : 240 x 64 pixel graphical LCD for multi-language, multi-font support 4 LED’s for icon labels. • Keyboard : Numeric keypad, 5 function keys, 4 cursor keys, power button. • Audio : Integrated speaker with optional text-to-speech hardware support. • GPS : Internal 8 channel GPS receiver with external antenna accuracy: < 6m (50%), <9m (90%). • Public data modem: WaveCOM Q2426B modem EGSM/GPRS 850/1900 MHz version with 32Mb of flash memory and 4Mb of SRAM (32/4). • Application Downloads: Over-the-air or Direct Serial connection. • Integrated magnetic card reader: Single track on track 1 or track 2. Vector530UserManualVer122.doc - 5 - June 14, 2005 • Interfaces: 4 RS-232C ports (2 internal, 2 external), 3 digital inputs/ 3 digital outputs. • Options: SmartCAM (In-Vehicle Surveillance), Smartprint (Mobile Printer), SmartPay (In-vehicle debit / Smart Card support). • Electrical Requirements: Input Voltage: 13.8 VDC (10-17 VDC range), Current: Less than 600 mA at 12VDC. • Environmental : Operating Temperature : -20 deg C to + 70 deg C • Storage Temperature : -40 deg C to + 80 deg C • Relative Humidity : 5% to 80% (non- condensing) Vector530UserManualVer122.doc - 6 - June 14, 2005 2.2 Device Layout Vector 530 Front Panel Layout Func Key (–) Directional Pad (← ↑ → ↓) Programmable Function Keys (F1-F5) Transmit LED No ACK LED GPS LED Coverage LED Send Key (↵) Number Pad (0 – 9) Vector530UserManualVer122.doc - 7 - June 14, 2005 Rear View GPS Antenna connector Mounting Threads GPRS Modem Antenna Connector D…

Text truncated - open the document above for the full version.

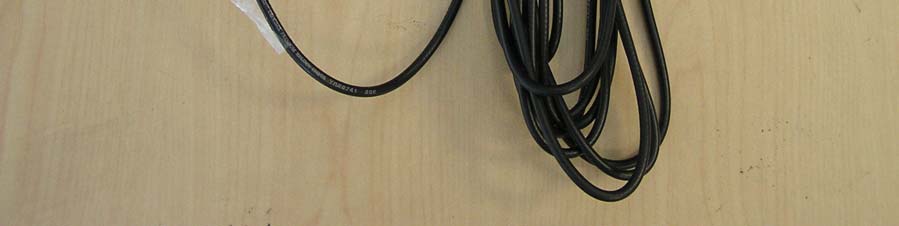

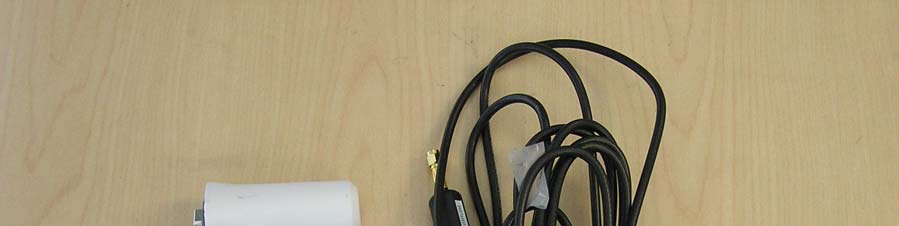

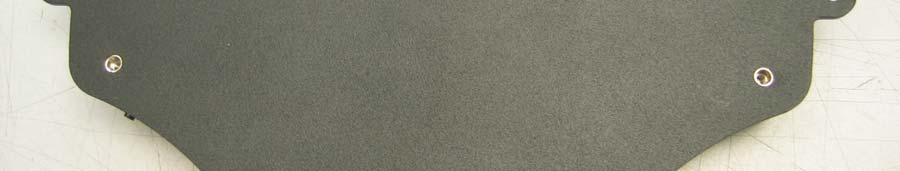

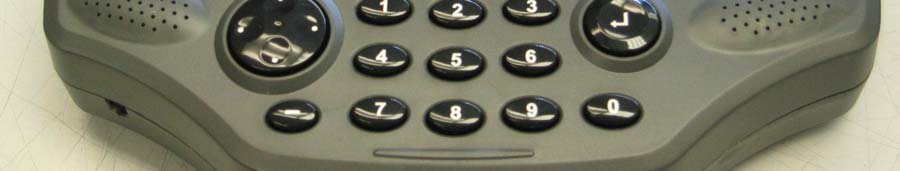

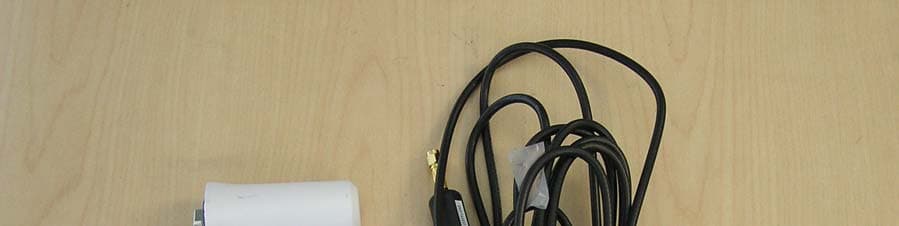

EUT model# Vector 530 GPRS-NA – Top view EUT model# Vector 530 GPRS-NA – Bottom view EUT model# Vector 530 AVL GPRS-NA – Top view EUT model# Vector 530 AVL GPRS-NA – Bottom view Dual band roof type Patch antenna

Vector 530 GPRS – NA Labelling The Label Label Placement FCC ID: KT2V530GNA-001 IC ID: 5900A-V530G01 “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”

EUT – Open View 1 EUT – Open view 2 EUT – Open view 3 EUT – Open view 4 EUT – Open view 5 GSM Module GSM Module

MPE Calculation Digital Dispatch Model# Vector 530 series HUMAN EXPOSURE STATEMENT Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically radiated power MPE GSM 850 EIRP: 34.25dBm (2660mW) Calculated at distance of 20cm Power density = 2660 / (4 x pi x 20 2 ) = 0.52 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = √ {2660 / (4 x pi x 1)} = 14.54cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1. MPE Calculation Digital Dispatch Model# Vector 530 series MPE GSM 1900 EIRP: 27.16dBm (520mW) Calculated at distance of 20cm Power density = 520 / (4 x pi x 20 2 ) = 0.103 mW/cm 2 Calculation for distance at which power density will be 1mW/cm 2 Distance = √ {520 / (4 x pi x 1)} = 6.43cm Limit: 1mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_876FCC22-24_2005 FCC Part 22, 24 / RSS 132, 133 Model: Vector 530 GPRS – NA, Vector 530 AVL GPRS – NA FCC ID: KT2V530GNA-001 IC ID: 5900A-V530G01 Test report no.: EMC_876FCC22-24_2005 Issue date: 2005-06-02 Page 2 (47) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_876FCC22-24_2005 Issue date: 2005-06-02 Page 3 (47) 1.3 Details of applicant Name : Digital Dispatch Systems, Inc. Street : 11920 Forge Place City / Zip Code : Richmond, V7A AV9 Country : Canada Contact : Steve C Driedger Telephone : 604 214 7269 Tele-fax : 604 241 1440 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2005-04-10 Date of test : 2005-04-12/14, 2005-05-10/12 1.5 Test item Manufacturer : Applicant Marketing Name : Vector 530 GPRS – NA Model No. : Vector 530 GPRS – NA, Vector 530 AVL GPRS – NA Description : GSM/GPRS 850/1900 Mobile Data Terminal FCC-ID : KT2V530GNA-001 IC-ID : 5900A-V530G01 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Patch Antenna Power supply : 13.8 VDC Output power : 32.11dBm (1.63W) max. ERP measured in GSM-850 27.16dBm (520mW) max. EIRP measured in PCS-1900 Extreme temp. Tolerance : Lower: -20 o C Upper: +60 o C 1.6 Test standards FCC Part 22,24 / RSS132,133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_876FCC22-24_2005 Issue date: 2005-06-02 Page 4 (47) PROJECT OVERVIEW: The EUT carries pre-certified Wavecom GSM module model# Q2426-SK with FCC ID: O9EQ2426-SK. This test report covers full radiated testing as per FCC 22/24 on EUT with GSM module. Both models were tested, but test report shows only worst-case test results. All conducted measurements for are covered under test report# G0M20304-7780-T-47 EUT is being certified for FCC & IC under two model #’s, Vector 530 GPRS – NA and Vector 530 AVL GPRS – NA Both models are technically identical; refer to “Product Equality Declaration” by manufacturer. Test report no.: EMC_876FCC22-24_2005 Issue date: 2005-06-02 Page 5 (47) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2005-06-02 EMC & Radio Pete Krebill (EMC Engineer) Date Section Name Signature Responsible for test report and project leader: 2005-06-02 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_876FCC22-24_2005 Issue date: 2005-06-02 Page 6 (47) 2.2 Test report TEST REPORT Test report no.: EMC_876FCC22-24_2005 Test report no.: EMC_876FCC22-24_2005 Issue date: 2005-06-02 Page 7 (47) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(A) / § 24.232 (B) ............................................................................................ 8 ERP (GSM-850) §22.913(a)..............................................................................................................................................9 EIRP (PCS-1900) §24.232(b) ..........................................................................................................................................10 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238........................................................................ 11 RESULTS OF RADIATED TESTS GSM-850:................................................................................................................12 RESULTS OF RADIATED TESTS PCS-1900: ...............................................................................................................24 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133.................................................................... 39 CONDUCTED EMISSIONS § 15.107/207 ............................................................................................... 45 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS ................................................................. 46 BLOCK DIAGRAMS ........................................................................................................................................ 47 Test report no.: EMC_876FCC22-24_2005 Issue date: 2005-06-02 P…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: O9EQ2426-SK Test report no.: G0M20304-7780-T-47 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Emission in Receiver Critical Band FCC 22.917(f) 10.1Test Procedure 10.2Test results 11 Out of Band Emissions at Antenna Terminals , FCC 2.1051, FCC 22.917(e), FCC 22.917(f), 24.238(a) 11.1. Test Procedure 11.2. Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 2 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 13.1 Test Procedure 12.2 Test Results 13 Line Conducted Emissions, FCC 15.207 13.1 Test Procedure 13.2 Test Results 14 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment 15 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 15.1 Test Procedure 15.2 Test Equipment ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 3 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 15.04.2003F. Schulz DateETS-Lab.NameSignature Technical responsibility for area of testing: 15.04.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 4 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: Wavecom S.A. Street: 12 Boulevard Garibaldi Town: 92442 Issy Les Moulineaux Cedex Country: France Telephone: +33 1 4629 0800 Fax: +33 1 4629 9357 Contact: Mr. Dan Venturini Telephone: +33 1 4629 0800 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 5 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 14.04.2003 Date of receipt of test item: 14.04.2003 Date of test: 14.04.2003 1.5Test item Description of test item: GSM/GPRS Module Type identification: Q2426Version: 4.0 Serial number: Test model without serial number. Photos: See annex Technical data Frequency range Tx – GSM 850: 824.2 – 848.80 MHz Frequency range Tx – PCS: 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850: 869.2 – 893.8 MHz Frequency range Rx - PCS: 1930.2 – 1989.8 MHz Antenna Gain: -1 dBi Power supply : 3,7 V DC Operating mode: duplex Type of modulation: GMSK (GSM modulation) Emission: GXW Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 6 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information: Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. For testing, the GSM/GPRS Module Q2426 was tested in the Starter Kit as test environment. The .Allgon antenna was used for test purposes only. 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 7 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Test equipmen…

Text truncated - open the document above for the full version.

Test setup – Radiated Emissions Test setup – Radiated Emissions
