KT6B2199Homodyne Walkie-Talkie

D:\Ready_To_Convert\Doc\134442.DOC TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: tei@t imcoengr.com 29 January 2001 FCC SUBJECT: Boxer Toys Co., Ltd. FCC ID:KT6B2099 TO WHOM IT MAY CONCERN, The attached application is for a HOMODYNE EUT, the precedent for doing this is the following FCC Identifiers; 1. IAJHW229 2. KNZ-48452 3. KNZ48450 4. ICKTM-1388 If there are any questions please let us know. Sincerely, Sid Sanders

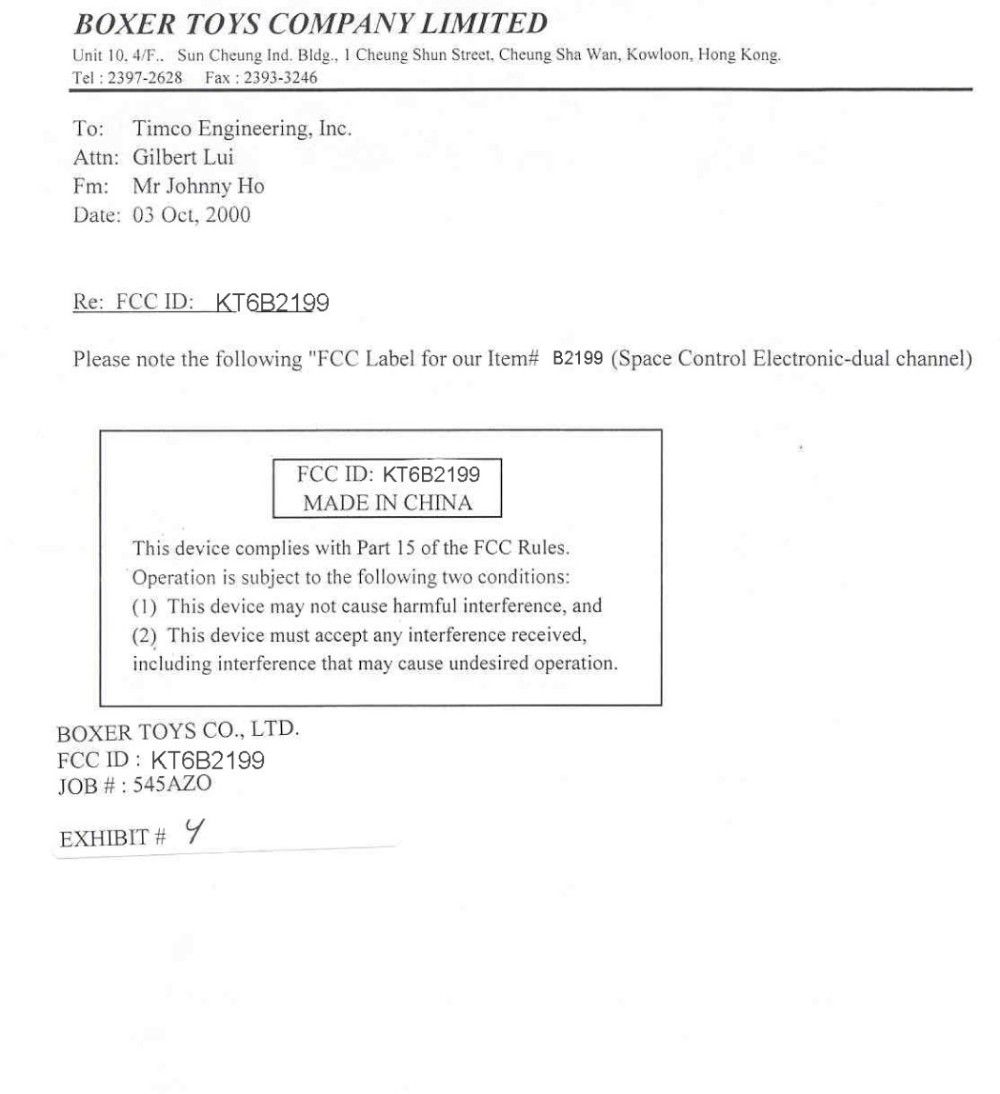

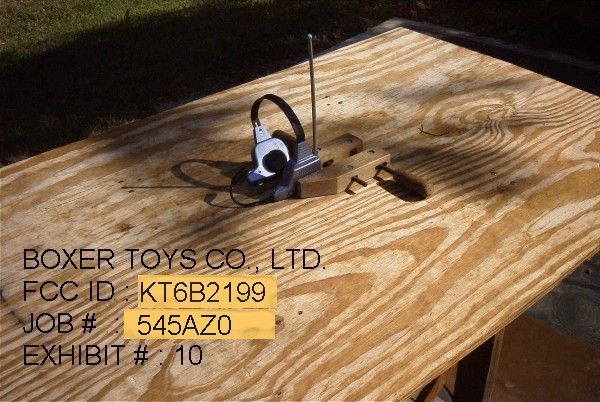

TABLE OF CONTENTS APPLICANT: BOXER TOYS CO., LTD. FCC ID: KT6B2199 TEST REPORT CONTAINING: PAGE 1........TEST EQUIPMENT & TEST PROCEDURE PAGE 2........TEST PROCEDURE CONTINUED PAGE 3........CIRCUIT DESCRIPTION PAGE 4........49.86 MHz Tx RADIATION INTERFERENCE TEST DATA PAGE 5........49.405MHz Tx RADIATION INTERFERENCE TEST DATA PAGE 6........OCCUPIED BANDWIDTH TEST DATA EXHIBITS ATTACHMENTS: EXHIBIT 1........BLOCK DIAGRAM EXHIBIT 2........SCHEMATICS EXHIBIT 3........INSTRUCTION MANUAL EXHIBIT 4........FCC ID LABEL SAMPLE EXHIBIT 5........FCC ID LABEL LOCATION EXHIBIT 6........FRONT VIEW EXTERNAL PHOTOGRAPH EXHIBIT 7........REAR VIEW EXTERNAL PHOTOGRAPH EXHIBIT 8........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 9........INTERNAL COPPER SIDE PHOTOGRAPH EXHIBIT 10.......TEST SET UP PHOTO EXHIBIT 11.......OCCUPIED BANDWIDTH PLOT - 49.86 MHz TX EXHIBIT 12.......OCCUPIED BANDWIDTH PLOT - 49.405 MHz TX EXHIBIT 13.......CIRCUIT DESCRIPTION APPLICANT: BOXER TOYS CO., LTD. FCC ID: KT6B2199 REPORT #: T:\cus\B\BOXER\545AZ0\545AZ0RPT.doc TABLE OF CONTENTS APPLICANT: BOXER TOYS CO., LTD. FCC ID: KT6B2199 TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3.___Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 5.___Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 6.___Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7.___18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8.___Horn 40-60GHz: ATM Part #19-443-6R 9.___Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 10.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 11.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 12.___Peak Power Meter: HP Model 8900C, S/N 2131A00545 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 15.___Signal Generator: HP 8614A, S/N 2015A07428 16.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/10/00 17.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 18.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 19.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 20.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 21.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 TEST PROCEDURES GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 80otemperature and a humidity of 55%. APPLICANT: BOXER TOYS CO., LTD. FCC ID: KT6B2199 REPORT #: T:\cus\B\BOXER\545AZ0\545AZ0RPT.doc PAGE #: 1 TEST PROCEDURES CONTINUED APPLICANT: BOXER TOYS CO., LTD. FCC ID: KT6B2199 FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 80 with a humidity of 55 %. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continu- ous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. APPLICANT: BOXER TOYS CO., LTD. FCC ID: KT6B2199 REPORT #: T:\cus\B\BOXER\545AZ0\545AZ0RPT.doc PAGE #: 2 APPLICANT: BOXER TOYS CO., LTD. FCC ID: KT6B2199 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M * Harmonics must be less than the fundamental. TEST DATA: EMISSION METER READING COAX ANTENNA FIELD FREQUENCY AT 3 METERS LOSS CORRECTION STRENGTH MARGIN ANT. MHz dBuV dB FACTOR dB dBuV/m@3m dB POL. 49.86 38.00 0.25 10.99 49.24 30.76 V 99.70 24.60 0.80 8.39 33.79 9.71 H 149.50 25.50 0.80 16.90 43.20 0.30 H 199.40 7.80 0.90 12.66 21.36 22.14 H 249.30 20.90 1.20 13.35 35.45 10.55 H 299.10 9.10 1.40 15.64 26.14 19.86 H 349.00 8.60 1.40 15.52 25.52 20.48 V 398.80 12.90 1.40 16.97 31.27 14.73 H 448.70 4.50 1.60 18.12 24.22 21.78 H 498.60 0.60 1.60 19.27 21.47 24.53 V SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emiss…
