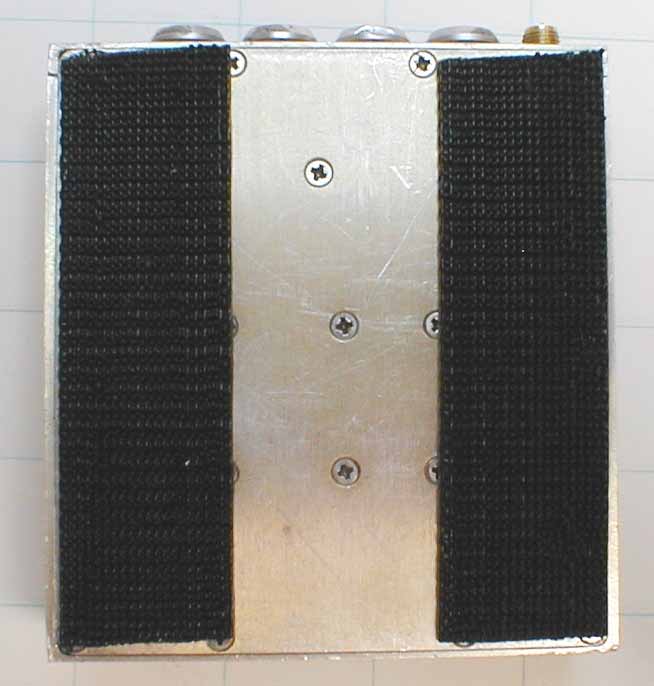

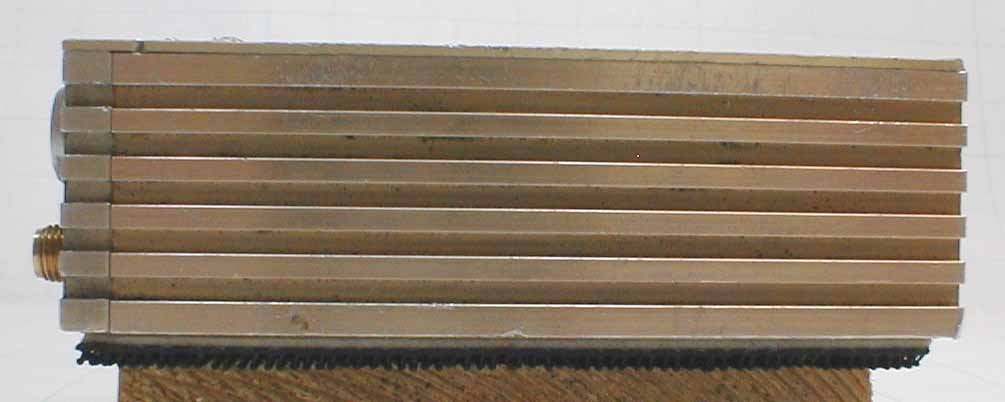

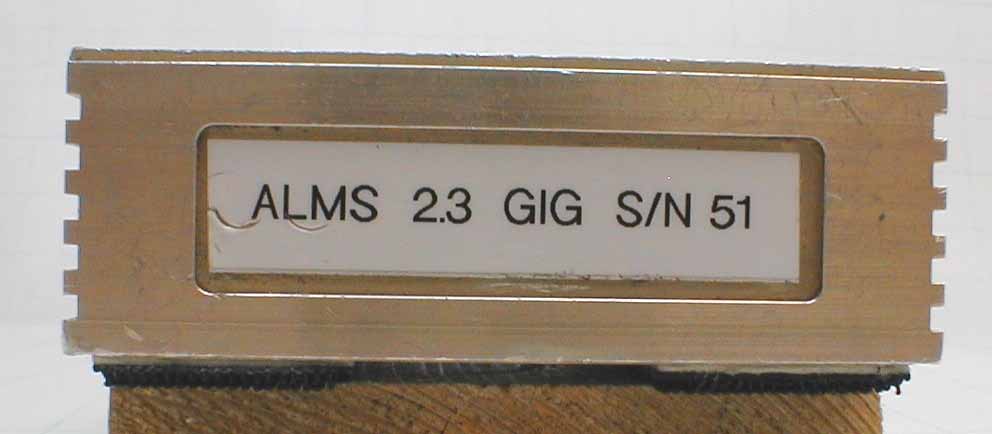

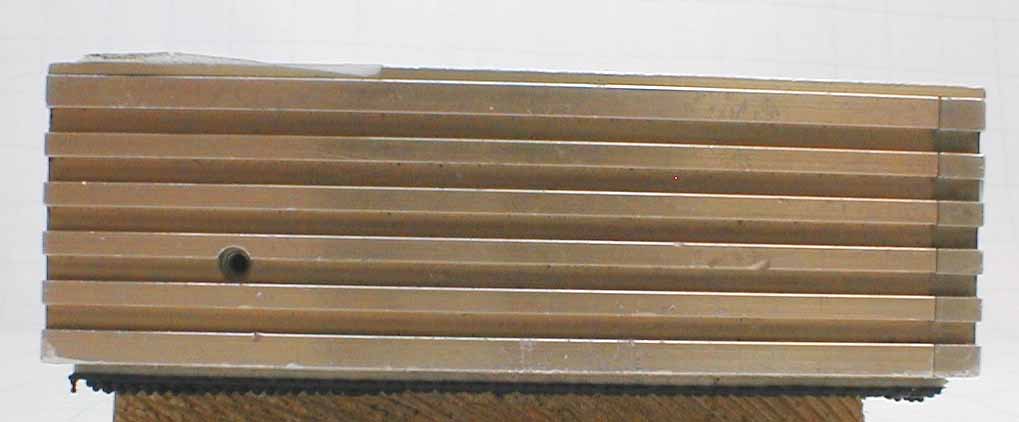

KTB-HUB97Video Transmitter

Broadcast Sports Inc 1360 Blair Drive Suite A Odenton MD 21113 (410) 672 3900 HUB97 Theory of Operation Version 0.1 5/13/2004 N. Pederson 2 Revision History Version Date Author Comments 0.1 04/19/2004 N. Pederson First Draft Changes or modifications not expressly approved by the manufacture could void the user's authority to operate the equipment. Broadcast Sports Inc Model HUB97 FCC ID: KTB-HUB97 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Broadcast Sports Inc Model HUB97 FCC ID:KTB-HUB97 3 INTRODUCTION The HUB97 is a portable video transmitter specifically designed to meet the growing needs of the mobile television broadcast industry. The unit is TYPE ACCEPTED per CFR 47, Part 74, Subpart F and functions as a stand alone transmitter for a TV ENG station. The transmitter has 16 preset channels including those in the RF ENG 2.0 GHz. and 2.5 GHz. bands as well as 2 channels in the 2.3 GHz. band. Optionally, the device can be factory tuned to any frequency between 1999 to 2500 Mhz in 250 kHz steps in accordance with FCC specifications. The HUB97 features several capabilities which make it an ideal building block for a modular system requiring high density packaging. Four NTSC video inputs allow the user to easily switch between four video sources with no transmission delays. Additionally, a programmable audio sub carrier provides for the transmission of voice or telemetry. An RS-422 interface enables the unit to be remotely operated and provides control of all internal functions and status monitoring. The units small size and functional interface make it readily chassis mountable. HUB97 FRONT VIEW Note: When the top LED is illuminated, valid RS-422 data is being received. RF out DC In 4 X Video Inputs Audio 1 In Remote control Data Audio 2 In Lock Data LED 4 When the bottom LED is illuminated, the RF power amp is enabled. HUB97 Transmitter Specification TYPICAL SPECIFICATIONS Video Characteristics Video Input Frequency DC to 5.5 Mhz. Video Input Impeadence 75 ohms unbalanced Video Input Level 1 Volt p-p Video Pre-emphasis CCIR 405-1 525 Audio Characteristics Channel 1 and 2 Audio Bandwidth 20 to 15 kHz Audio Input Impeadence 24k ohms Audio Pre-emphasis 50 microseconds Sub crrier Deviation 150 kHz @ 1000 Hz Sub Carrier Frequency 4 Mhz. to 7 Mhz. in 10 kHz steps Video Performance Differential Phase less than 1 deg. Differential Gain less than 1% Frequency Response - 1dB at 5.5 Mhz Signal to Noise 63 dB unweighted RF Charateristics Video Deviation 8 Mhz/Volt p-p @ 761.6 kHz Frequency Stability +/- .005 % Frequency Range 1.99 Ghz to 2500 Ghz in 250 Khz steps RF output Power +32 dBm ( 1.5 Watts) typ. General Characteristics Operating Temperature -10 to +50 o C, output inhibited below -10 o C Power Requirements +11.6 to 15 Vdc @ 0.75 amps

Broadcast Sports Inc 1360 Blair Drive Suite A Odenton MD 21113 (410) 672 3900 HUB97 User Manual Version 0.1 5/13/2004 N. Pederson 2 Revision History Version Date Author Comments 0.1 04/19/2004 N. Pederson First Draft Changes or modifications not expressly approved by the manufacture could void the user's authority to operate the equipment. Broadcast Sports Inc Model HUB97 FCC ID: KTB-HUB97 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Broadcast Sports Inc Model HUB97 FCC ID:KTB-HUB97 3 INTRODUCTION The HUB97 is a portable video transmitter specifically designed to meet the growing needs of the mobile television broadcast industry. The unit is TYPE ACCEPTED per CFR 47, Part 74, Subpart F and functions as a stand alone transmitter for a TV ENG station. The transmitter has 16 preset channels including those in the RF ENG 2.0 GHz. and 2.5 GHz. bands as well as 2 channels in the 2.3 GHz. band. Optionally, the device can be factory tuned to any frequency between 1999 to 2500 Mhz in 250 kHz steps in accordance with FCC specifications. The HUB97 features several capabilities which make it an ideal building block for a modular system requiring high density packaging. Four NTSC video inputs allow the user to easily switch between four video sources with no transmission delays. Additionally, a programmable audio sub carrier provides for the transmission of voice or telemetry. An RS-422 interface enables the unit to be remotely operated and provides control of all internal functions and status monitoring. The units small size and functional interface make it readily chassis mountable. HUB97 FRONT VIEW Note: When the top LED is illuminated, valid RS-422 data is being received. RF out DC In 4 X Video Inputs Audio 1 In Remote control Data Audio 2 In Lock Data LED 4 WARNING: The HUB97 Transmitter antenna must be installed in a manner that ensures a minimum separation distance of 20 centimeters between the antenna and the driver.
